Shure UA874US Active Directional Antenna

SKU: E-3-1103

Brand:
Shure

Category:
Pro-Audio

Sub-Category:

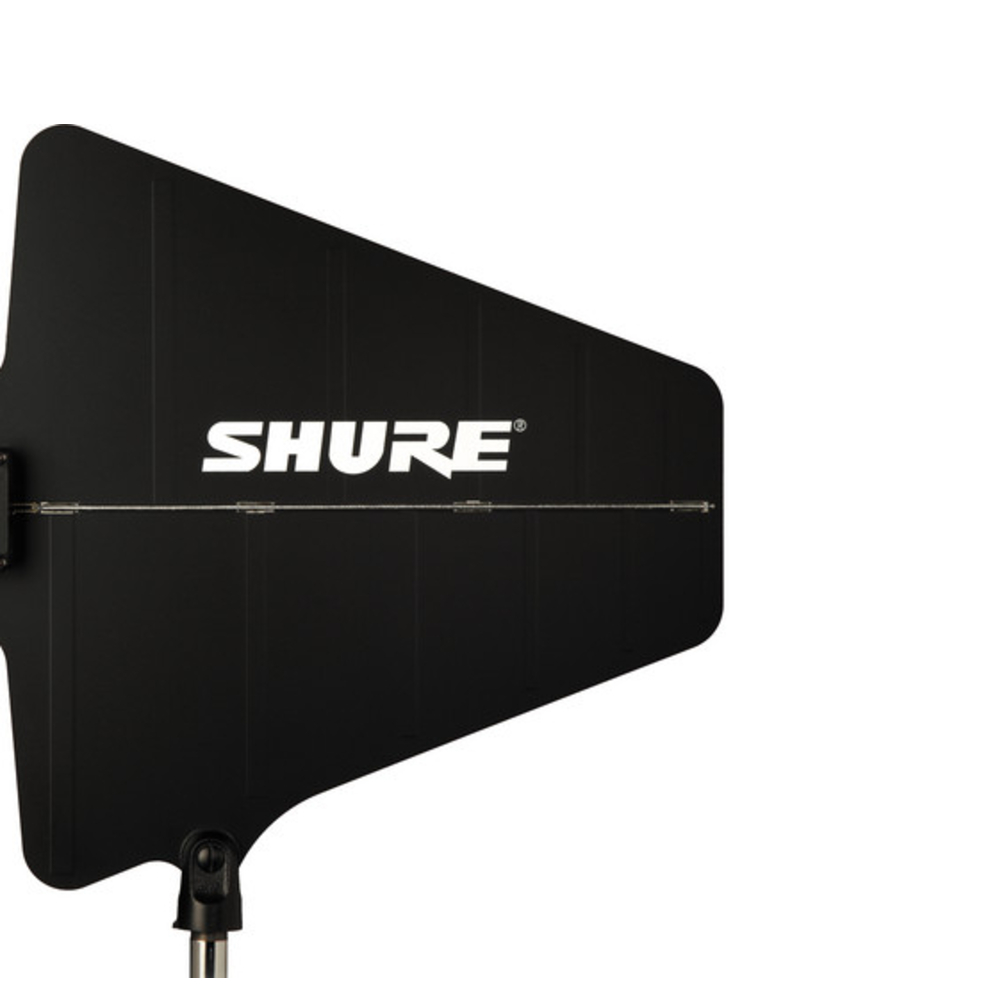

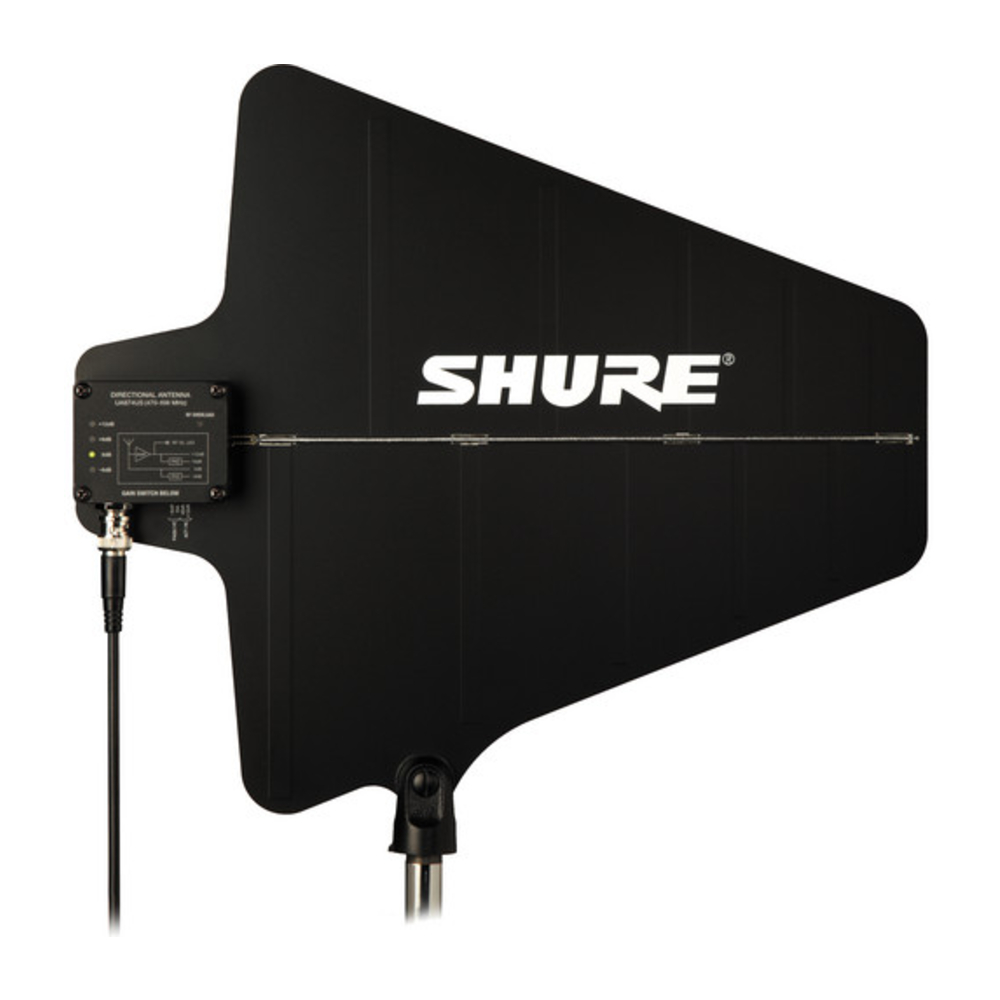

The Shure UA874US is an active log-periodic antenna that improves reception for wireless microphone systems by providing directional RF coverage. It operates within the 470–698 MHz frequency range and features a built-in amplifier with switchable gain settings to compensate for signal loss from cable runs.

PHP 26,900.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

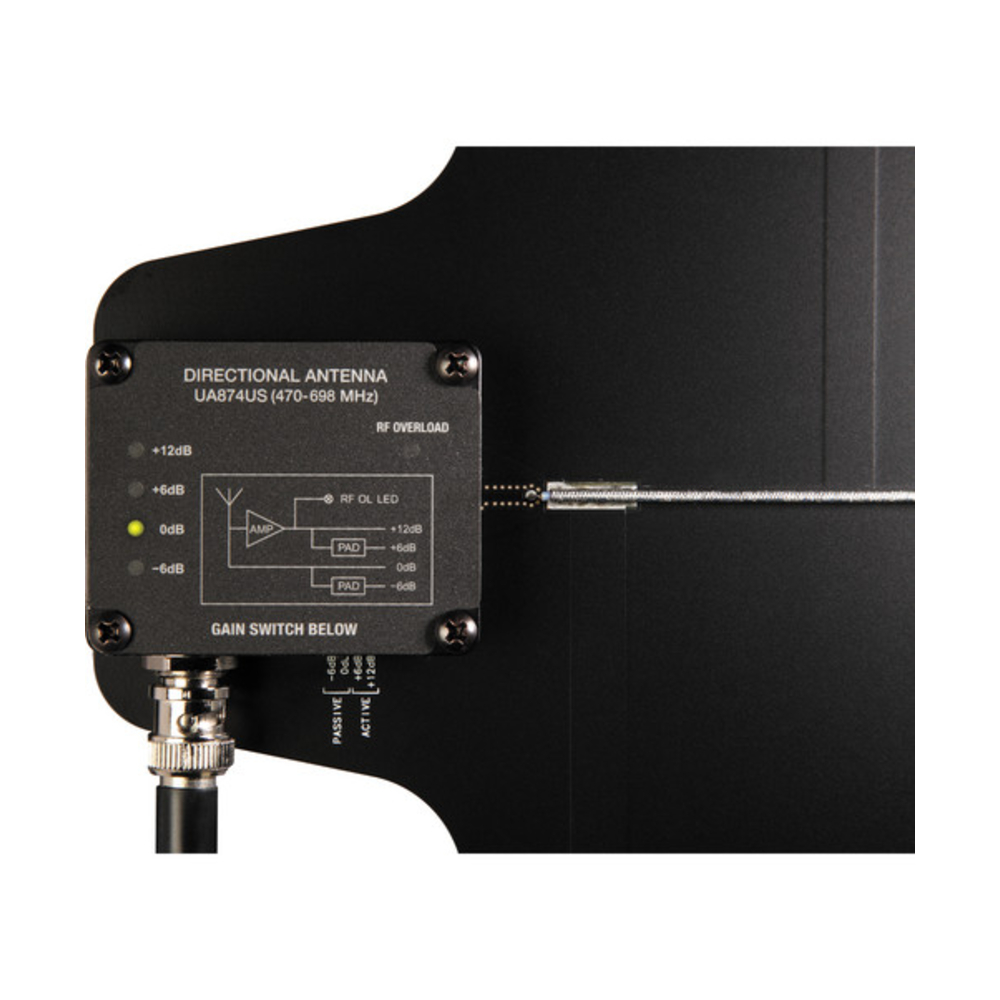

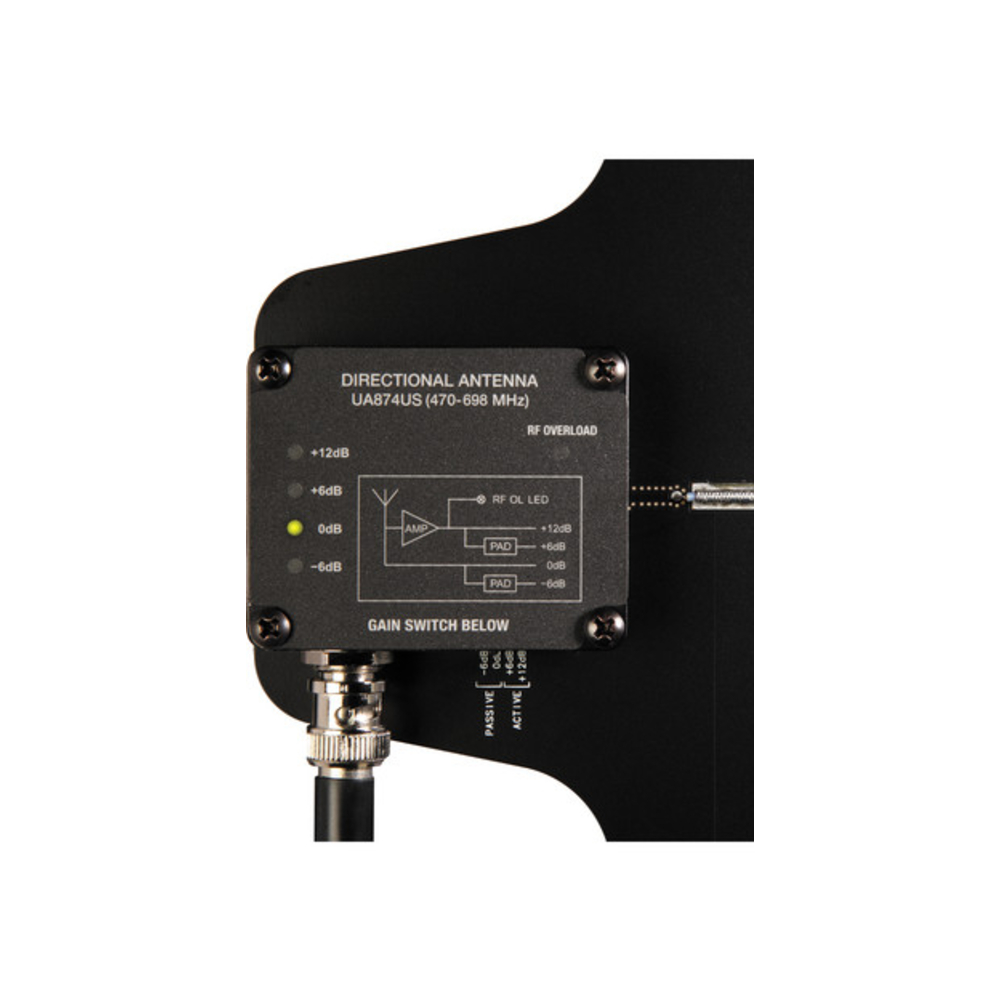

The Shure UA874US is an active log-periodic antenna that improves reception for wireless microphone systems by providing directional RF coverage. It operates within the 470–698 MHz frequency range and features a built-in amplifier with switchable gain settings to compensate for signal loss from cable runs. The antenna mounts easily on stands or walls and connects via a standard BNC connector.

Features

  • Active directional UHF antenna for improved reception
  • Switchable gain: +6 dB, 0 dB, –6 dB, and –12 dB settings
  • Built-in amplifier to counteract cable loss
  • Compatible with Shure wireless systems and most other UHF receivers
  • Mounting adapter included for mic stand or wall installation
  • Standard BNC connector for easy integration
  • Reduces multipath interference and boosts signal clarity

Frequency Range: 470–698 MHz
Antenna Type: Log-periodic, active
Impedance: 50 Ω
Power Requirements: 12–15 V DC (supplied from receiver or external PSU)
Gain Settings: +6, 0, –6, –12 dB
Connector Type: BNC
Mounting Options Stand or wall mount
