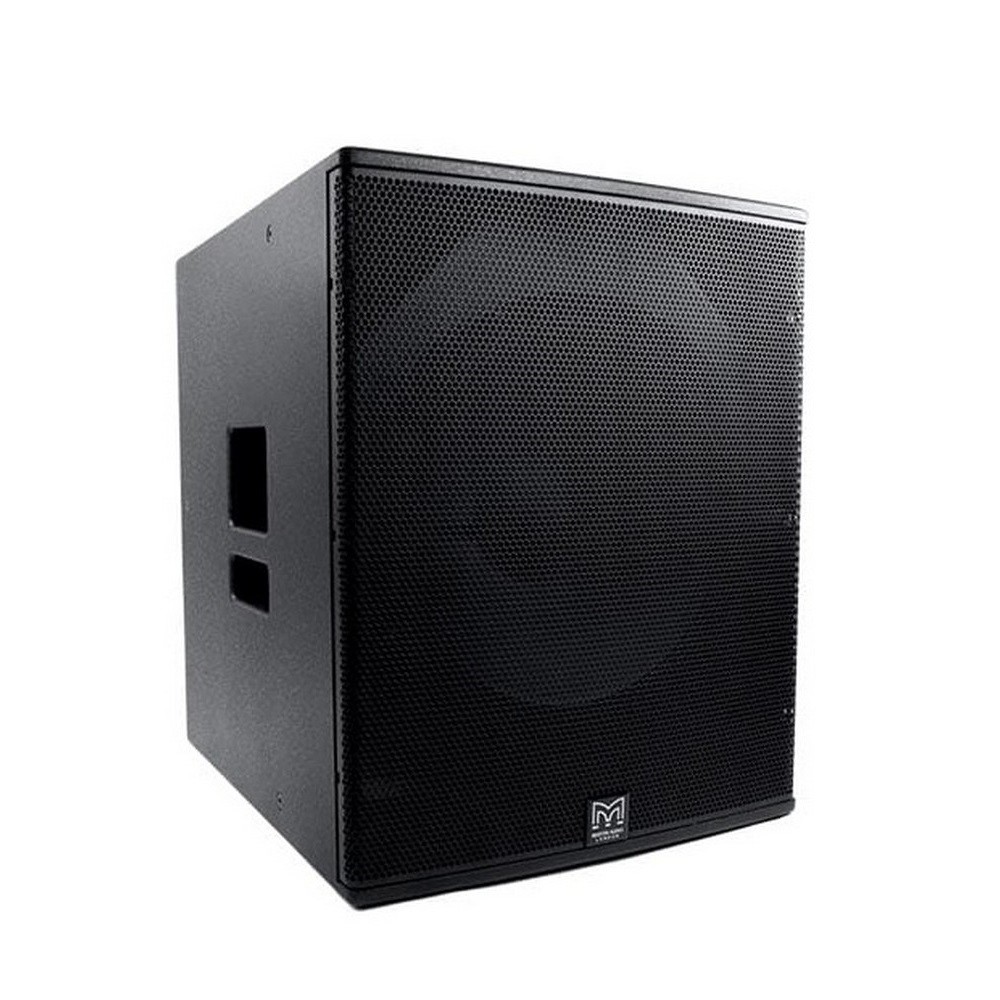

Martin Audio X118 Blackline 18-inch Compact Subwoofer

SKU: E-5-806

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Subwoofers

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18 inch (460mm)/3 inch (75 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

PHP 71,500.00

PHP 64,350.00

This product is currently out of stock.

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18 inch (460mm)/4 inch (100 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

Compact, direct-radiator subwoofer
1 x 18 inch (460mm) driver with 4 inch (100mm) voice coil
Large ports for reduced air noise
Perforated steel grille
35mm pole-mount socket
8Ω nominal impedance
M10 flying inserts

TYPE: Compact, direct radiating subwoofer
FREQUENCY RESPONSE (5): 42Hz-150Hz ± 3dB, -10dB @ 36Hz
DRIVER: 18 inch (460mm)/4 inch (100mm) voice coil, long excursion, ferrite magnet
RATED POWER (2): 800W AES, 3200W peak
SENSITIVITY (8): 101dB
MAXIMUM SPL (9): 130dB continuous, 136dB peak (half space)
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6DB): Omnidirectional
CROSSOVER: 80-120Hz active
ENCLOSURE: Birch/poplar ply
FINISH: Black textured paint
PROTECTIVE GRILLE: Black perforated steel
CONNECTORS: 3 x NL4 type
PIN CONNECTIONS (INPUT): 1+/1-
PIN CONNECTIONS (LINK): A: 1+/- to 1+/-, B: 2+/- to 1+/-
FITTINGS: 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors
DIMENSIONS: (W) 530mm x (H) 669mm x (D) 640mm
(W) 20.9ins x (H) 26.3ins x (D) 25.2ins
WEIGHT: 42kg (92.6lbs)
