Audio-Technica ATUC-50CU Control Unit

SKU: E-6-436

Category:
Recording

Sub-Category:

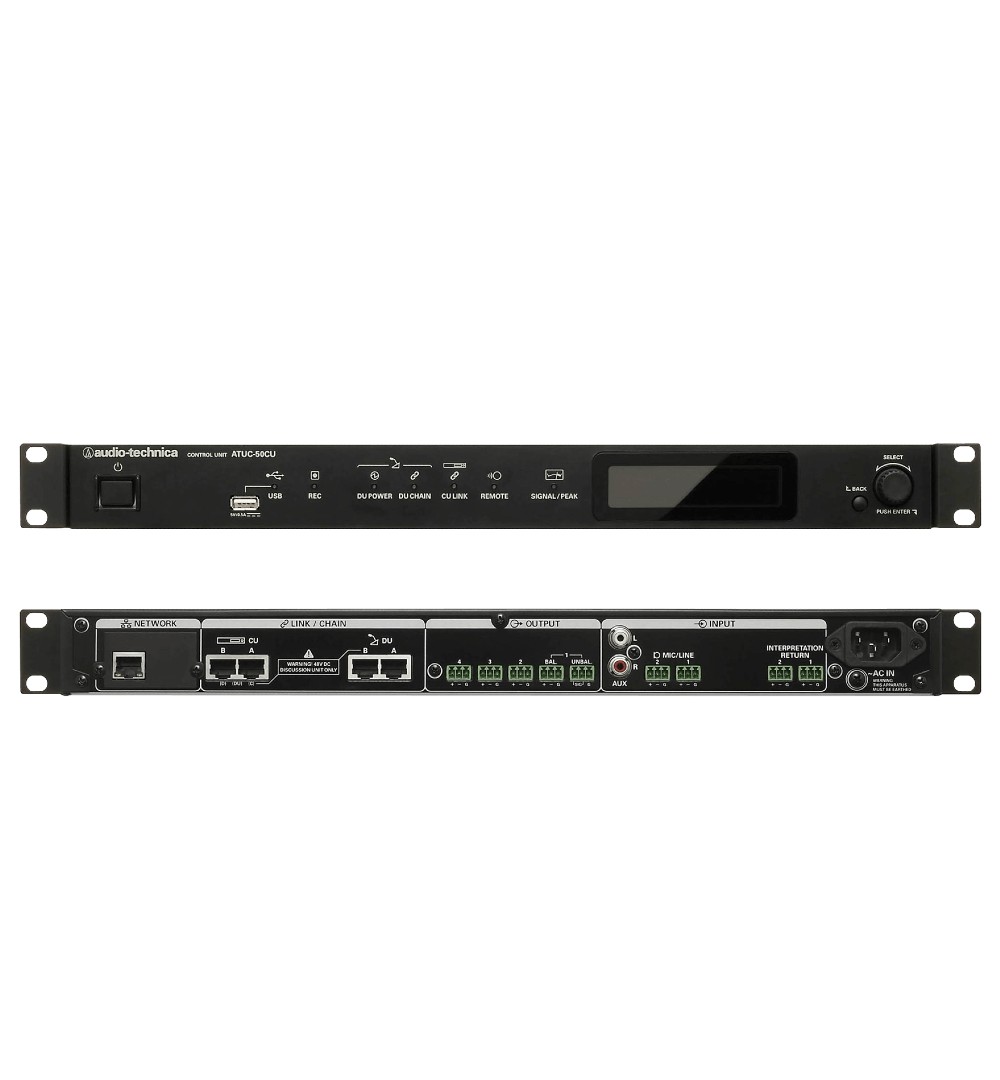

The ATUC-50CU is the control unit for the ATUC-50 Digital Wired Conference System. It's a rack-mountable control unit that drives the wired-only systems.

PHP 109,100.00

PHP 98,190.00

This product is currently out of stock.

It comes equipped with an audio recorder able record MP3 or WAV files, onto a connected USB mass storage device (2TB max. storage capacity), with a maximum file size 2GB. When the 2GB limit is reached, a new file can be created to continue recording. Up to 4 channels are available for recording WAV files; up to 2 channels are available for recording MP3s.

It features 24-bit / 48kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It offer several control methods: local, via the Web Remote interface (no software required), or through 3rd-party IP control systems. It provides 3 selectable conference modes (Free Talk, Request to Talk, and Full Remote) along with various override settings. It can record WAV and MP3 files onto a connected USB mass storage device.

Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs.

Features of the ATUC-50CU control unit include:

Powers up to 50 discussion units

Cascade capability to handle up to 150 discussion units

Conference mode: Free talk, request to talk and full remote

Built-in feedback suppressor and processing for optimal audio quality and intelligibility

Fully digital system with future-proof upgrade capability

Built-in 4 channels recording for up to 65,000 hrs on USB

4 balanced outputs plus output 1 mirrored to unbalanced output

2 Mic/Line In + 2 Aux In + 2 Return In

2 Return In channels handle floor + 2 additional langauges

Connection Inputs: MIC/LINE x 2, AUX (ST), Interpretation Return x 2 Outputs: Balanced x 4, Unbalanced x 1 LINK/CHAIN: DU A/B terminals, CU A/B terminals (DU C/D terminals)
