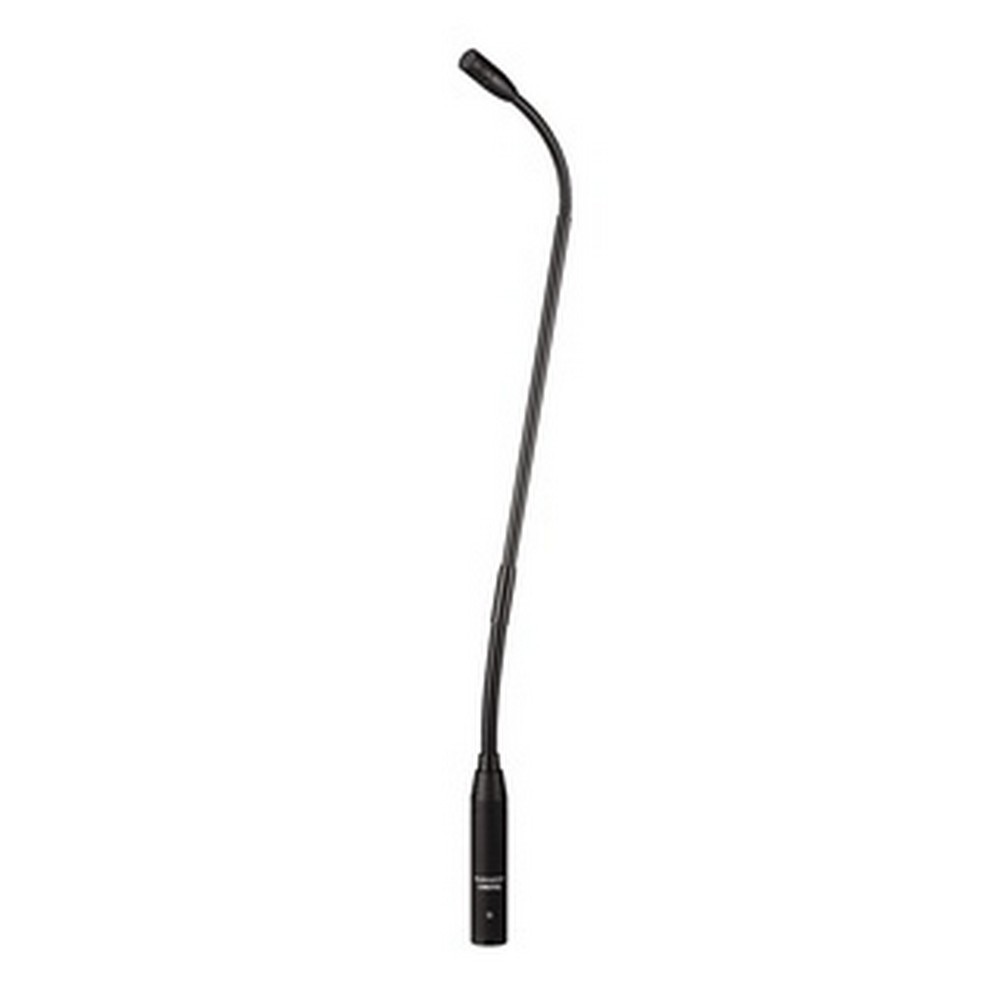

Audio-Technica U857QL Cardioid Condenser Quick-Mount Gooseneck Microphone

SKU: E-6-408

Category:
Pro-Audio

Sub-Category:
Microphones

The U857Q is a wide-range condenser microphone with a cardioid polar pattern. It is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications.

PHP 20,500.00

PHP 17,425.00

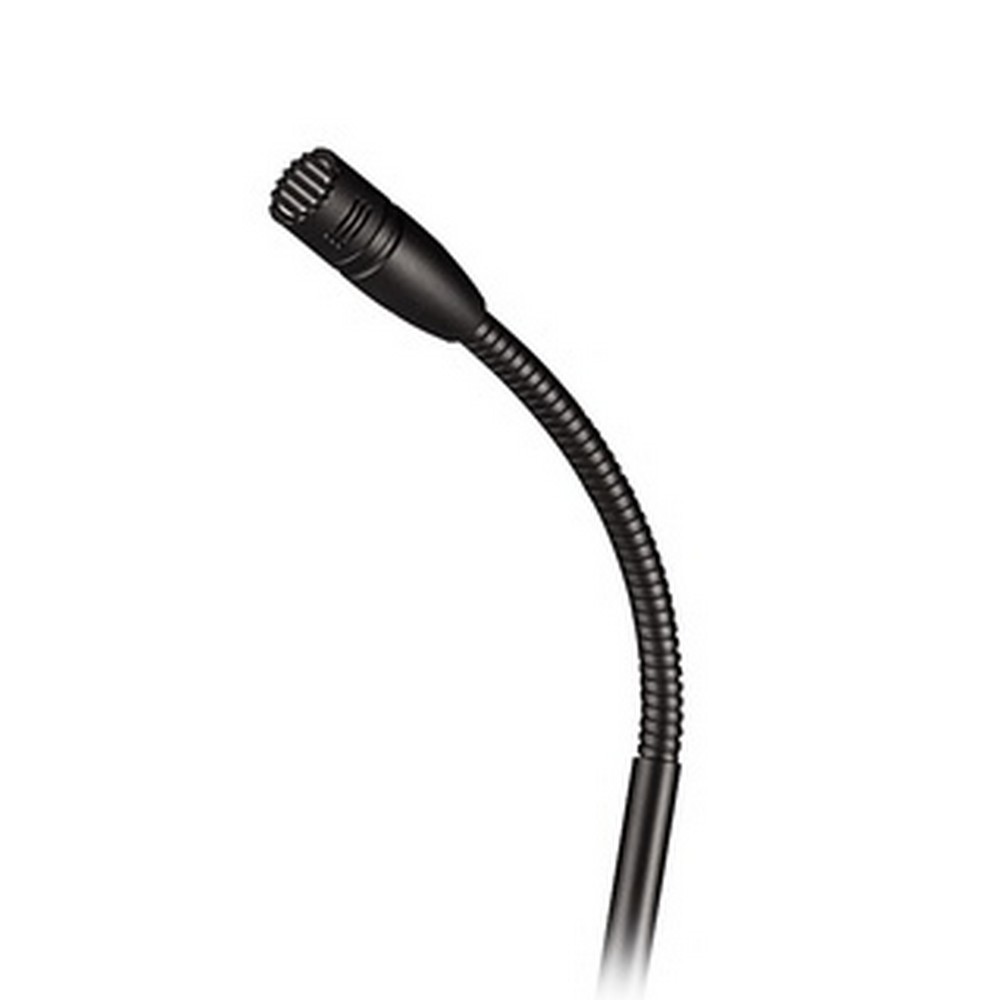

The small-diameter double gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance. The U857Q stands 365.0 mm (14.37") from the table or podium; it is also available in a 481.0 mm (18.94") version as U857QL. The two models are identical in all other respects. The microphone requires 11V to 52V phantom power for operation. The microphone is equipped with UniGuard RFI-shielding technology, which offers outstanding rejection of radio frequency interference (RFI). The microphone's cardioid polar pattern provides a 120° angle of acceptance.

Additional interchangeable elements with omnidirectional (360°), hypercardioid (100°) and UniLine (90°) pickup patterns are available. An XLRM-type connector insert at the base allows the microphone to be plugged directly into an XLRF-type panel jack or microphone cable. A recessed switch permits choice of flat response or low-frequency rolloff (via integral 80 Hz high-pass UniSteep filter) to help control undesired ambient noise. The microphone comes equipped with a two-stage foam windscreen and a shock mount designed to attenuate noise, shock and vibration transmitted through the mounting surface. The microphone is enclosed in a rugged housing with a low-reflectance black finish. Installation and Operation The U857Q requires 11V to 52V phantom power for operation. Output is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is Pin 2 hot positive acoustic pressure produces positive voltage at Pin 2.

The microphone can be mounted in a permanent installation (on a lectern, pulpit, conference table or similar surface) with the included AT8662 shock mount. The AT8662 effectively isolates the microphone from noise, shock and vibration transmitted through the mounting surface and eliminates pickup of low-frequency resonances caused by mechanical coupling. The provided two-stage foam windscreen simply slips over the head of the microphone, effectively reducing wind noise or popping. An integral 80 Hz high-pass UniSteep filter provides easy switching from a flat frequency response to a low-end roll-off. The roll-off position reduces the microphone's sensitivity to popping in close vocal use. It also reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations. To engage the UniSteep filter, use the end tip of a paperclip or other small pointed instrument to slide the switch toward the bent line. Avoid leaving the microphone in the open sun or in areas where temperatures exceed 110° F (43° C) for extended periods. Extremely high humidity should also be avoided.

Features:
Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
Superior off-axis rejection for maximum gain before feedback
UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no memory permits quick positioning into desired shape
UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Available interchangeable elements permit angle of acceptance from 90° to 360°
Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface.

Microphones:
Element: Fixed-charge back plate, permanently polarized condenser
Frequency Response: 30-20,000 Hz
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: -39 dB (11.2 mV) re 1V at 1 Pa
Maximum Input Sound Level: 139 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 115 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 70 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Switches: Flat, roll-off
Weight: 5.1 oz (144 g)
Dimensions: 18.94" (481.0 mm) long (U857QL), 14.37" (365.0 mm) long (U857Q) , 0.48" (12.2 mm) head diameter, 0.74" (18.9 mm) base diameter
Output Connector: Integral 3-pin XLRM-type

Optional Interchangeable Elements: UE-C cardioid (120°); UE-H hypercardioid (100°); UE-O omnidirectional (360°)

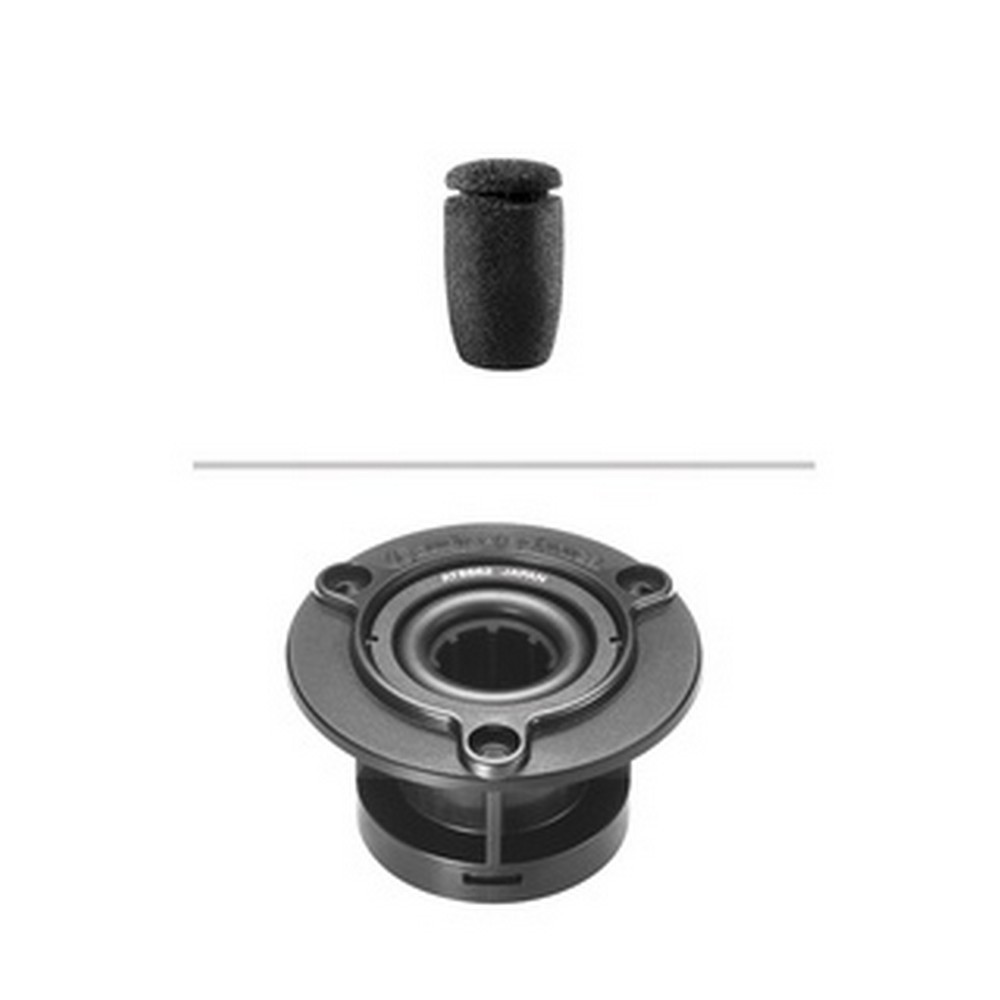

Accessories Included: AT8153 two-stage foam windscreen; AT8662 shock mount

Audio-Technica Case Style M34
