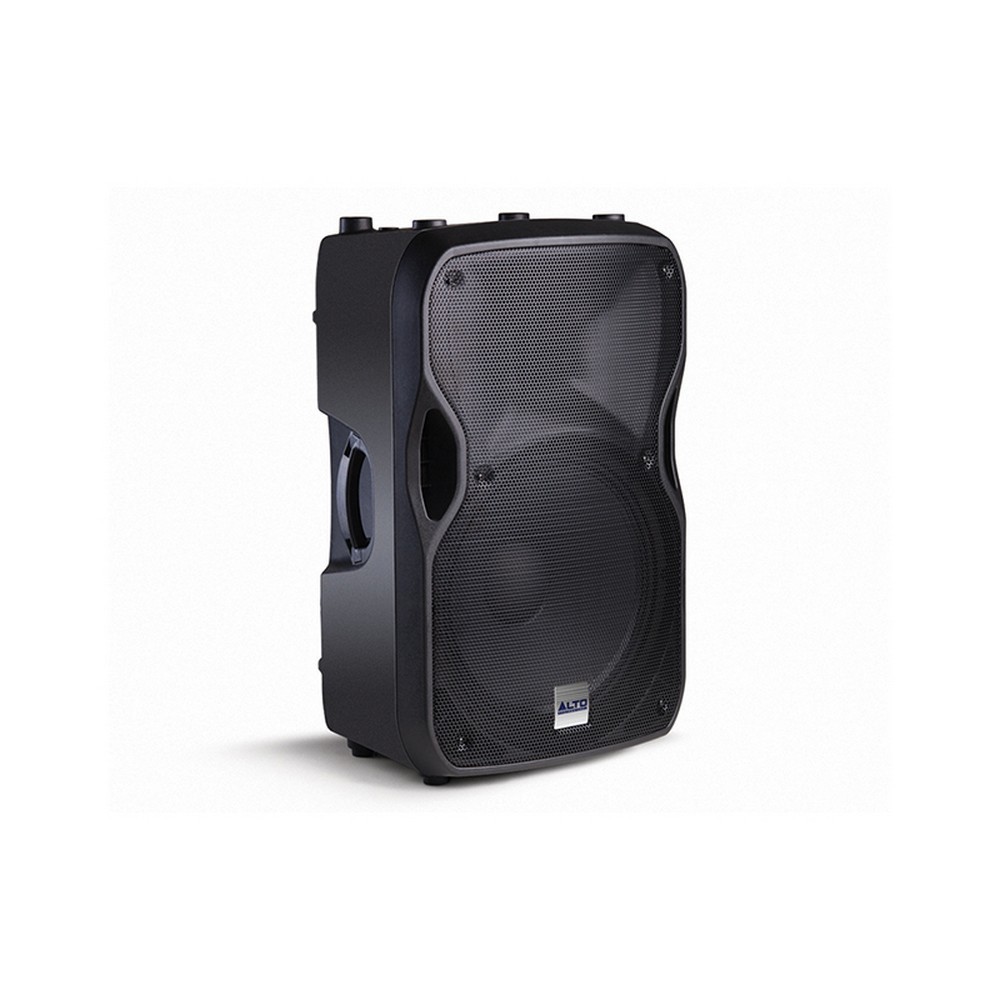

Alto TS112 12-inch 800-watts Passive PA Speaker

SKU: E-5-669

Brand:
Alto

Category:
Pro-Audio

Sub-Category:
Speakers

The Alto TS112 Passive 800W 2-Way 12" Loudspeaker cabinet has been designed with versatility and longevity in mind. It features a durable, lightweight polypropylene enclosure that is stand mountable for weekend gigs and flyable for more permanent installations.

PHP 13,050.00

PHP 7,830.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The loudspeaker features a trapezoidal design which greatly decreases the resonance of the standing wave in the cabinet for a true and exact sound reproduction. The loudspeaker is suitable for musicians and DJs on the move, halls, malls, and houses of worship alike.

The drivers in the loudspeaker are designed to make sure that virtually no energy is wasted. That translates to more of the power from the amplifier actually working to generate sound rather than heat, giving better performance than other speakers. The loudspeaker features a 12"" LF driver, 2.5"" voice coil, and a 1"" HF driver (Neodymium Driver).

Features:

800 Watt peak power rating
400 Watts program / 200 Watts continuous
Dual electronic driver protection circuits
Compact, lightweight design, trapezoidal cabinet design for easy transport and installation
Used as traditional loudspeaker or as floor wedge monitor
Two parallel Speakon NL4 jacks for input and through connection
Stand and pole-mountable or flyable
Designed and tuned in the USA

Specifications:

Power System: 200 W continuous / 400 W Program / 800 W Peak
Frequency Response (-10dB): 52 Hz-18 kHz
Sensitivity (1w @ 1mt): 96 dB SPL
Impedance: 8 ohms (nominal)
Maximum SPL @ 1m: 119 dB continuous / 127 dB peak
Coverage ( HxV ): 80° / 100°x 60° nominal
Transducer Low: 12" Woofer, 2" voice coil
Transducer High: 1" Neodymium Driver
Passive Crossover: 2.2 kHz at 12 dB / oct, with HF protection
Enclosure Construction: Trapezoidal, with floor monitor capability. Injection molded, polypropylene enclosure, with perforated steel grille
Input Connectors: Two Parallel SPK NL-4 for Input/ Thru
Mounting: Integrated Std. pole-mount / two handle / two eyebolt point
Dimensions (WxLxH): 648mm x 383.8mm x 365mm
Weight: 36.2 lb

Customer Reviews

No Reviews / Ratings
