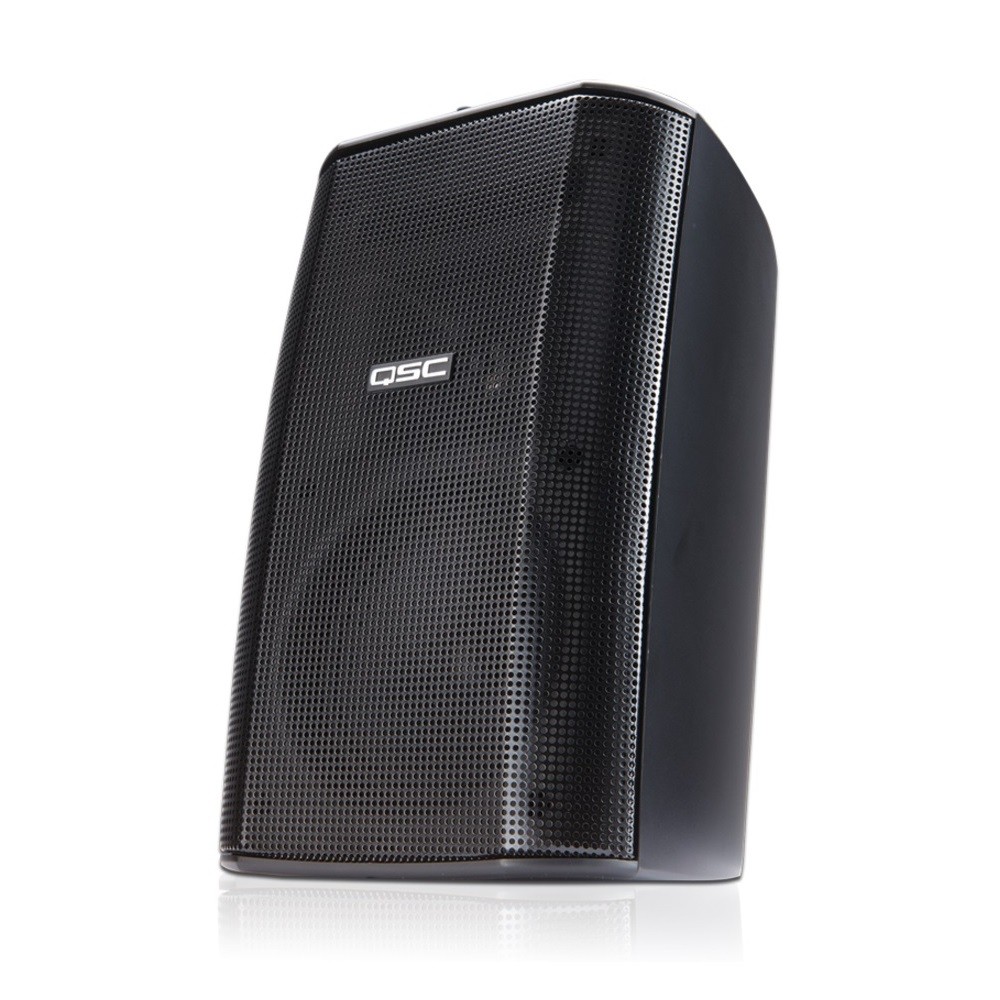

QSC AD-S52 Acoustic Design Surface Mount Loudspeaker

SKU: E-5-584

Brand:
QSC

Category:
Pro-Audio

Sub-Category:
Speakers

The QSC Acoustic Design AD-S52 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, convention facilities, and multimedia environments.

PHP 11,500.00

PHP 6,900.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The loudspeaker's low-frequency driver is magnetically shielded, making the AD-S52 perfect for use near video monitors. Available in black or white, these great sounding, weather resistant enclosures can be painted to match any specific decor. The AD-S52 is a high output, 2-way design incorporating a 5.25" weather proof, LF transducer and a 1" neodymium tweeter. This exceptional loudspeaker carries the added benefit of built-in dynamic power protection thus ensuring system reliability in the event of overload conditions. The AD-S52T models are equipped with a 70/100 volt matching transformer for distributed audio systems.

There is a transformer tap switch on the rear panel for setting the power level of the loudspeaker. This switch may also be set for 8 ohm operation, bypassing the transformer completely providing greater system flexibility compared to most competing products. The AD-S52 system package includes a ball mount assembly for convenient installation of the enclosure in a wide variety of orientations. If desired, the ball mount adapter's back plate can be removed, reducing the overall depth of the assembly and the footprint of the mount on the wall. Further, the assembly includes a weather resistant input connection cover to protect the 5-way binding post input terminals.

Configuration Compact two way, ported enclosure

Transducers
Low Frequency Transducer
High Frequency Transducer
5.25" shielded, weather-resistant
1" neodymium tweeter
Frequency Range 1
Frequency Response (±3 dB)
Useable Frequency Range (-10 dB)
75 Hz - 19 kHz
60 Hz - 20 kHz
Maximum Output 2
Continuous
Peak
104 dB SPL
110 dB SPL
Nominal Impedance 8 ohms
Power Rating 3 60 W (IEC, 100 hours)
Recommended Max Amp Power 120 W RMS
Sensitivity 4 86.5 dB, 2.83 V at 1 m, free field (4 pi)
Nominal Coverage 90° H x 90° V

TRANSFORMERS
Type n/a
Taps n/a

ENCLOSURE
Material Injection molded, weather resistant,
high impact polystyrene
Finish White or black (paintable)
Weather Resistance Yes
Grille Heavy duty powder coated aluminum
Connectors Pair of 5-way binding posts
Mounting Hardware Included ball mount assembly; available optional yoke mount
Product Dimensions
H x W x D 11.28" x 7.02" x 9.33"
286.5 mm x 178.3 mm x 211.6 mm
Weight 15 lb. (6.8 kg) net
22 lb. (10 kg) shipping
