Alto AX2304 Professional High-Precision Stereo 2-way / 3-way / Mono 4-Way Crossover

SKU: E-2-524

Brand:
Alto

Category:
Pro-Audio

Sub-Category:

With AX2304 you can command your signal with precision. It's a professional crossover with high-quality filters, rugged casing and the ability to operate in various configurations. AX2304 is a crossover you can trust to split your signal with razor-sharp accuracy for maximum sonic clarity and impact.

PHP 8,200.00

PHP 4,100.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

AX2304 is designed to enhance any live sound application. Use it in two-way stereo, three-way stereo or four-way mono configurations any way you go, AX2304 will deliver top audio performance and ultra-transparent sound thanks to its high slew-rate circuitry and dynamic range of more than115 dB. Linkwitz-Riley 24 dB-per-octave filters are onboard, contributing to AX2304's absolutely flat summed amplitude response with zero phase difference.

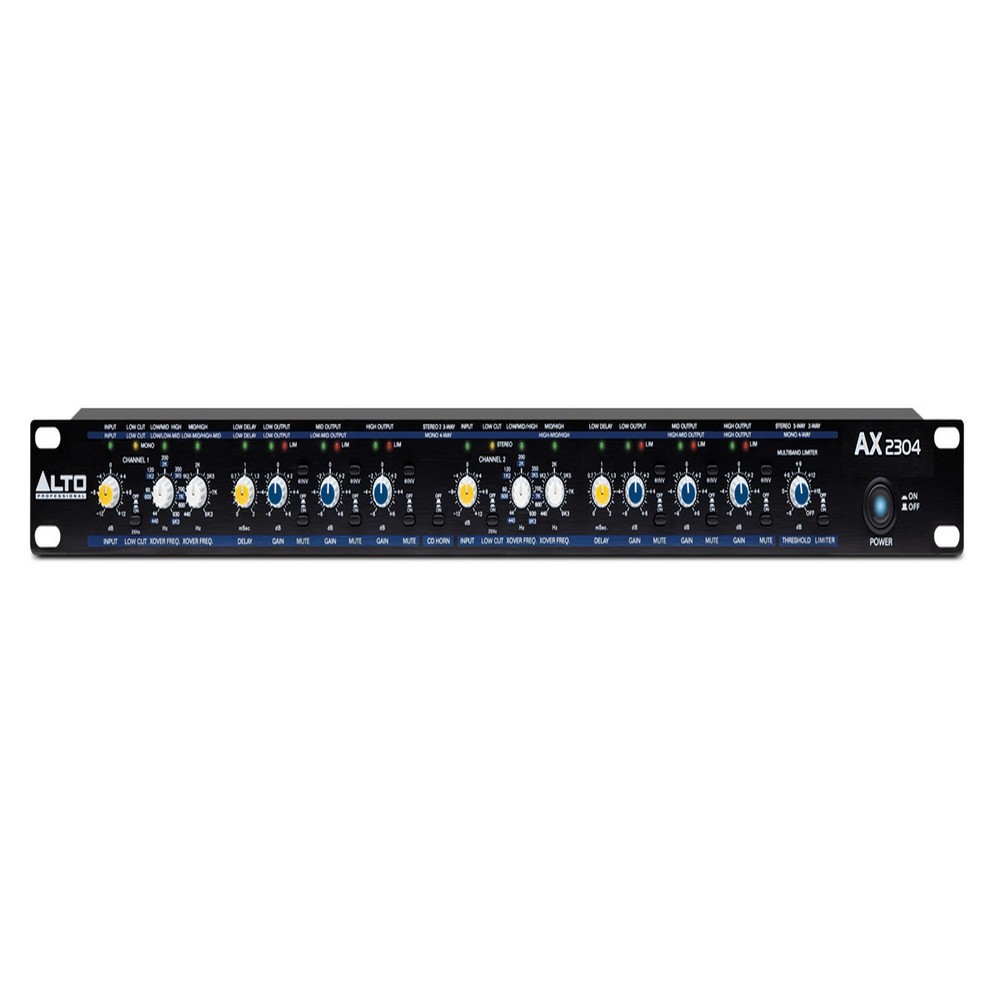

AX2304 is equipped with all the output controls you need: output level controls for each band, adjustable time delay for precise phase alignment, limiters on each output for optimal loudspeaker protection, and independent output mutes for easy band adjustment and balancing.

It's a professional crossover you can trust and has all the capabilities you need.

Features:

Absolutely flat summed amplitude response with zero phase difference
24 dB-per-octave Linkwitz-Riley filters
Individual output level controls for all bands
Limiters on each output for optimal loudspeaker protection
Independent output mutes for easy band adjustment
Individual phase reverse switches for instant phase correction
Switchable 25 Hz subsonic filter on each input for low-frequency driver protection
Low Sum function provides low-level mono output for subwoofer operation
Adjustable time delay for phase alignment between drivers
CD horn equalization for constant directivity horn compensation

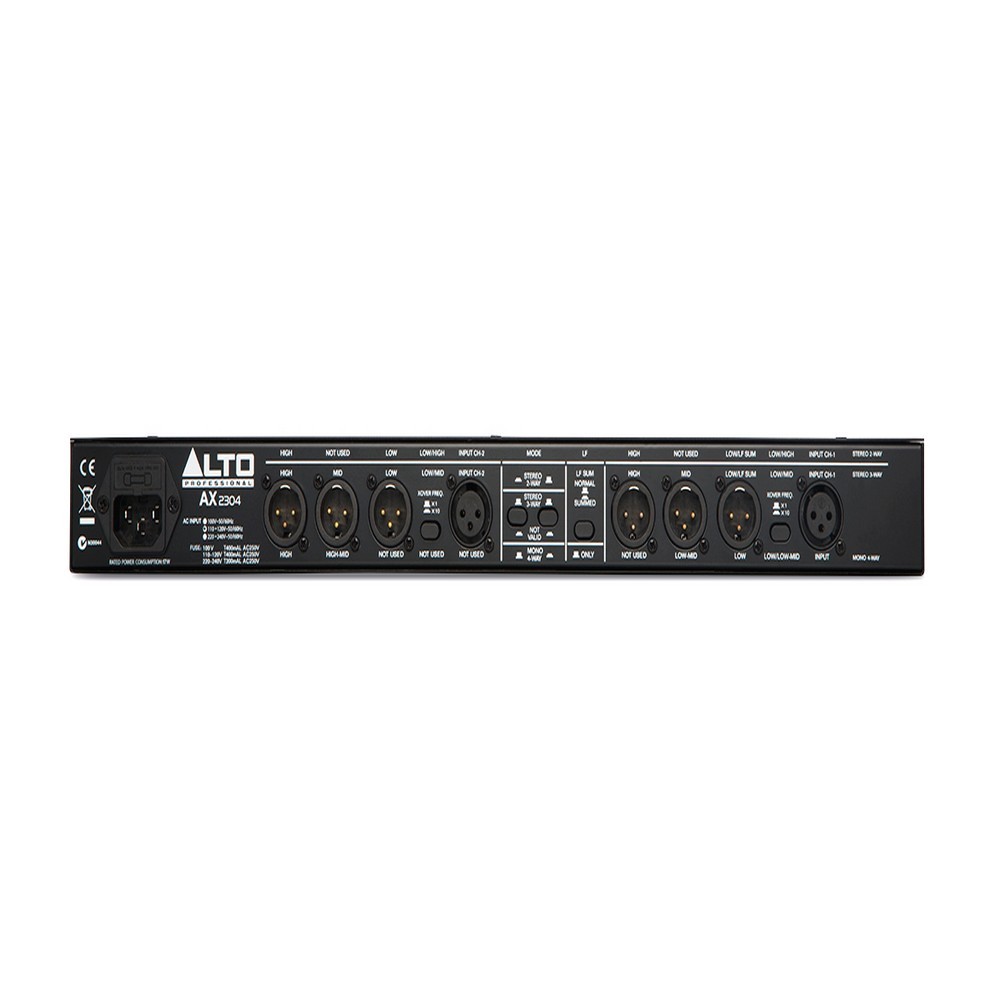

Servo-balanced, gold-plated XLR connectors for all inputs and outputs
Ultra-high-precision potentiometers for ultimate accuracy and repeatability
High-quality components and exceptionally rugged construction for long life and reliability
Shielded toroidal mains transformer for minimal noise interference

Product Highlights:

6 Balanced XLR Outputs
2 Balanced XLR Inputs
Gold-Plated XLR Connectors
Linkwitz-Riley Filters
Limiters on Outputs
Adjustable Time Delay
Phase Reverse
