Allen & Heath GLD-80 Digital Mixer

SKU: E-1-755

Brand:
Allen & Heath

Category:
Pro-Audio

Sub-Category:

GLD is a user-friendly, cost effective and scalable live digital mixing system, conceptually based on the hugely successful digital iLive series. Plug n play I/O expanders make it easy to build systems with up to 48 mic inputs, supported by a full suite of apps, software and personal monitoring solutions.

PHP 380,100.00

PHP 342,090.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

At the heart of the system is the GLD-80 mixer, providing 48 input processing channels, 8 stereo FX returns fed by our acclaimed FX emulations, 30 configurable buses, 20 mix processing channels, and DSP power to provide full processing without compromise. Now available in a new GLD Chrome Edition, with sleek new styling, Automatic Mic Mixing, new embedded plugin FX and new compressor models on all channels.

GLD-80 FEATURES

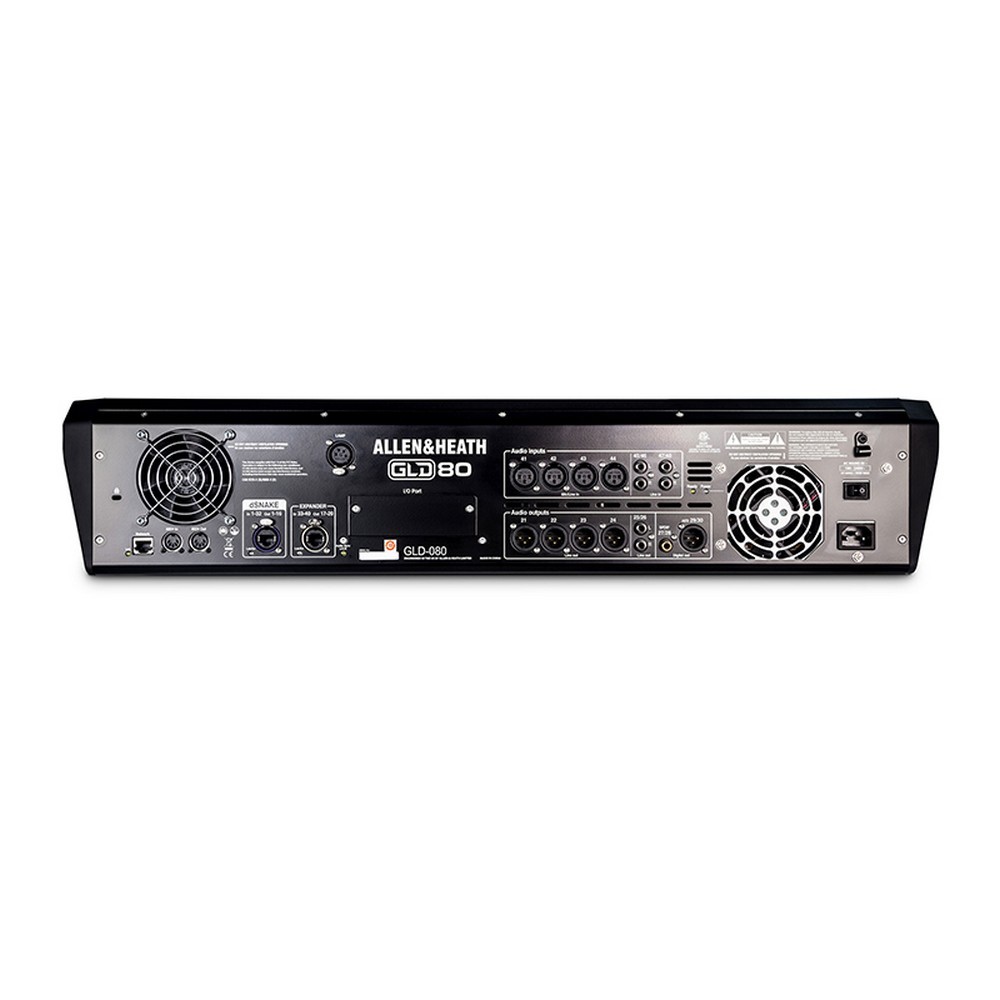

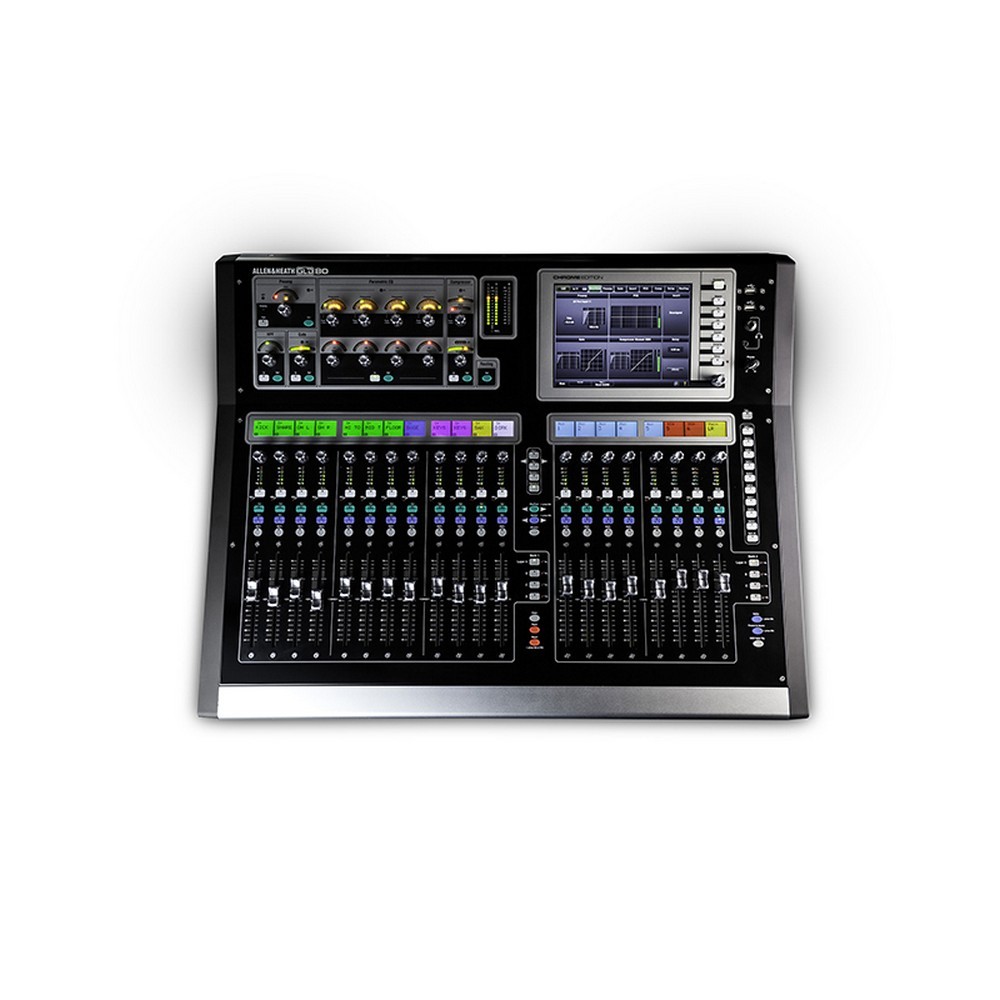

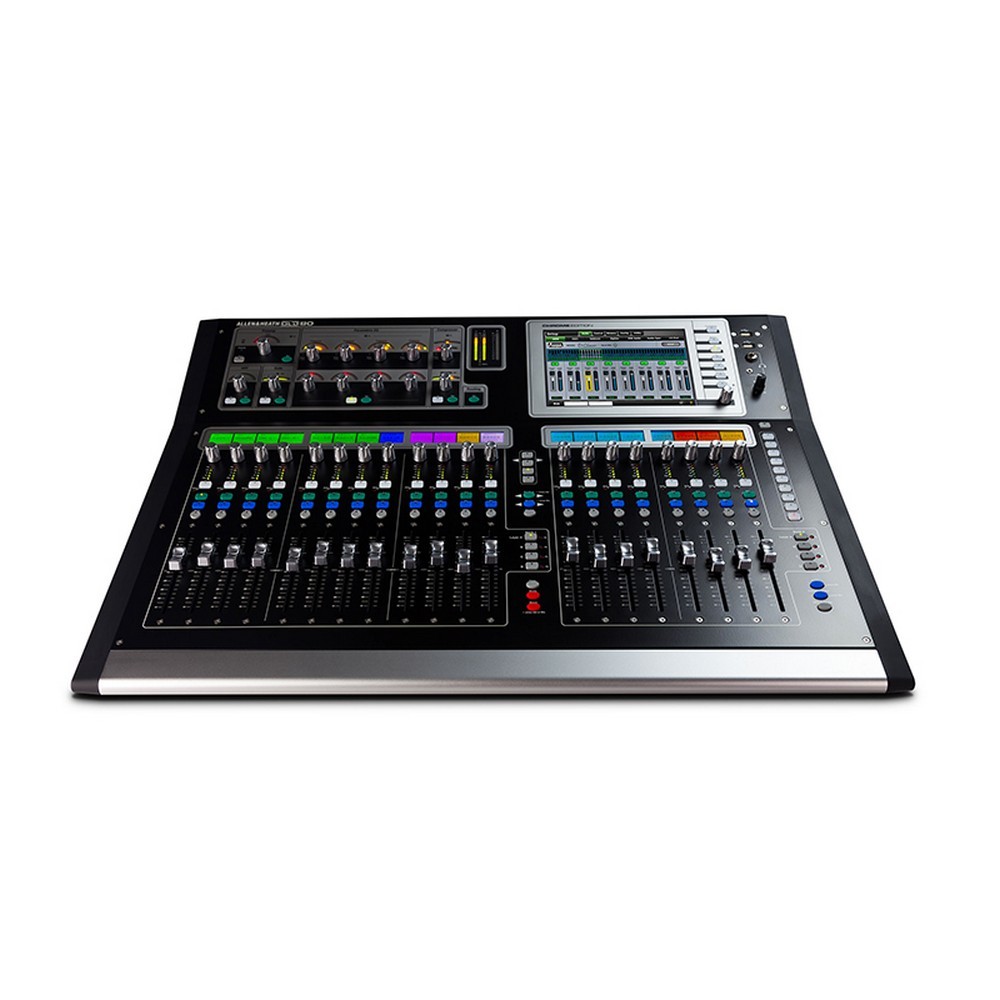

GLD-80 has an analogue-style channel processing control section complemented by a graphical 8.4 inch touch screen. A fully-customisable drag n drop layout allows quick and easy assignment of inputs and mixes to fader strips. There are 20 fader strips in 4 layers, each with motorised fader, a channel LCD display which can be named and colour-coded, plus a rotary control for direct access to gain, pan and aux/FX sends. The mixers local I/O comprises 4 XLR mic/line inputs, 4 XLR line outs, 4 RCA inputs, 2 RCA outputs, and digital outputs in SPDIF and AES3 formats.

GLD-80 connects to a range of plug n play I/O racks to build systems with up to 48 microphone inputs. A primary AR2412 or AB168 dSNAKE device, a secondary (daisy-chained) AB168 or AR84,anda furtherAR84 expander rack can allbe connected over 120m CAT5 runs using A&Hs dSNAKE protocol. dSNAKE provides control to the remote preamp, and automatic firmware updates to the AudioRacks. All dSNAKE ports are alsocompatible with the ME Personal Mixing System.

GLD has the ability to record and playback a stereo signal on a USB memory stick. Standard iLive audio I/O option cards for Dante, MADI, EtherSound and Allen & Heaths ACE protocols can be fitted, allowing multi-channel record/playback, FOH/monitor splits, and connection to A&H iLive systems, which can easily be configured using GLDs extensive soft-patching.

GLD offers 6 compressor models, all freely available on all input and mix channels. The models capture the audio nuances and non-linear ballastics of industry classics, ranging from slow-opto release, RMS detection, fierce Punchbag,through to super-fast peak compression/limiting. All models also encompass additional essential features, parallel path mode for convenient wet/dry compression balancing, comprehensive sidechain filter and gain reduction histogram.

Compact digital mixer with scalable, remote I/O
Systems from 4 to 48 mics
Easy to use, quick to access, analogue style interface
dSNAKE Cat5 digital snake—up to 120m cable length
8.4 inch colour touchscreen for graphical view and setup
20 faders, 4 layers, 80 channel strips in a freely customizable layout
48 input channels into 30 assignable buses (Aux, Group, Matrix, Main, FX Send) into 20 mix outputs
8 stereo RackFX engines with dedicated ‘short’ returns with 4-band PEQ
Full processing on all inputs including trim, polarity, HPF, insert, gate, 4-band PEQ, compressor and delay
Full processing on all outputs including insert, PEQ, GEQ, compressor and delay
Deep processing embedded plugins including GEQ and compressor models
Automatic Mic Mixer with up to 44 microphone sources
LR, None (monitors), LR+M (sum), LR+M (bus), LCR main mix modes
USB stereo recording and playback
16 DCAs / mute groups
Built-in Talkback, RTA and Signal Generator
I/O module options for FOH/Monitor split, multitrack recording, link to iLive and more
MIDI In/Out and Ethernet Network port
Compatible with ME Personal Mixing System
High end 1dB step recallable mic/line preamps
User definable channel names and colours
Engineer’s mono Wedge and stereo IEM strips
Input, output and insert soft patchbays
Quick copy, paste and reset of mixes and parameters
Libraries, Scenes and Show memories with USB transfer
Scene Filters, crossfades and automated recalls
Get started quickly with Template Shows
Password protectable user profiles
