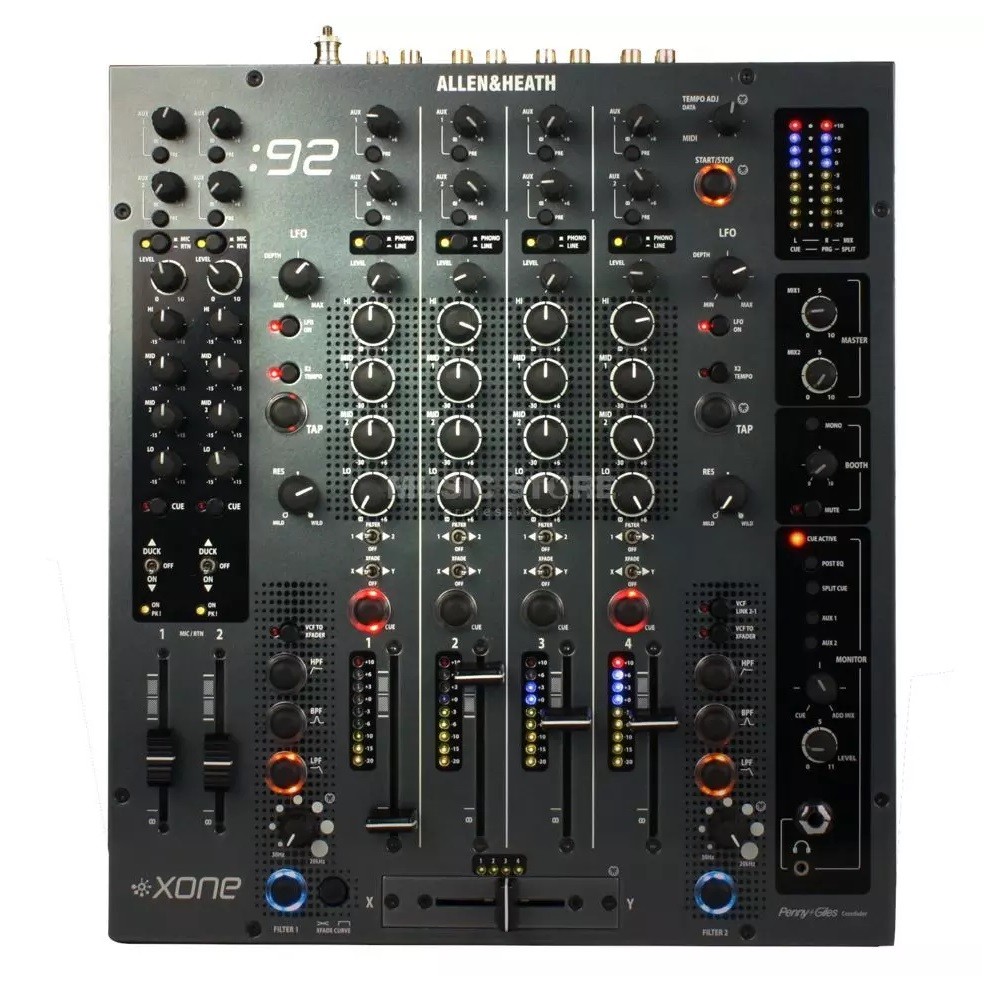

Allen & Heath XONE:92 Professional 6-Channel Club/DJ Mixer

SKU: E-1-732

Brand:
Allen & Heath

Category:
Pro-Audio

Sub-Category:
Mixers

The Allen & Heath XONE:92 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:92 delivers flexible routing and professional sound quality with four turntable and four line inputs on RCA phono connections. Mic channel 1 and 2 feature balanced XLR microphone inputs, which are switchable to line level with stereo 1/4" inputs for return channels for effects. Both channels offer four-band EQ, level controls, and cue sends.

PHP 110,200.00

PHP 99,180.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The Allen & Heath XONE:92 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:92 delivers flexible routing and professional sound quality with four turntable and four line inputs on RCA phono connections. Mic channel 1 and 2 feature balanced XLR microphone inputs, which are switchable to line level with stereo 1/4"" inputs for return channels for effects. Both channels offer four-band EQ, level controls, and cue sends.

The XONE:92 is packed with sonic and performance enhancing features that include a powerful four-band EQ on every channel, user replaceable Penny & Giles crossfader, and dual voltage controlled multi-mode resonant filters with dedicated LFOs for hands-free control. Two mix outputs feature balanced XLR and 1/4"" phone connections, while a dedicated booth output features stereo 1/4"" connections, plus an additional record output on RCA phono connections for recording sets. Two aux connections may be used to route signal to external effects and signal processors. The Allen & Heath X:ONE:92 includes a rackmount kit and a power cord.

Allen & Heath XONE:92 Features:

  • 6 Dual stereo inputs, 2 with mic inputs, RIAA preamps for up to 4 turntables.
  • 2 auxiliary sends selectable pre/post fader (and crossfader).
  • MIDI output from VCF 1+2, crossfader, LFO (MIDI clock), dedicated data control and start/stop button.
  • New twin-rail VCA channel faders or high quality VCA rotary faders.
  • 2 independent stereo mix outputs.
  • 2 VCF filters - any performance channel can be assigned to either filter and either side of crossfader.
  • 2 x independent Low Frequency Oscillators (LFO) for filter modulation.
  • Active Penny & Giles VCA crossfader allowing contour to be set from smooth to scratch mix.
  • Custom illumination showing status of all performance switches.
  • 4 band EQ - high definition of frequency bands, with 'infinite kill' on HF and LF; wide Q for cut, narrow Q for boost.
  • Dedicated booth output.
  • Metering - extensive channel, output and cue metering.
  • Intelligent cue system allowing pre or post EQ monitoring.
  • Monitor section - includes post EQ switch; split cue and Cue/Mix monitor balance control.
  • 2 x headphone outputs 1/4"" and 3.5mm jack.
  • Talkover facility on mono/mic channel attenuates music by 20dB.
  • Dedicated clean feed record output.
  • Input selectors with 2 colour indicators.
  • Smooth action level controls.
  • MIDI output from VCF 1+2, crossfader, LFO 2 (MIDI clock), dedicated data control and start/stop button.
  • Large 'light-pipe' illuminated cue switches.
  • 9 led 3 colour channel 'bulls eye' LED meters.
  • Either smooth travel 60mm VCA faders or rotary VCA faders (Linear or Rotary versions).
  • 2 Independent mix outputs.
  • 2 Rotary master level controls.
  • Dual stereo analogue VCF effects.
  • 3 Filter modes combine for more effects.
  • Independent frequency sweep controls.
  • Resonance control for subtle or wild effects.
  • Filter LFO Depth and tempo controls.
  • Illuminated Filter switches punch effect in or out.
  • Powerful headphones monitor with auto cue.
  • Headphones split cue and Aux 1 & 2 monitoring.
  • Stereo music only booth monitor output.
  • Booth mono and mute switching.
  • 9 led 3 colour main 'bulls eye' LED meters.
  • Balanced 0dBu XLR stereo Mix 1 output.
  • Impedance balanced Line stereo Mix 2 output.
  • Pre-fade recording output.
  • Universal power supply for worldwide performance.
  • Internal installer options for system optimization.
  • Plinth or 19"" rack mount ears included.
  • Spare knobs included.

Specifications:

  • Channels: 4 + 2 mic/stereo return
  • MIDI Control: Crossfader, LFO (MIDI clock), dedicated data control and start/stop button
  • Effects: X-FX engine plus 2 x LFO
  • Analog Inputs: 4 x stereo RCA phono, 4 x stereo RCA line, 2 x XLR mic, 4 x 1/4"" return
  • Analog Outputs: 2 x XLR, 4 x TRS, 1 x stereo RCA
  • Headphones: 2 x 1/4""
  • MIDI I/O: Out
  • Other I/O: 2 x TRS sends with 4 x TRS returns on mic 1 and mic 2 channels
  • Faders: 60mm VCA channel faders
  • Crossfader: Replaceable active Penny & Giles VCA crossfader with adjustable contour
  • EQs: 4-band with infinite kills
  • Height: 3.5""
  • Width: 12.6""
  • Depth: 14""
  • Weight: 13 lbs.
  • Manufacturer Part Number: AH-XONE:92-FADER
