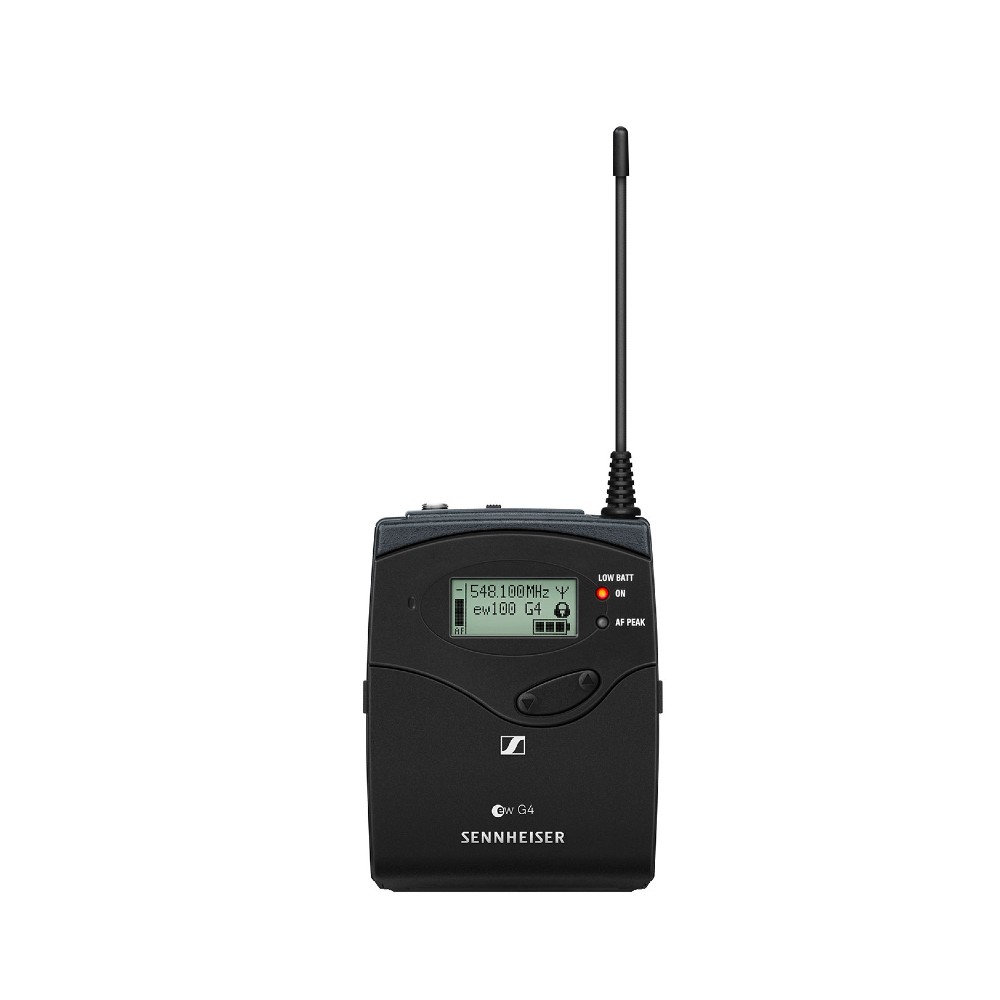

Sennheiser SK 100 G4-A1 Wireless Bodypack Transmitter (A1 470 - 516 MHz)

SKU: SOE-1-472

Brand:
Sennheiser

Category:
Pro-Audio

Sub-Category:
Microphones

The Sennheiser SK 100 G4 is a bodypack wireless transmitter compatible with the EM 100 G4 wireless receiver. The rugged, all-metal design is comfortable for performers and presenters to wear for daily use on stage. It provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330 feet.

PHP 32,500.00

PHP 29,250.00

This product is currently out of stock.

The Sennheiser SK 100 G4 is a bodypack wireless transmitter compatible with the EM 100 G4 wireless receiver. The rugged, all-metal design is comfortable for performers and presenters to wear for daily use on stage. It provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330 feet.

The SK 100 G4 features a locking 3.5mm connector with an adjustable input level to accommodate the compatible lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. When the Sync function on the receiver is engaged, the transmitter and receiver quickly link to the same frequency via infrared. The transmitter's backlit LCD displays essential information, while the convenient programmable mute function can be locked out to prevent accidental changes during a performance.

The unit can also be powered by a single rechargeable BA 2015 Accupack battery (available separately). Side contacts allow for recharging the Accupack without removing it from the transmitter—requires the L 2015 quick-charging unit (available separately).

The SK 100 G4 is backward-compatible with all previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

Key Features:

  • For EM 100 G4 Wireless Receiver
  • Use with Lav/Headset Mic or Instrument
  • Locking 3.5mm Connector
  • 1840 Auto-Scan Frequencies
  • Fixed 30mW RF Output Power
  • Mute Switch, Backlit LCD
  • Adjustable Input Level Control
  • 8-Hr AA Batteries
  • Frequency range: A1: 470 - 516 MHz
  • Dimensions: Approx. 82 x 64 x 24 mm
  • Compander: Sennheiser HDX
  • THD, total harmonic distortion: ≤ 0.9 %
  • Weight: (incl. batteries) approx. 160 g
  • Signal-to-noise ratio: ≥ 110 dBA
  • RF output power: Max. 30 mW
  • Switching bandwidth: up to 42 MHz
  • Peak deviation: ±48 kHz
  • Nominal deviation: ±24 kHz
  • Operating time: Typically 8 h
  • Modulation: Wideband FM
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Max. Input voltage: 3 Veff
  • Powering: 3 V battery / 2.4 V rechargeable battery
  • Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
  • Temperature Range: -10 °C to +55 °C
  • Frequency stability: ≤ ±15 ppm
