Specification Details

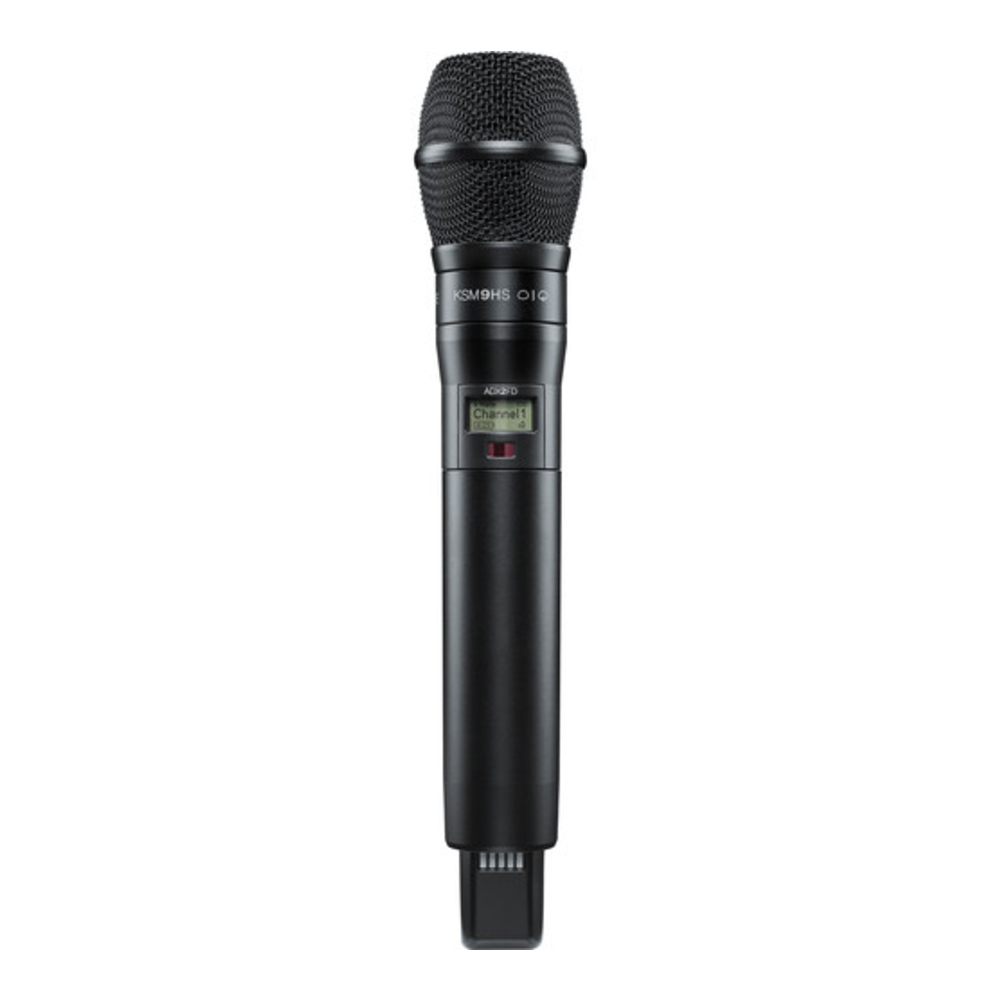

Model: ADX2/K9HSB=-G56
Product Type: Digital Wireless Handheld Transmitter
Wireless System: Shure Axient Digital
Capsule: KSM9HS Dual-Pattern Condenser (Black)
Polar Pattern: Cardioid / Hypercardioid (Selectable)
Frequency Band: G56 (470–636 MHz)
RF Output Power: 2 mW, 10 mW, 40 mW (Region dependent)
Modulation: Shure Axient Digital Proprietary
Occupied Bandwidth: <200 kHz
Encryption: AES-256
ShowLink Frequency: 2.40–2.4835 GHz
ShowLink RF Power: 10 dBm ERP
Maximum Input Level: 145 dB SPL (typical)
Power Supply: Shure SB920 Rechargeable Li-Ion Battery Pack or 2 × AA batteries
Battery Life: Up to 9 hours (SB920) or 8 hours (AA alkaline) at 10 mW
Display: Backlit LCD
Housing: Die-cast aluminum
Operating Temperature: -18°C to 50°C
Dimensions: 256 × 51 mm (Length × Diameter)
Weight: 340 g (without batteries)
