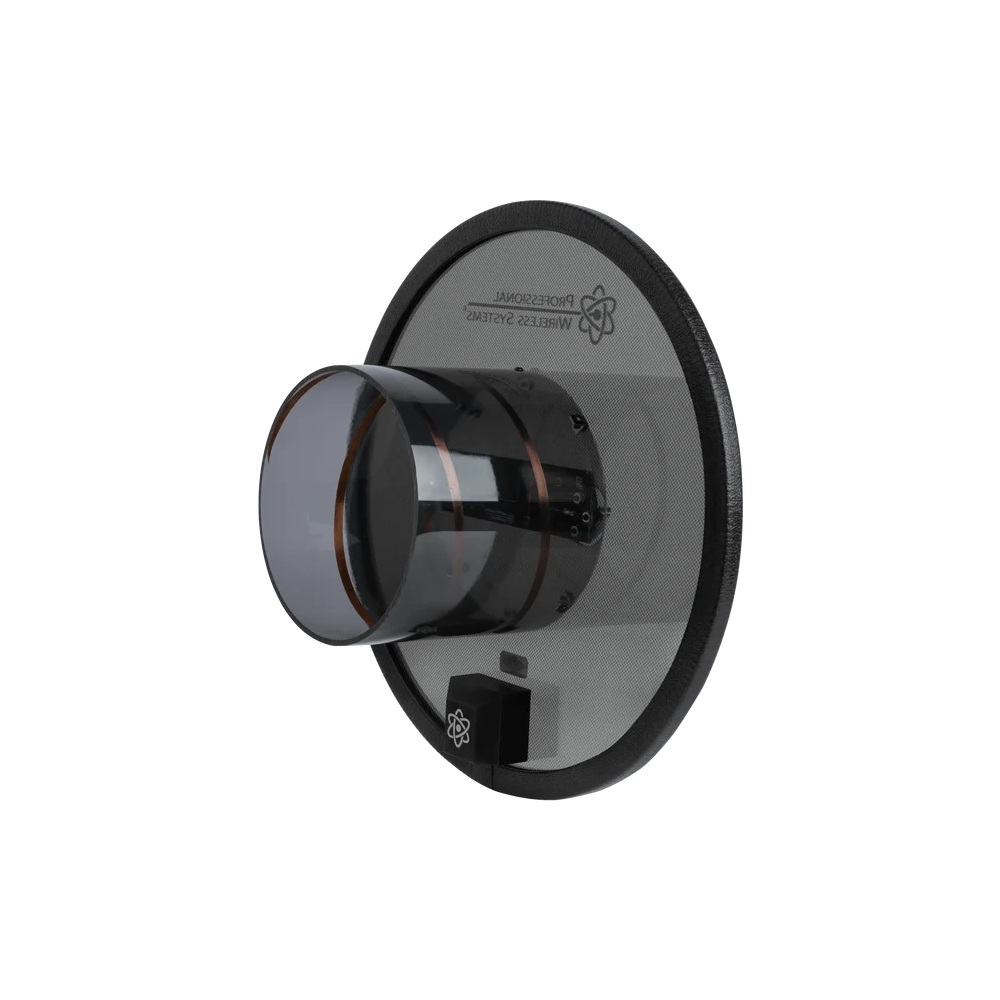

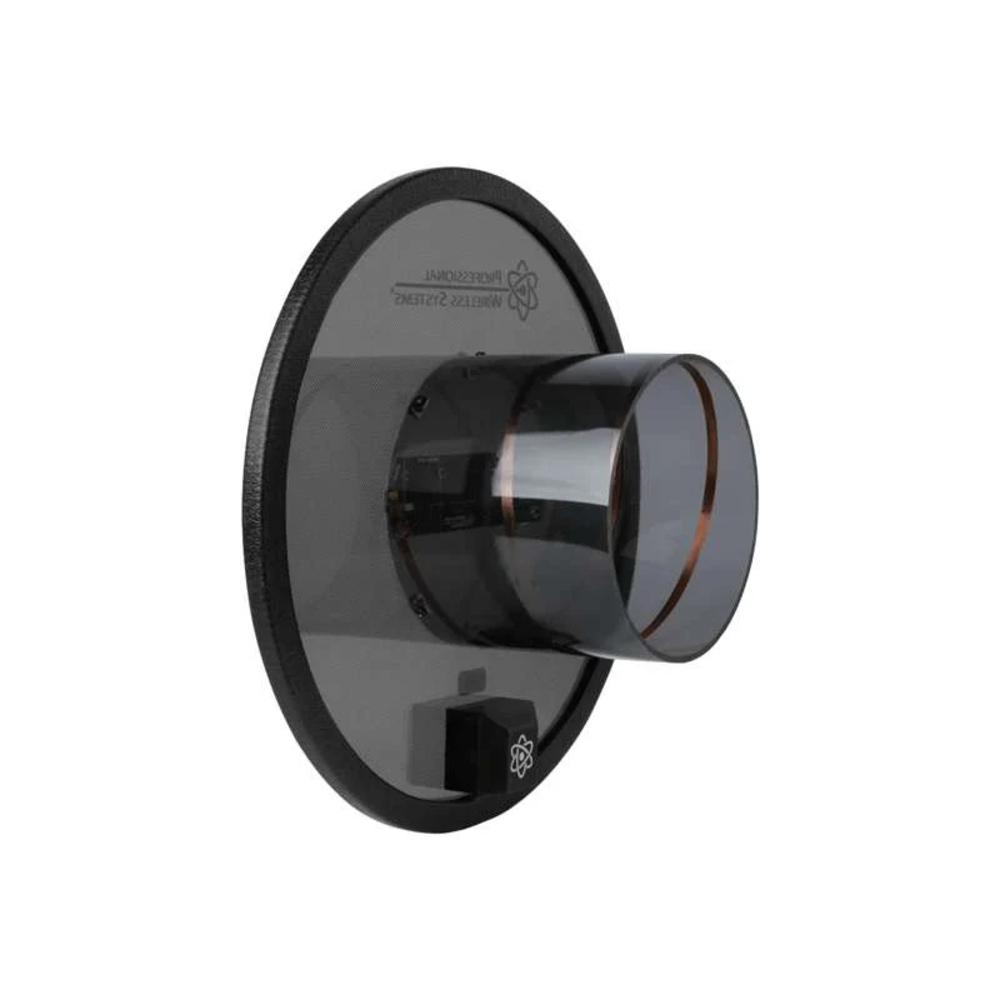

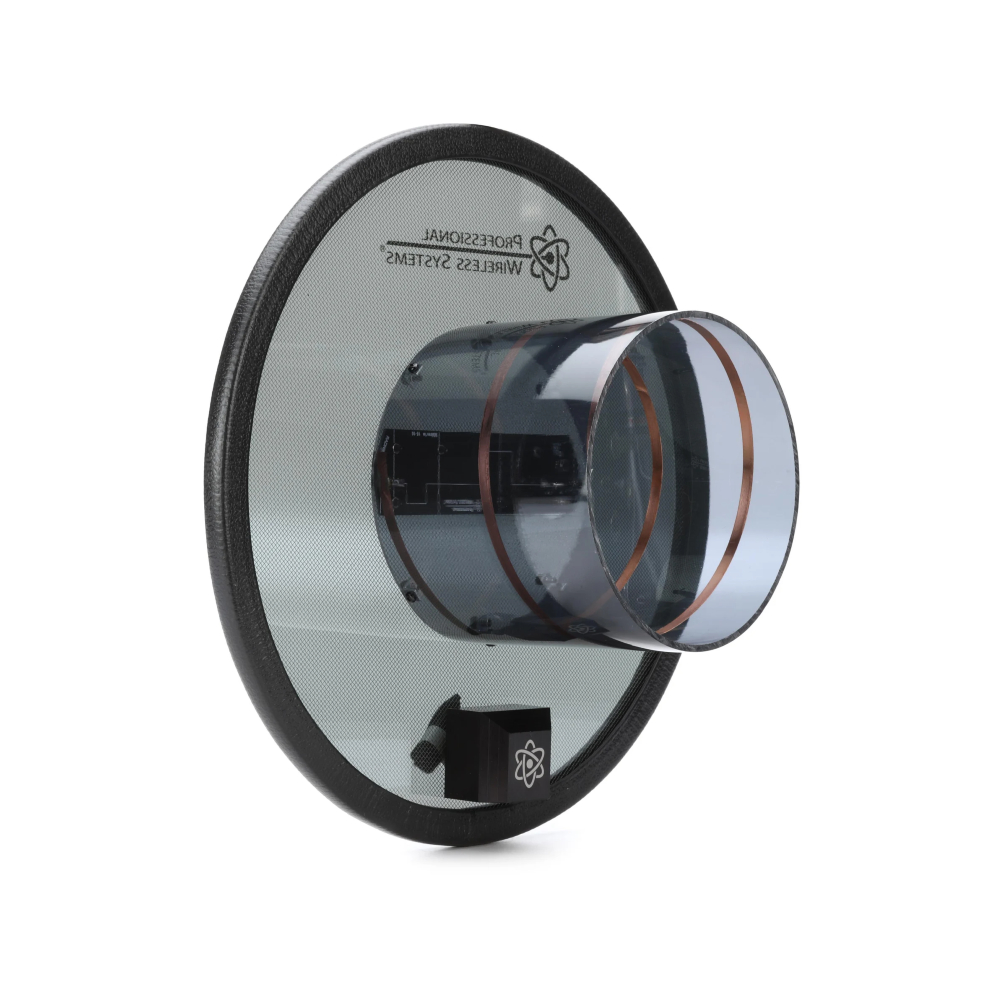

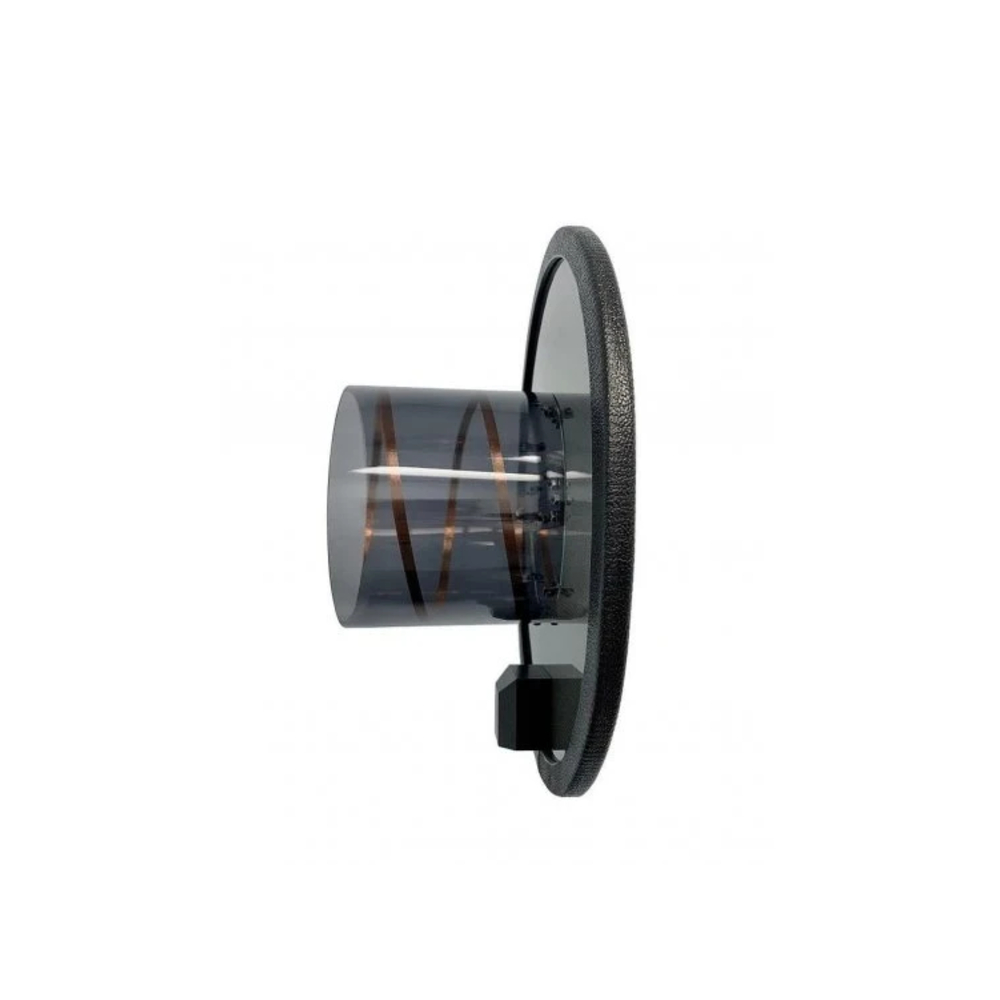

Shure HA-4540 Tour Series Helical Antenna

SKU: SHDEMO-3-78

Brand:
Shure

Category:
Pro-Audio

Sub-Category:
Accessories

The HA 4540 Tour Series Helical Antenna is a premium, circularly polarized antenna engineered for professional touring, broadcast, and high demand RF environments. Designed to deliver exceptional multi path rejection, extended operating range, and superior signal integrity, the HA 4540 provides rock solid wireless performance for IEM and microphone systems in the most challenging venues.

PHP 49,500.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The HA 4540 Tour Series Helical Antenna is a premium, circularly polarized antenna engineered for professional touring, broadcast, and high demand RF environments. Designed to deliver exceptional multi path rejection, extended operating range, and superior signal integrity, the HA 4540 provides rock solid wireless performance for IEM and microphone systems in the most challenging venues.

Features:

Tour‑grade circularly‑polarized helical design for maximum RF stability
Outstanding multi‑path rejection and reduced interference in reflective environments
Wideband operation across professional RF touring frequencies
Focused radiation pattern ideal for long‑throw and high‑coverage applications
Durable, lightweight construction built for touring, production, and rental workflows
Delivers consistent RF performance in arenas, stadiums, theaters, and festival stages
Compatible with a wide range of wireless IEM and microphone systems, including Axient Digital and PSM

RF Frequency Range / Bandwidth 460 - 900 MHz
Impedance 50 ohms
Beamwidth 72 degrees
Antenna Gain 7-9 dBi (on axis)
Front-to-Back Ratio / Rear Rejection 14 dB RF
Connector BNC female, right angle
Dual Mounting Adapter 5/8-inch-27 U.S. standard & 3/8-inch-16 European standard
