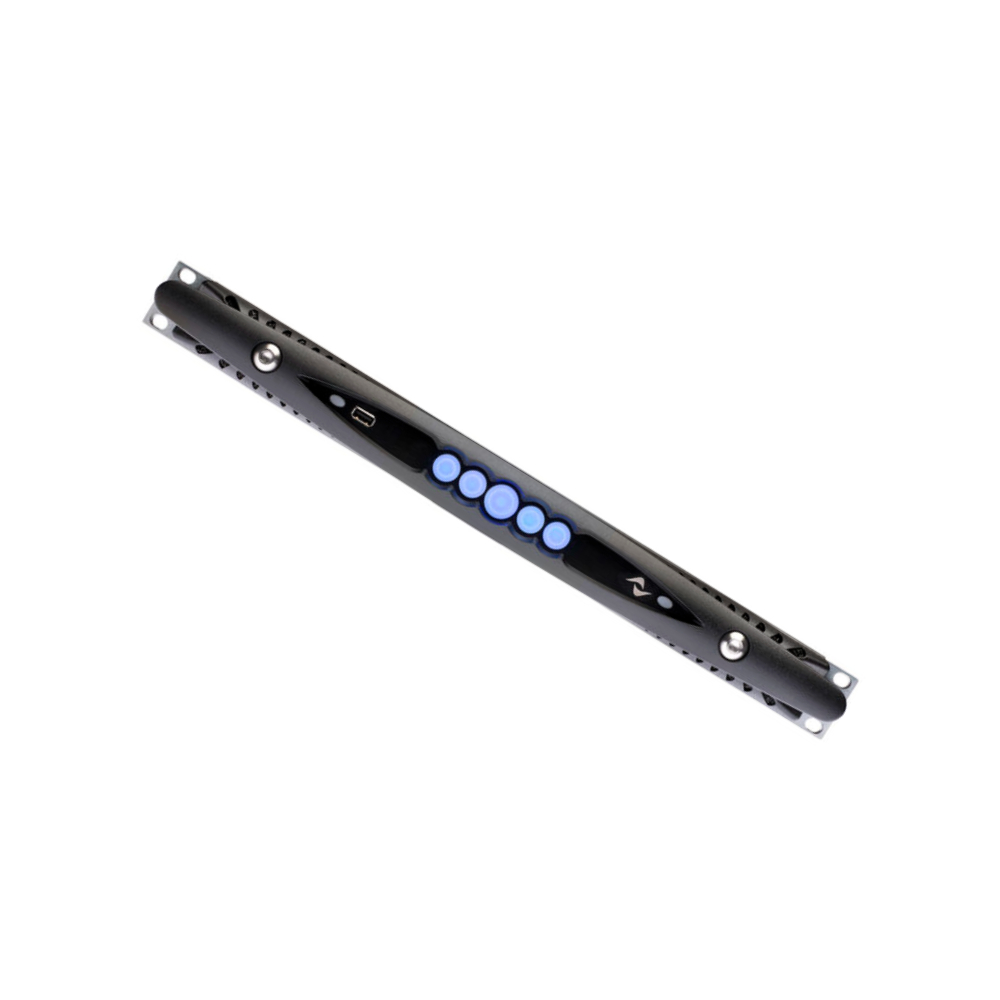

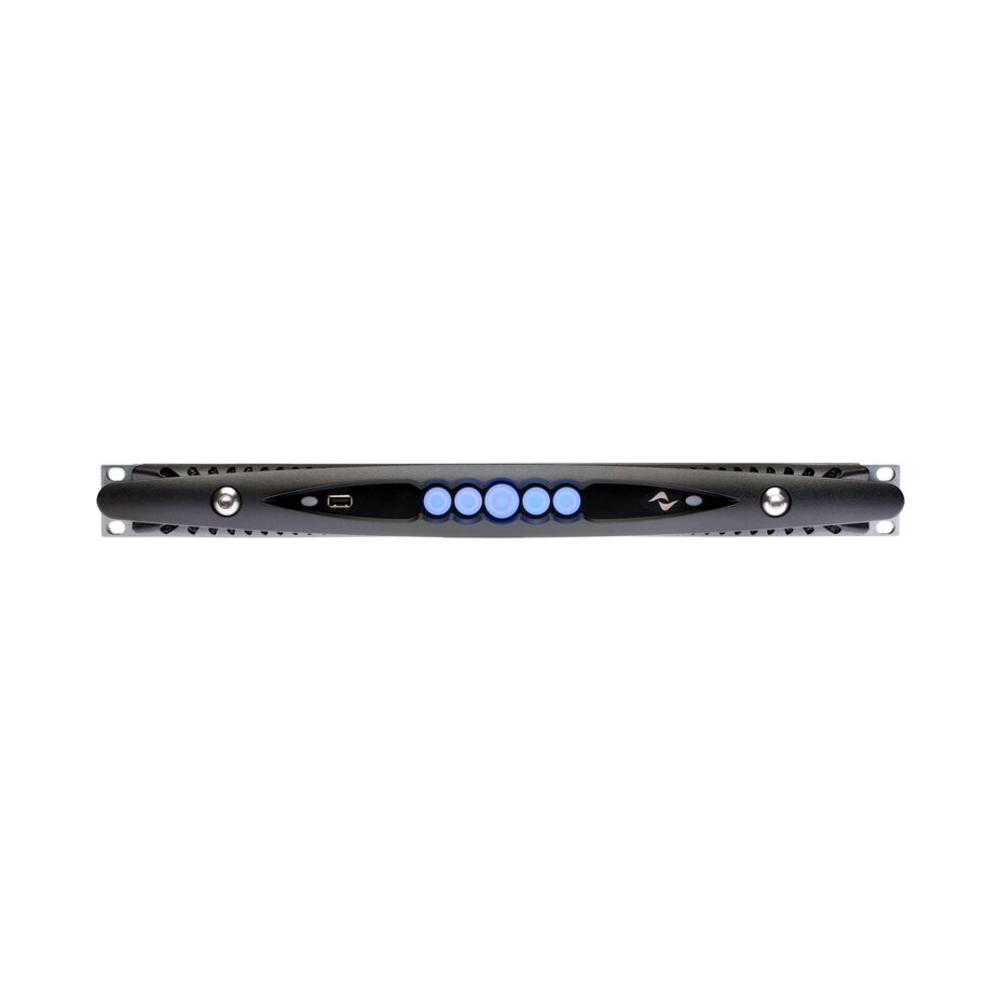

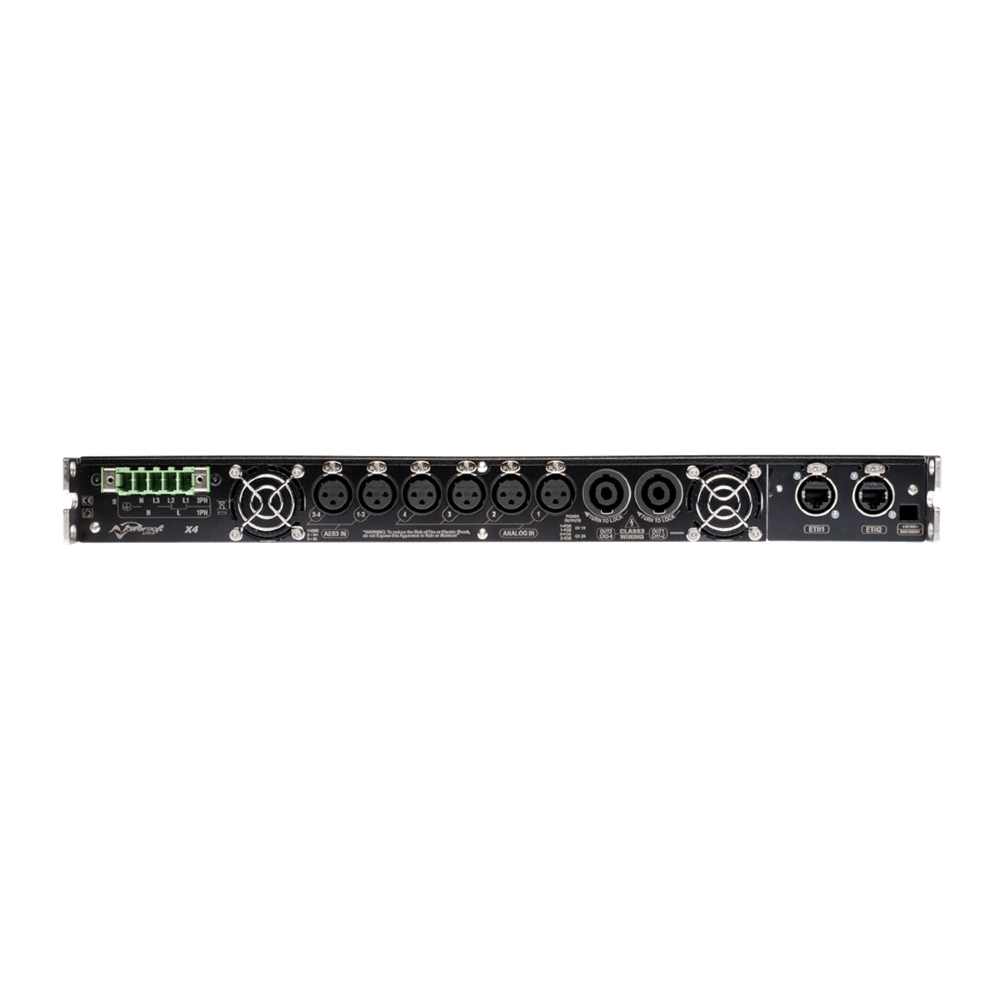

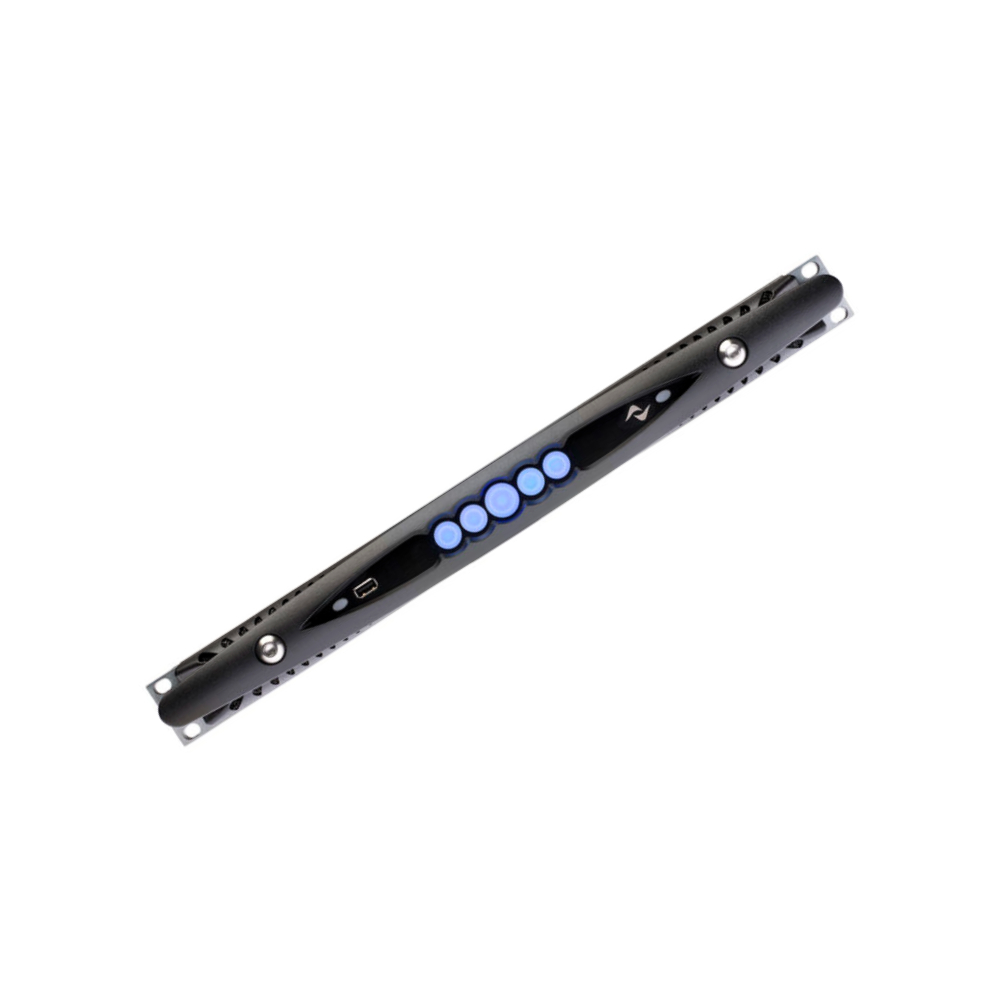

Designed to deliver the output voltage required by the latest generation of high-performance loudspeakers, the Powersoft X4 D delivers superb audio quality and expands the concept of the power amplification platform to include complete loudspeaker management—including all signal processing functions—in a single, lightweight unit. The X Series is an amplifier that raises the bar in amplifier platform design and functionality, setting a new standard for quality and usability.
The power supply is suitable for Single Phase, Bi-Phase or Three Phase operation from 85 VAC up to 460 VAC without the need of selection. True Three Phase load balancing is directly achievable without any complex load assignment in the power distribution system. Powersoft X4 D provides four fully processable channels and selectable inputs from analog sources as well as digital AES3 and two redundant Dante ports. Channel mixing and routing can be easily performed thanks to the integrated low latency DSP. Completely integrated into ArmoníaPlus, the Powersoft X4 D interface is also available for smartphone and tablet, providing a new experience in power management.
Features:
A robust 6,000W, 4-ch amplifier for live sound reinforcement and commercial installations
TI C6000 processing provides high-grade EQ, crossover, time delay, cable compensation, and limiting capabilities
Dual-24-bit/48kHz Tandem architecture yields flawless AD/DA conversion
Flexible routing and mixing through an internal 4-in/4-out matrix
4 input channels with analog and digital connectors
16-in/8-out redundant Dante connectivity
Comprehensive system protections
Automatic input switching in case of signal failure
Non-Boolean channel routing and intuitive signal grouping
Supports full remote control and monitoring through ArmoníaPlus software
Power supply is adaptable for single-, 2-, or 3-phase operation from 85–440 VAC
Automatic switching and balancing eliminates the need for complex load assignments
Power limiters remove the necessity for costly power sequencers
