This phantom-powered cardioid condenser boundary microphone features a 5-pin XLR output connector with a touch-sensitive capacitive-type user switch for enhanced control in conference and boardroom installations. Not only can the switch be configured to toggle between mute and live audio, but, with the microphone’s external contact closure, it can also be set up to trigger an external device, such as a camera or the room’s lighting.
Features
Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Logic I/O capability permits control of remote devices from mic’s touch-sensitive capacitive-type user switch

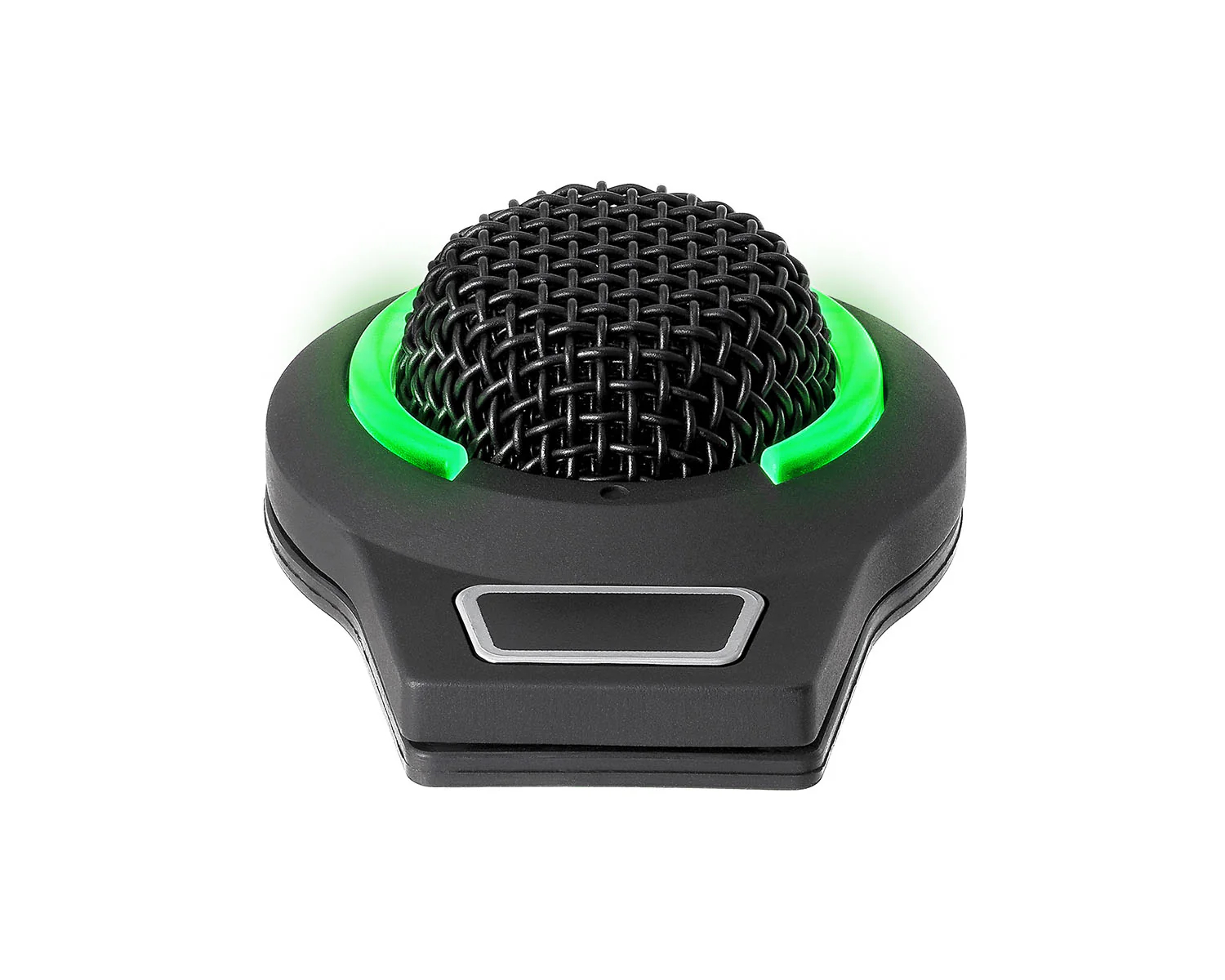

Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mic status
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle

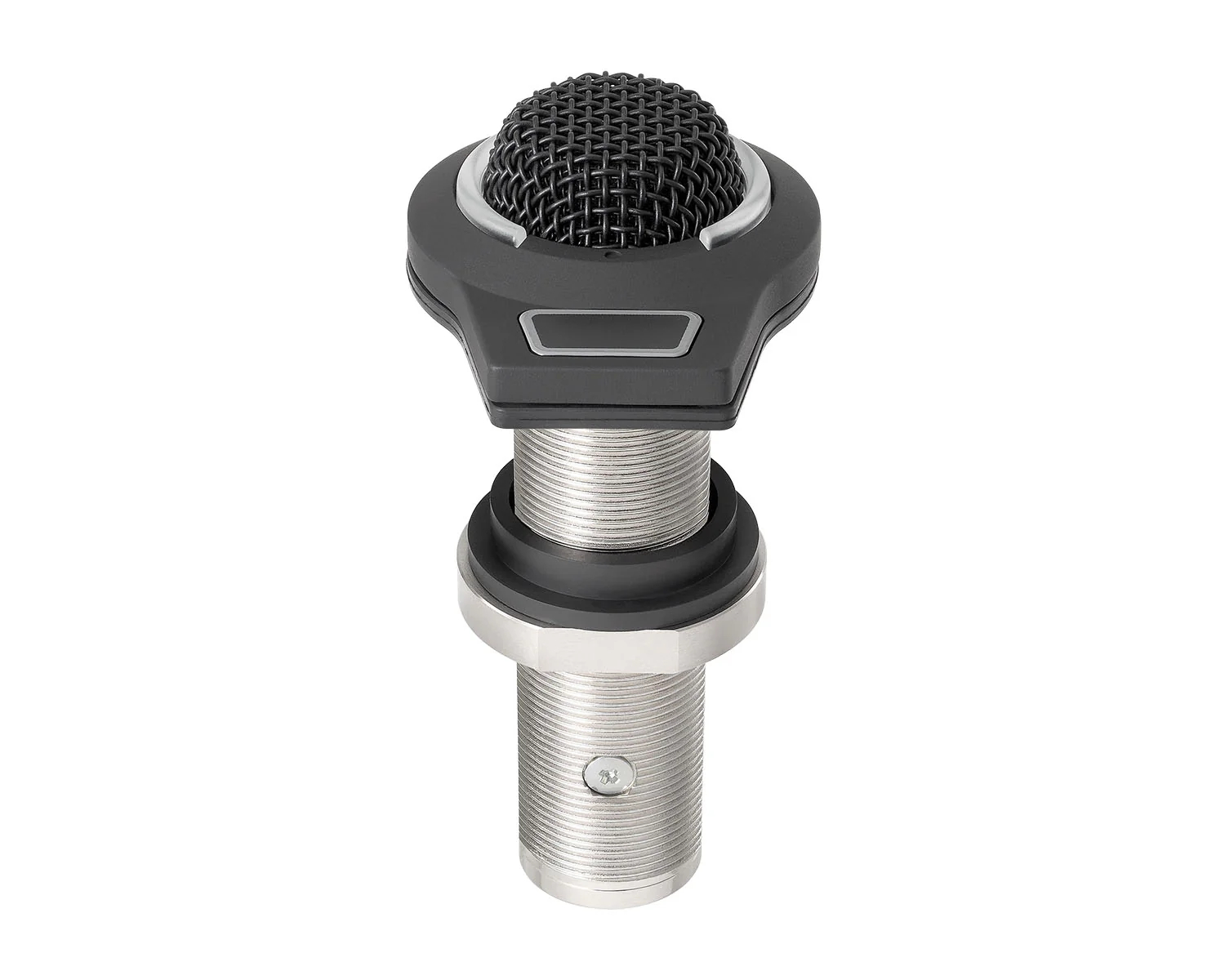

Mounts unobtrusively in tabletops and panels

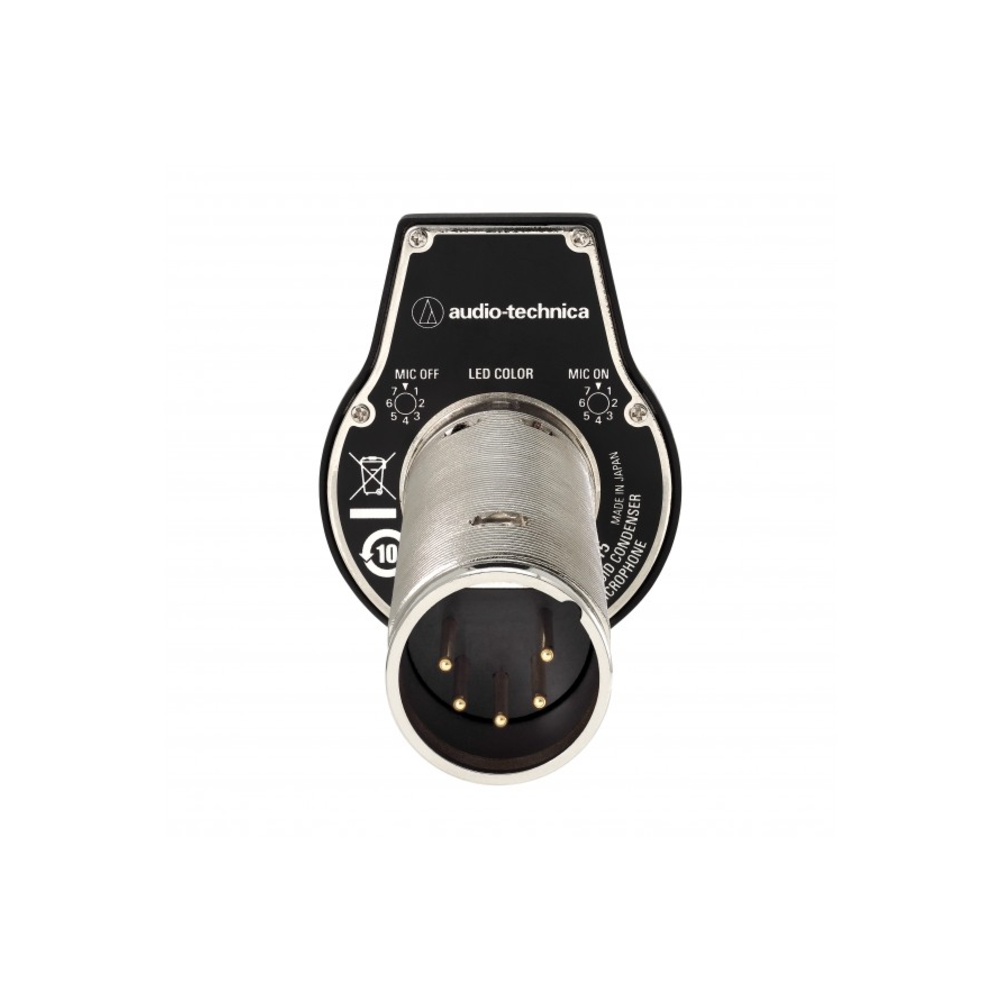

Self-contained power module with 5-pin XLR output connector
Rugged all-metal case with a two-layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances
