Specification Details
Model: ATW-T1407
Product Type: Desk Stand Transmitter
Wireless Technology: Digital 2.4 GHz
Operating Frequency: 2,402–2,480 MHz
Modulation: GFSK
RF Output Power: 10 mW EIRP
RF Sensitivity: -90 dBm (Typical)
Audio Resolution: 24-bit / 48 kHz
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 120 dB (A-weighted, Typical)
Total Harmonic: Distortion <0.05%
Latency Standard: 2.8 ms / HD Mode: 6.7 ms
Encryption: AES128
Microphone Connection: 3-pin XLR Female
Supported Microphone: Gooseneck Microphone
Phantom Power: 24 V DC
Battery: Built-in 3.7 V Lithium-ion (5.5 Wh, 1,460 mAh)
Battery Life: Approx. 12 hrs (without microphone LED), Approx. 8 hrs (with microphone LED)
Charging Time: Approx. 3 hrs 10 min

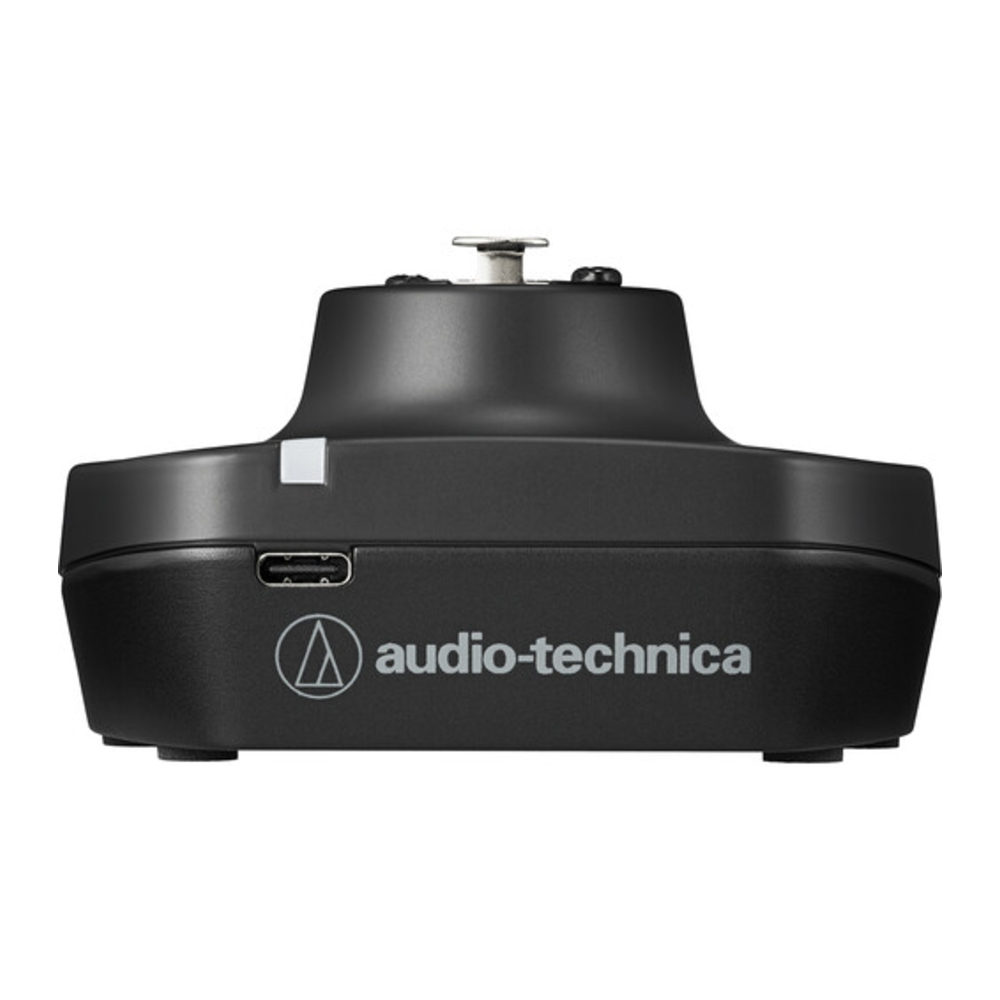

Charging Port: USB Type-C (USB 2.0)
Operating Temperature: 5°C to 40°C
Dimensions (W × D × H): 90.5 × 129.4 × 47.6 mm
Weight: 490 g (including battery)
