All-in-one System 20 Pro Handheld Setup

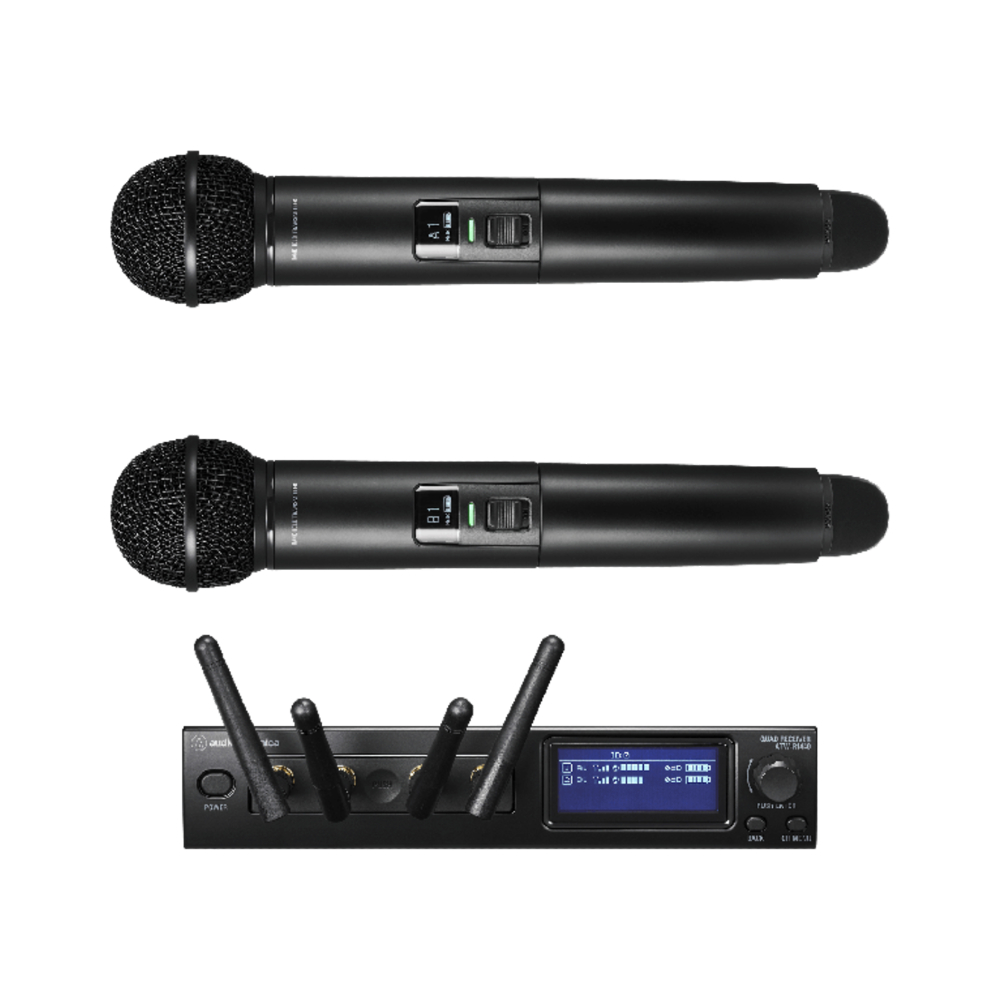

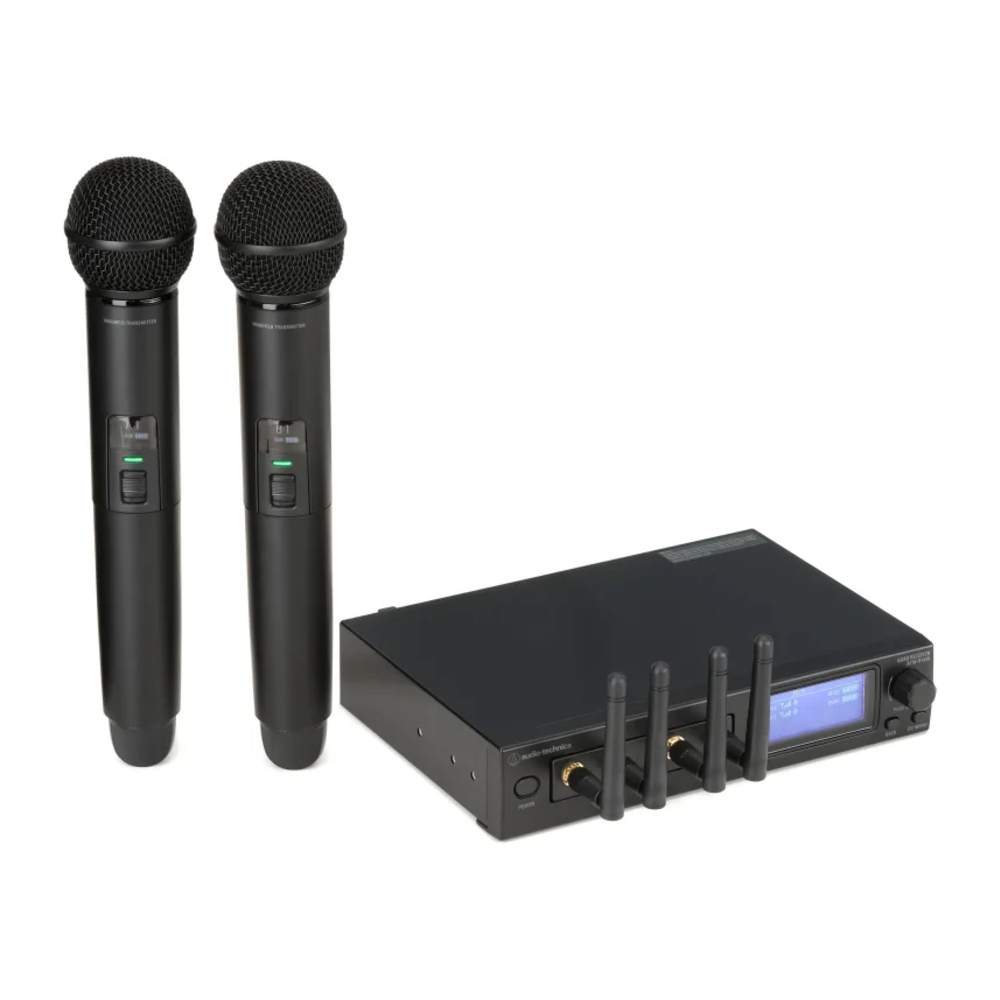

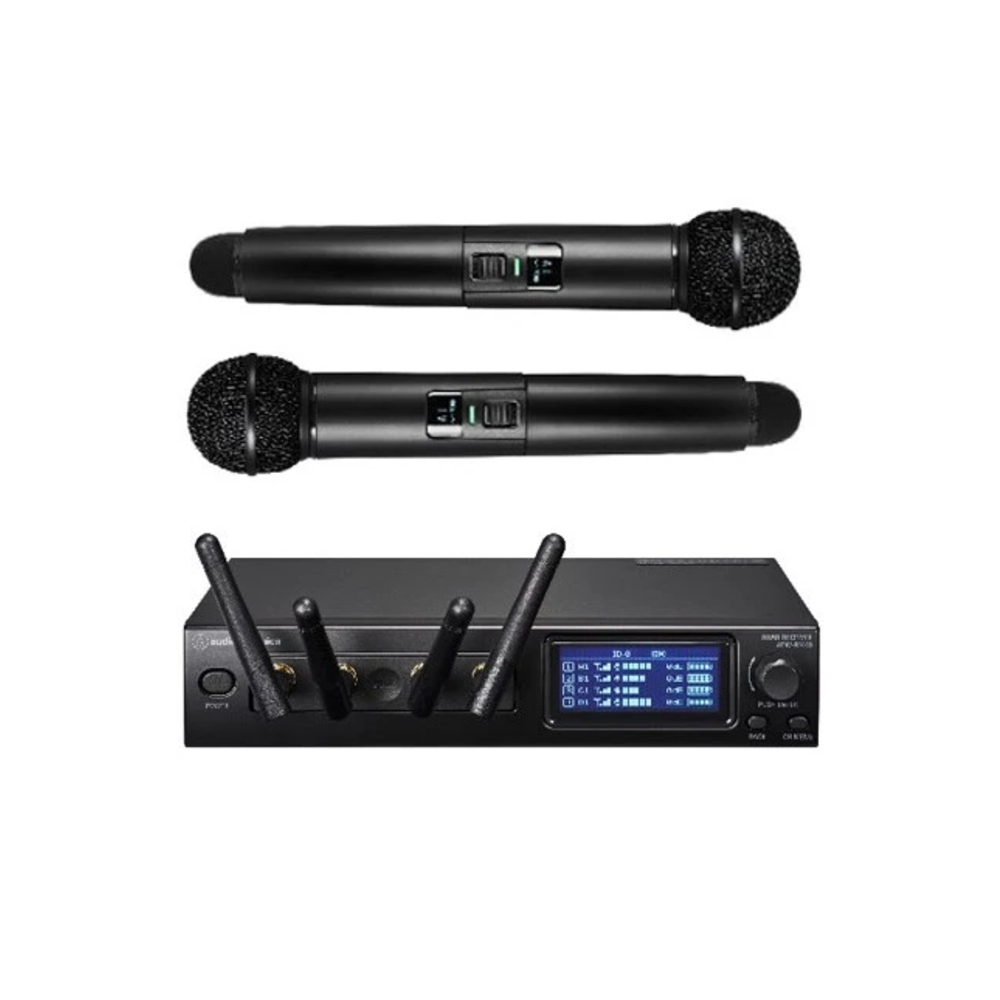

Whether your performance calls for reliable onstage transmission or filming vocal detail, the all-inclusive ATW-1422 System 20 Pro wireless microphone system will ensure the job is seamlessly completed. The included ATW-R1440 receiver and dual ATW-T1402 handheld transmitters facilitate immediate use either with pre-existing Audio-Technica rigs or as an entirely new standalone unit. Settings and sound modifications are easy to maneuver, thanks to both device's built in OLED screen. However, should changes need to be made in a pinch, Audio-Technica's Wireless Manager software remains ready for quick parameter adjustments from further away. Additional modern features, including AES128 encryption, auto-lock controls, and up to 328 feet of wireless operation, make the ATW-1422 System 20 Pro wireless microphone system among the most versatile we've seen at Sweetwater.
Dual handheld coverage
In order to cater to immediate communication situations, the Audio-Technica ATW-1422 System 20 Pro wireless microphone system comes preloaded with dual ATW-T1402 handheld transmitters. Starting with potent 24-bit/48 kHz sound quality and dual built-in antennas, Sweetwater A/V techs have discovered that these microphones retain an optimal audio output and sturdy connectivity in a range of possible performance environments, from event spaces to house of worship sessions and beyond. Also onboard is a convenient mute switch, preventing additional hot mic scenarios. Whether used in accordance with your pre-existing Audio-Technica rig or as an addition to an entirely new system, the ATW-1422 System 20 Pro's handheld transmitter pair maintains the class and quality that are to be expected in a professional transmission setup.
Maintain complete control with Wireless Manager
As Sweetwater's A/V technicians can attest, successfully managing your transmission is key to engineering a quality performance. Thankfully, the ATW-R1440 receiver comes fully compatible with Audio-Technica's Wireless Manager software, ensuring on-the-spot monitoring and maintenance of your feed. Configurable settings, including advanced network securing, setup options, and coordination among third-party devices, make it simple to access one or all devices at once, making it easier than ever to coordinate the perfect wireless setup in minutes.
Features
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

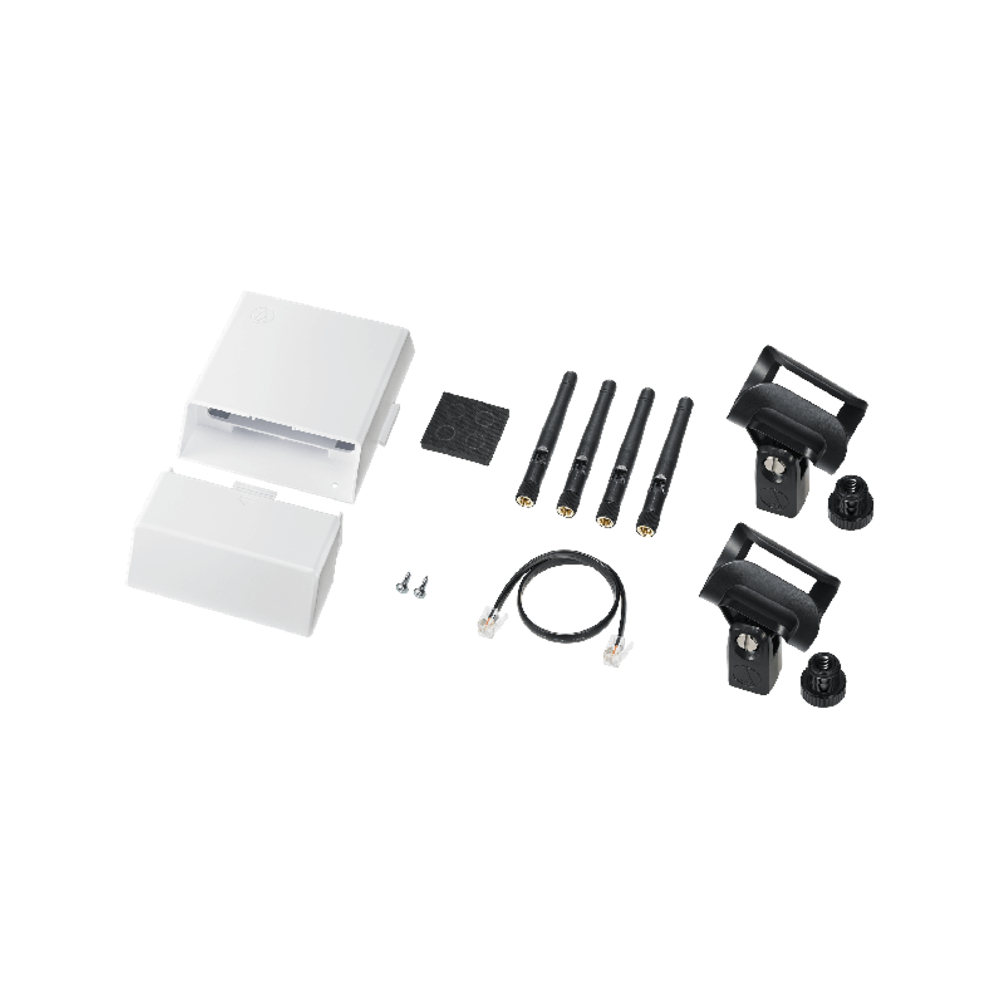

- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
