Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)

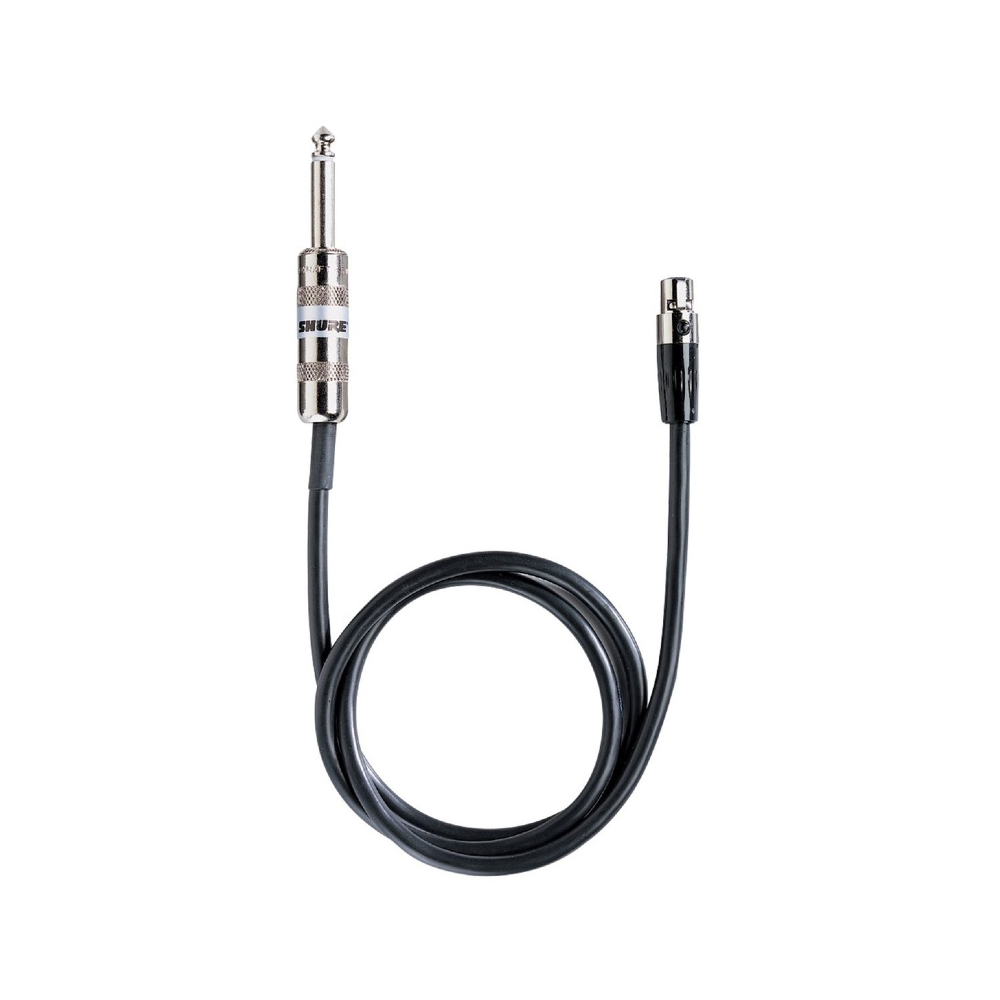

Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

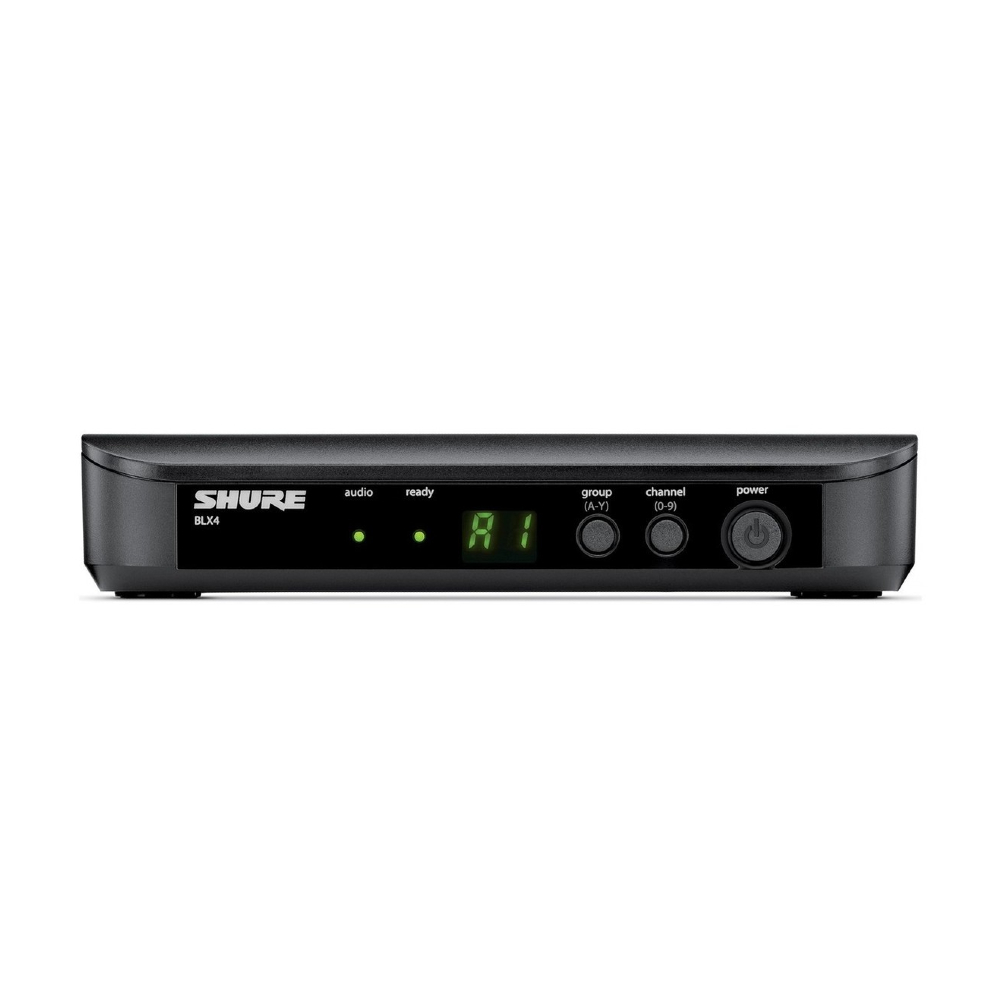

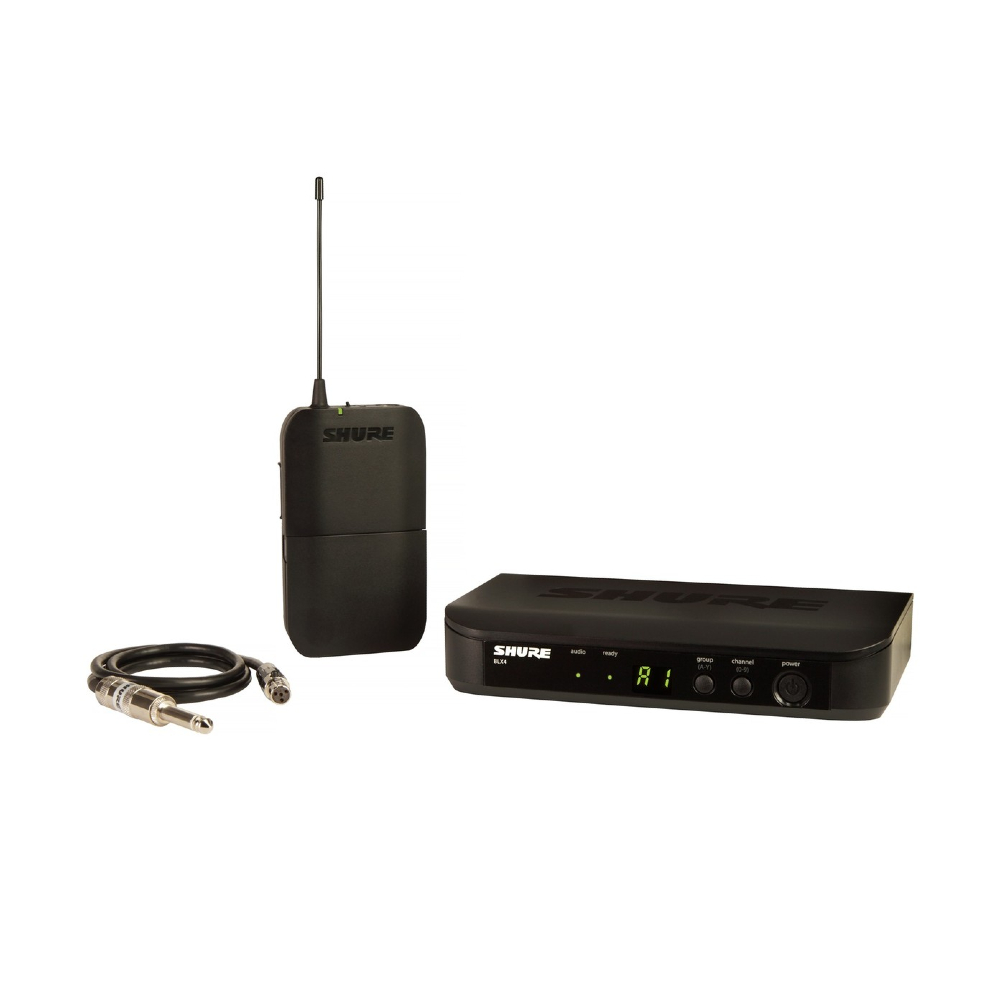

BLX88 Specifications

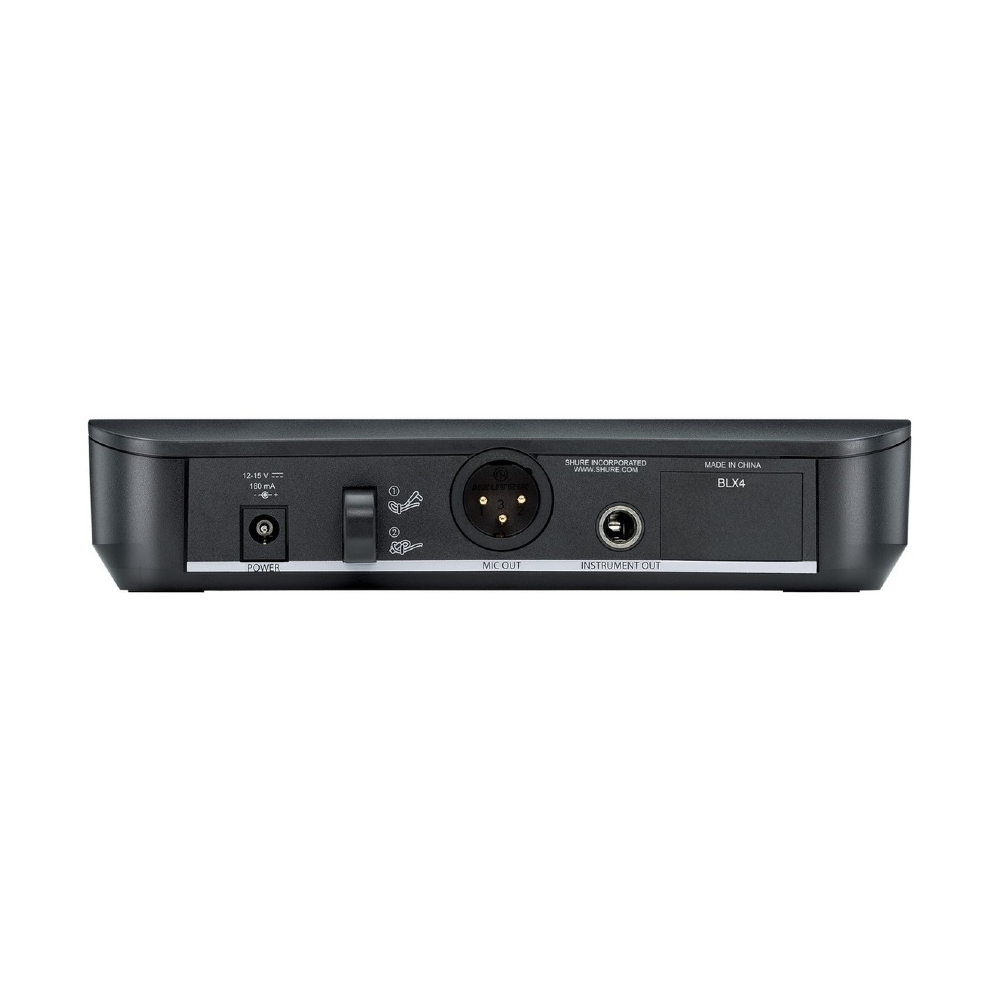

Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4 in) connector: 50 Ω
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4 in) connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight: 15.1 oz. (429 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

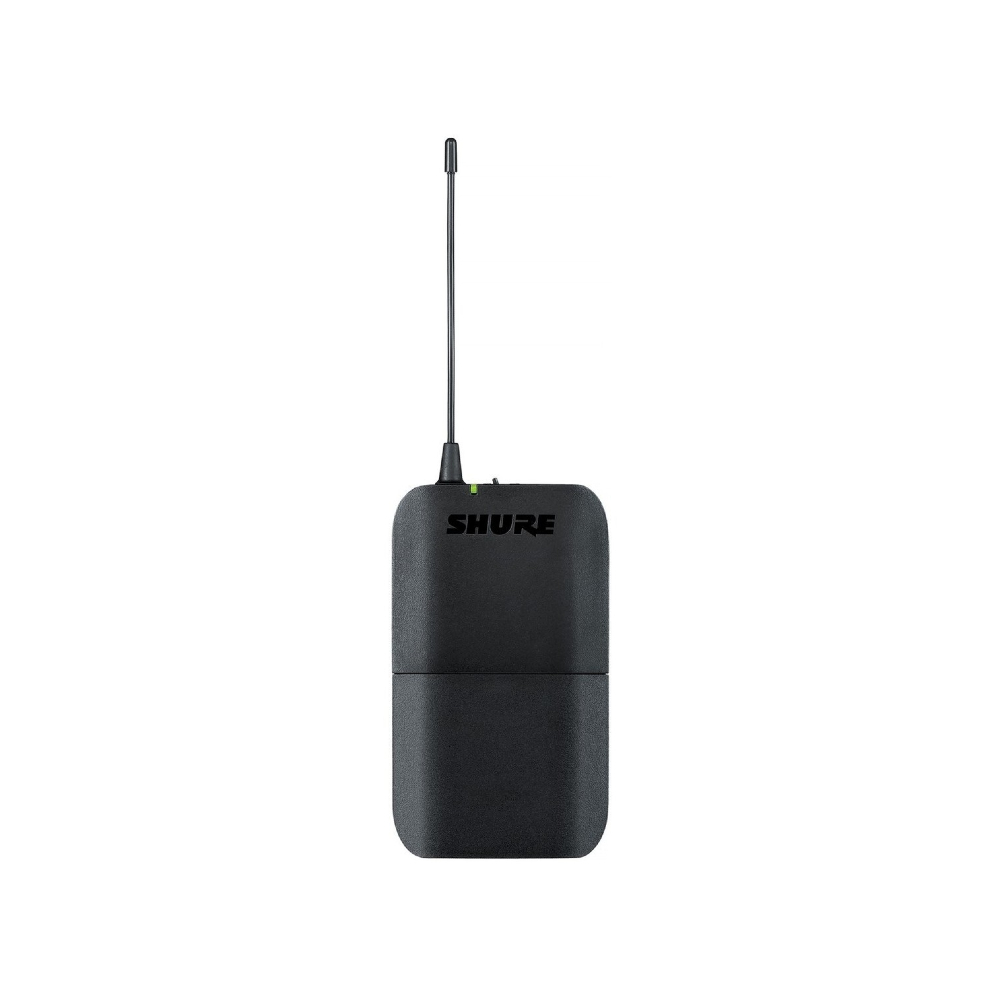

BLX1 Bodypack Specifications
Audio Input Level
max: -16 dBV maximum
min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
BLX2 Handheld Specifications
Audio Input Level:
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight: 7.7 oz. (218 g) without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
CVL Specifications
Type: Electret Condenser
Frequency Response: 50 to 20,000 Hz
Polar Pattern: Unidirectional (Cardioid)
Output Impedance @ 1 kHz, typical: 600 Ω
Audio Output Level -43.5 dBV/Pa
Signal-To-Noise Ratio @ 1 kHz: 72 dB
Maximum SPL 1000 Ω load, @ 3% THD: 139.0 dB
Dynamic Range @ 1 kHz, 1000 Ω load: 117.0 dB
Equivalent Output Noise: Typical, A-Weighted 22 dB
Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable: 1.3 m (50 in.)
Connector: TA4F
Net Weight: 25 g (0.88 oz.)
