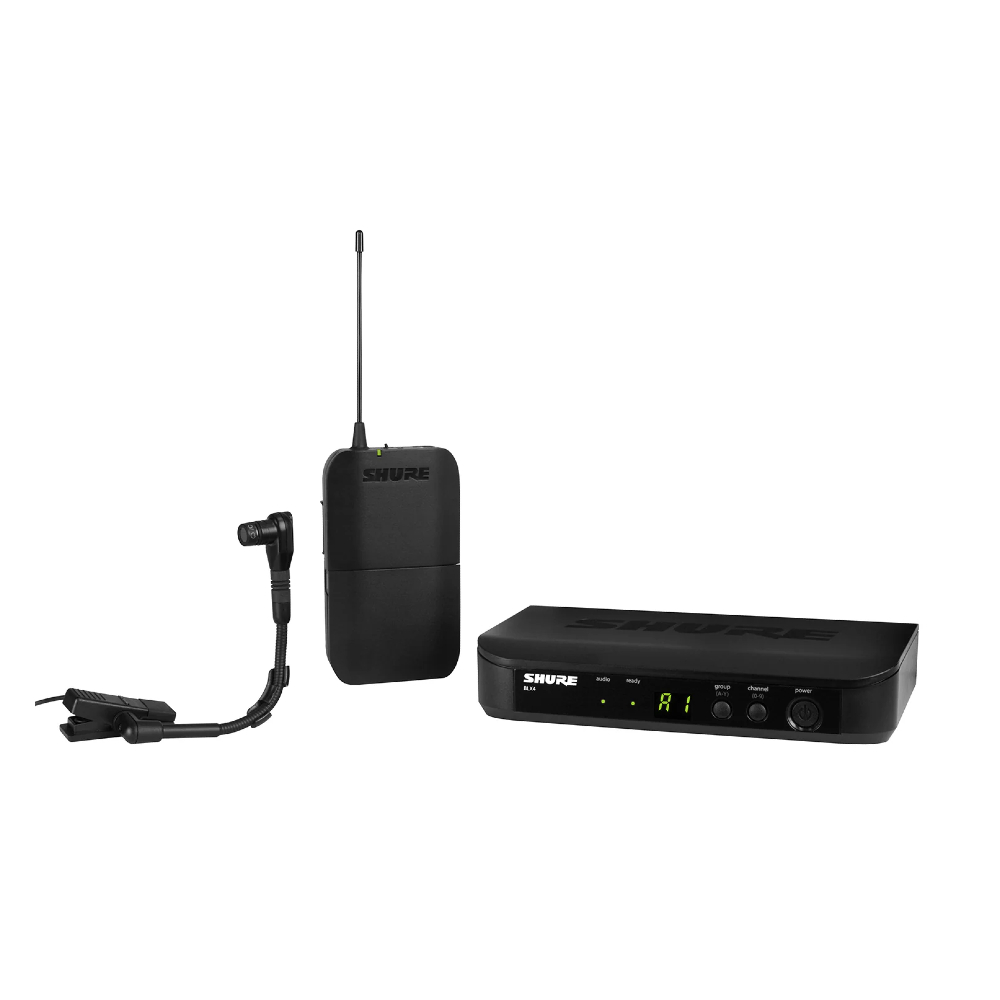

System Specifications
Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

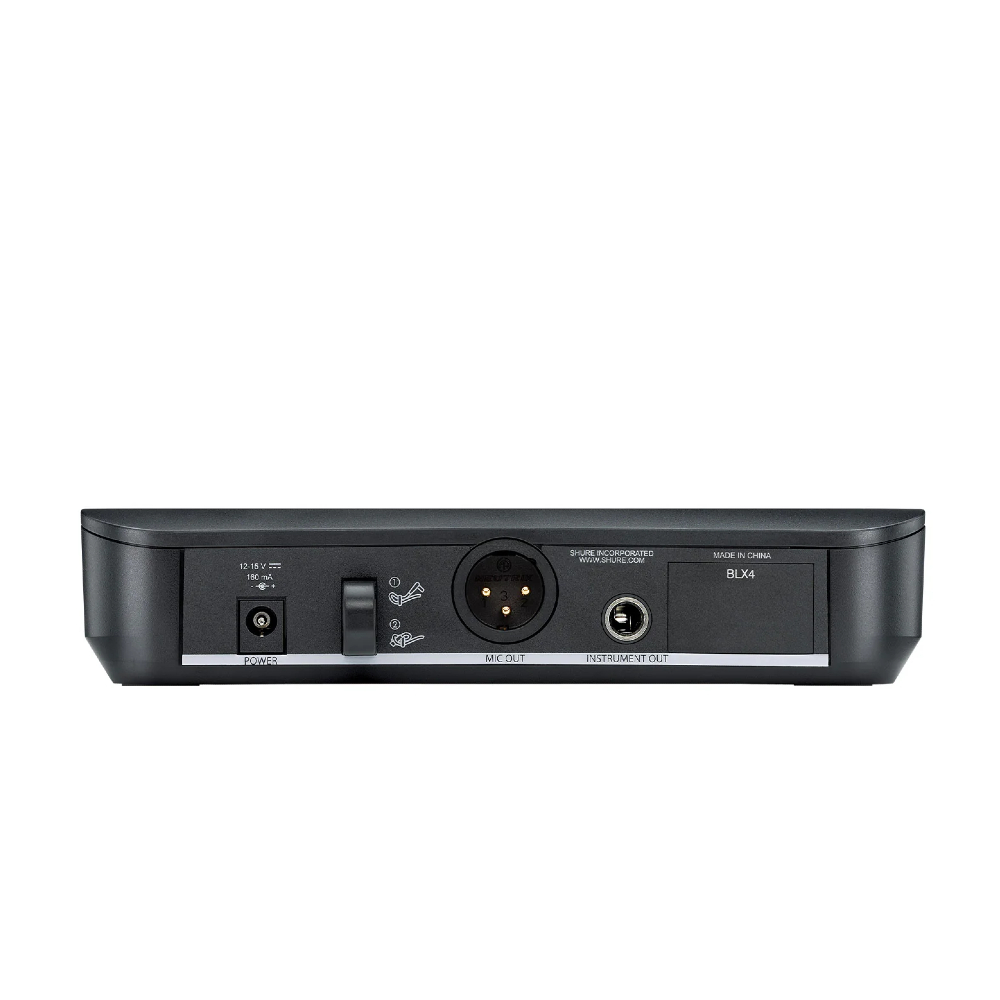

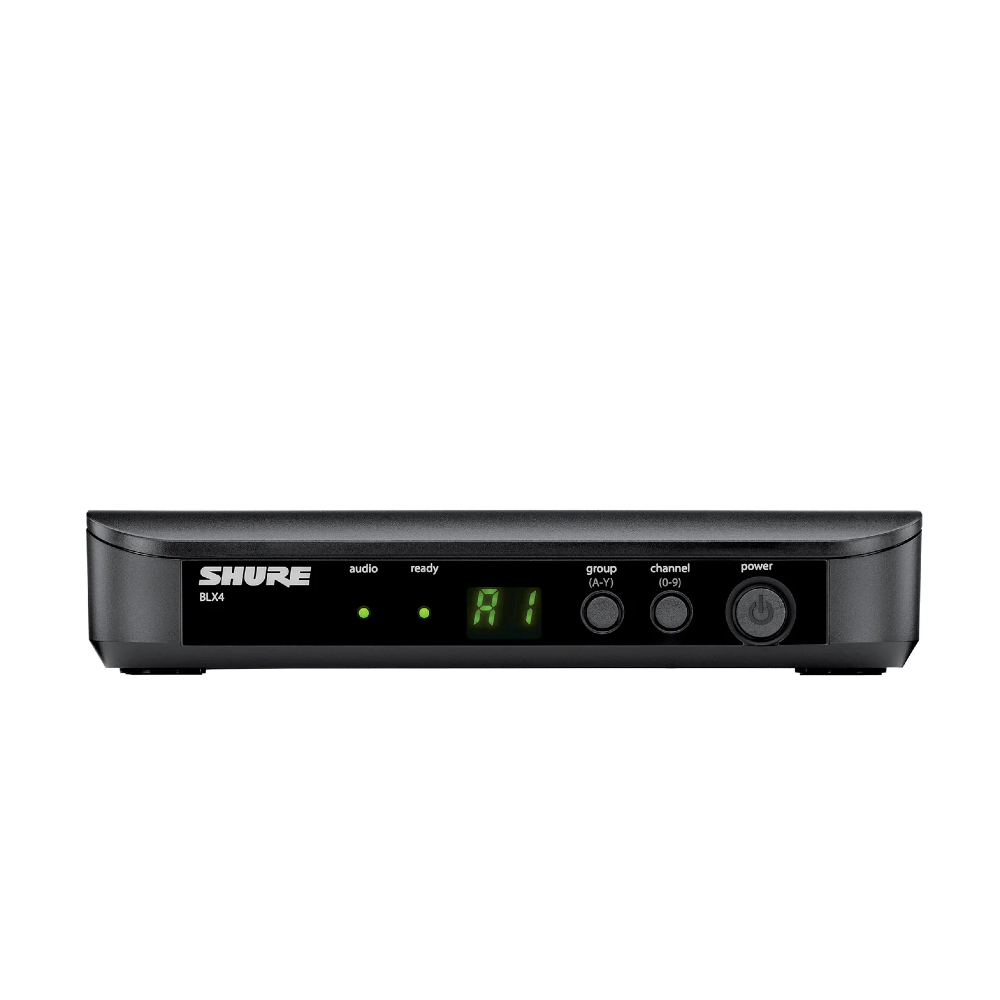

BLX4 Receiver Specifications
Output Impedance:
XLR connector: 200 Ω
6.35 mm (1/4-inch) connector: 50 Ω
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4-inch) connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight: 8.5 oz. (241 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

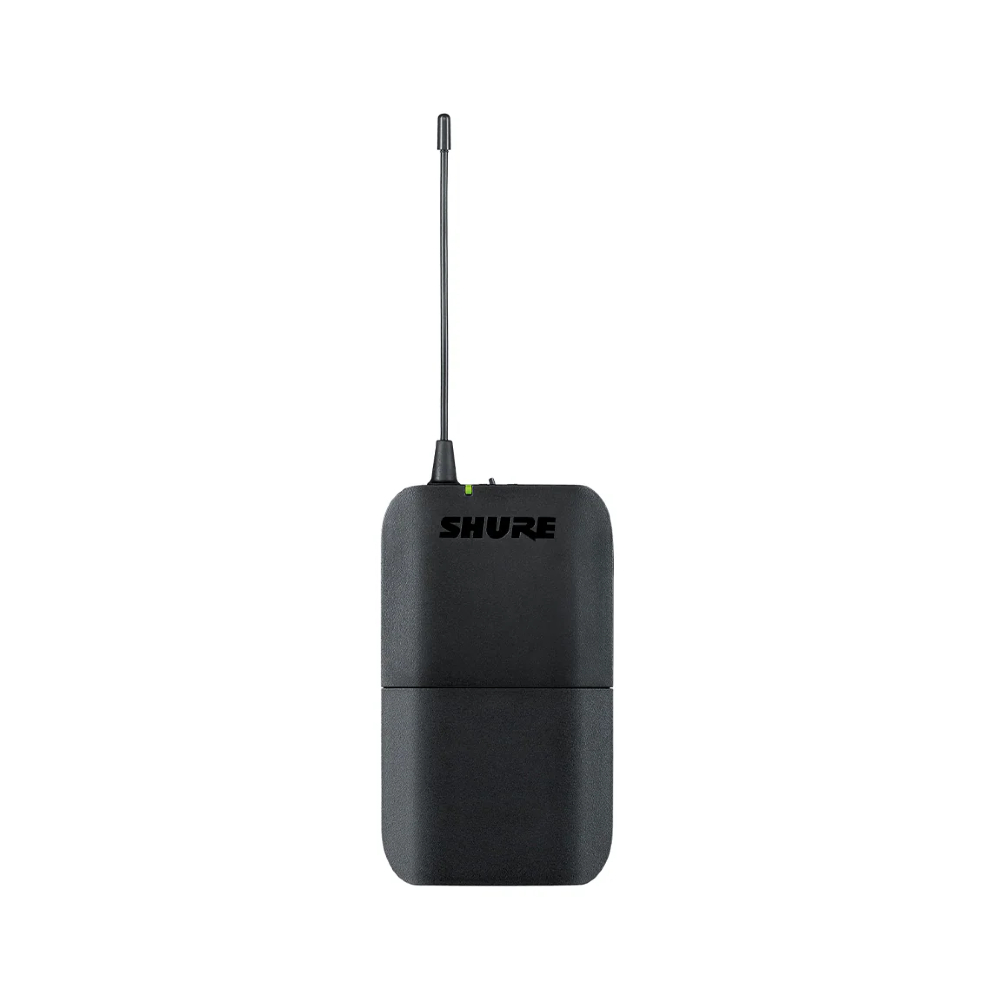

BLX1 Bodypack Specifications
Audio Input Level
max: -16 dBV maximum
min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

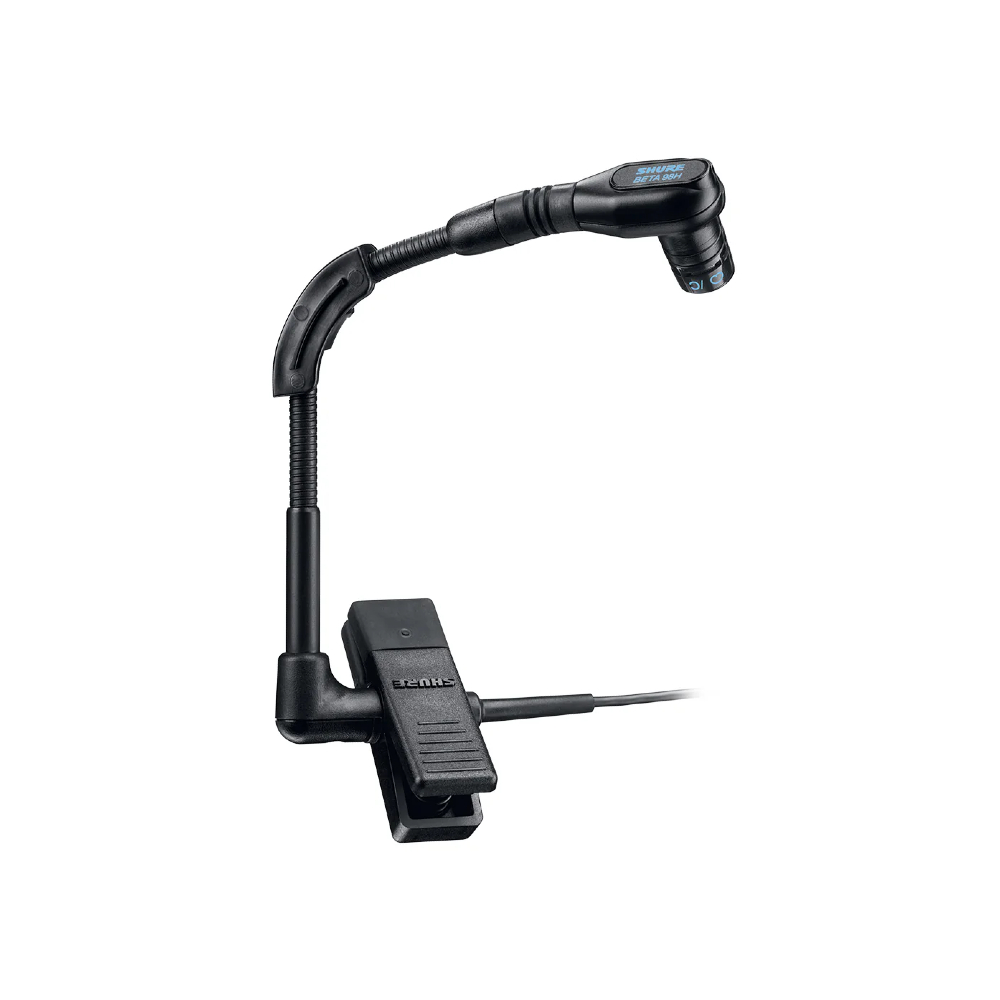

Beta 98H/C Specifications
Cartridge Type: Electret Condenser
Frequency Response: 20 to 20,000 Hz
Polar Pattern: Cardioid
Output Impedance: 150 Ω
Sensitivity (at 1 kHz, open circuit voltage): –56 dBV/Pa (1.6 mV) (1 Pascal=94 dB SPL)
Maximum SPL (1 kHz at 1% THD, 1KΩ load): 155 dB SPL
Equivalent Output Noise (A-weighted): 31 dB SPL (typical)
Dynamic Range (at 1 kHz, 1KΩ load): 124 dB, 132 dB
Clipping Level (1 kHz at 0.25% THD, 1KΩ load): 3 dBV (1.4 V)
Signal-to-Noise Ratio (Referenced at 94 DB SPL at 1 kHz): 63 dB
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements: 11–52 VDC phantom power (IEC-61938), 1.2 mA
