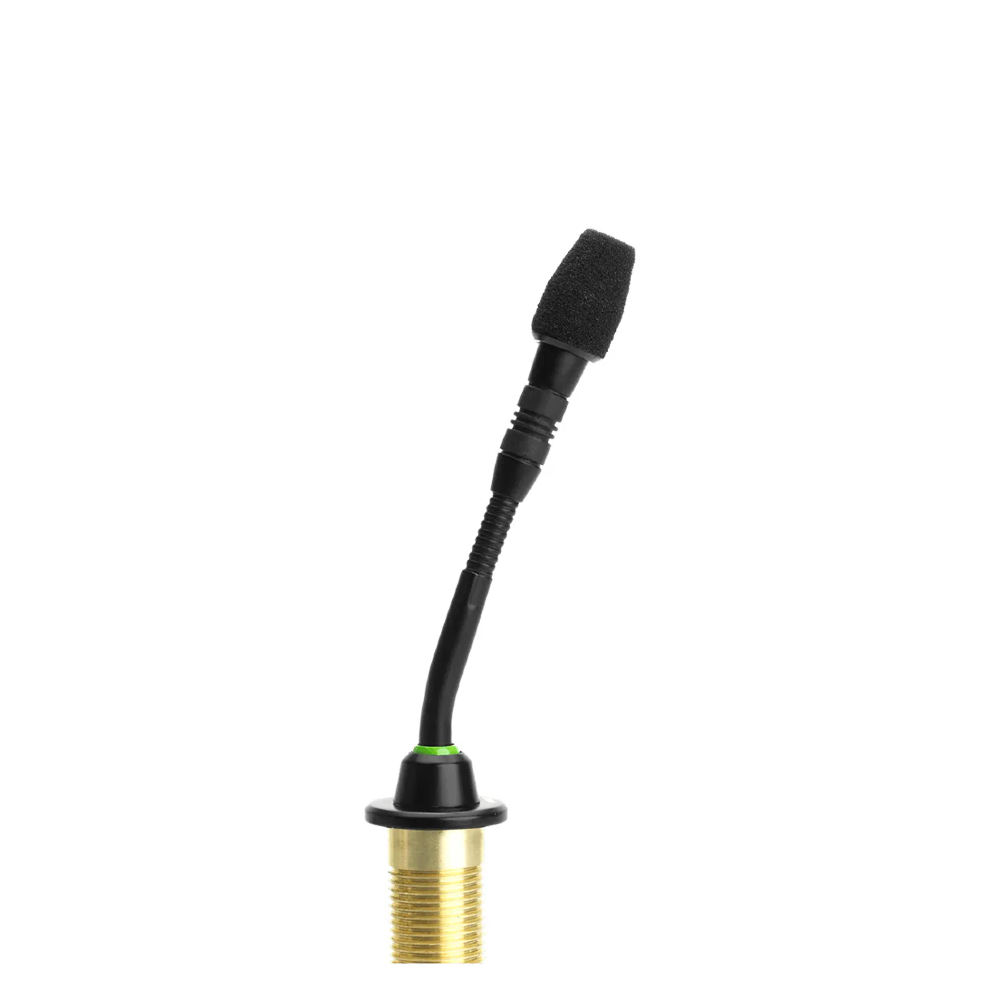

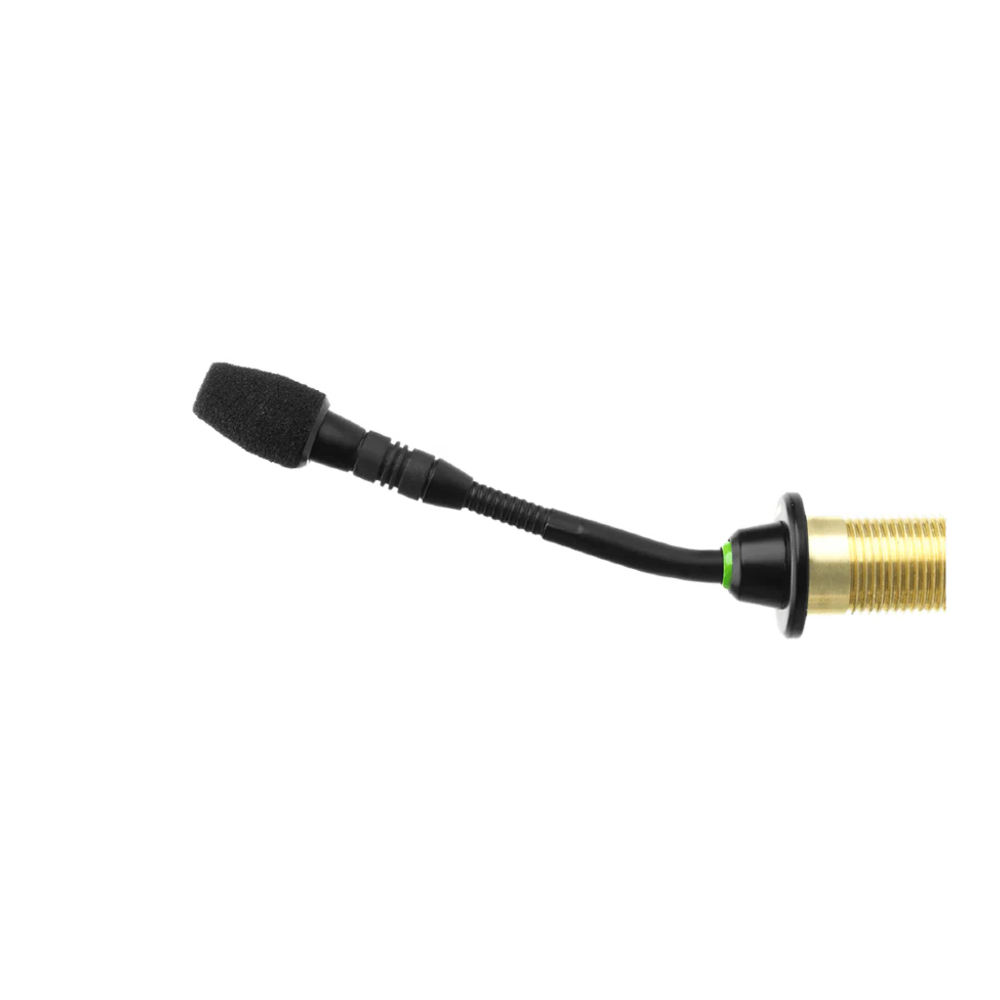

Shure MX405/C Microflex 5-inch Cardioid Gooseneck Microphone + Preamp

SKU: E-6-1139

Brand:
Shure

Category:
Pro-Audio

Sub-Category:
Microphones

After meticulous engineering, the Shure MX405/C emerges as a premium 5-inch Gooseneck Microphone, complete with a Surface Mount Preamplifier and a Cardioid Capsule, tailored for professional-grade audio capture in diverse environments. This durable and high-quality microphone is the perfect choice for discerning audio professionals and institutions, offering unparalleled clarity and reliability in settings such as meeting rooms, lecture halls, and places of worship.

PHP 24,000.00

After meticulous engineering, the Shure MX405/C emerges as a premium 5-inch Gooseneck Microphone, complete with a Surface Mount Preamplifier and a Cardioid Capsule, tailored for professional-grade audio capture in diverse environments. This durable and high-quality microphone is the perfect choice for discerning audio professionals and institutions, offering unparalleled clarity and reliability in settings such as meeting rooms, lecture halls, and places of worship.

Crafted with versatility in mind, the MX405/C boasts interchangeable capsules, allowing for easy adaptation to various speaking or recording scenarios. The cardioid polar pattern excels in its focused audio pickup, adept at capturing sound from the front while adeptly rejecting unwanted noise from the rear, ensuring that your subject is heard with exceptional clarity.

Features:

Gooseneck length: 5 inch / 12.7 cm
Low profile, aesthetic design
Wide dynamic range and smooth frequency response
RF filtering with CommShield technology
Bi-Colour LED at gooseneck bottom
Cardioid Capsule

Type: Condenser (electret bias)
Frequency Response: 50–17000 Hz
Polar Pattern (at 1 kHz): Cardioid
Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
Output Configuration: Active Balanced
Sensitivity (at 1 kHz , open circuit voltage): Cardioid: –35 dBV/Pa (18 mV)
Maximum SPL (1 kHz at 1% THD, 1 kW load): Cardioid: 121 dB
Equivalent Output Noise (A-weighted): Cardioid: 28 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Cardioid: 66 dB
Dynamic Range (1 kΩ load at 1 kHz): 93 dB
Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
Weight: MX405: 0.054 kg (0.119 lbs)

Logic Connections:

LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
Mute Switch Attenuation: -50 dB minimum

Environmental Conditions:

Operating Temperature: -18–57 °C (0–135 °F)
Storage Temperature: -29–74 °C (-20–165 °F)
Relative Humidity: 0–95%
Power Requirements: 48–52 Vdc phantom, 8.0 mA
