Shure SLXD14-L57 Wireless Bodypack Transmitter System (650 - 694 MHz)

SKU: E-6-1127

Brand:
Shure

Category:
Pro-Audio

Sub-Category:
Accessories

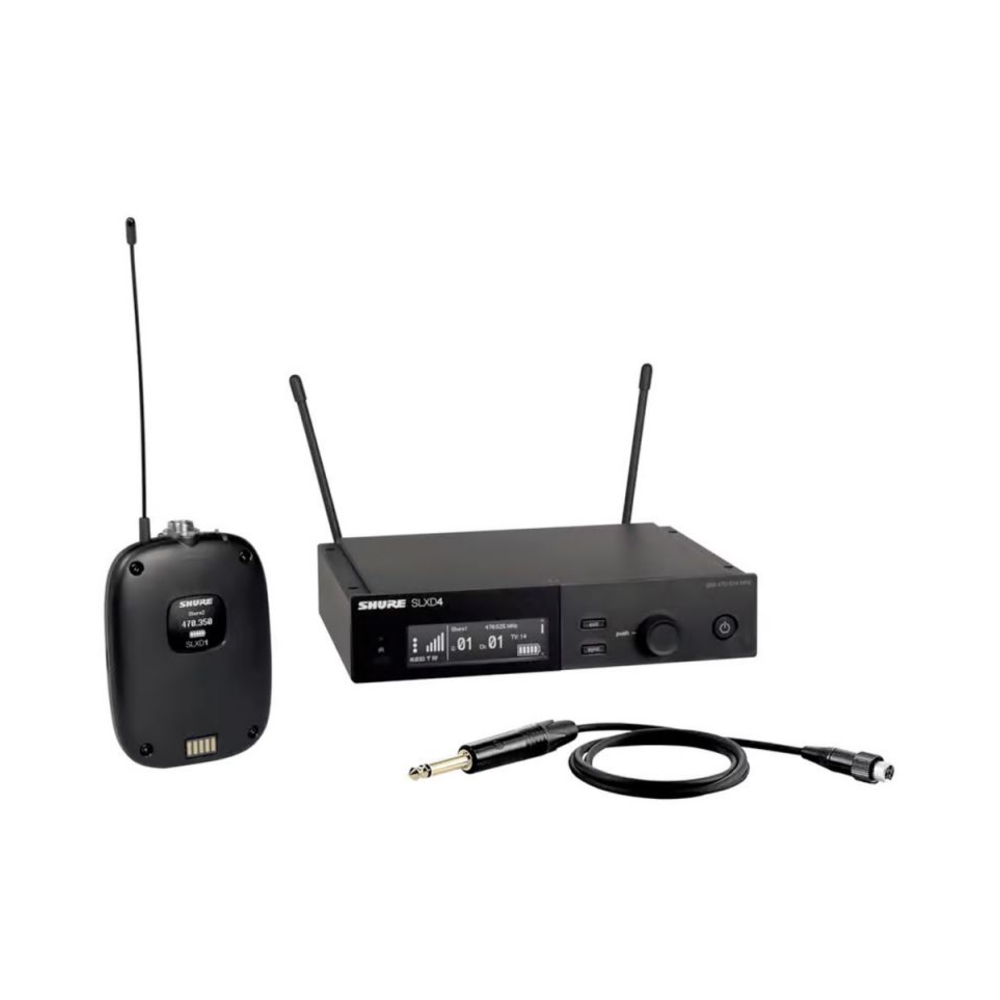

The SLXD14 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WA305 Premium Instrument Cable with antenna and rackmount accessories and 2 AA batteries. The SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances. The included instrument cable connects a 1/4-inch jack to a 4-pin mini-connector for the bodypack transmitter.

PHP 45,000.00

PHP 38,250.00

The SLXD14 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WA305 Premium Instrument Cable with antenna and rackmount accessories and 2 AA batteries. The SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances. The included instrument cable connects a 1/4-inch jack to a 4-pin mini-connector for the bodypack transmitter.

Features:

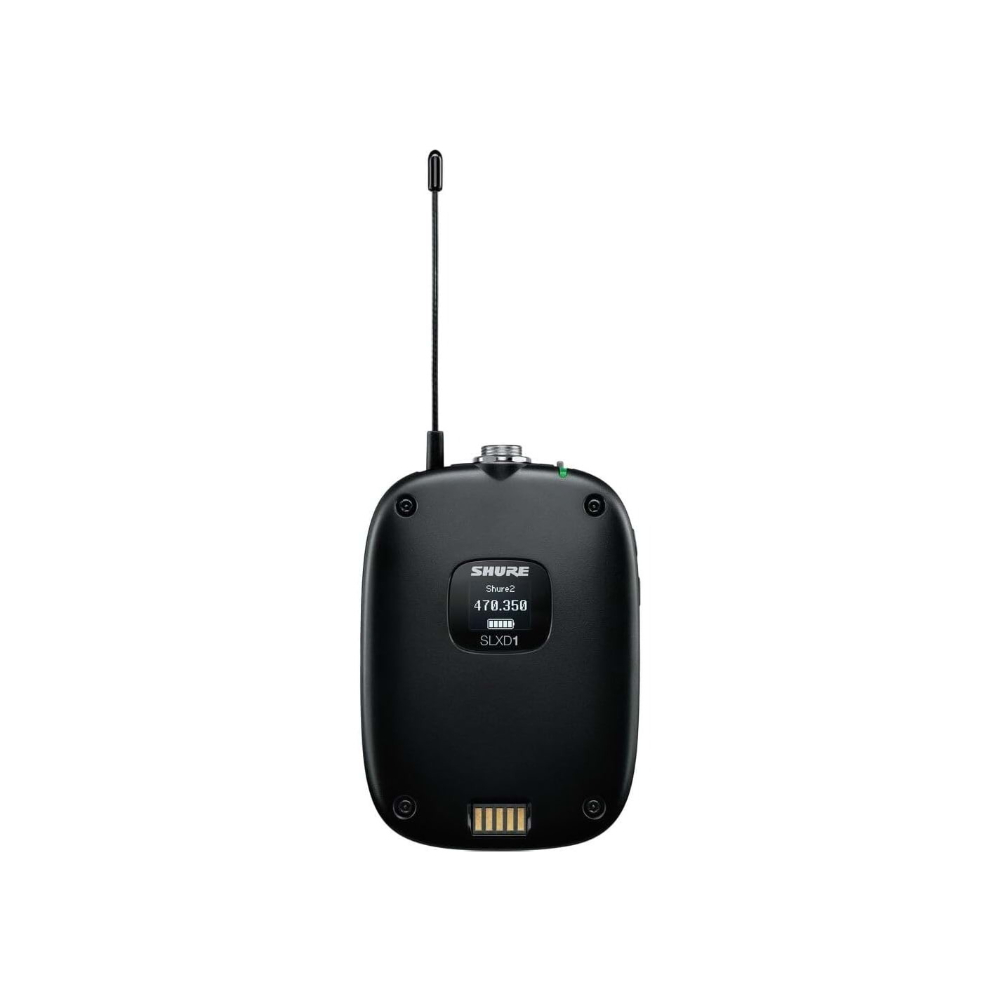

SLXD1 Digital Wireless Bodypack Transmitter
Transparent 24-bit digital audio
120 dB dynamic range
Digital predictive switching diversity
Easy pairing of transmitters and receivers over scan and IR sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
TQG connectivity offers a variety of microphone options
Ergonomic

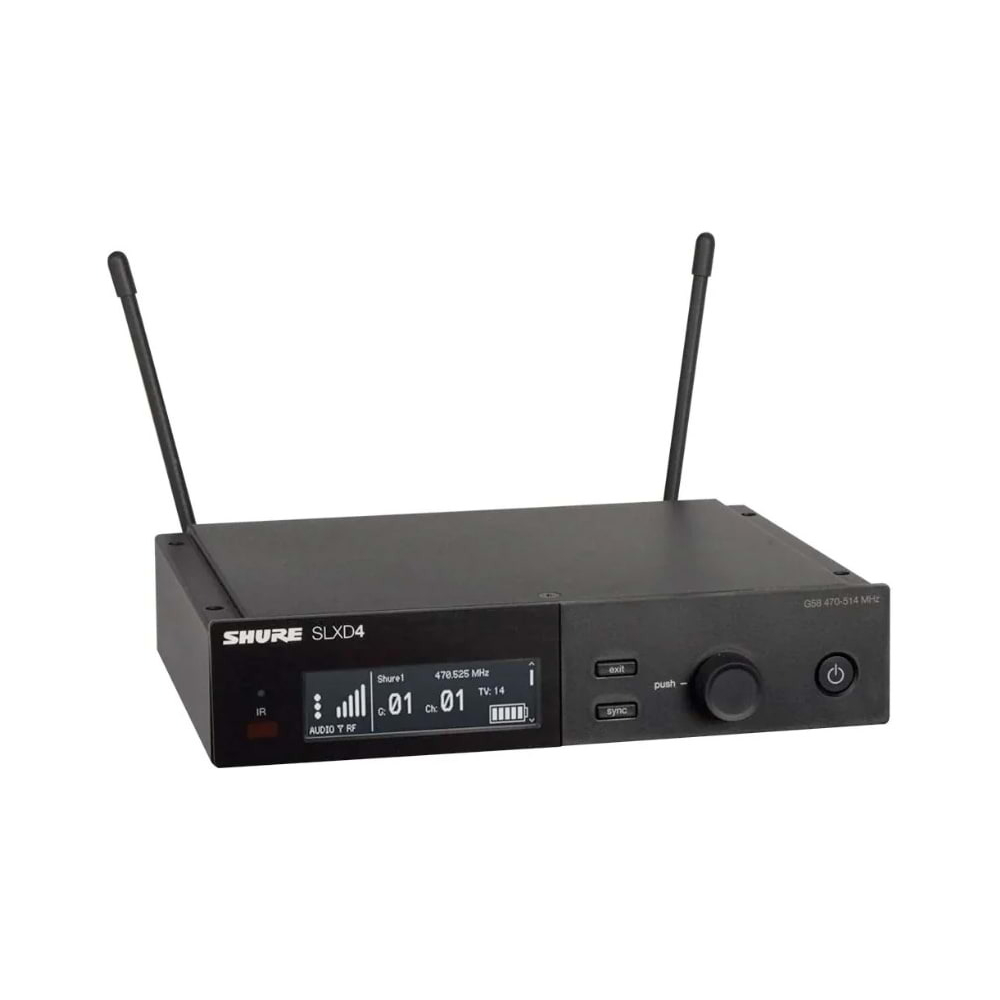

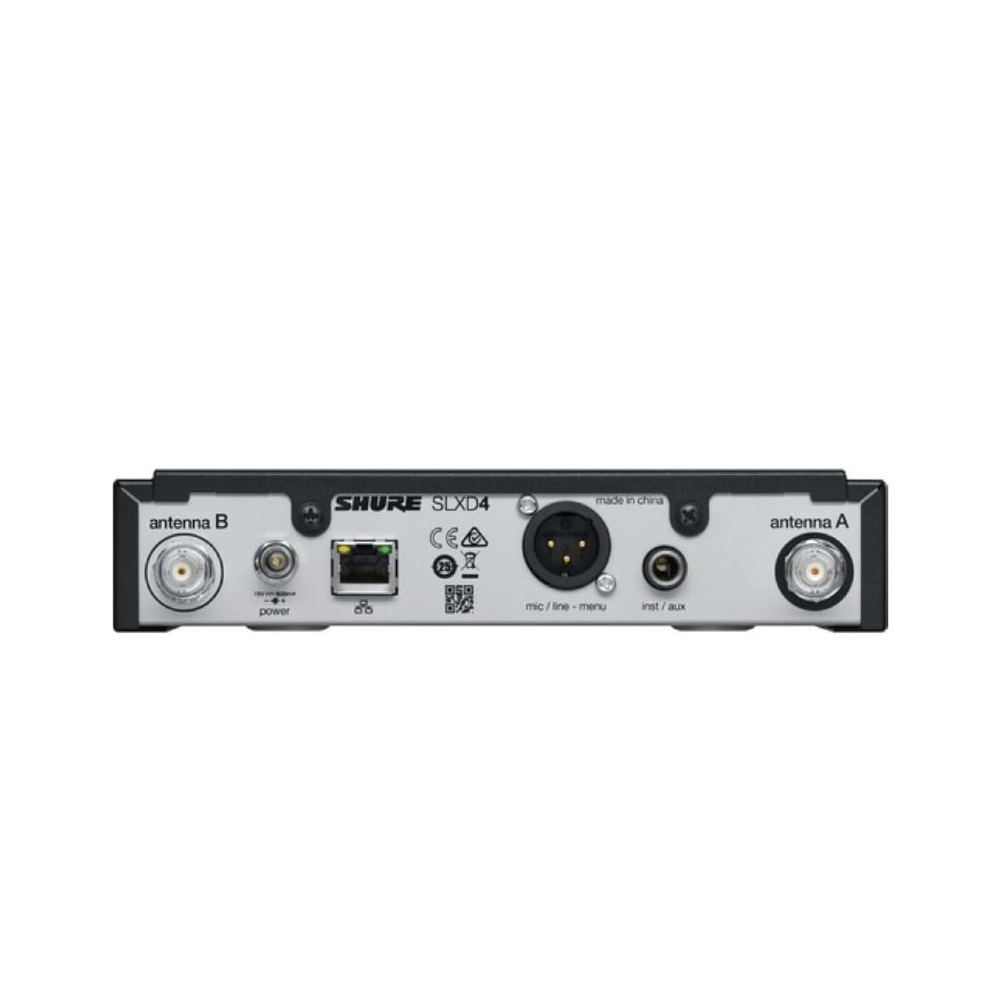

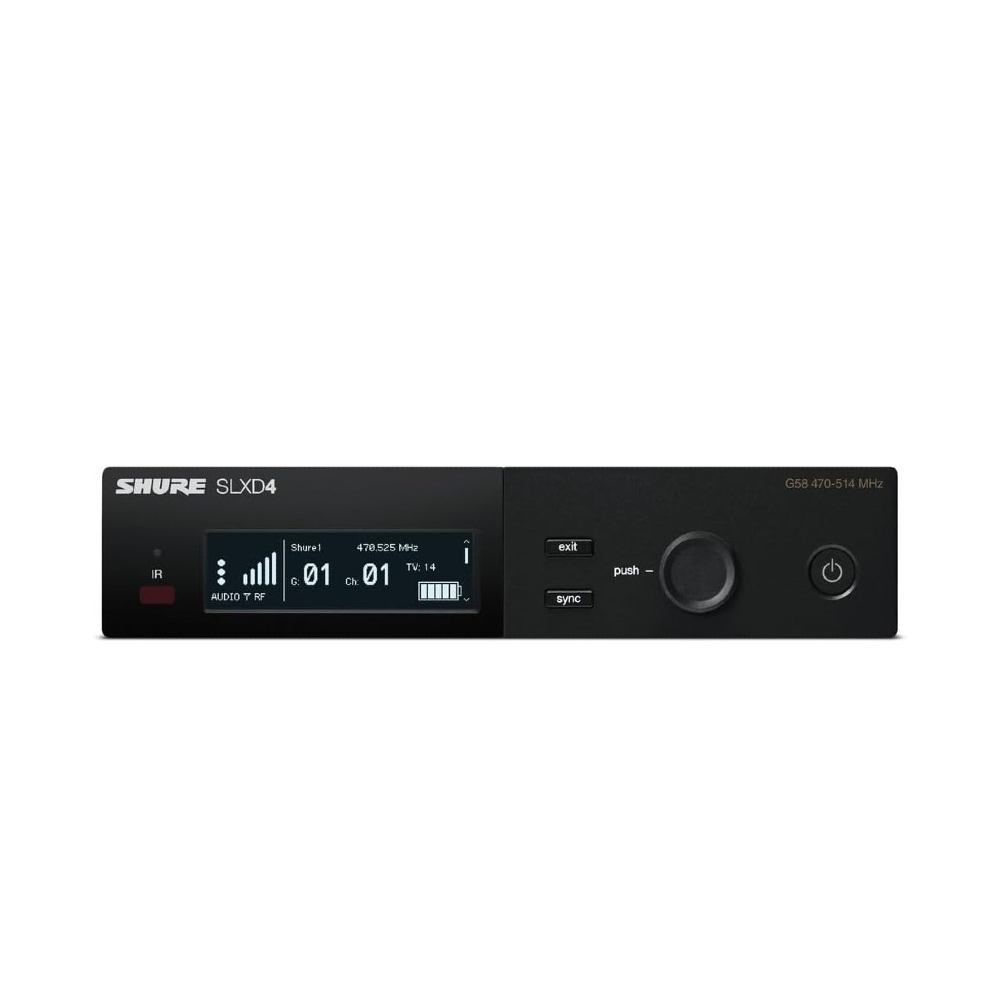

SLXD4 Digital Wireless Receiver
Transparent 24-bit digital audio
120 dB dynamic range
Digital predictive switching diversity
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over scan and IR sync
Rugged metal construction

Front-End RF Filtering: –3 dB at 30.5 MHz from the center frequency of each band
Active RF Gain Control: 31 dB Adjusts RF sensitivity to provide more RF dynamic range
RF Sensitivity at 20 dB SINAD: 2.2 µV
Image Rejection: >90 dB
Adjacent Channel Rejection: >70 dB
Latency: 0.37ms
Squelch Threshold:
22 dB SINAD (±3 dB)
default setting
Intermodulation Attenuation: >70 dB
Blocking: >80 dB
Audio Output Power:
1kHz @ 1% distortion, peak power, @16Ω
100 mW (per output)
4-band Parametric EQ: 9.5 Ω
Volume Limiter
Selectable: OFF (0 dB) to -48 dB in 3 dB steps
Volume Lock: Selectable: 0 dB to -70 dB Limits volume adjustment knob. Selected value analogous to volume knob increment.
Net Weight: 154 g (Without Battery)
Dimensions: 83 x 65 x 22 mmH x W x D
Battery Life: 4–6 hours (continuous use) AA batteries
