Shure BLX14RA/SM35 Headworn Wireless System (K3E: 606-630 mhz)

SKU: E-6-1126

Brand:
Shure

Category:
Pro-Audio

Sub-Category:
Headphones

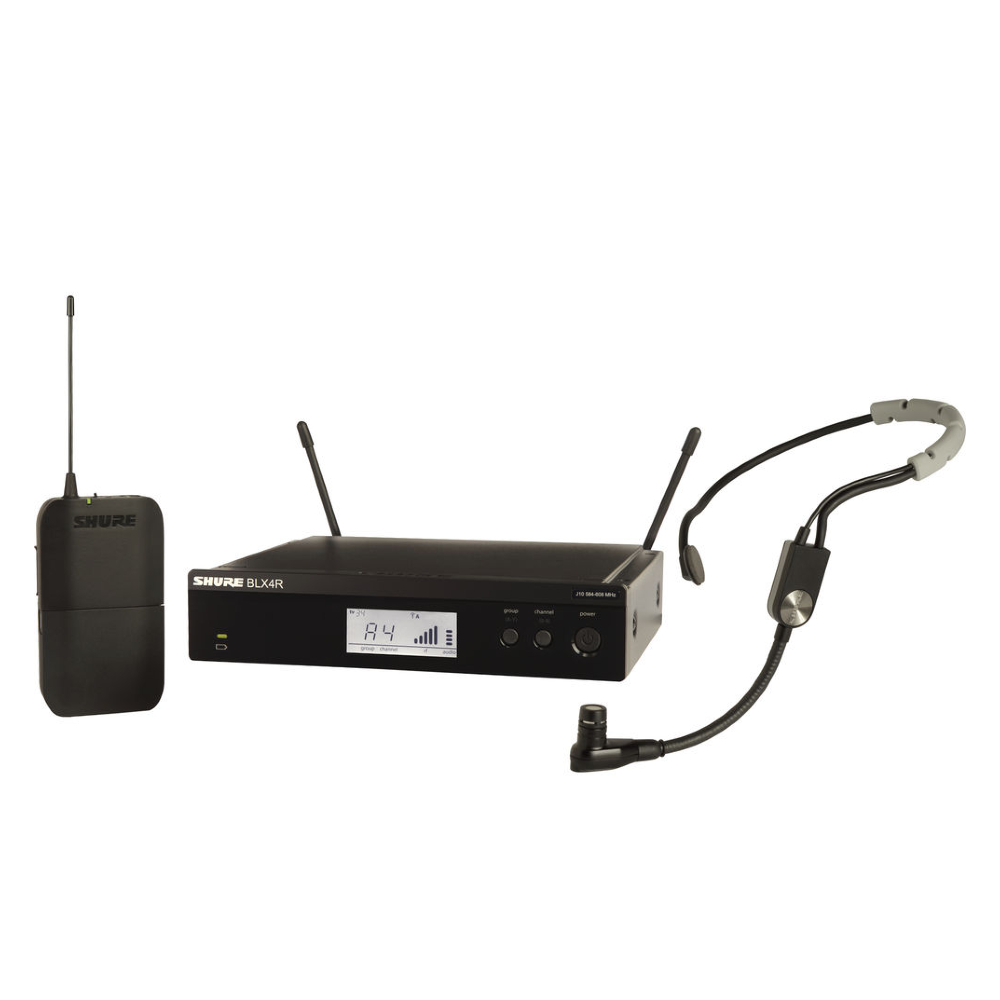

The BLX14R/SM35 Headworn Wireless System from Shure includes a BLX4R single-channel rackmount wireless receiver, a BLX1 bodypack transmitter, and an SM35 headset condenser microphone. The system is set to Shure's K12 frequency band and operates between 614 - 638 MHZ. The BXL1 bodypack transmitter has a 300' line of sight operation range with the BLX4R receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4R receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.

PHP 35,000.00

PHP 31,500.00

The BLX14R/SM35 Headworn Wireless System from Shure includes a BLX4R single-channel rackmount wireless receiver, a BLX1 bodypack transmitter, and an SM35 headset condenser microphone. The system is set to Shure's K12 frequency band and operates between 614 - 638 MHZ.

The BXL1 bodypack transmitter has a 300' line of sight operation range with the BLX4R receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4R receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.

Features:

For Live Performers

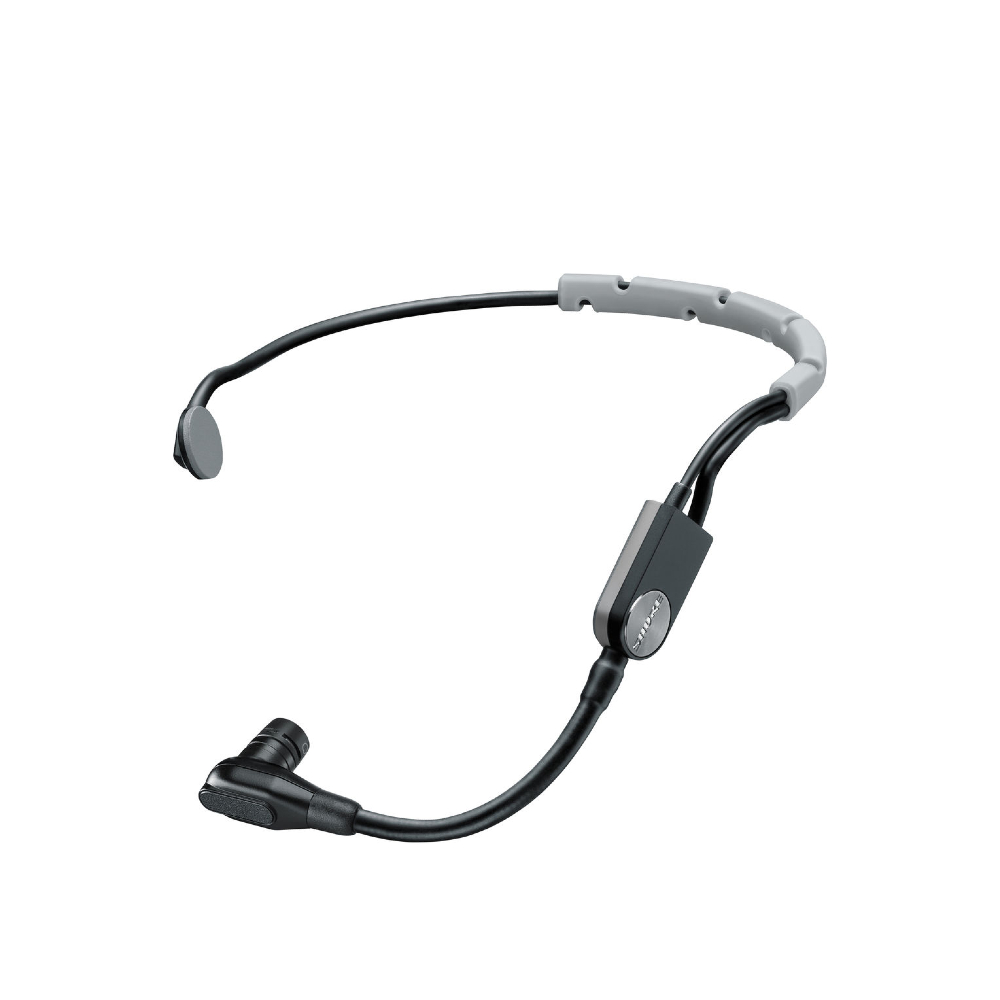

SM35 Cardioid Performance Headset Mic

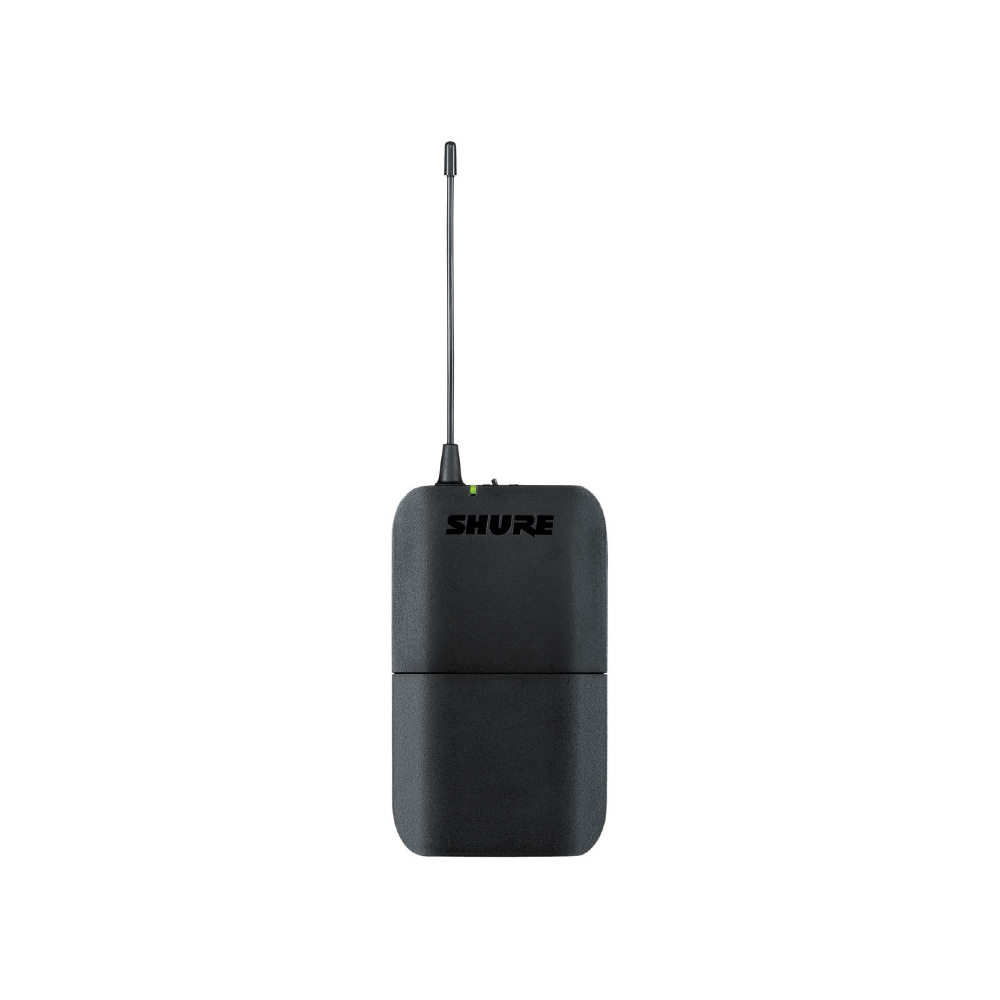

Lightweight Bodypack Transmitter

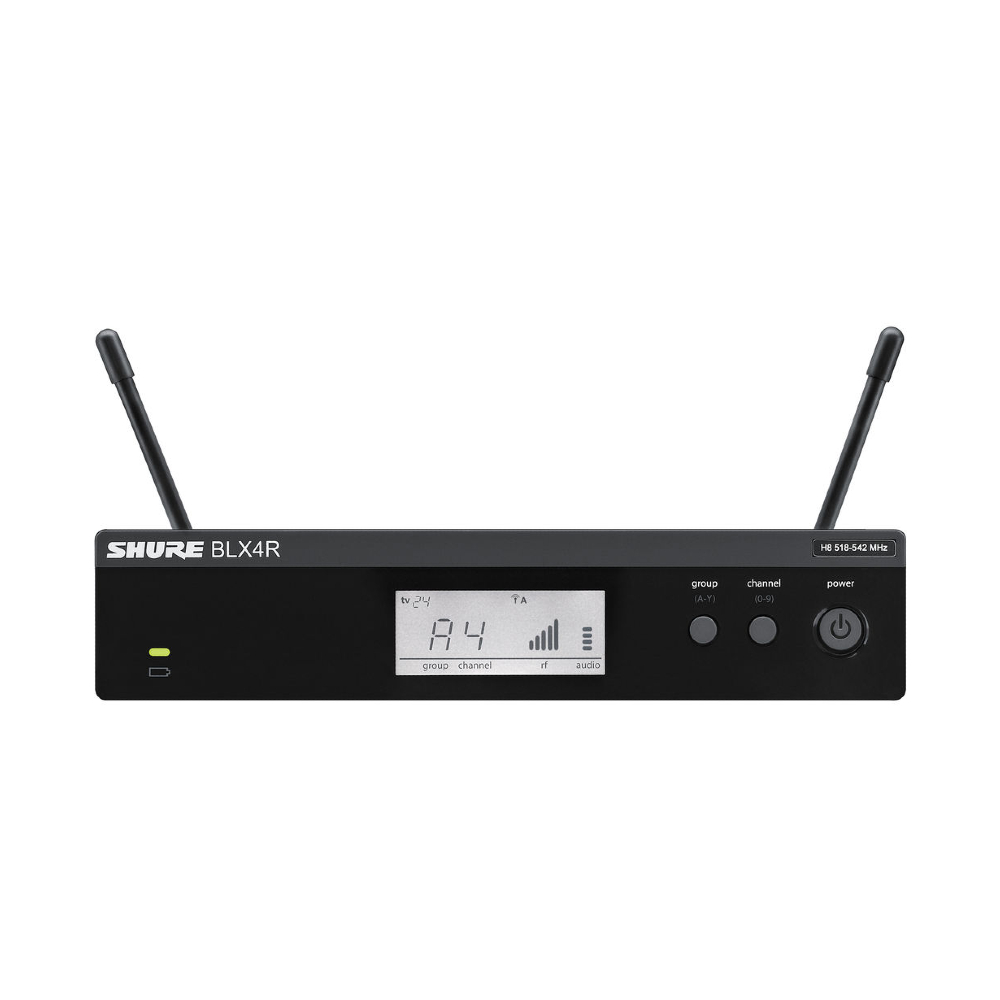

Single-Channel Rackmount Receiver
123 Auto-Scan Frequencies
Two Removable Antennas with Diversity
Adjustable Output Level
Rugged Metal Construction
14-Hr AA Batteries
Expandable to 12 Mic Channels/300' Range

Wireless Transmission: Analog UHF
Number of RF Channels: 123
Included Transmitters: 1 x Bodypack
Diversity Antenna: Diversity
RF Bandwidth: 24 MHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 300 ft / 91.4 m (Line of Sight)
Max Systems per Setup: 12
Dynamic Range: 100 dBA
Form Factor: Tabletop
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)

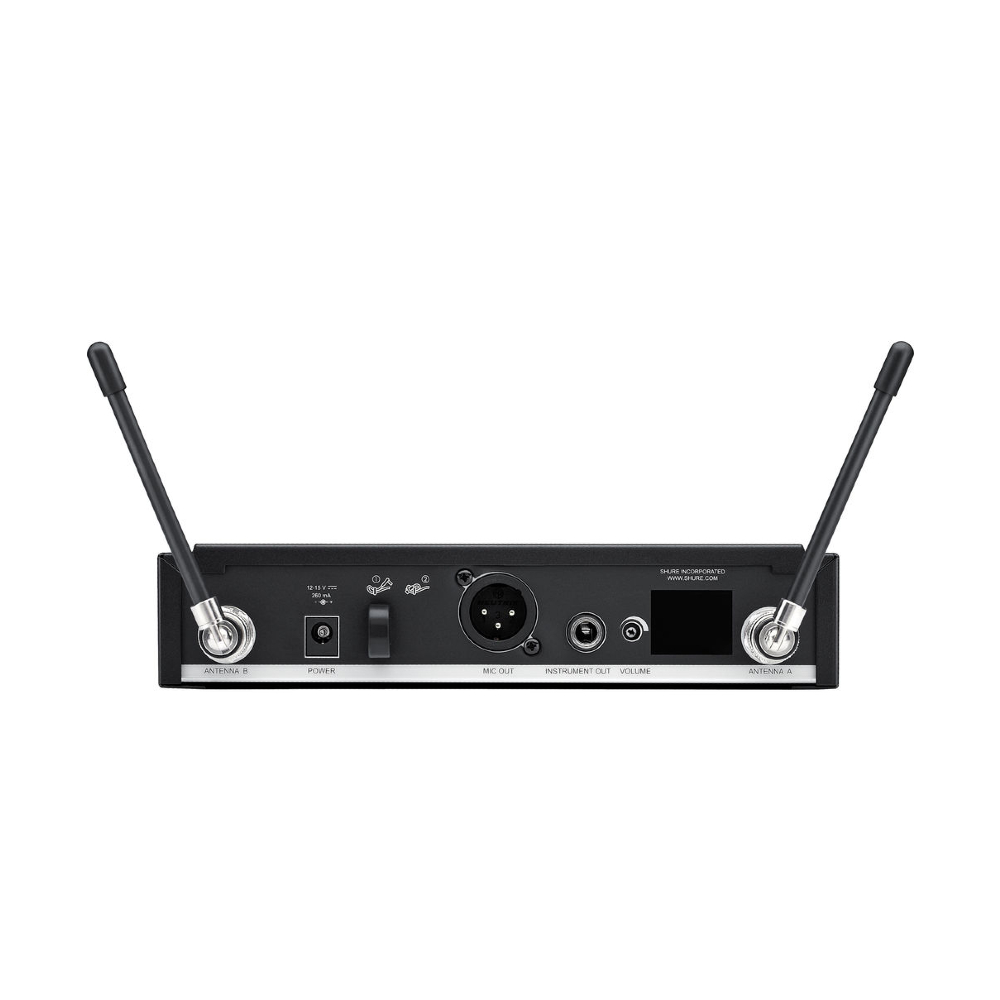

Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels: 1
1x XLR 3-Pin Male Balanced Output
1 x 1/4-inch TS Female Unbalanced Output
Audio Output Level XLR Output: -20.5 dBV (Mic Level)
1/4-inch Output: -13 dBV (Instrument Level)
Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output: 200 Ohms
1/4-inch Output: 50 Ohms
Adjacent Channel Isolation: >50 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Operating Temperature: 0 to 135°F / -17 to 57°C
Dimensions 7.8 x 2 x 6.4 in / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g
Form Factor: Bodypack
RF Output Power: 10 mW
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting: Off/On Switch
Auto-Level Control: No
Gain Range: -16 to +10 dB
Sync Method: Manual
Antenna: 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements: Battery
Battery Type: 2 x AA (Included)
Approx. Battery Life: 14 Hours (Alkaline)
1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8 in / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
Form Factor: Headset
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Cardioid
Frequency Range: 40 Hz to 20 kHz
SNR: 55 dB
Equivalent Noise Level: 39 dB
Maximum SPL: 153 dB SPL
Impedance: 2400 Ohms
Sensitivity: -59 dBV/Pa
Dynamic Range: 114 dB
Output Connectors: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length: 3.61' / 1.1 m
Operating Voltage: 5 to 10 V
Weight: 2.54 oz / 72 g
Frequency Band: K3E (606:630)
