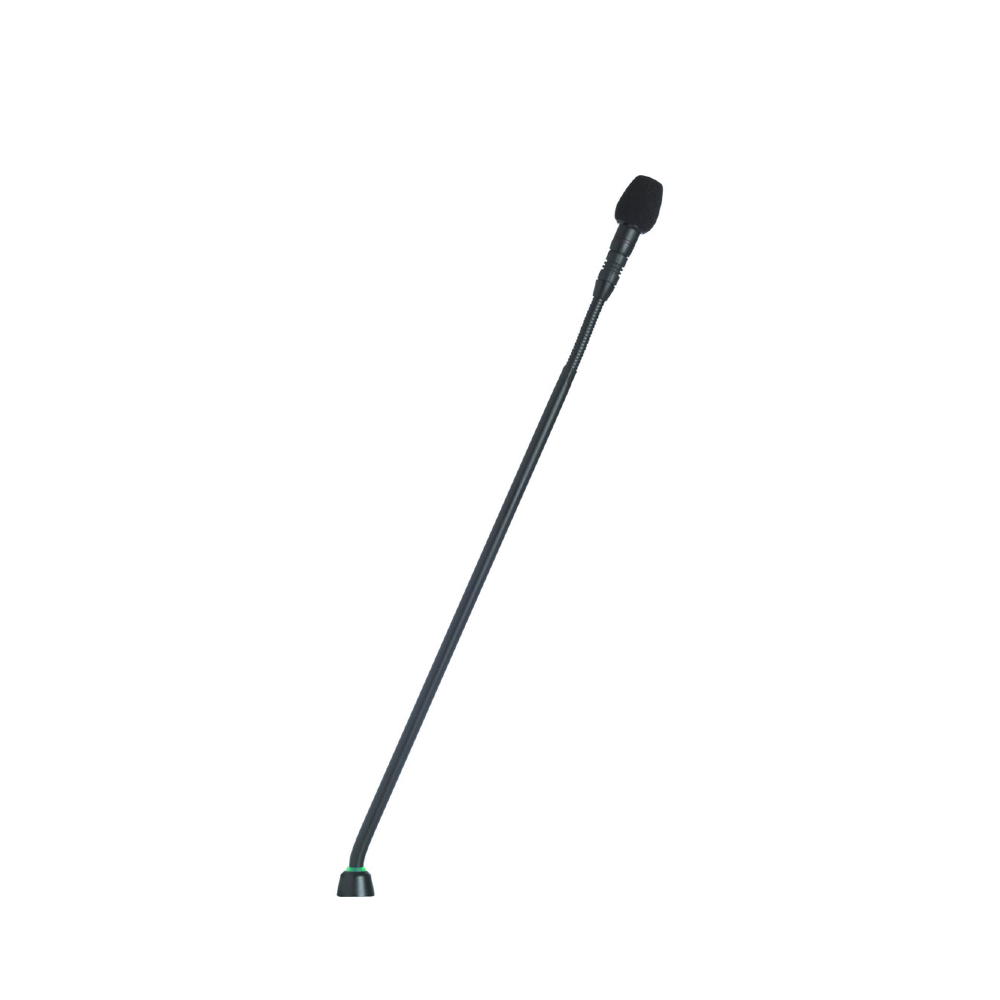

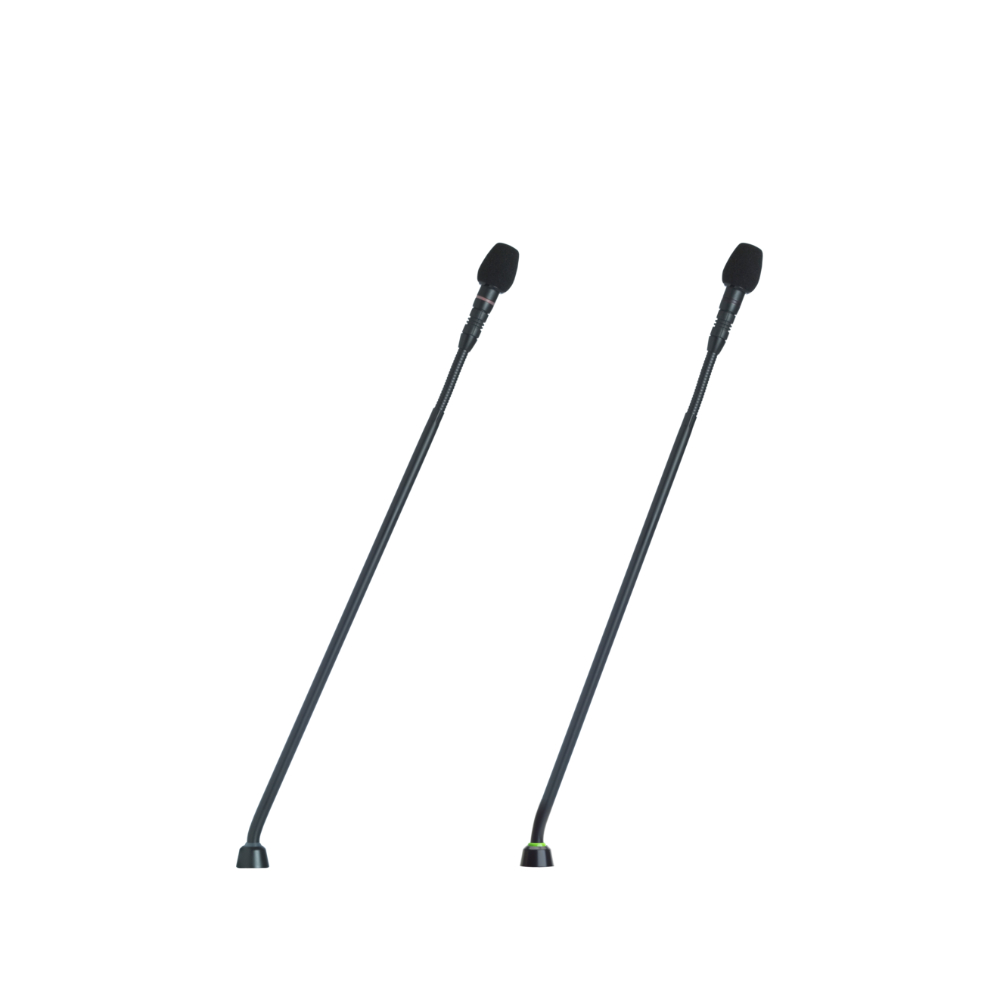

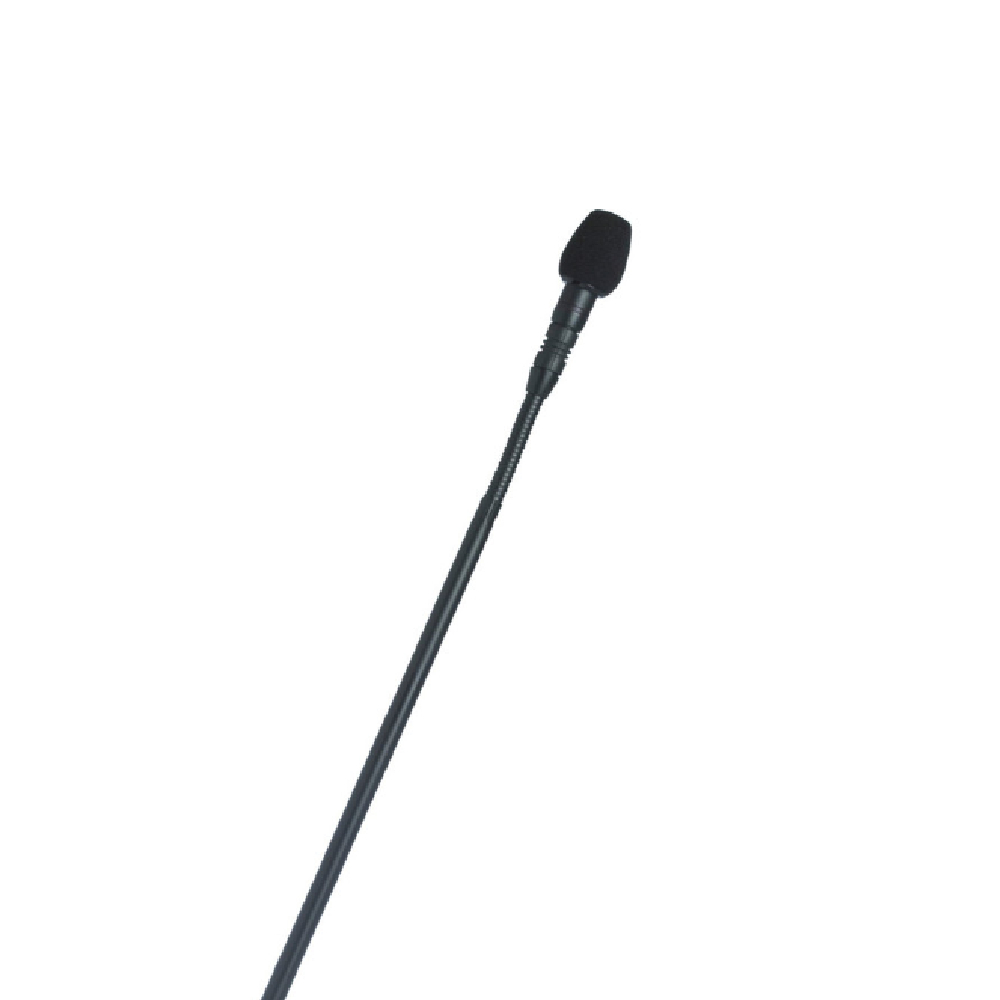

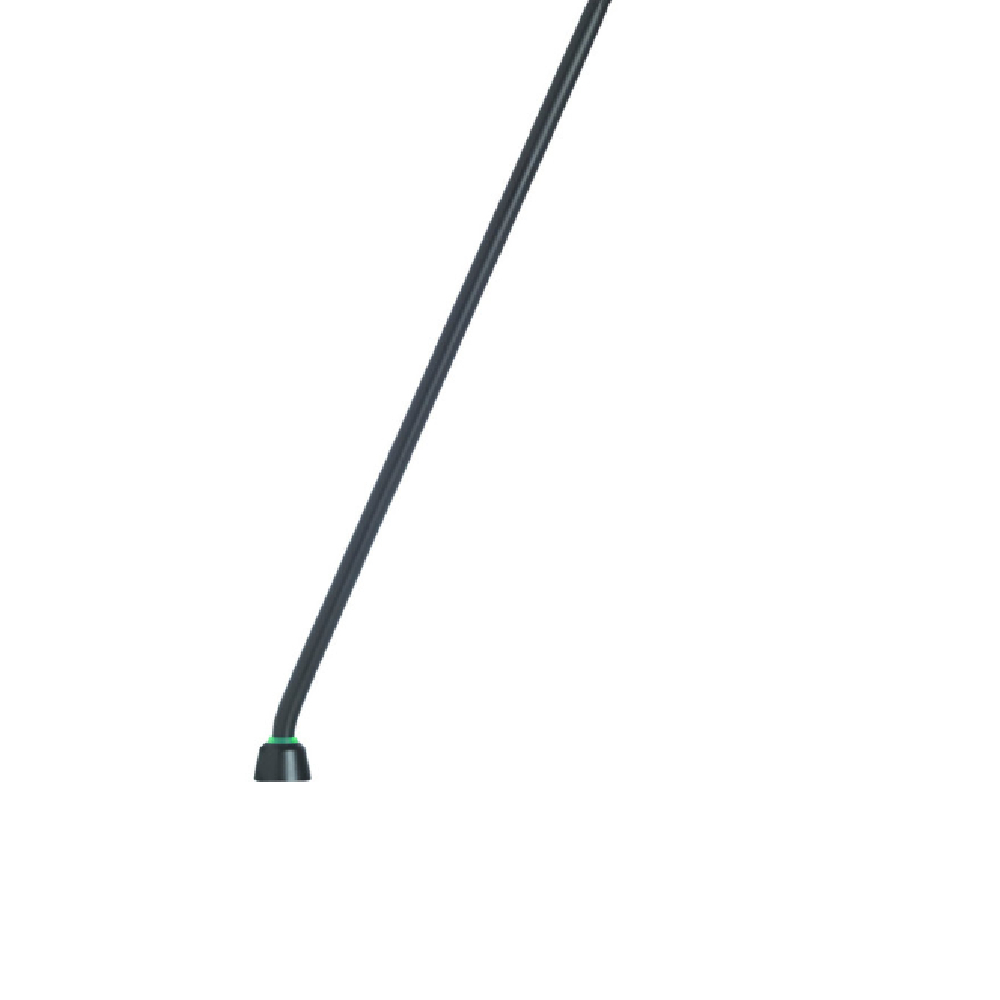

Shure MX415/S 15-inch Supercardioid Gooseneck Microphone with Surface Mount Preamp

SKU: E-6-1122

Brand:
Shure

Category:
Pro-Audio

Sub-Category:
Microphones

The Shure MX415/S 15-inchj Microflex Supercardioid Gooseneck Microphone with Bottom LED and Preamp is a gooseneck microphone with a sleek, low-profile design suitable for use on conference tables, podiums, altars, and lecterns where aesthetics are important. Designed for professional installations, it captures clear speech for presentation and conferencing applications in governmental, institutional, educational, religious, and business settings. The MX415/S permanently mounts on any flat surface using the included MX400SMP surface mount preamp with LED logic input. The mic can also be used with the MX400DP movable desktop base (available separately), which includes a configurable mute button with logic output. It is also compatible with the MX890 wireless desktop base and the ULXD8 wireless base (both available separately).

PHP 24,500.00

PHP 22,050.00

The Shure MX415/S 15-inchj Microflex Supercardioid Gooseneck Microphone with Bottom LED and Preamp is a gooseneck microphone with a sleek, low-profile design suitable for use on conference tables, podiums, altars, and lecterns where aesthetics are important. Designed for professional installations, it captures clear speech for presentation and conferencing applications in governmental, institutional, educational, religious, and business settings.

The MX415/S permanently mounts on any flat surface using the included MX400SMP surface mount preamp with LED logic input. The mic can also be used with the MX400DP movable desktop base (available separately), which includes a configurable mute button with logic output. It is also compatible with the MX890 wireless desktop base and the ULXD8 wireless base (both available separately).

Features:

15 inch (38.1 cm) long gooseneck design
Supercardioid polar pattern cartridge
Bi-color status indicator
Comes with a preamp
Programmable mute switch (desktop models only)
Snap-fit foam windscreen to reduce interference from wind noise
Logic input/output for remote LED and mute control
Surface-mount and wired or wireless desktop base options
CommShield Technology for improved RF filtering

Microphone Type: Condenser (electret bias)
Polar Pattern: Supercardioid
Frequency Response: 50 to 17000 Hz
Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)
Output Configuration: Active balanced
Sensitivity (at 1 kHz): (open circuit voltage): -34 dBV/Pa (21 mV)
Maximum SPL: 120 dB (1 kHz at 1% THD, 1 kilohm load)
Equivalent Output Noise (A-weighted): 27 dB SPL
Signal-to-Noise Ratio: 68 dB (referenced at 94 dB SPL at 1 kHz)
Dynamic Range (1 kilohm load at 1 kHz): 3 dB
Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
Preamplifier Output Clipping Level: -8 dBV (0.4 V) (1% THD)
Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector

Logic Connections: LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V
LOGIC OUT: Active low (=1.0V), syncs up to 20mA, TTL compatible
Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)
Mute Switch Attenuation: -50 dB minimum
Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
Relative Humidity: 0 to 95%
Power Requirements: 48 to 52 Vdc phantom, 8.0 mA
Weight: 0.154 lbs (.07kg)
