Wireless Technology: Digital UHF
Number of RF Channel Frequencies: 1760
Included Transmitters: 1 x Handheld
Diversity: True Digital Diversity
RF Frequency Band: L57: 650-694 MHz
RF Bandwidth: 43 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning; Auto-Scan
Max Operating Range: 328 ft / 100 m
Max Transmitters per Band: 32
Built-In Recorder: No
Timecode Support: Yes
Mobile App Compatible: No
Sample Rate/Resolution: 24-Bit
Latency: 3.2 ms
Dynamic Range: 118 dBA (Typical)
Encryption: No
THD: <0.02 %

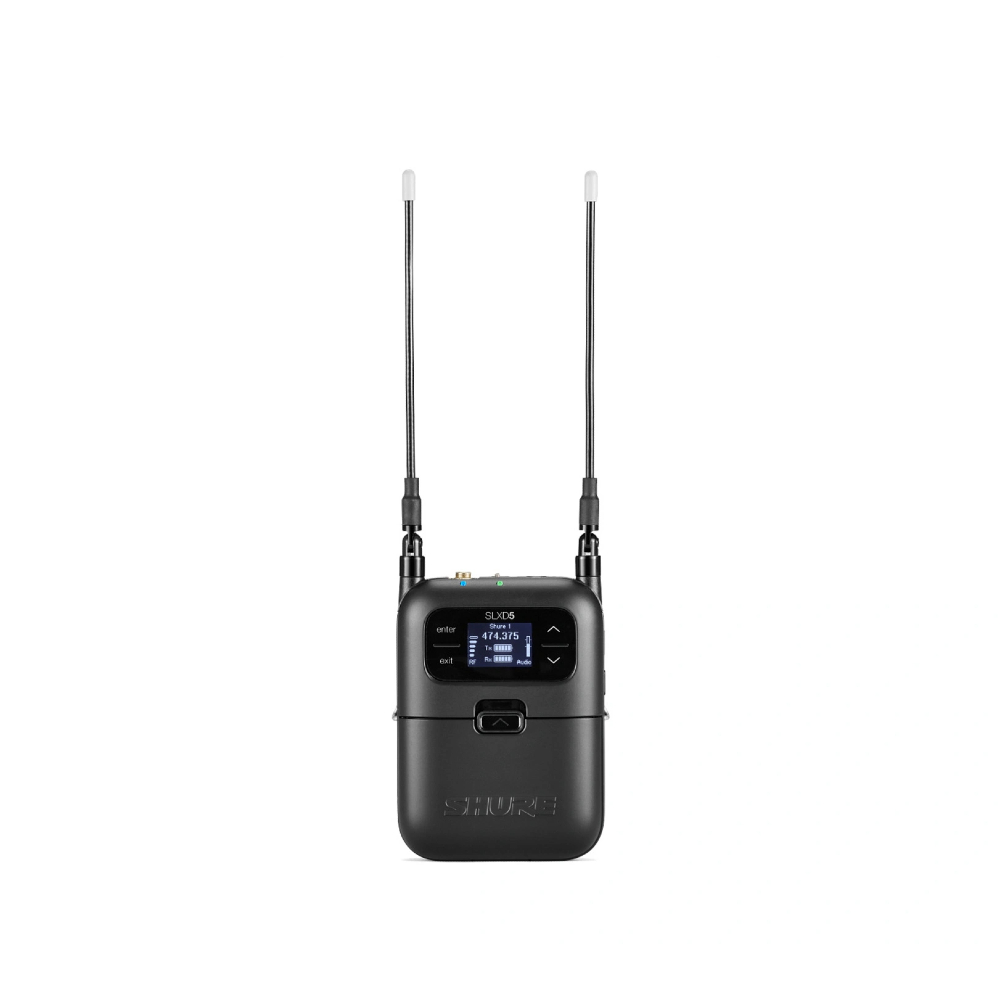

Receiver Type: Camera-Mount
Mounting Options: Shoe-Mount (with Included Hardware)
Antenna: 2 x 1/4 Wave Flexible Whip, Fixed (Front-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x 1/8-inch / 3.5 mm TRS Female Balanced Mic/Line Output
1 x 1/8-inch / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level: 1/8-inch / 3.5 mm Output:
+15 dB (Line Level, Balanced)
Phantom Power Protection: No
Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic)
Network I/O: No
USB/Lightning Connectivity: 1 x USB-C Female (Bus Power, Charging)
USB Class-Compliant: No, USB Charging/Power Only
Impedance: 1/8-inch / 3.5 mm Output:
450 Ohms (Balanced)
Spurious: Rejection: >75 dB
Power Requirements: Battery, Bus Power (USB)
Battery Type: 2 x AA (Not Included)
1 x Shure SB903: (Not Included)
Approx. Battery Life: 5.5 Hours
Display & Indicators: OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status)
Housing: Aluminium
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Dimensions: 2.7 x 4.2 x 1 in / 68 x 107 x 25.3 mm
Weight: 0.4 lb / 182 g

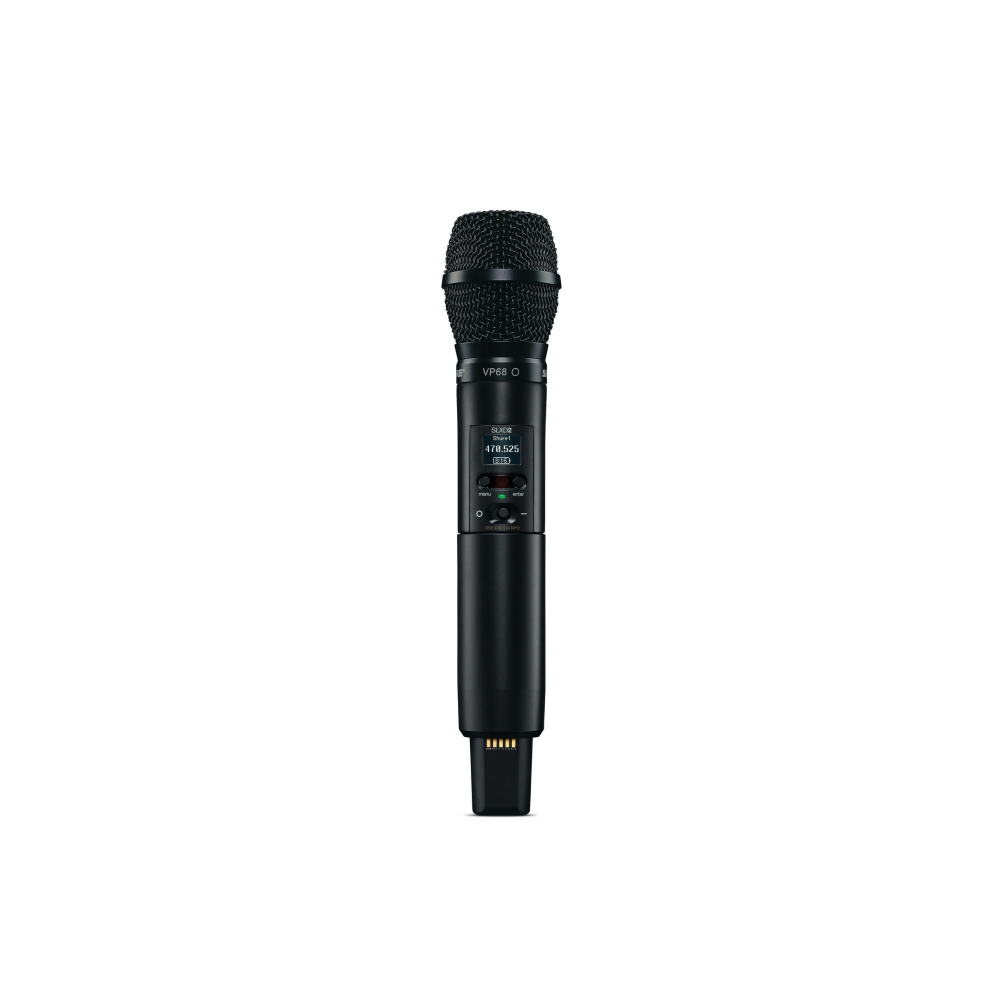

Transmitter Type: Handheld
RF Output Power: 1 / 10 mW
Audio I/O: No
Pad: No
Muting: Off/On Switch
Audio Input Level: 8.2 dBV (Max)
Auto-Level Control: No
Gain Range: 0 +21 dB
Signal Processing: No
Frequency Response: 20 Hz to 20 kHz
Sync Method: IR
Antenna: Internal Single-Band Helical
Power Requirements: Battery
Battery Type: 2 x AA (Not Included)
1 x Shure SB903 (Not Included)
Battery Charging Time: 1.25 to 5.5 Hours
Approx. Battery Life: 8 Hours (Lithium Shure SB903)
USB/Lightning I/O: No
Display & Indicators: LCD (Battery Status, Channel, Group)
Housing: ABS, Plastic
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Dimensions: 1.5 x 6.9 in / 37.1 x 176 mm
Weight: 5.2 oz / 147 g
Microphone Type: Handheld Capsule
Colour: Black
Sound Field: Mono
Capsule: Condenser
Polar Pattern: Omnidirectional
Frequency Range: 50 Hz to 20 kHz
CMRR: No
Operating Voltage: No
