Specification Details
Model: ATW-T1402

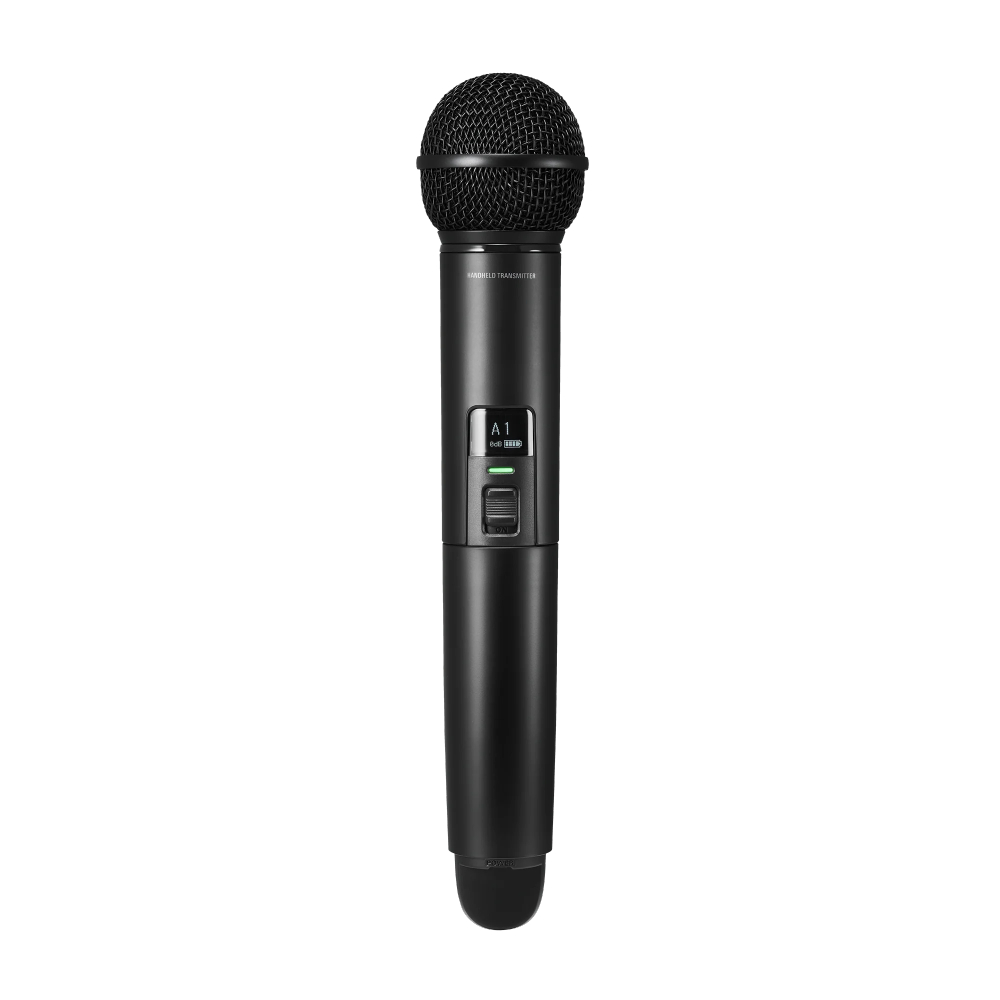

Product Type: Handheld Wireless Transmitter
Wireless Frequency Band: 2.402 – 2.480 GHz
Modulation: GFSK
RF Output Power: 10 mW EIRP
RF Sensitivity: -90 dBm (Typical)
Audio Sampling: 24-bit / 48 kHz
Latency Standard: 2.8 ms / HD Mode: 6.7 ms
Frequency Response: 20 Hz – 20 kHz
Dynamic Range: 120 dB (A-weighted)
Total Harmonic Distortion: <0.05%
Encryption: AES128
Microphone Type: Dynamic
Polar Pattern: Hypercardioid
Operating Range: Up to 60 m (open environment)
Battery: 2 × AA (3V DC)
Battery Life: Approx. 18 hrs (Alkaline), 16.5 hrs (NiMH), 35 hrs (Lithium)
Operating Temperature: 5°C to 40°C
Dimensions: 265 × 53.7 mm
Weight: 300 g (without batteries)
Included Accessories: AT8456a Mic Holder, 3/8-5/8-inch Thread Adapter
