SPECIFICATION
Wireless Transmission: Digital UHF
Number of RF Channels: 1760

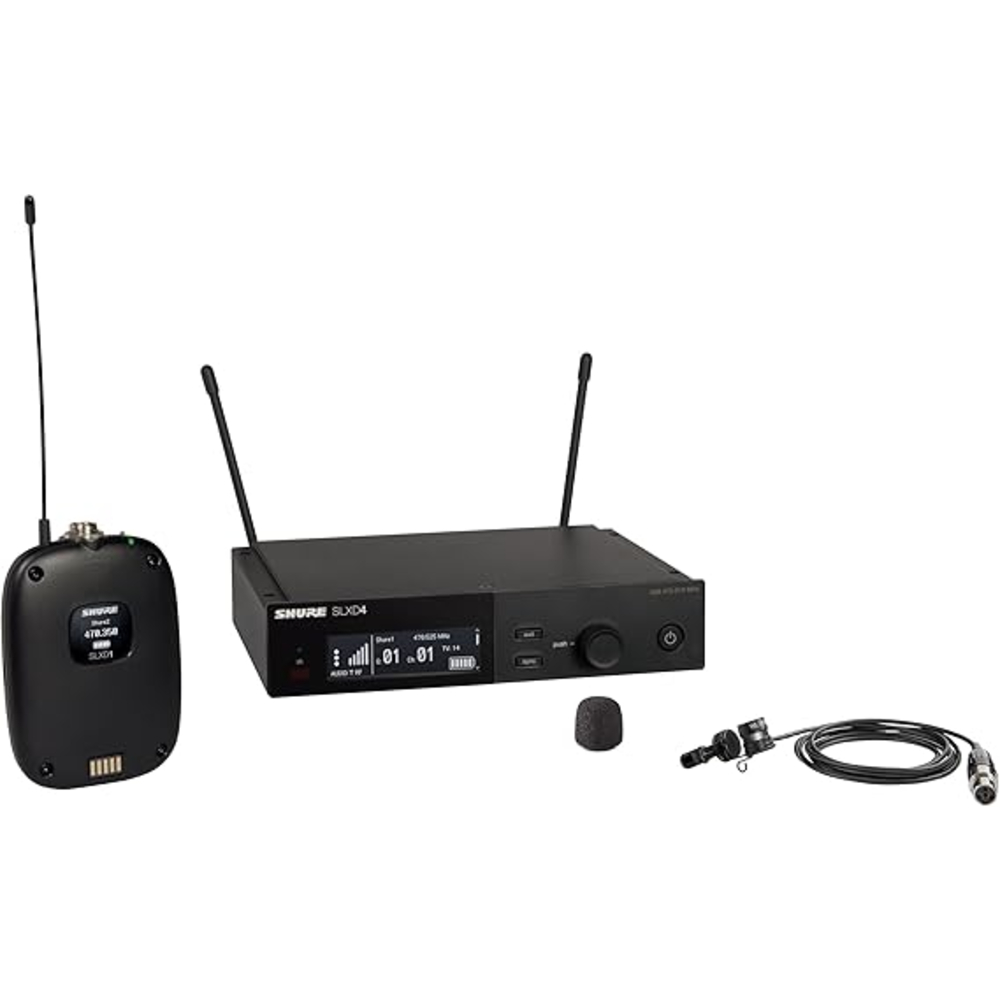

Included Transmitters: 1 x Bodypack with Microphone
Diversity: True Digital Diversity
RF Frequency Band: H57: 520 to 564 MHz
RF Bandwidth: 44 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328 ft / 100 m
Max Systems per Setup: 32
Sample Rate/Resolution: 24-Bit
Latency: 3.2 ms
Encryption: 120 dBA (Typical)
None

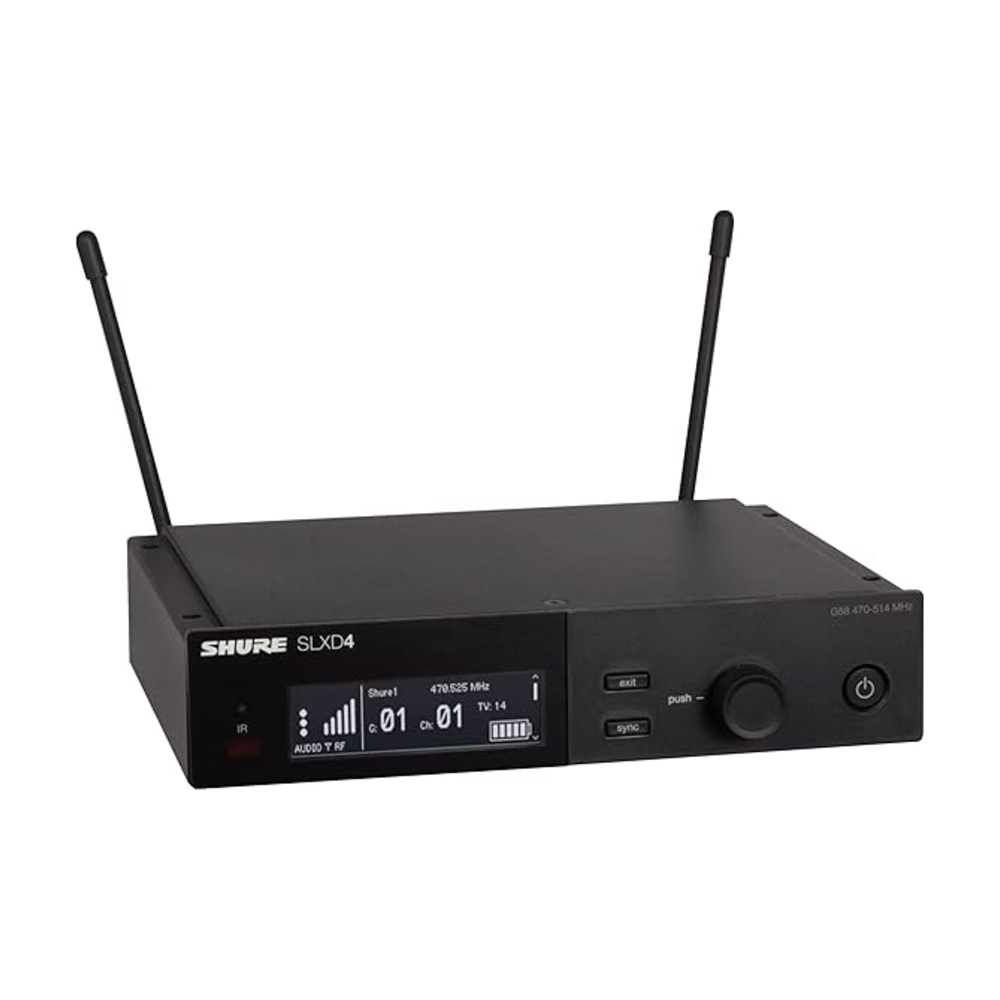

Receiver
Form Factor: Tabletop / Rackmount
Mounting Options: Rackmount, Tabletop (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)

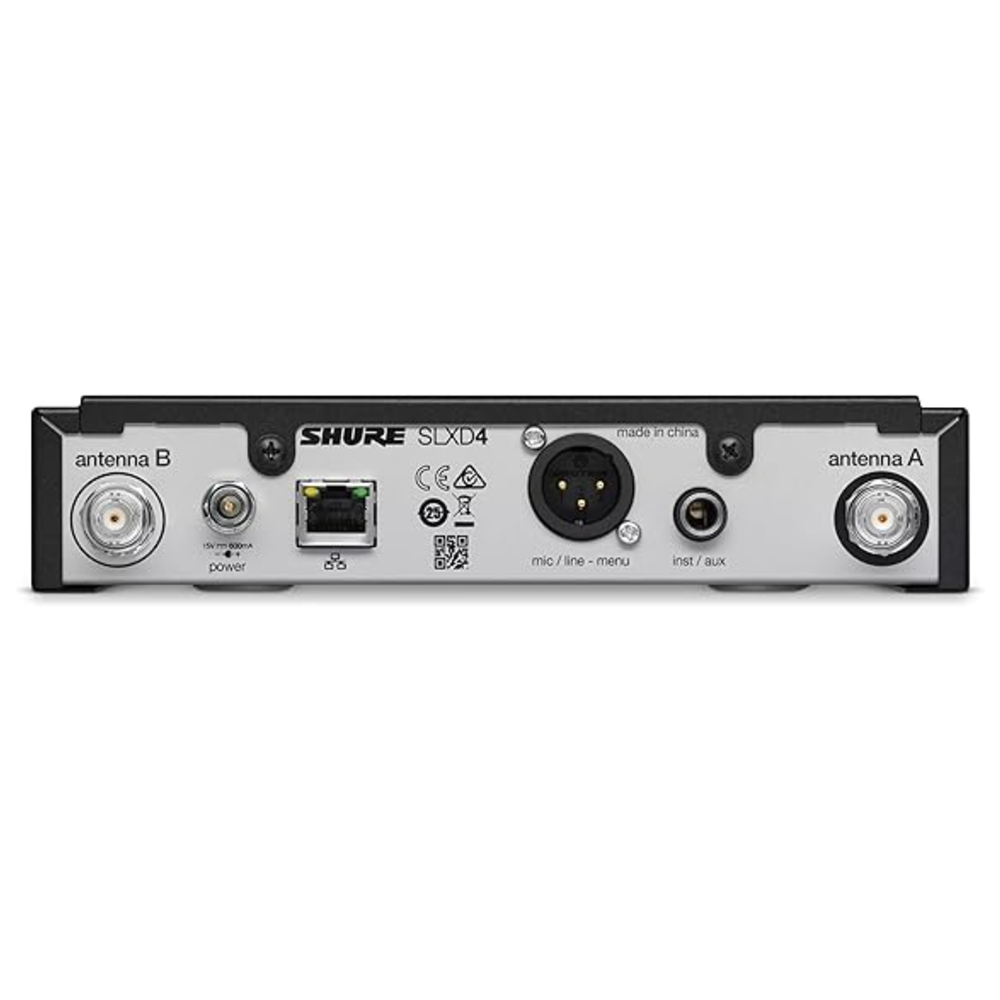

Antenna: 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels: 1
Audio I/O: 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output
Gain Range: 0 to +21 dB (3 dB Steps)
Pad: 30 dB
Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection: On 1/4-inch, XLR Outputs
Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Network I/O: 1 x RJ45 (10/100 Mb/s)
Network Protocols: DHCP, Manual IP
Impedance: 1/4-inch Output: 1.3 Kilohms (Balanced) | 670 Ohms (Unbalanced)
XLR Output: 400 Ohms (Balanced) | 150 Ohms (Balanced)
Adjacent Channel Isolation: >70 dB
Spurious: Rejection: >75 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
AC Input Power: 100 to 240 VAC | 50 / 60 Hz

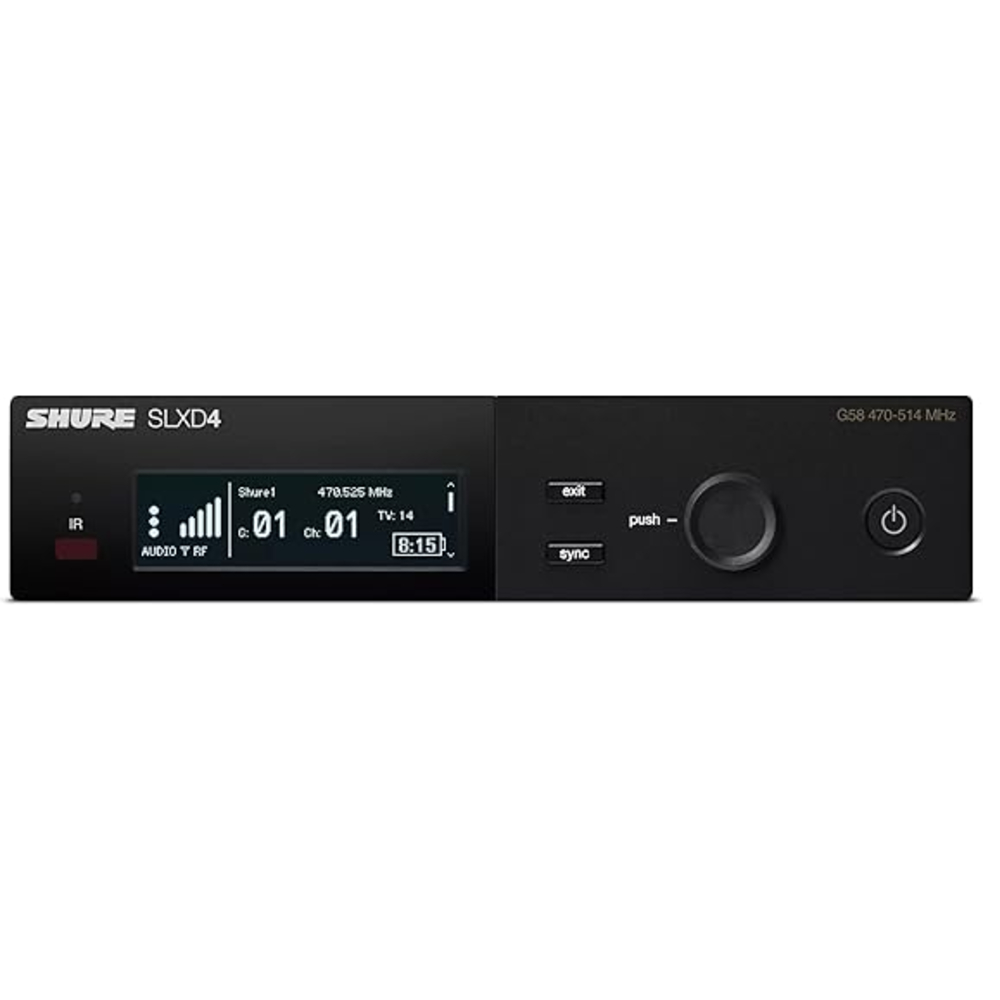

Display & Indicators: LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)
Housing: Steel
Operating Temperature: 0 to 122 F | -17 to 50 C
Storage Temperature: -20 to 165F | -28 to 73 C
Dimensions: 7.8 x 1.7 x 6 inches | 197 x 42 x 152 mm
Weight: 1.8 lb | 816 g (without Antenna)

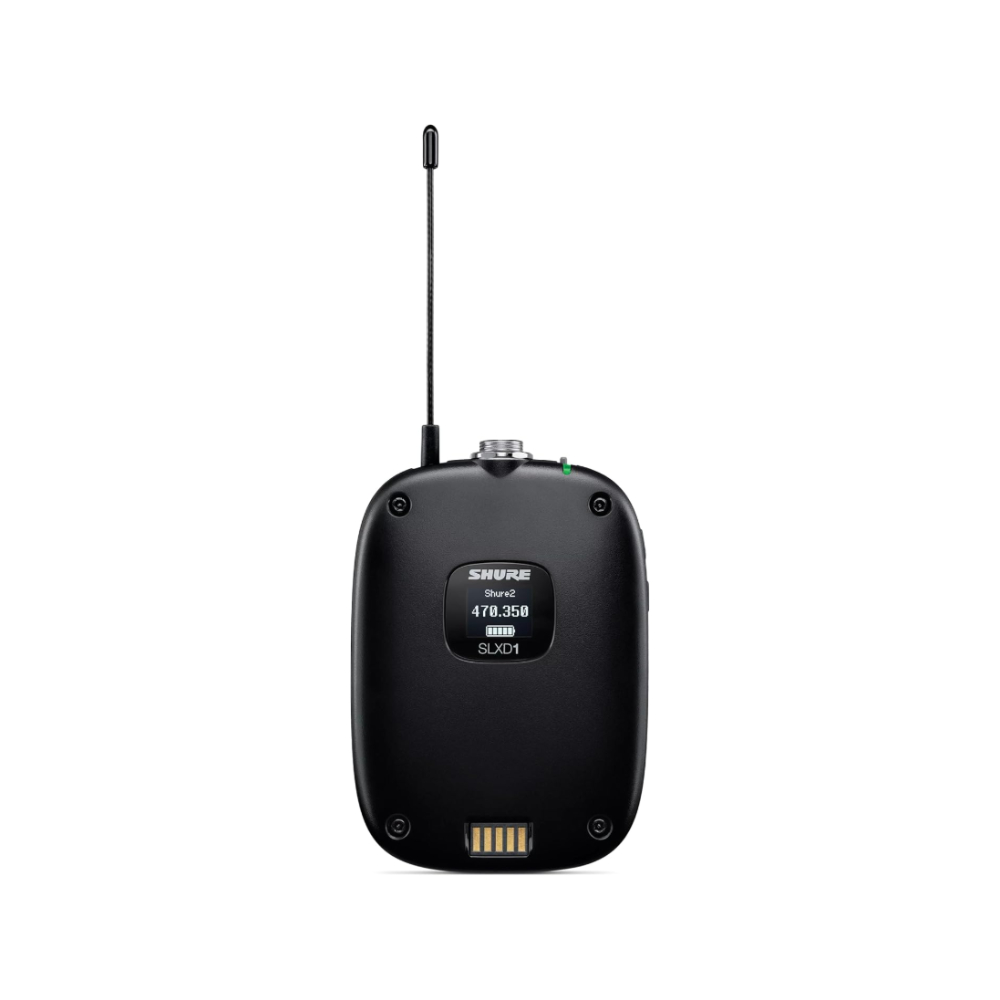

Transmitter
Form Factor: Bodypack with Microphone
RF Output Power: 1 / 10 mW
Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad: None
Muting: None
Auto-Level Control: No
Gain Range: 0 +21 dB
Signal Processing: None
Sync Method: IR
Antenna: 1/4 Wave External, Fixed
Power Requirements: Battery
Battery Type: 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time: 1.25 to 5.5 Hours
Approx. Battery Life: 8 Hours (Lithium Shure SB903)
USB/Lightning Connectivity: None
Display & Indicators: LCD (Battery Status, Channel, Group)
Housing: ABS, Plastic
Operating Temperature: 0 to 122F | -17 to 50C
Storage Temperature: -20 to 165F | -28 to 73C
Dimensions: 2.7 x 3.9 x 1 inches| 68 x 98 x 25.5 mm
Weight: 3.1 oz | 89 g

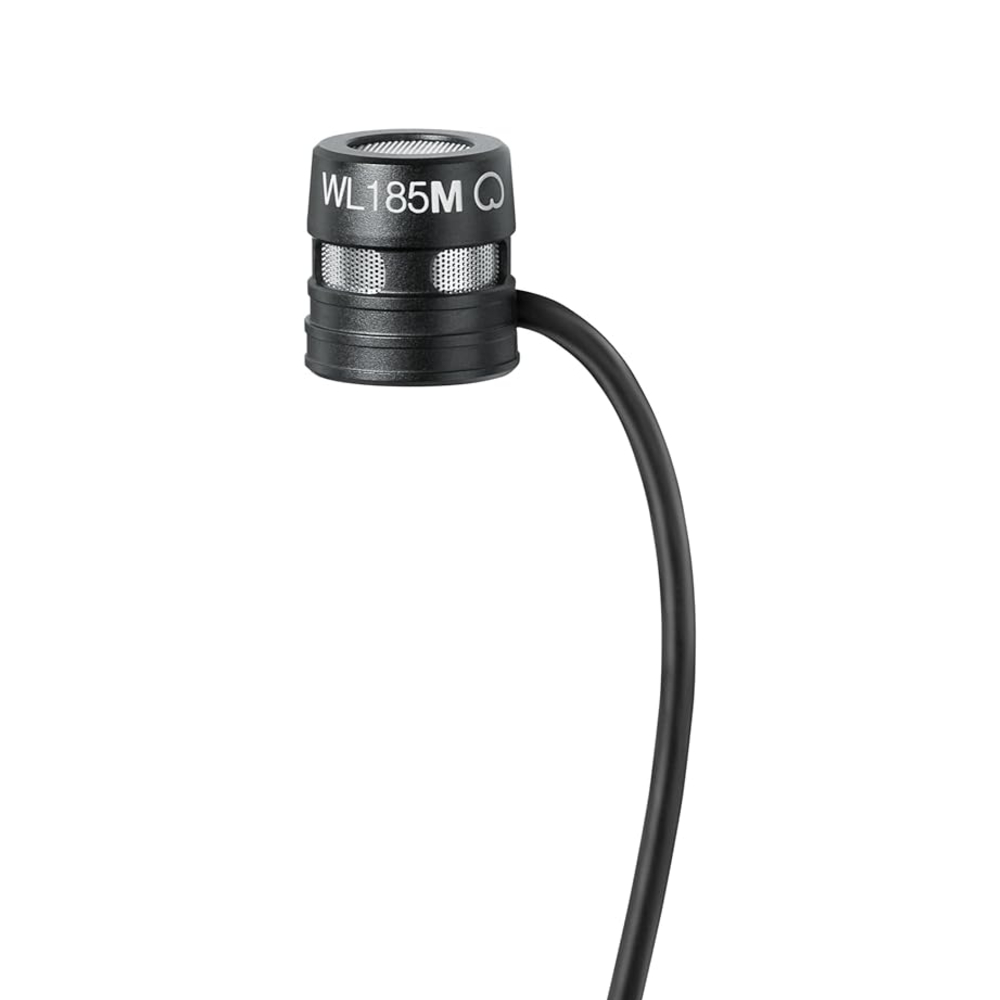

Microphone
Form Factor: Lavalier
Color: Black
Sound Field: Mono
Capsule: Electret Condenser
Polar Pattern: Cardioid
Frequency Range: 50 Hz to 17 kHz
Equivalent Noise Level: 28 dB A-Weighted
Maximum SPL: 130.5 dB SPL
Impedance: 1800 Ohms
CMRR: None
Dynamic Range: 102.5 dB
Output Connectors: 1 x TA4/Mini XLR 4-Pin Female Unbalanced
Cable Length: 4 ft / 1.22 m
Operating Voltage: 1.5 to 10 V
