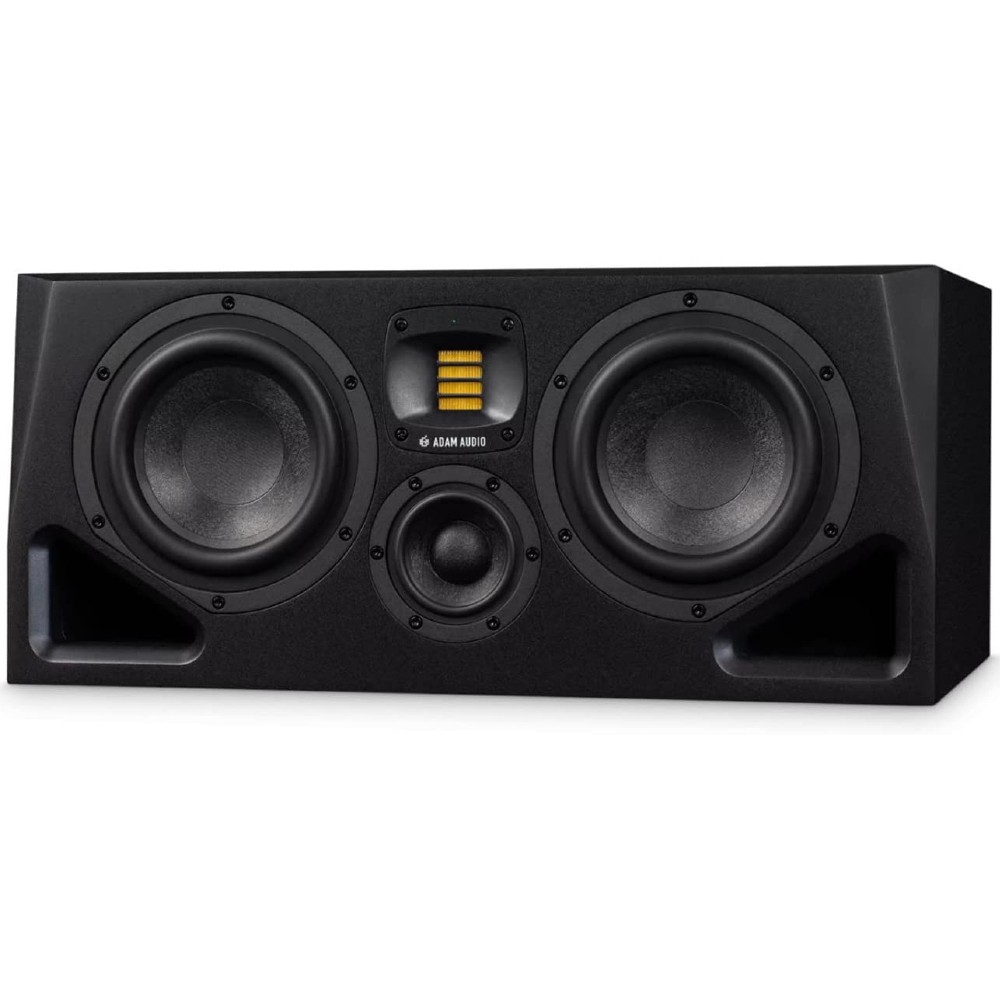

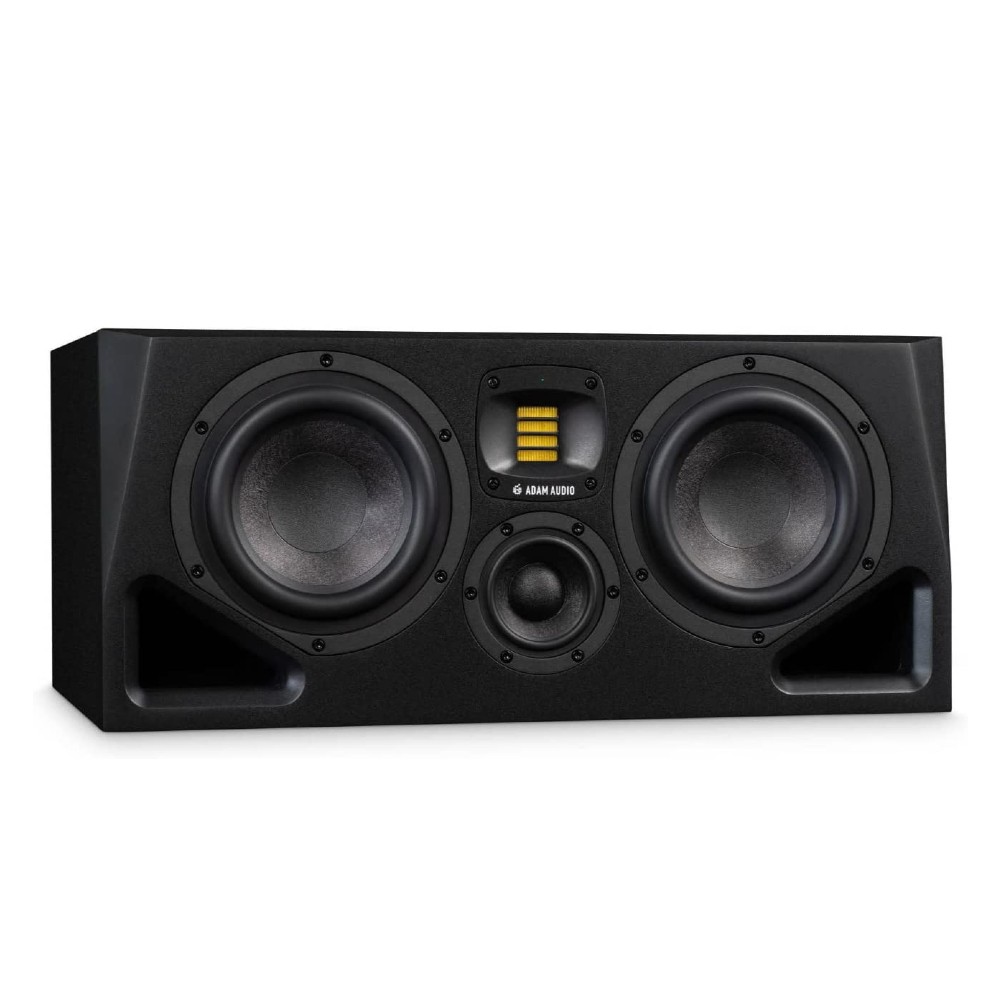

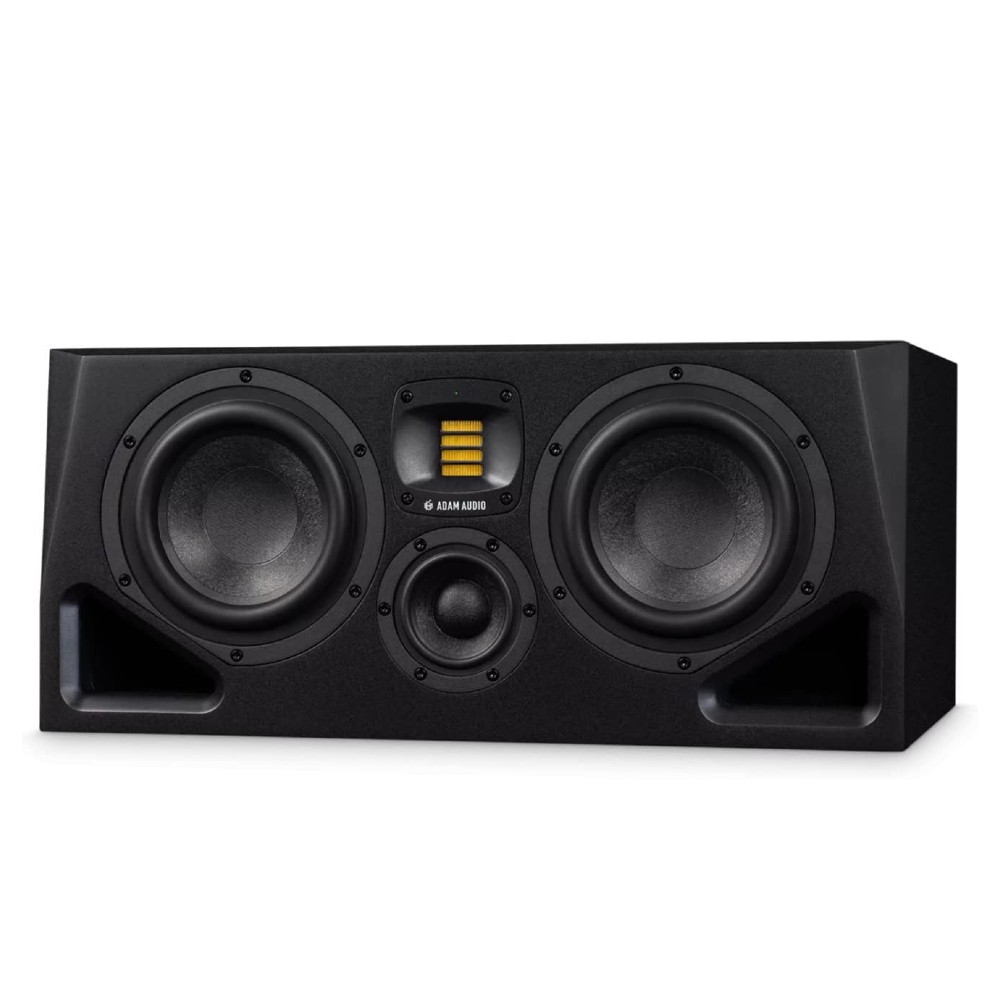

ADAM Audio A77H 7-inch Active Studio Powered Monitor (Nearfield)

SKU: E-5-357

Brand:
ADAM Audio

Category:
Recording

Sub-Category:
Studio Monitors

3-way powered studio monitor for midfield monitoring. Tri-amped design improves efficiency. Horizontal orientation creates a rich soundstage and solid imaging. Dual 7-inch MLM woofers offer punchy, impactful low-end. 3.5-inch MLM midrange driver provides extra clarity. X-ART tweeter pumps out clear, precise high-end. DSP-based tuning optimizes the monitor response to fit your room. Works with Sonorworks SoundID Reference plug-in (sold separately) to refine your sound further. Rotatable HPS waveguide gives you further sonic customization. 24-bit AD converter and 96kHz internal sampling rate preserves audio quality. Includes balanced and unbalanced inputs to integrate with any setup.

PHP 118,550.00

PHP 88,912.50

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

Tri-amped, 3-way design optimizes performance

The A77H benefits from a true tri-amped power section and precisely tuned crossovers. Both of the 7-inch woofers share a 250 W amp. Meanwhile, the midrange amp supplies its driver with 70 W of power, and the tweeter has a dedicated 20 W amplifier. The 3-way design includes seamless crossovers at 400Hz and 3kHz. With an Adam Audio A77H in your rig, you’ll enjoy spot-on midfield monitoring for all occasions.

X-ART tweeter delivers ultra-precise high-end

All kinds of projects walk through your doors, so it makes sense to have monitors that can accurately produce that high-end “air” needed for classical and orchestra recordings or handle dense and shimmering pop arrangements. Luckily for you, the A77H comes loaded with Adam Audio’s outstanding X-ART accelerated-ribbon tweeter. The pleated diaphragm moves air four times faster than the membrane itself is moving, thereby eliminating high-end distortion at the source. You’ll notice the difference every time you sit down to mix.

The right sound for any space

The Adam Audio A77H Powered Studio Monitor includes onboard tuning for sound optimization. With the DSP-based tuning capabilities that team up with the Sonorworks SoundID Reference plug-in (sold separately), it’s easy to dial in the sound that suits your space. That way, you can trust your monitor every time you tweak a mix.

Monitor Type
Active 3-Way

Enclosure
Bass-Reflex, Shielded

Power Rating
340 W RMS

Drivers
LF Driver: 2 x 7" / 17.8 cm Composite Woofer with 1.5" / 38.1 mm Voice Coil
MF Driver: 1 x 3.5" / 8.9 cm Composite Cone
1 x 1" / 2.5 cm Ribbon Tweeter

Amplification
1 x LF Amplifier: Class-D Rated at 250 W RMS / 1000 W Peak
1 x MF Amplifier: Class-AB Rated at 70 W RMS / 280 W Peak
1 x HF Amplifier: Class-AB Rated at 20 W RMS / 80 W Peak

Signal Processing

EQ
1 x HF Shelf
1 x HF Notch/Peak
1 x Low-Mid Notch/Peak
1 x LF Shelf
Filters
None
Parametric EQ
None

Crossover

Crossover Frequency
400 Hz
3 kHz

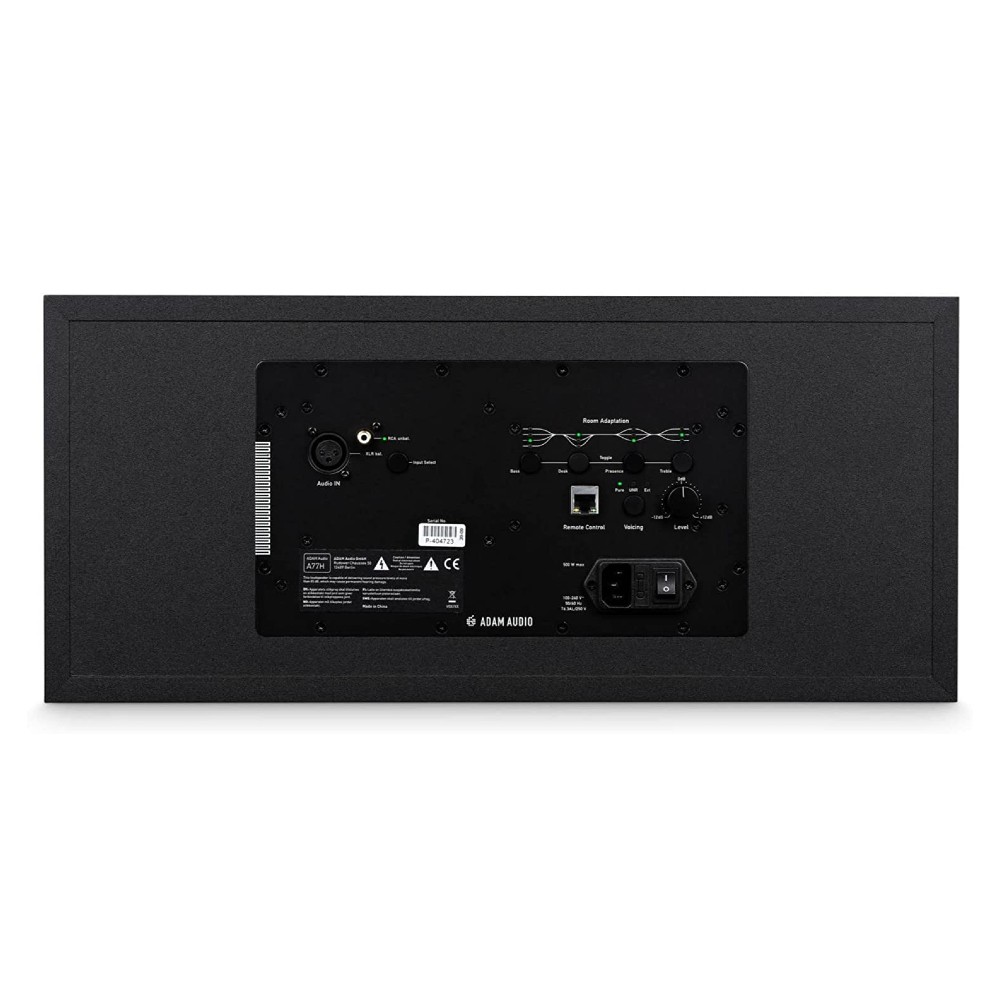

Connectivity

Audio I/O
1 x XLR Balanced Female Analog Input
1 x RCA Unbalanced Female Analog Input
USB & Network I/O
1 x RJ45 (Controller, Network, Remote)
Digital Audio

Maximum Sampling Rate
96 kHz / 24-Bit

Power

AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
500 W (Maximum)
