Type: Passive two-way compact column loudspeaker
Frequency Response: 82 Hz – 17 kHz ± 3 dB, -10 db @ 63 Hz

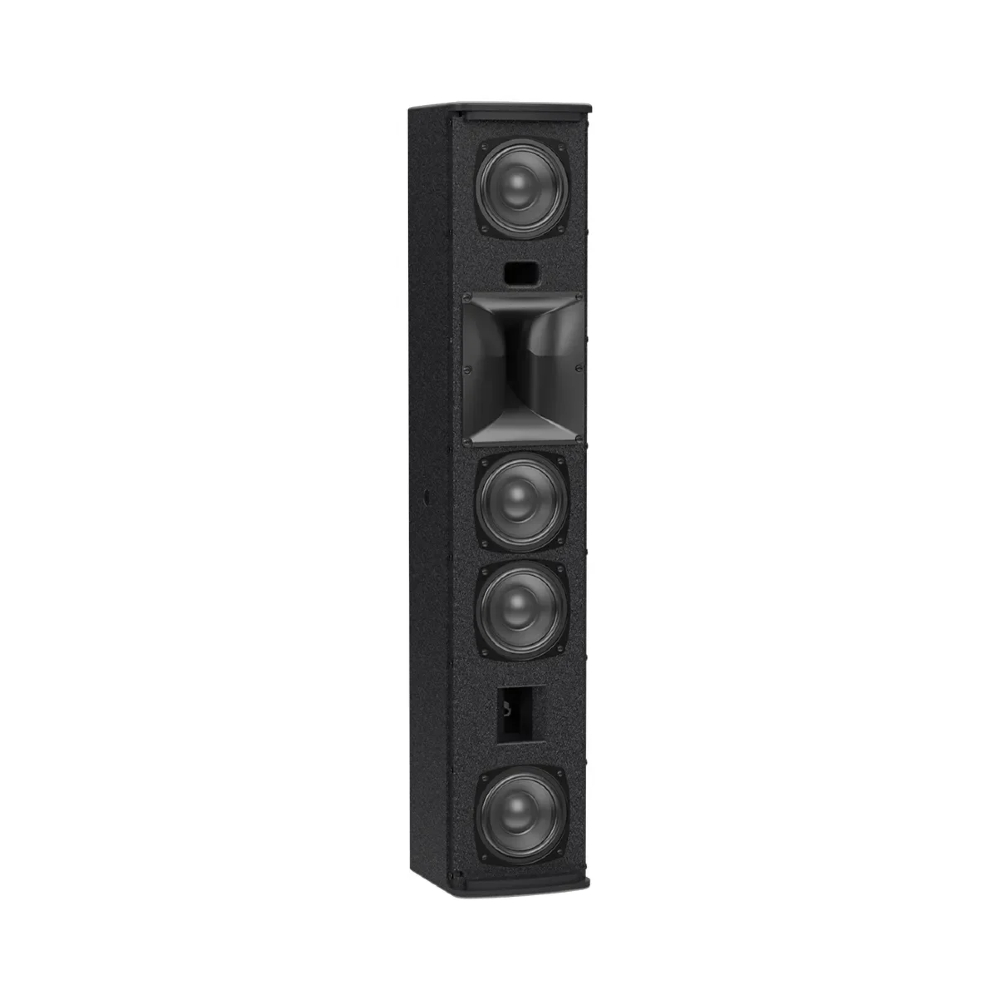

Driver (LF): Four 4-inch (100 mm) with 1-inch (25 mm) voice coil, ferrite motor system
Driver (HF): 1-inch (25 mm) exit compression driver with 1-inch (25 mm) voice coil, PETP dome
Rated Power: 200 W AES, 800 W peak
Required Electronics: Processor and amplifier, or a combined amplifier-processor unit
Recommended Electronics: DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity: 90 dB
Maximum SPL: 113 dB continuous, 119 dB peak, 125 dB peak with crest factor 4
Nominal Impedance: 8 ohm
Dispersion: Dispersion: 100°–120° (horizontal) × 40° (vertical)
Crossover: 2.4 kHz passive
Enclosure: Durable plywood
Finish: Black or white textured paint
Protective Grille: Black or white perforated steel grille with scrim cloth backing
Connectors: 1 x NL4 connector
Pin Connections (Input): 1+/1–
Pin Connections (Link): NA

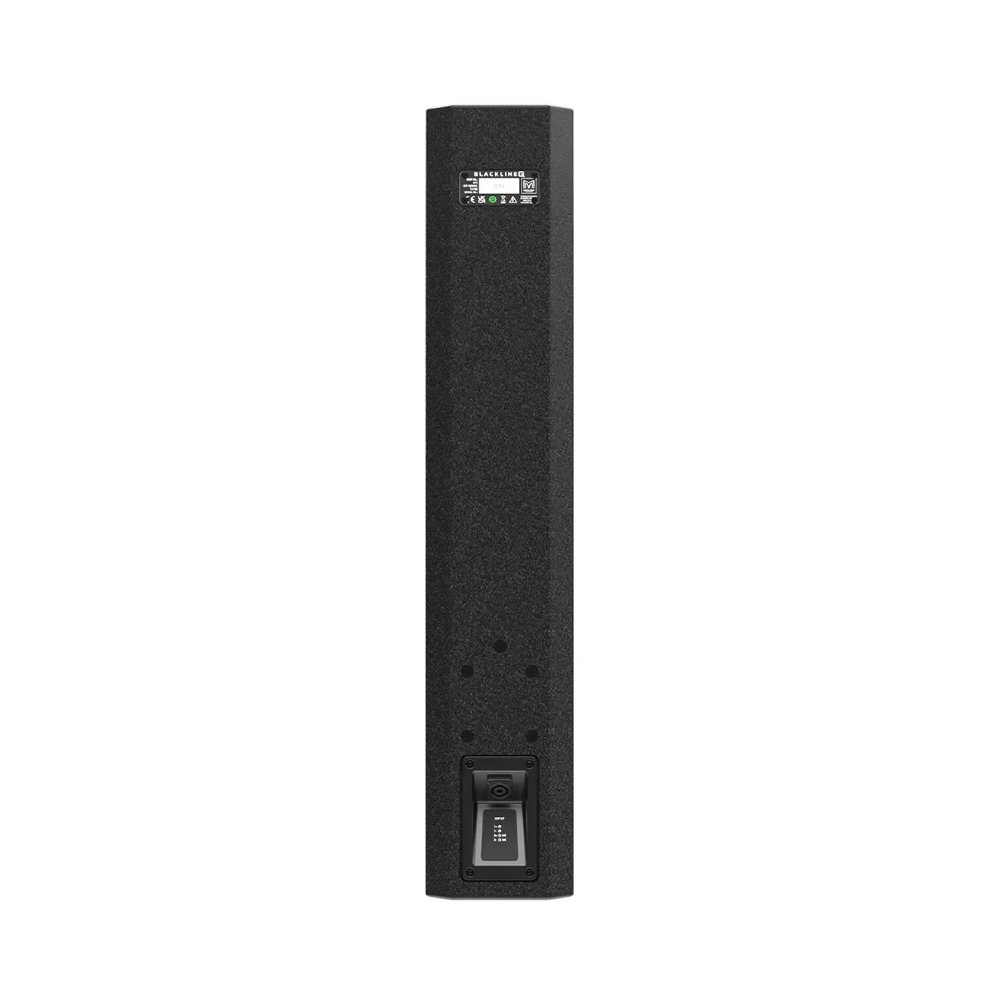

Fittings:
3 x M8 inserts, 1 x M6 insert, 4 x M6 inserts for wall bracket
1 x pocket handle made from recycled ABS
Pole-mount socket with removable cover
Dimensions (WxHxD): 150 mm x 800 mm x 187 mm (5.9 in x 31.5 in x 7.3 in)
Weight: 7.5 kg (16.5 lbs)
Accessories (Optional):
Wall bracket WB6/8
M8 eye bolt HTKCT05, yoke, transit cover
