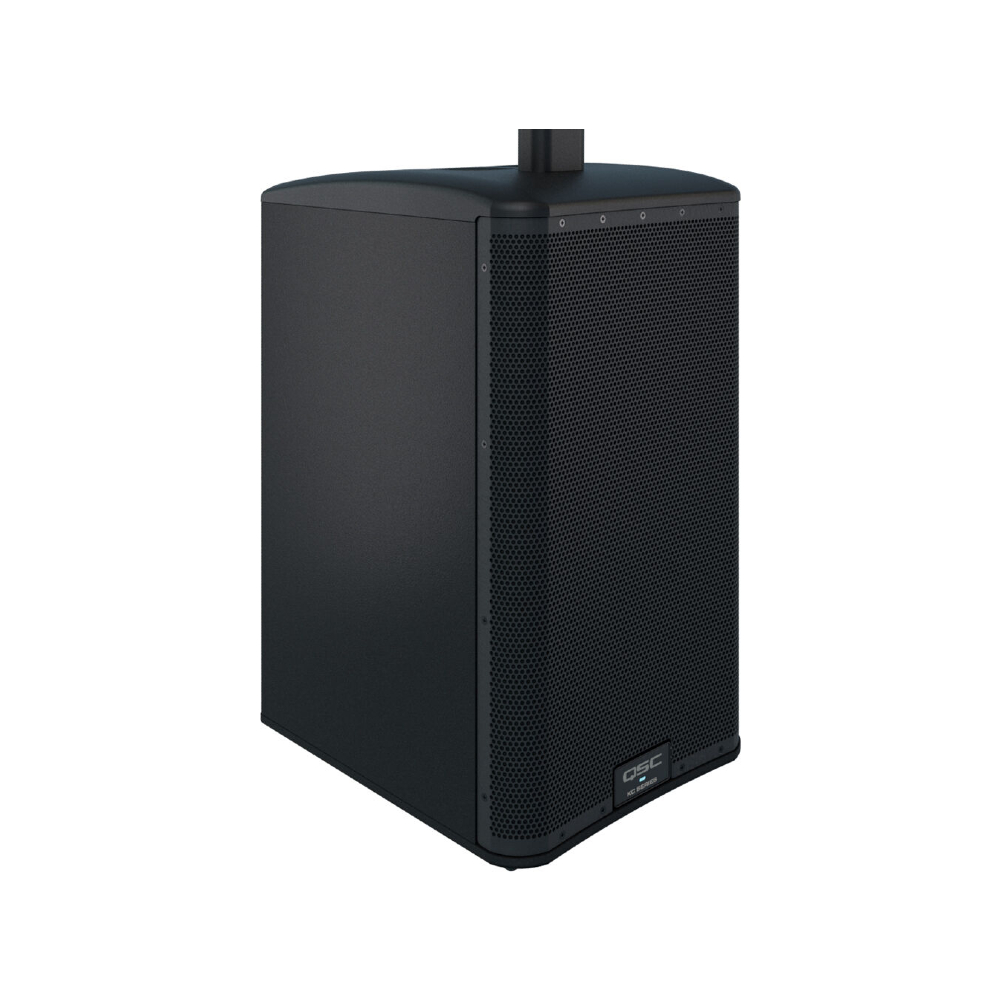

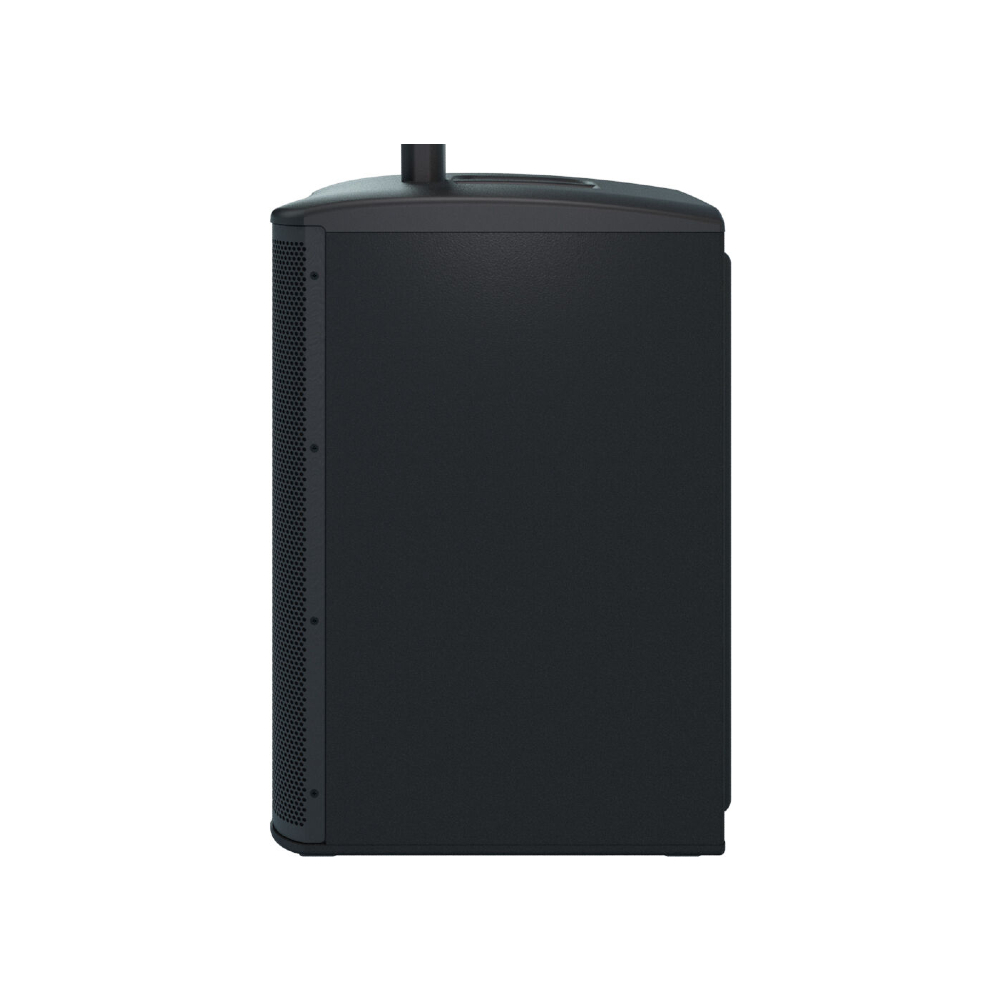

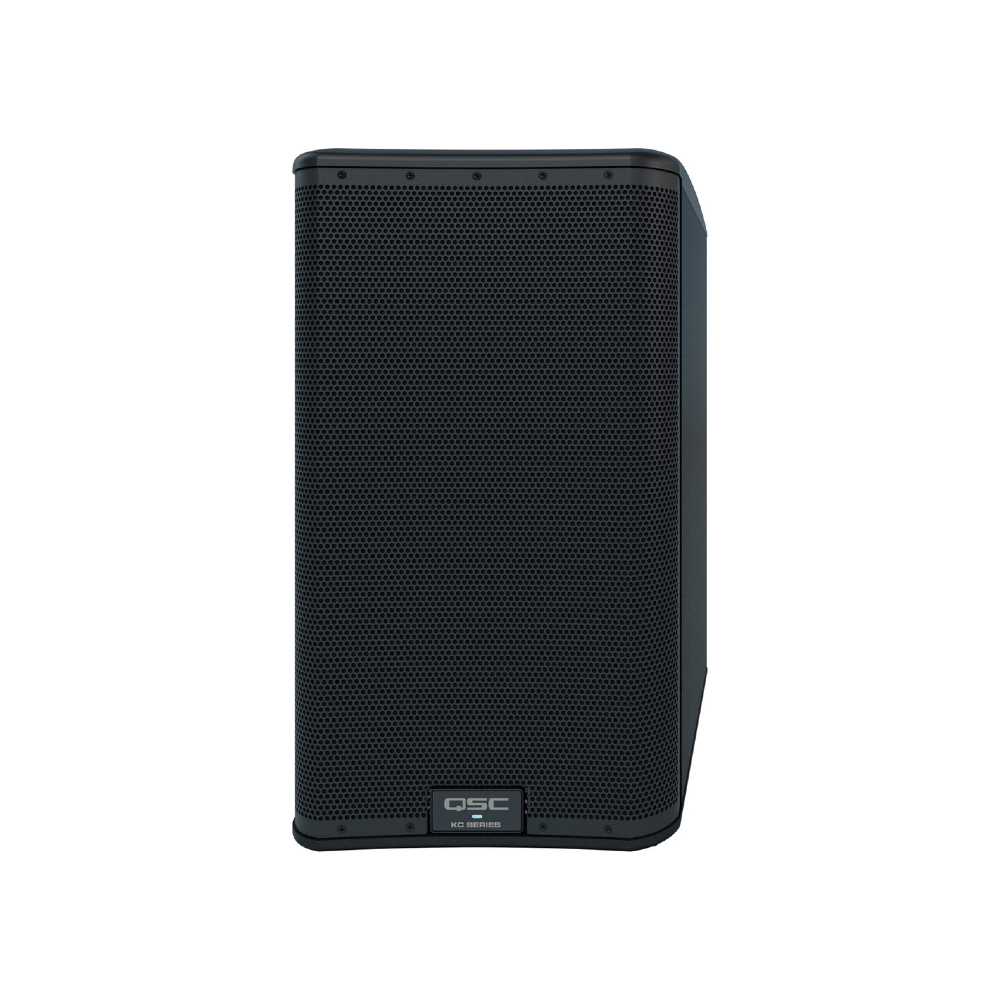

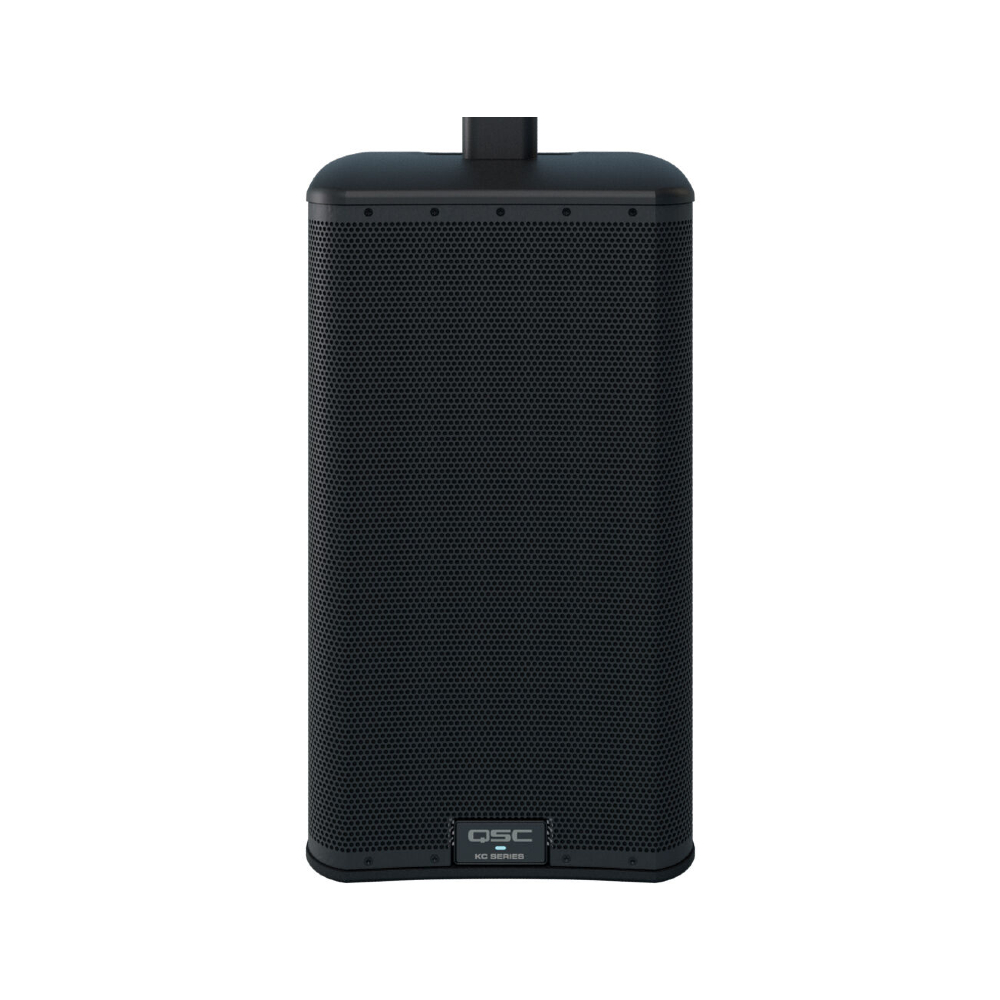

QSC KSC12S-BK Subwoofer Module for KC12 Active 3-Way Column Loudspeaker System (Black)

SKU: E-5-1186

Brand:
QSC

Category:
Pro-Audio

Sub-Category:
Speakers

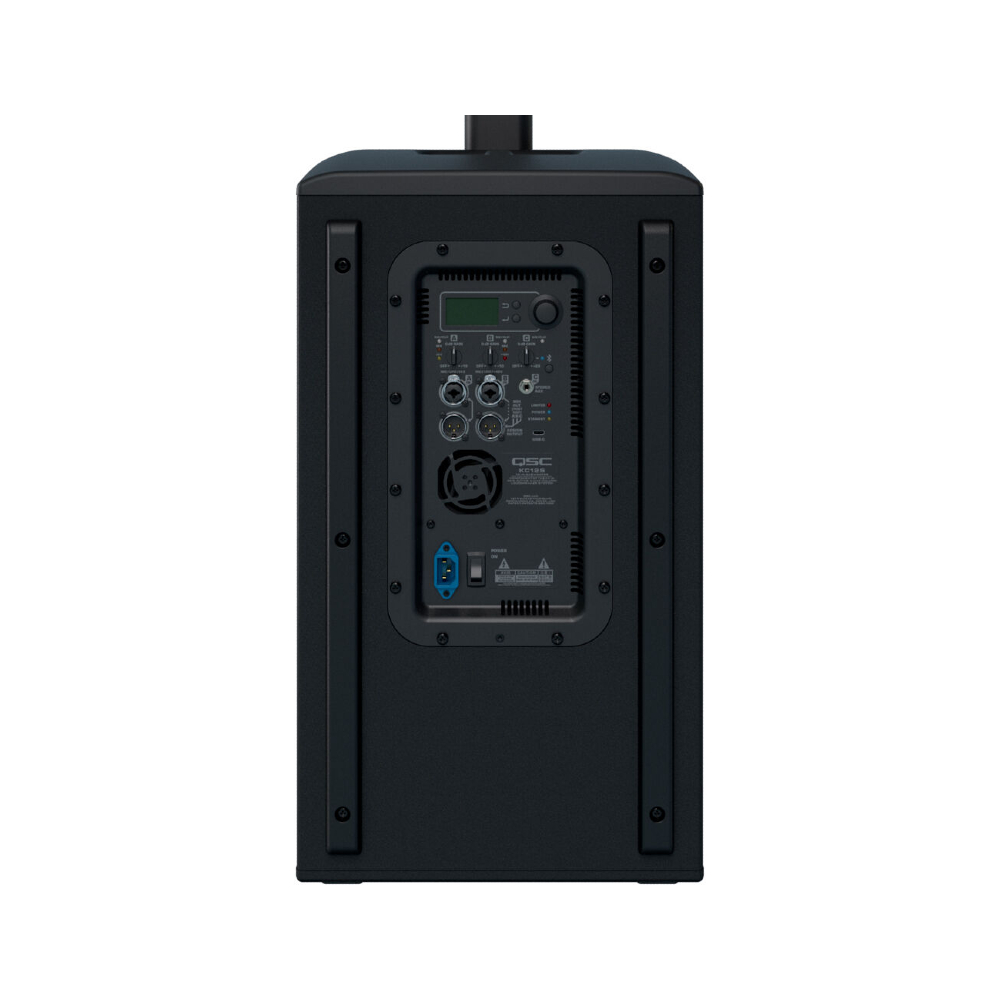

Providing remarkable low-end for the KC12 active 3-way column loudspeaker system, the QSC KSC12S is a 12-inch subwoofer module with a 3000W amplifier and a full complement of digital signal processing. The rear panel offers two combo XLR-1/4-inch inputs and a stereo 3.5mm TRS aux input. There are three physical gain knobs and a multifunction digital display for controlling loudspeaker functions. Integrated Bluetooth allows for True Wireless Stereo (TWS) for easily pairing music sources for both left and right speakers wirelessly.

PHP 118,300.00

PHP 106,470.00

Providing remarkable low-end for the KC12 active 3-way column loudspeaker system, the QSC KSC12S is a 12-inch subwoofer module with a 3000W amplifier and a full complement of digital signal processing. The rear panel offers two combo XLR-1/4-inch inputs and a stereo 3.5mm TRS aux input.

There are three physical gain knobs and a multifunction digital display for controlling loudspeaker functions. Integrated Bluetooth allows for True Wireless Stereo (TWS) for easily pairing music sources for both left and right speakers wirelessly.

Features:

Powered subwoofer module from the 3-way loudspeaker system featuring a 12-inch subwoofer (included), and separately two high-excursion 4-inch midrange drivers and a 1-inch HF compression driver (not included) combined with the proprietary QSC LEAF waveguide.
Very high undistorted 132 dB maximum peak SPL.
Energy-efficient Class-D amplification featuring 3000W of total peak power with Power Factor Correction and extremely low AC consumption.
Two combo XLR inputs (Mic / Line / Hi-Z and Mic / Line / +48V), with independent assignable Factory Presets for each input, perfect for small events where two microphones are needed for different uses.
Multifunction digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth configuration, and Delay (200 ms), or Reverb.
Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage, or riser.

Speaker Type: Active Subwoofer for Column Array
Enclosure Type: Bass-Reflex
Total Output Power: 3000 W Peak
LF Driver: 1x 12 in / 30.5 cm Woofer
Frequency Range/Response: 40 Hz (-10 dB)
45 Hz (-6 dB)
Maximum SPL: 132 dB (Peak)
Signal Processing: EQ & Filters
Parametric EQ, Preset EQ Curves:
Alignment Delay: Up to 200 ms (226 ft / 68.88 m)
Audio I/O: 1x Combo XLR-1/4-inch TRS Mic/Line/Hi-Z Input
1x Combo XLR-1/4-inch TRS Mic/Line Input
1x 1/8 in / 3.5 mm TRS Aux Input
1x XLR 3-Pin Line Thru/Output
1x XLR 3-Pin Mix Output
Network I/O: No
USB I/O: 1x USB-C (Device Charging, Service/Update)
Wireless: Bluetooth
Mobile App Compatible: No
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O: 1x IEC Input
Current Consumption: 1.8 to 3.7 A
Color: Black
Mounting: 1 x Column Array Insert (Top)
Handles: 1x Top
Construction Material: ABS, Aluminum Grille, Plywood
Environmental Resistance: No
Dimensions: 25.8 x 18 x 14 in / 65.5 x 45.7 x 35.6 cm
Weight: 48.5 lb / 22 kg
