The bass-reflex cabinet offers substantial energy up to 30Hz and is ideal for extending and reinforcing the low frequencies of the MUSE 210LN line array in ground-stack configuration. It has presets to create various configurations with cardioid directivity, where some subwoofers face rearwards from the audience to acoustically cancel the sound pressure behind the cluster, obtaining a reduction of the SPL on the back by over 15dB.
The enclosure, optimised with BEM-type acoustic simulations to reduce resonance and turbulence of the ducts, is built with 18mm birch plywood with six handles and scratch-resistant paint. Reinforced front mesh with protective fabric and provision for optional four swivel-mount 4-inch (100mm) casters in the rear panel.
Features

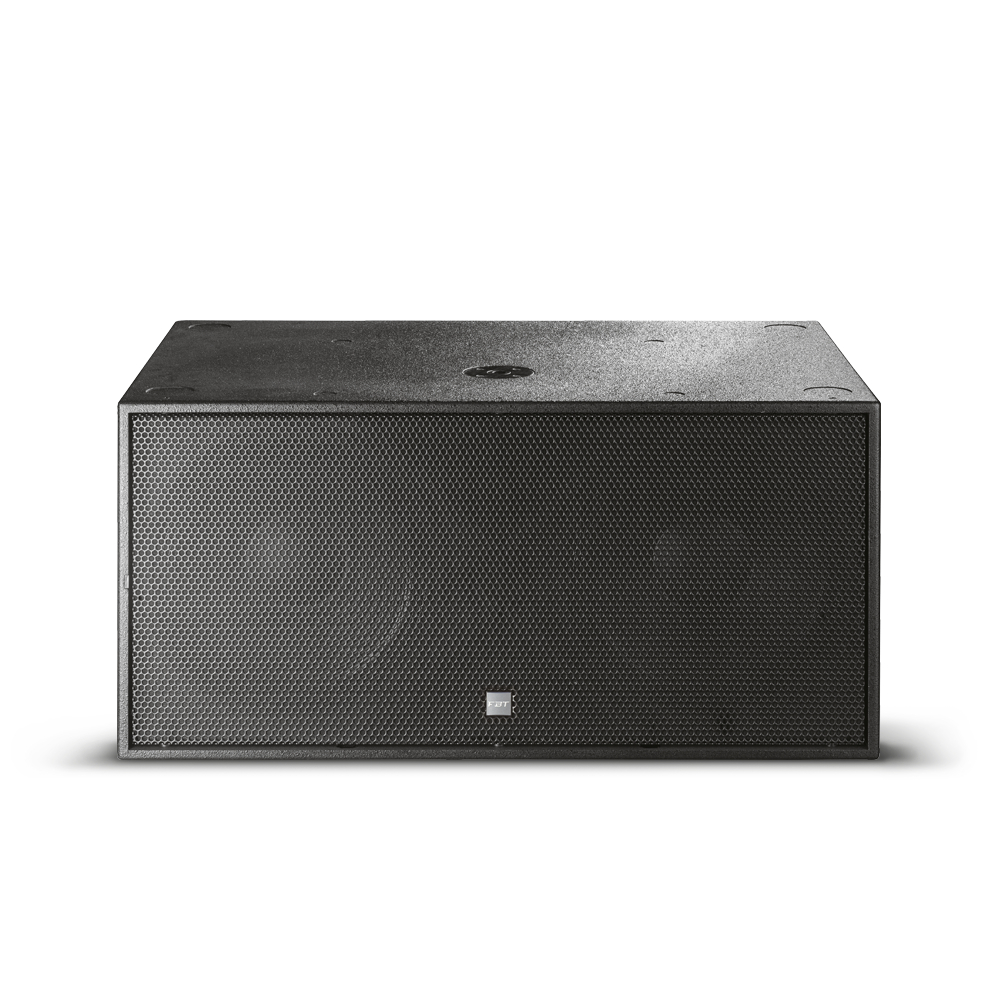

FBT Muse 218SA Dual 18-inch Active Subwoofer Features
- Ground stack direct load subwoofer
- Very large area reflex port to ensure no power compression and very low port turbulence
- Double 18-inch (460mm) B&C very high excursion woofer with 4-inch (100mm) voice coil
- Frequency Response from 30Hz @-6dB
- Class D amplifier delivering 4000W RMS with switch mode power supply
- 0.7-onch (18mm) birch plywood enclosure, scratch resistant black paint, 6 handles and heavy duty metal grille with synthetic protection cloth
- M20 top mount stand socket
- Optional 4 swivel-mount 4-inch (100mm) casters
- Low frequency extension cabinet for the MUSE 210LND line array for ground stacked configurations
