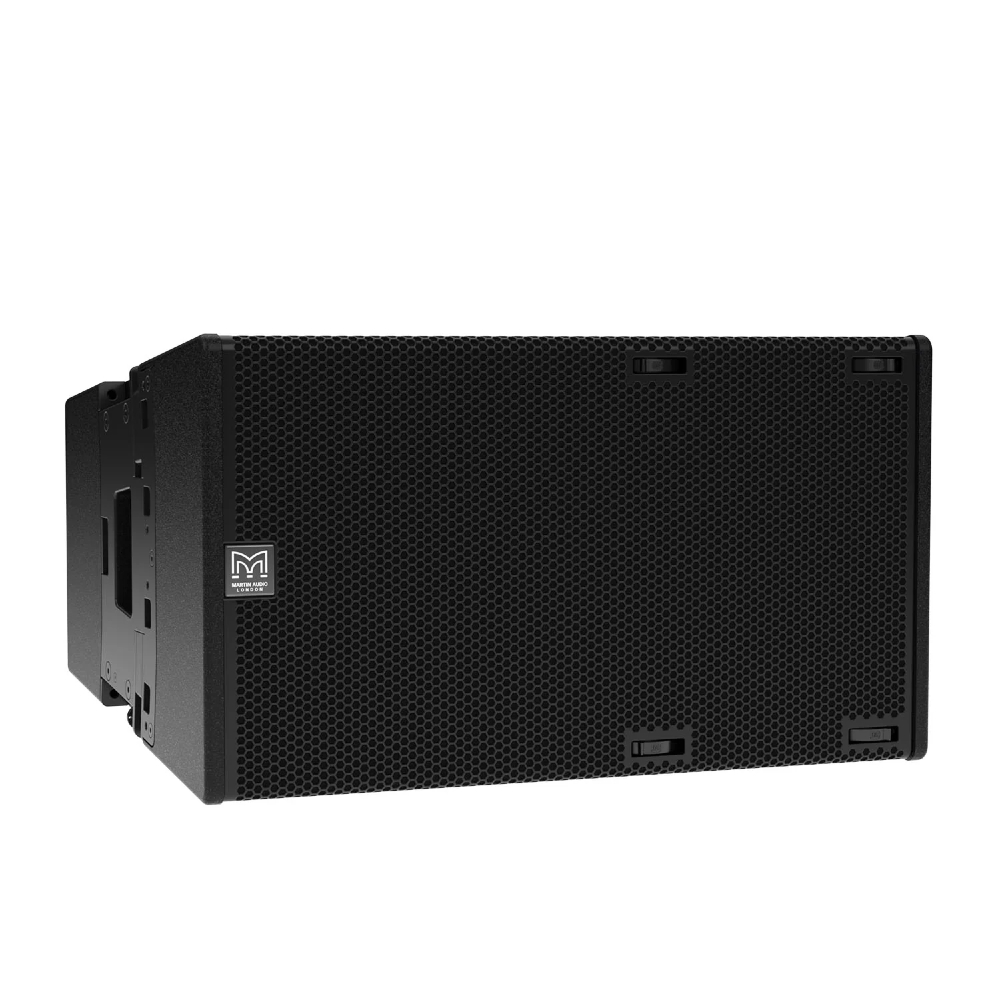

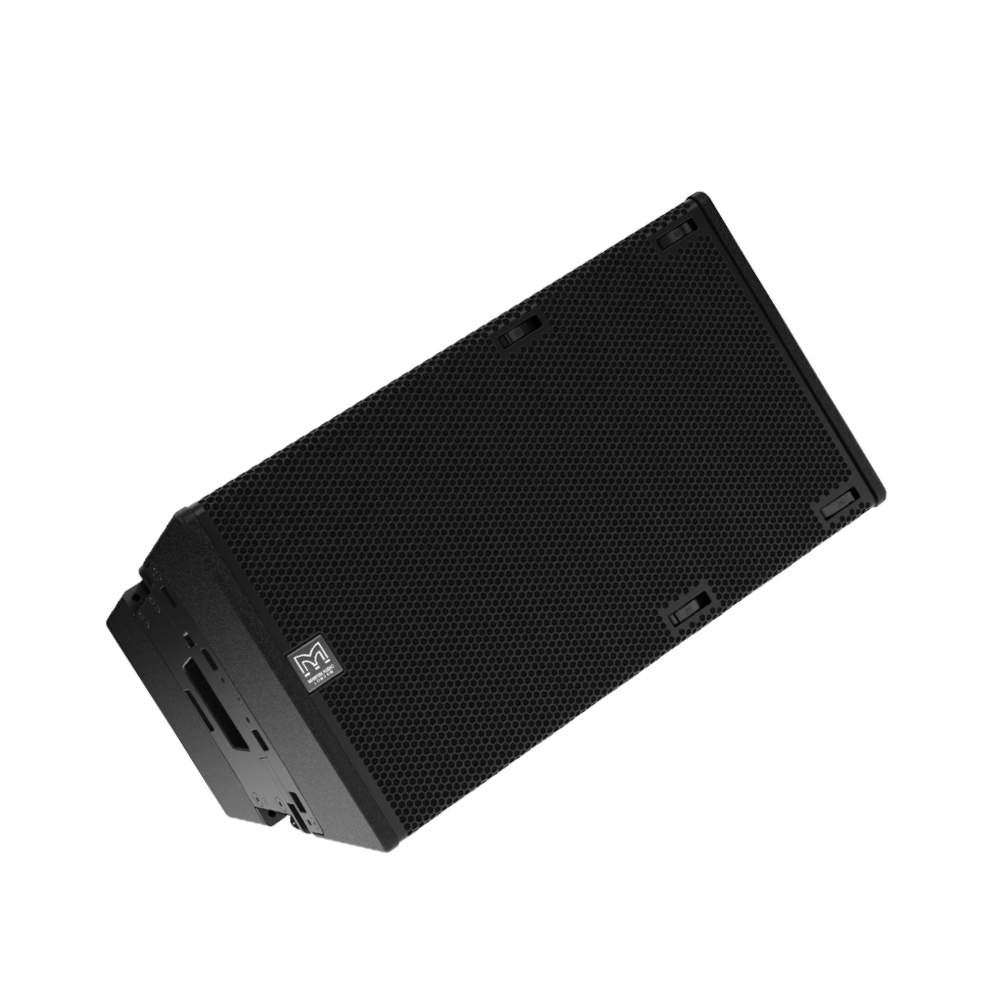

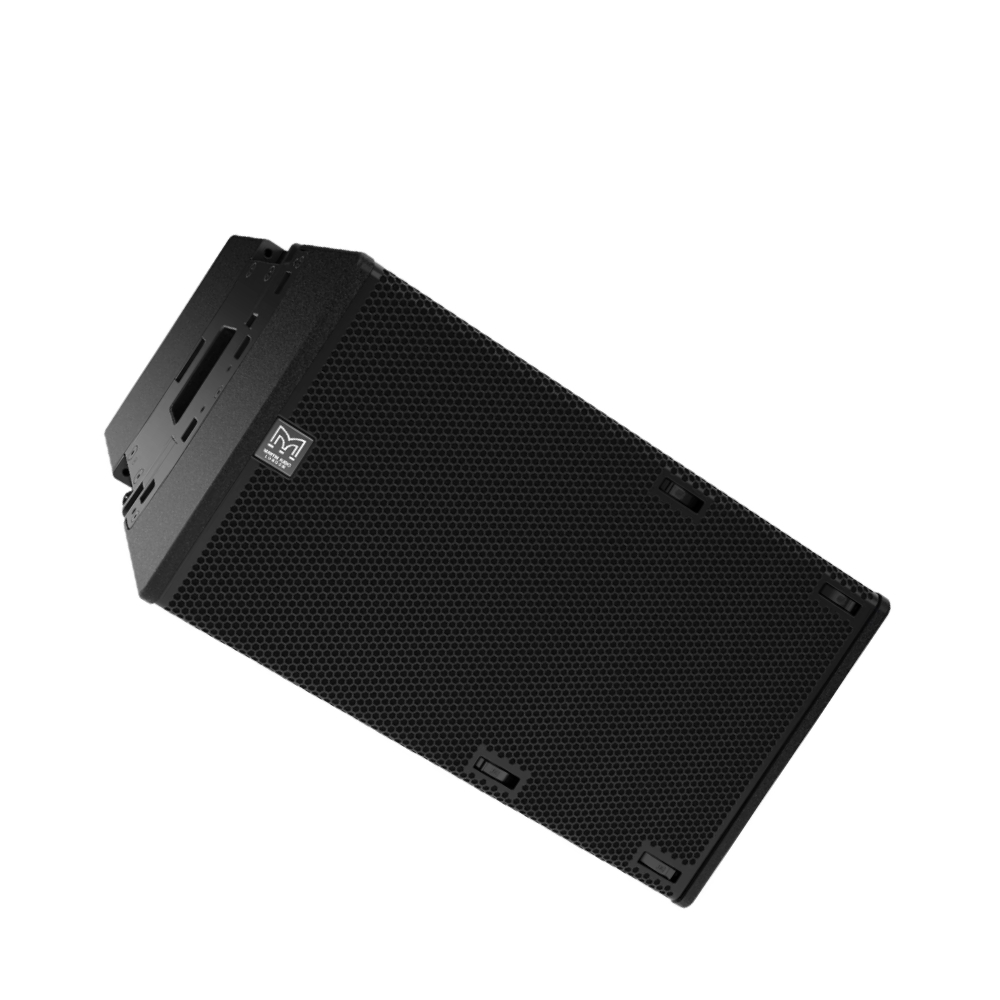

Martin Audio TORUS T1215 12-Inch Passive 15-degree Fixed Angle Constant Curvature Array Loudspeaker

SKU: E-5-1062

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Speakers

The Martin Audio TORUS T1215 is a passive, 2-way loudspeaker engineered for medium-scale applications which do not call for the longer throw capabilities of a line array. With exceptional ease-of-use, scalability and deployment flexibility, it is designed to be used as an array element in vertical and horizontal constant curvature arrays of up to six enclosures. It can also be used singularly as a point-source loudspeaker.

PHP 291,500.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The Martin Audio TORUS T1215 is a passive, 2-way loudspeaker engineered for medium-scale applications which do not call for the longer throw capabilities of a line array. With exceptional ease-of-use, scalability and deployment flexibility, it is designed to be used as an array element in vertical and horizontal constant curvature arrays of up to six enclosures. It can also be used singularly as a point-source loudspeaker.

Features:

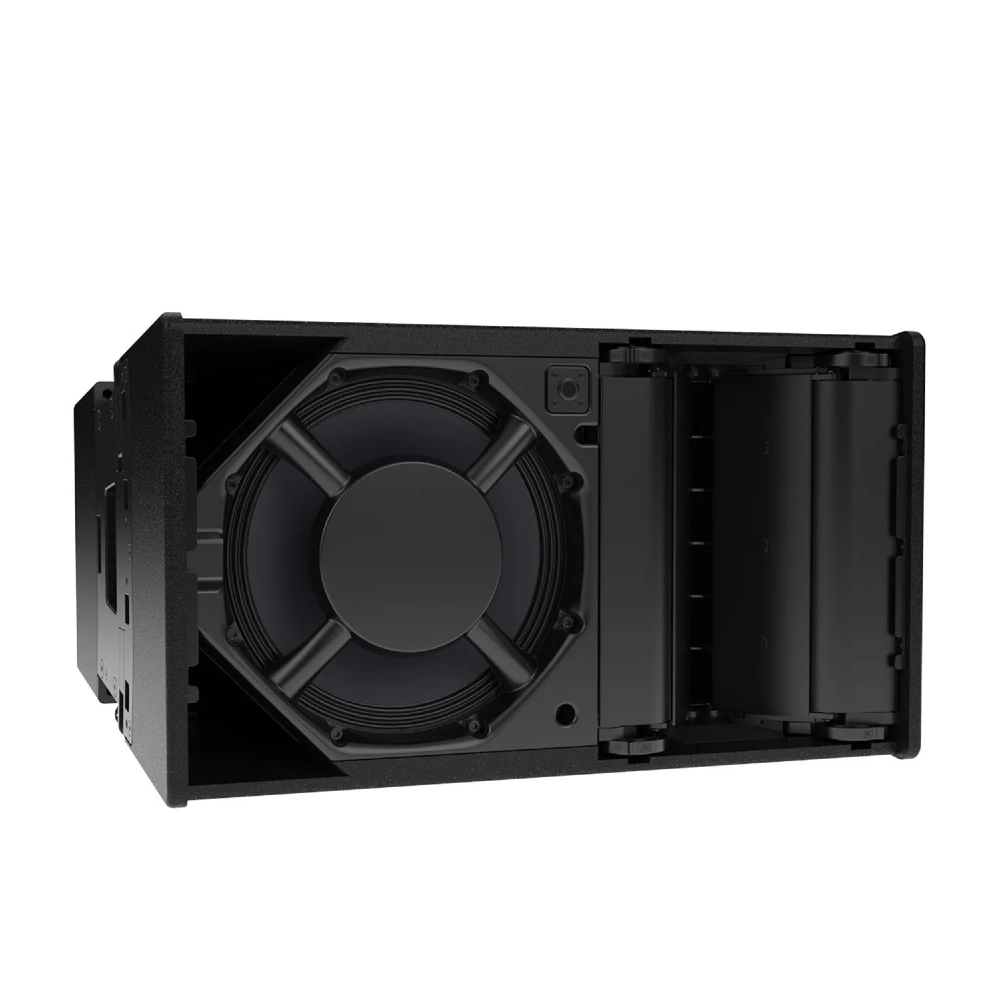

1 x 12 in (300mm) LF driver & 3 x 1.4 in (35mm) HF drivers
Passive fixed angle array cabinet of 15° for a narrow vertical dispersion pattern
Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
Phase plug for increased mid-band sensitivity
Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
Plug-and-play system, quick set-up and easy rigging

General

TYPE: Passive 2-way Constant Curvature 15° enclosure
FREQUENCY RESPONSE (WITH IKON SETTINGS): 65Hz – 18kHz ± 3dB, -10dB @ 50Hz

DRIVERS:
LF: 12 in, 3 in Voice Coil, Neodymium
HF: 3 x 1 in exit, 1.4 in Voice Coil, HT Polymer dome neodymium compression driver

SENSITIVITY: (2.83V 1m free-field) 100dB
NOMINAL IMPEDANCE: 8 ohms
RATED POWER: AES 400W, PEAK 1600W
MAXIMUM SPL (SYSTEM): 128dB continuous, 134 dB peak*
DISPERSION: 60-75-90° horizontal, 15° vertical
PIN CONNECTIONS (INPUT): 1+/- or 2+/-
PIN CONNECTIONS (LINK): 1+/- and 2+/-

Physical

DIMENSIONS:
(W) 650mm, (H) 369mm, (D) 452mm
(W) 25.59ins, (H) 14.51ins, (D) 17.80ins

WEIGHT: 31kg (68.34 lbs)
