ART Audio ARTS8-3-WAY 8-channel 3-way Microphone Splitter

SKU: E-5-1025

Brand:
Art Audio

Category:
Pro-Audio

Sub-Category:
Amplifiers

The ART Audio ARTS8-3-WAY 8-channel 3-way Microphone Splitter is an 8-channel splitter in a 1U rackmount enclosure with one direct output and two transformer-isolated outputs per channel. The passive design doesn't require power, but the direct outputs will pass phantom power for use with active microphones.

PHP 49,700.00

This product is currently out of stock.

The S8-3Way lets your mic signals be in three places at once.

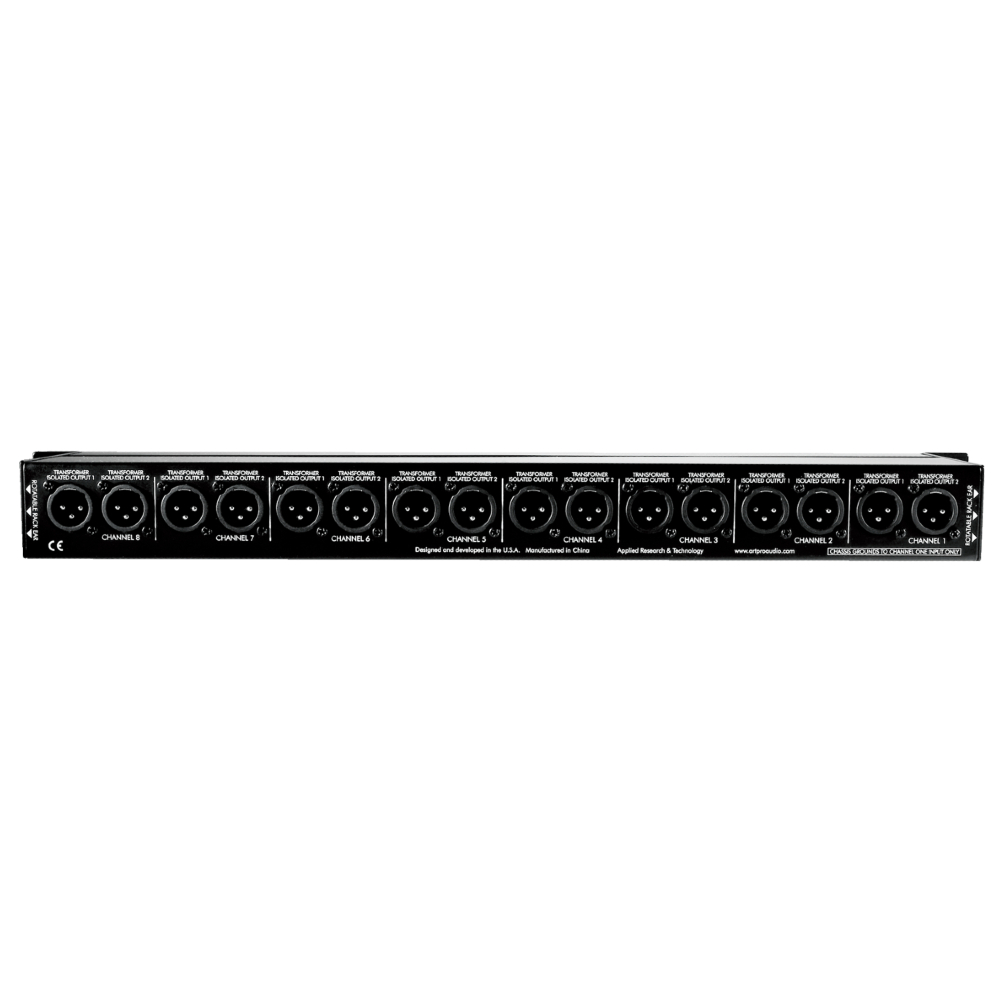

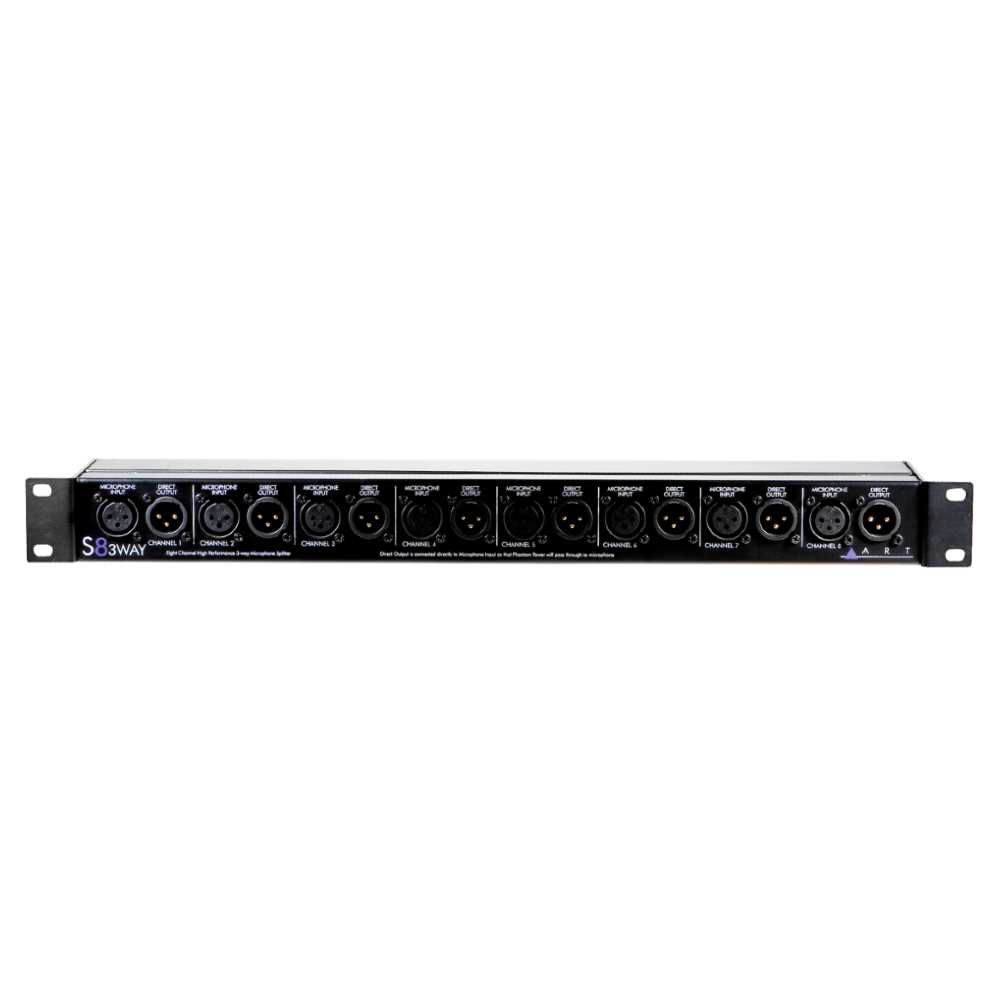

It's an 8-channel splitter in a 1U rackmount enclosure with one direct output and two transformer-isolated outputs per channel. The passive design doesn't require power, but the direct outputs will pass phantom power for use with active microphones.

When three outputs are better than one, the S8-3Way is ideal for sending signals to multiple destinations, such as front-of-house, monitor, and broadcast or recording mixers.

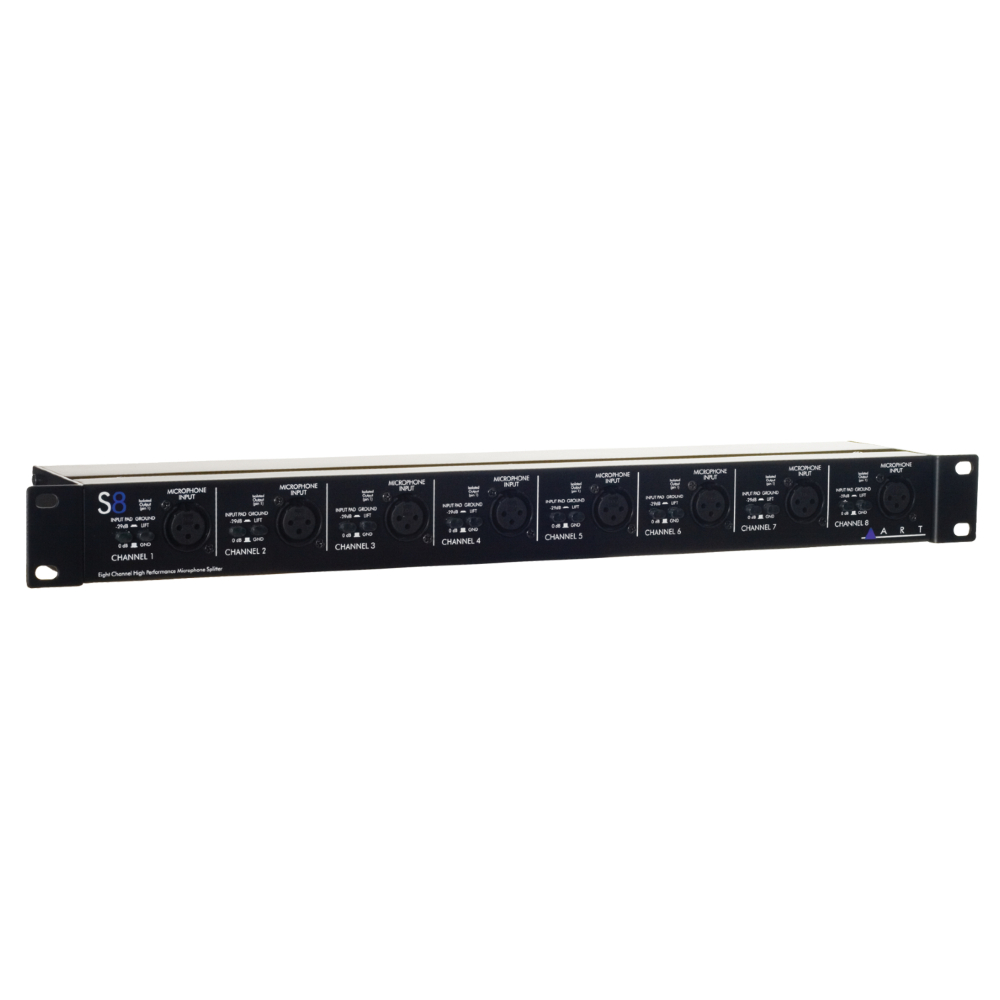

Need switchable input pads and ground lifts per channel? Check out the S8.

Features

  • 8-Channel 3-Way Splitter
  • Balanced XLR Connections
  • 1x Direct and 2x Transformer-Isolated Outputs per Channel
  • Direct Outputs Pass Phantom Power
  • Passive Design - No Power Required
  • 1U Rackmount
  • Reversible Rack Ears

Specifications

  • Input Impedance: 1.1 kΩ @ 1 kHz
  • Typical Driving Source Impedance is 150Ω
  • Output Impedance: 255Ω @ 1 kHz; 1 kΩ Typical Output Load Impedance
  • Frequency Response: 20 Hz - 20 kHz (+/- 0.25 dB @ -15 dBu)
  • THD: 0.26% (20 Hz - 20 kHz, -15 dBu Input) < 0.1% (45 Hz - 20 kHz, -15 dBu Input); 0.002% Typical @ 1 kHz (-15 dBu Input)
  • CMRR: 105 dB @ 60 Hz; 80 dB @ 3 kHz
  • Phase Shift: 10° @ 20 kHz (Reference 1 kHz)
  • Insertion Loss: ~2 dB @ 1 kHz
  • Dimensions (DWH): 3.75 in x 19 in x 1.75 in; 95 mm x 483 mm x 44 mm
  • Weight: 3.75 lbs / 1.7 kg
