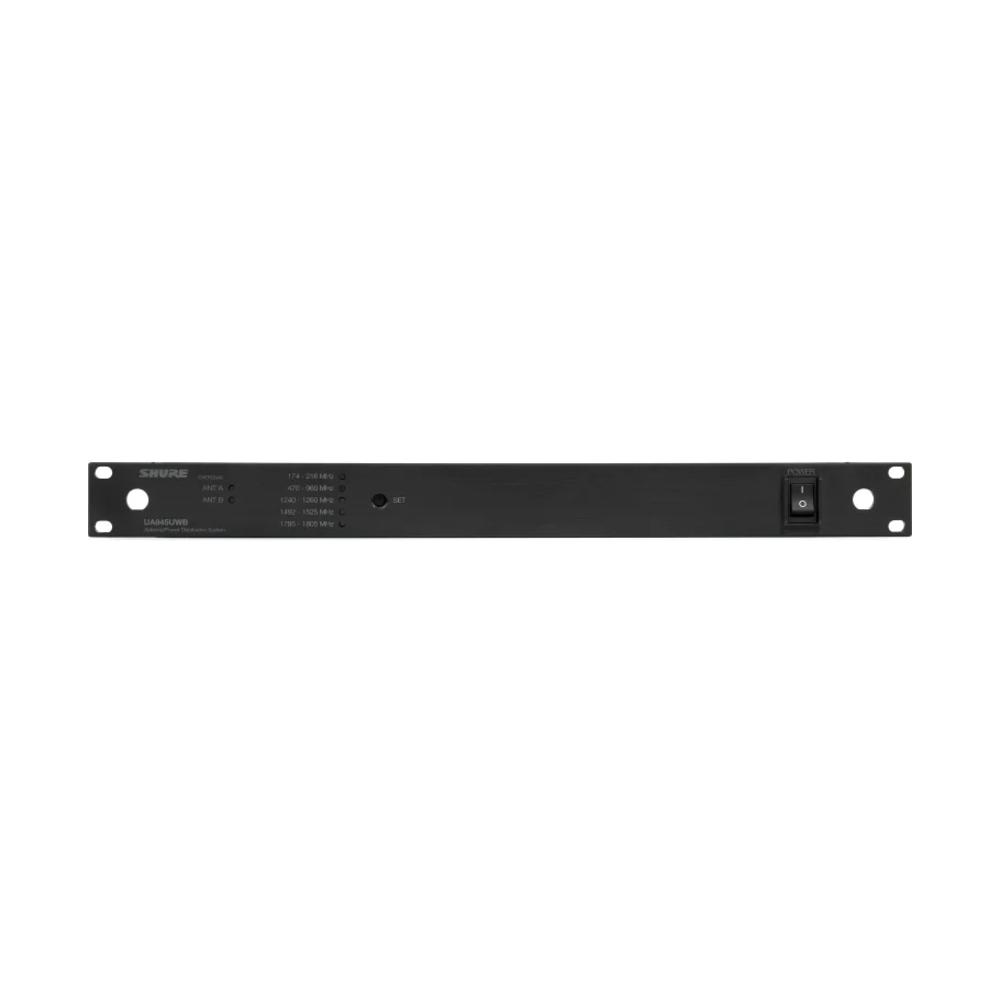

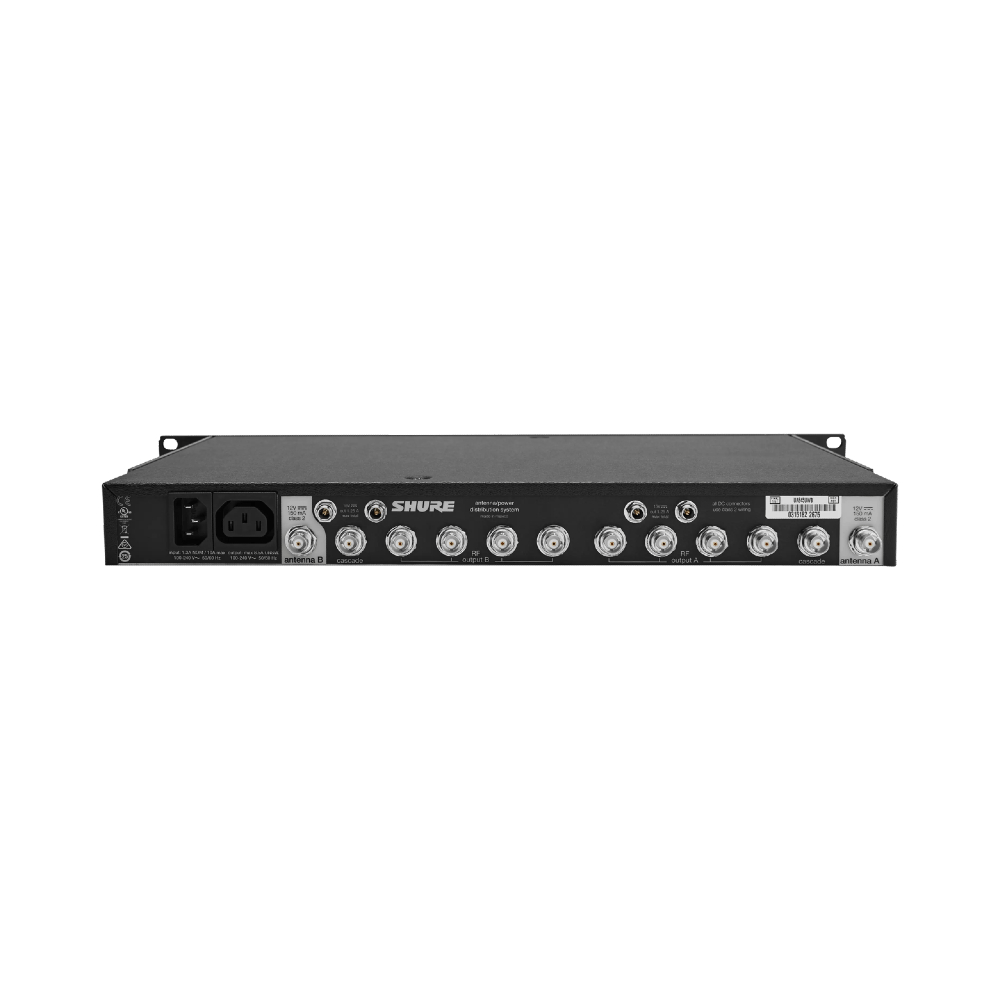

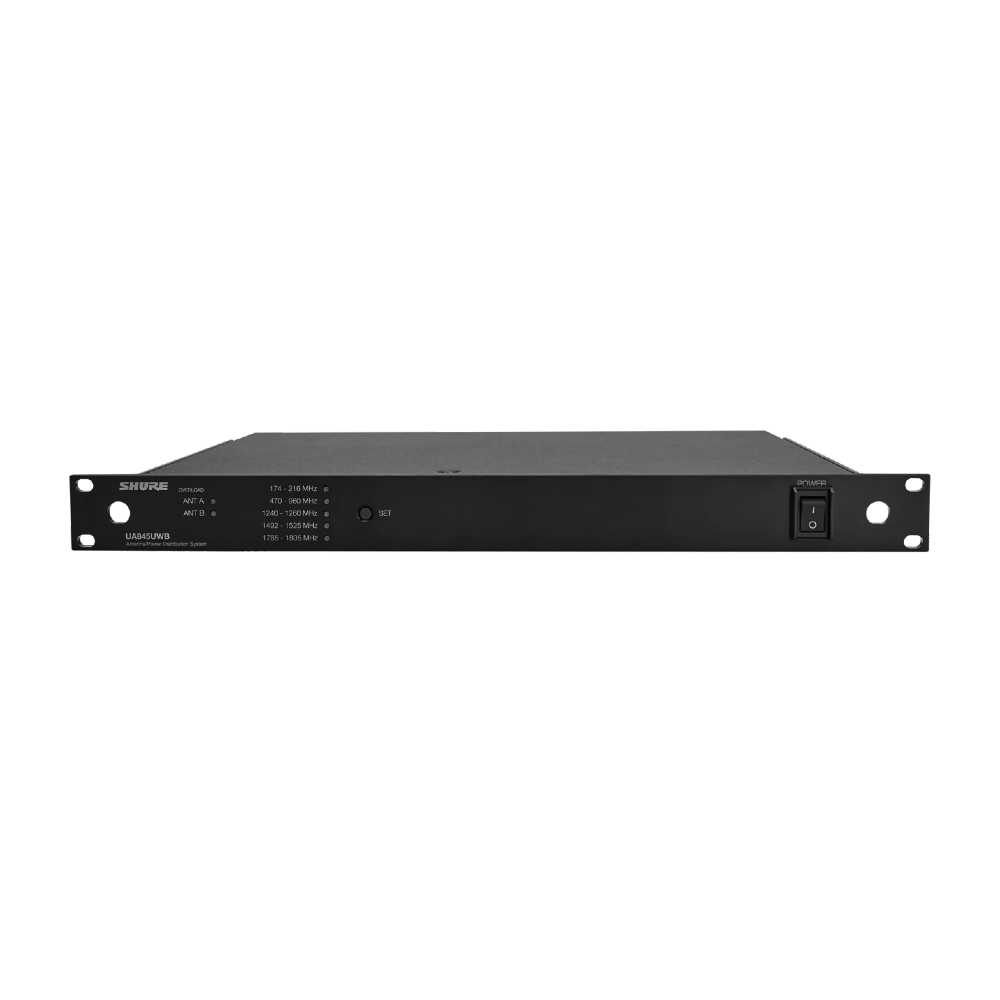

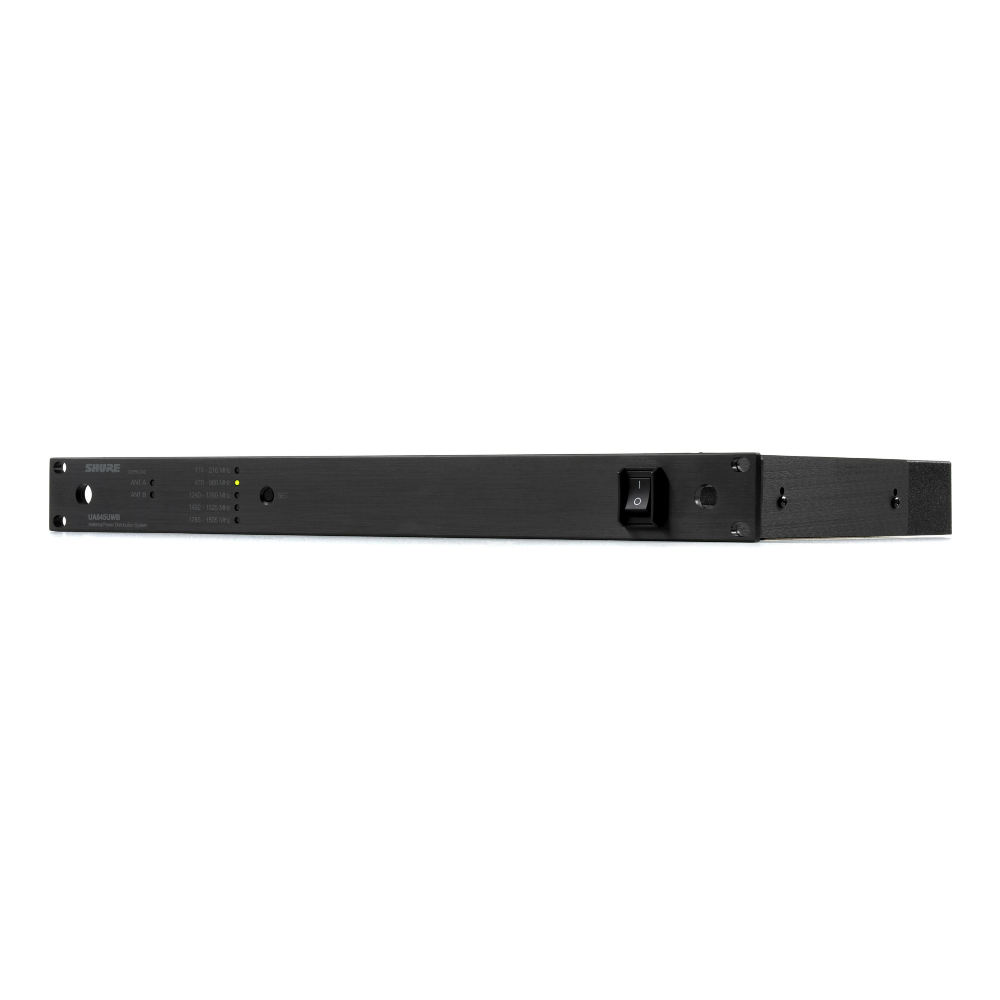

The SHURE UA845UWB-E : ULTRA-WIDE BAND DISTRIBUTION is a five-way active antenna splitter and power distribution system for Shure's wireless UHF-R, QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) receivers. It allows four wireless receivers to use the same set of antennas, and cascade connectors allow connections to a fifth receiver or a second UA845UWB. Featuring power connectors for distributing power to each receiver, the antenna system's RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of the five frequency bands from 174 to 1805 MHz. In addition, the unit comes complete with DC cables, bulkhead adapters, twelve BNC cables, a power cable, and a rackmount hardware kit.
Features
5-way active antenna splitter and power distribution system
Expands your wireless system by splitting 1 pair of antennas to 5 receivers
Amplifies the antennas' RF signals to compensate for any loss incurred by splitting the signal
Up to 5 UA845UWB systems can be used in a 2-tiered configuration
Switchable frequency ranges: 174MHz-216MHz, 470MHz-960MHz, 1240MHz-1260MHz, 1492MHz-1525MHz, and 1785MHz-1805MHz
Compatible with Shure QLXD, ULX, ULXD, SLX, and BLX (BLX4R only) receivers
