TA3 Backplate for Axient Digital ADX5D

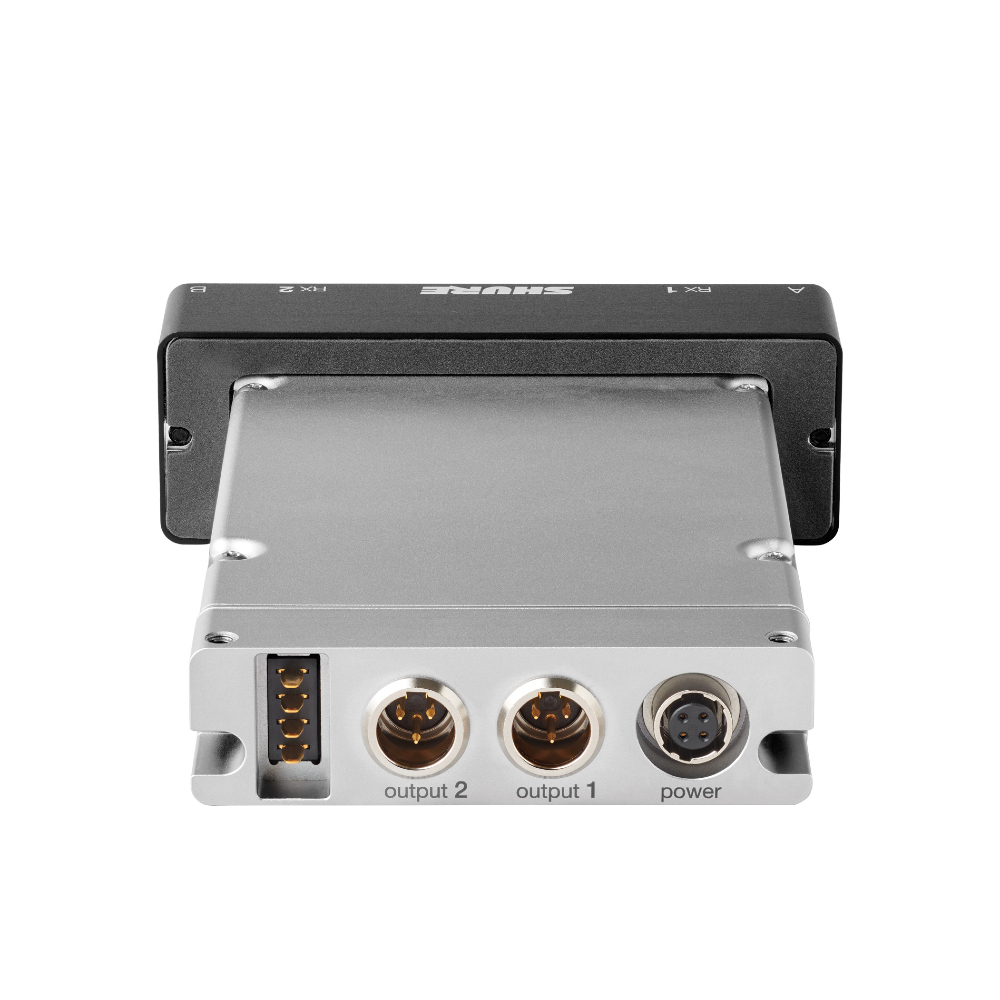

One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides stand-alone connectivity for the Axient Digital ADX5D into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It includes a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws provide simple installation to the ADX5D. Providing two channels of audio output, ADX5BP-TA3 Output 1 and 2 are both analog. However, Output 1 can be configured for digital AES3 output in the device menu (analog Output 2 is disabled when AES3 is selected).
Features:
TA3 back plate for Shure ADX5D Axient Digital wireless receiver
Offers power input from an external source, audio output for the receiver, and interface for compatible battery sleds

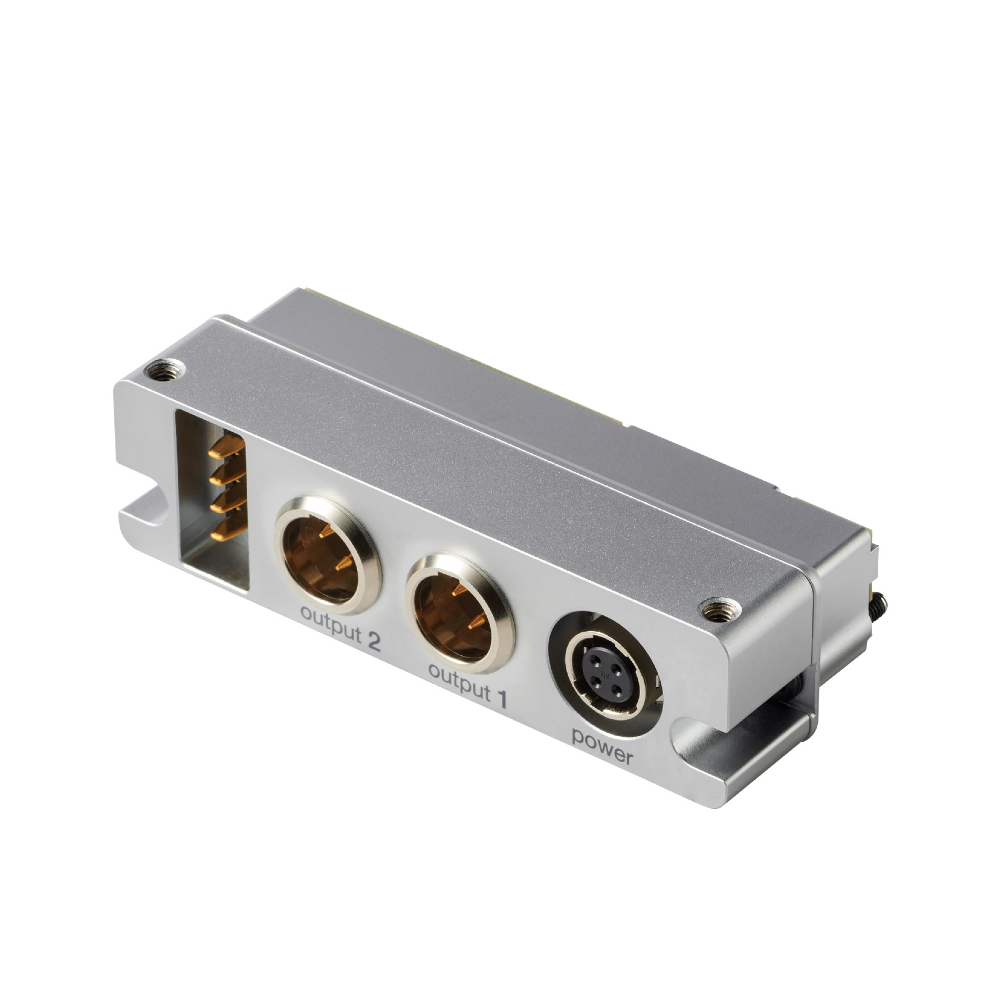

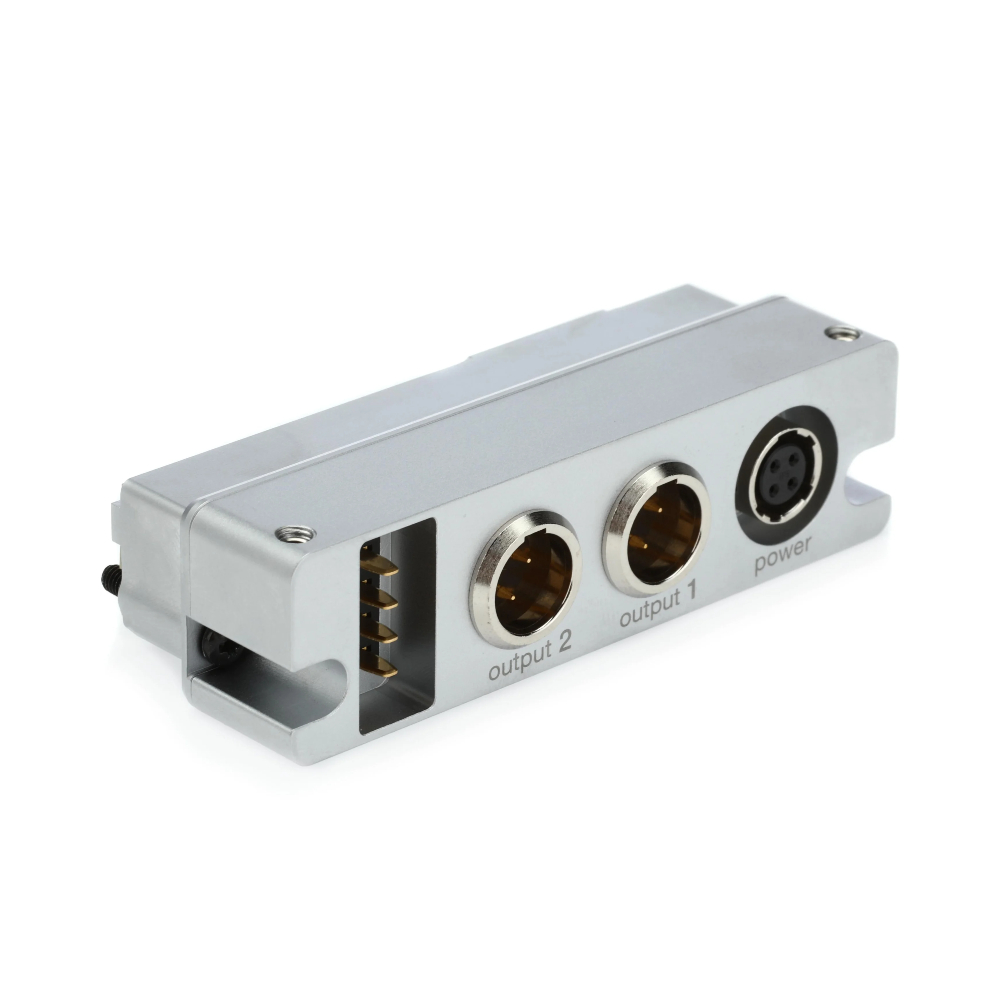

4-pin locking Hirose power input connector, 2 x TA3 audio output connectors, and 4-pin connector for battery sled
Audio outputs support analog audio as well as AES3 digital audio

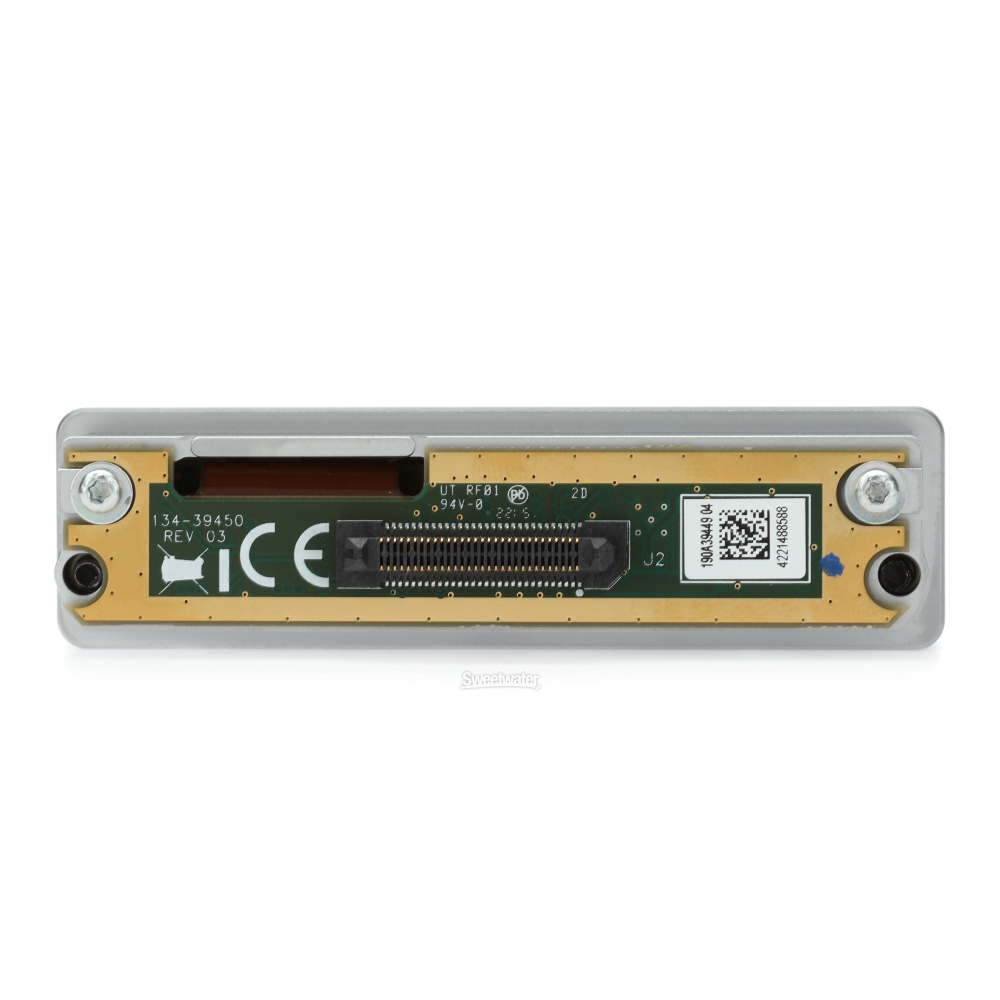

Back plate features captive screws, so no need to worry about losing screws when mounting/unmounting
