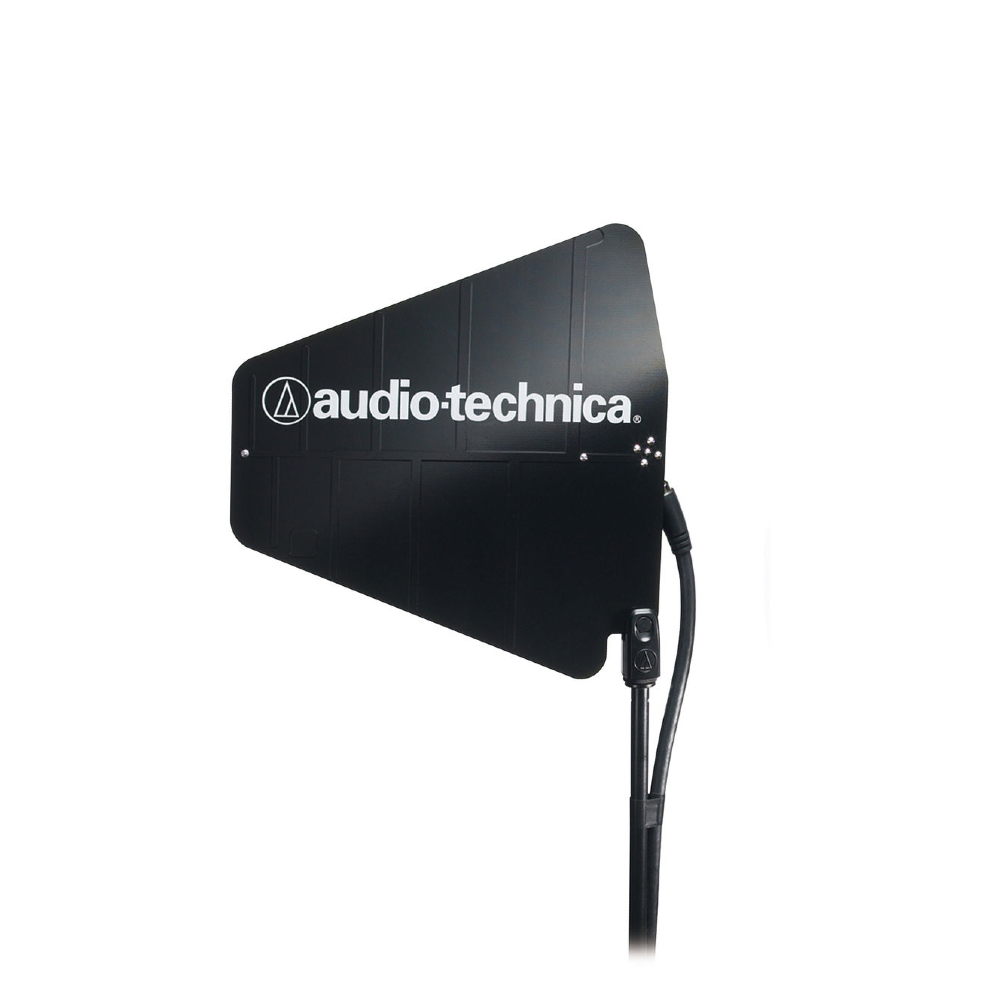

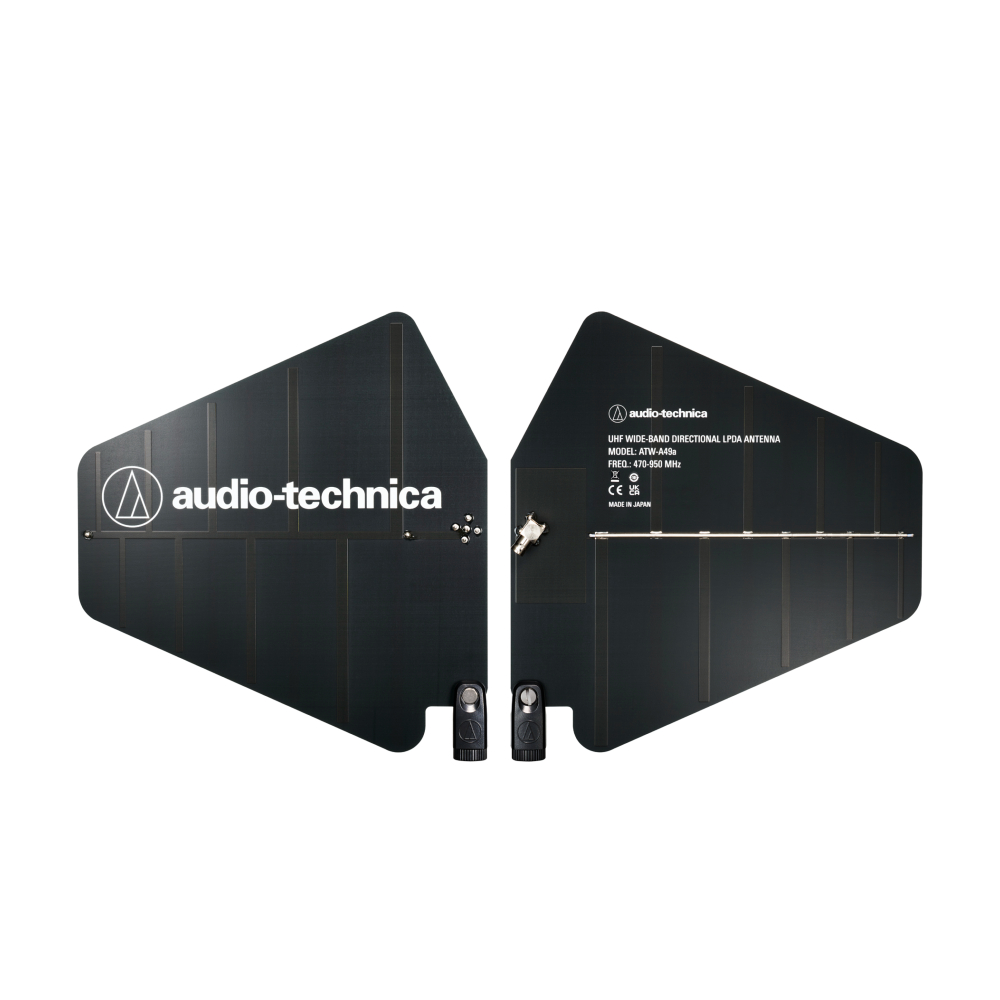

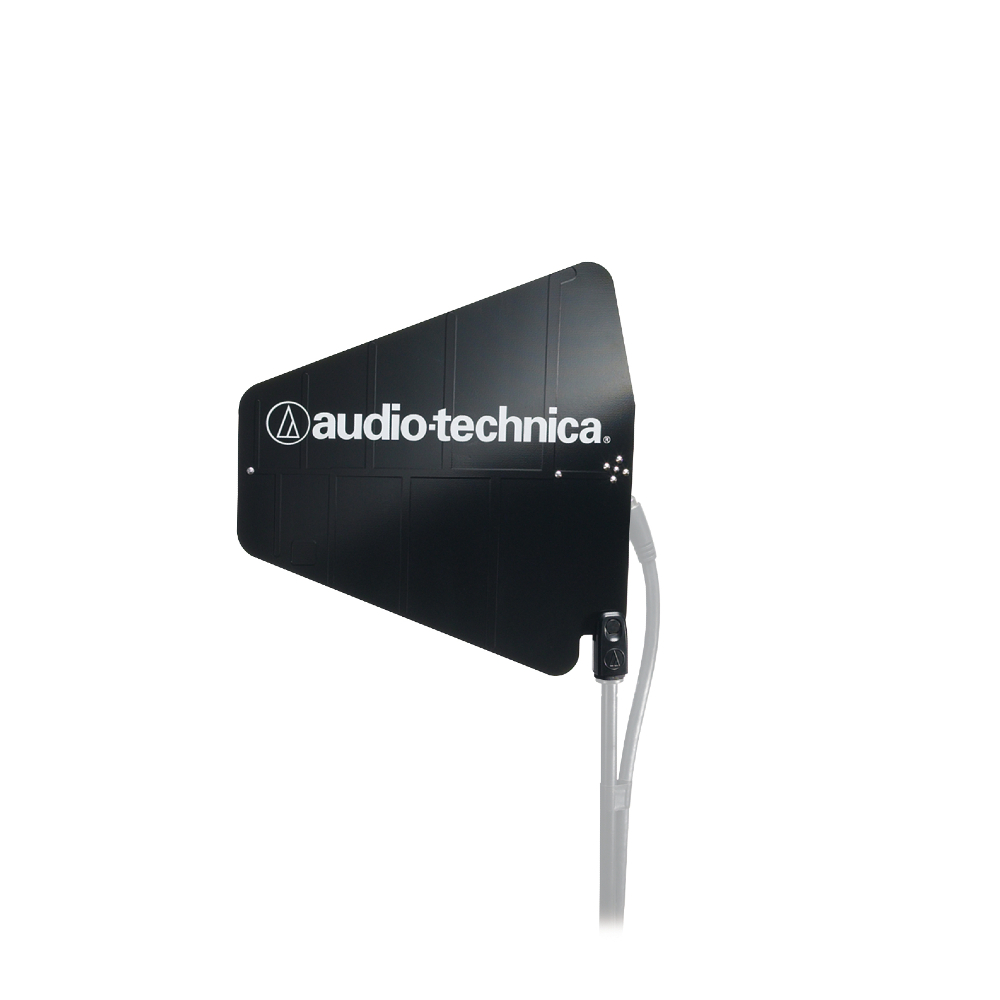

The Audio-Technica ATW-A49S LPDA (Log Periodic Dipole Array) antenna is designed for use with Audio-Technica UHF wireless systems, operating over the 440 - 900 MHz range. The wide-band antenna features enhanced signal pickup while extending operating range and reliability. The directional coverage pattern features a 90° beam-width, ideal for use in theatrical and musical performances, presentations and more.
Compatible with virtually all UHF wireless IEM transmitters, the ATW-A49S provides a directional coverage pattern with a typical beamwidth of 90 degrees. The antenna offers approximately 6 dB of RF gain improvement over standard receiver whip antennas and is designed to match standard 50 ohm impedance IEM transmitter outputs and receiver inputs.
Features:
Enhanced signal pickup
Wideband (440-900 MHz) operation
6 dB RF gain improvement
90 degree beamwidth
Rugged industrial grade copper-clad epoxy fiberglass construction
Low-loss BNC-BNC connector positioned to minimize cable strain
