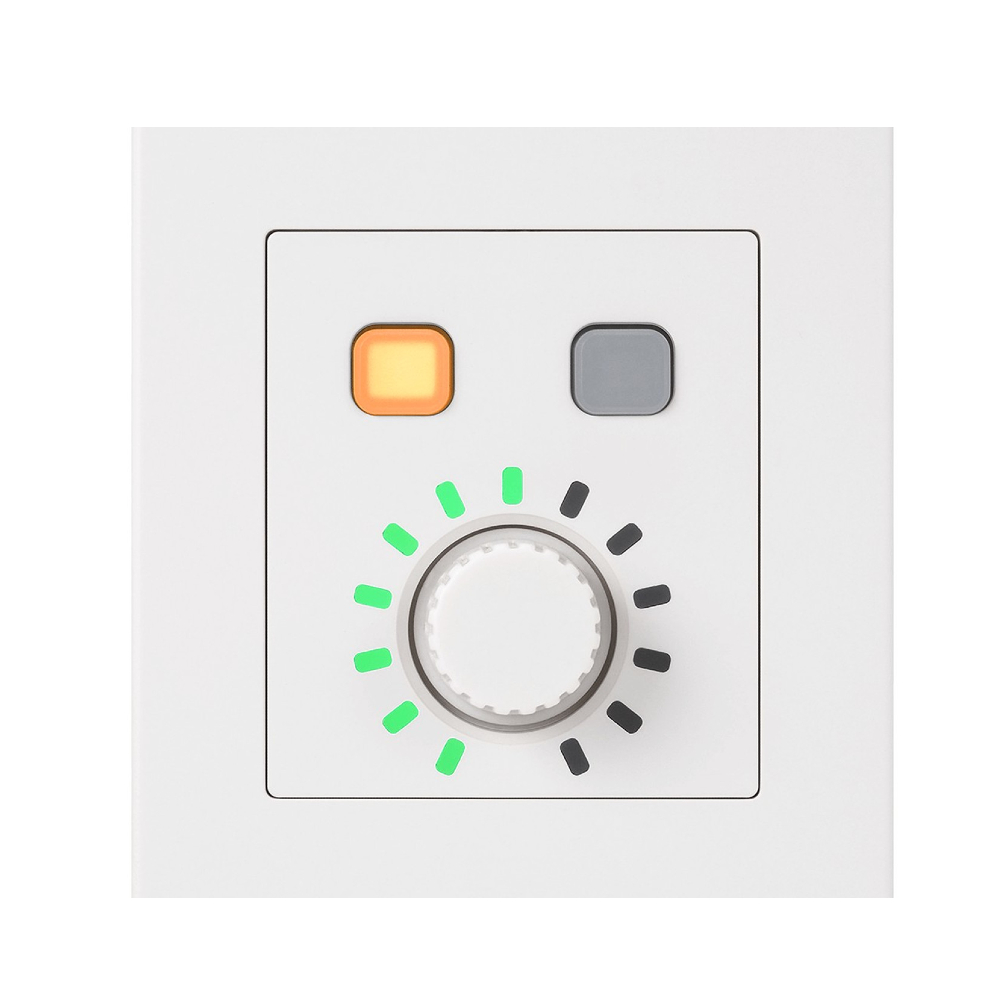

Key Features
• Easily adjust the volume of an ATDM-0604a or ATDM-1012 SmartMixer®
• Fast SmartMixer preset and channel switching
• Dial button and upper buttons can be customized using the SmartMixer Web Remote function

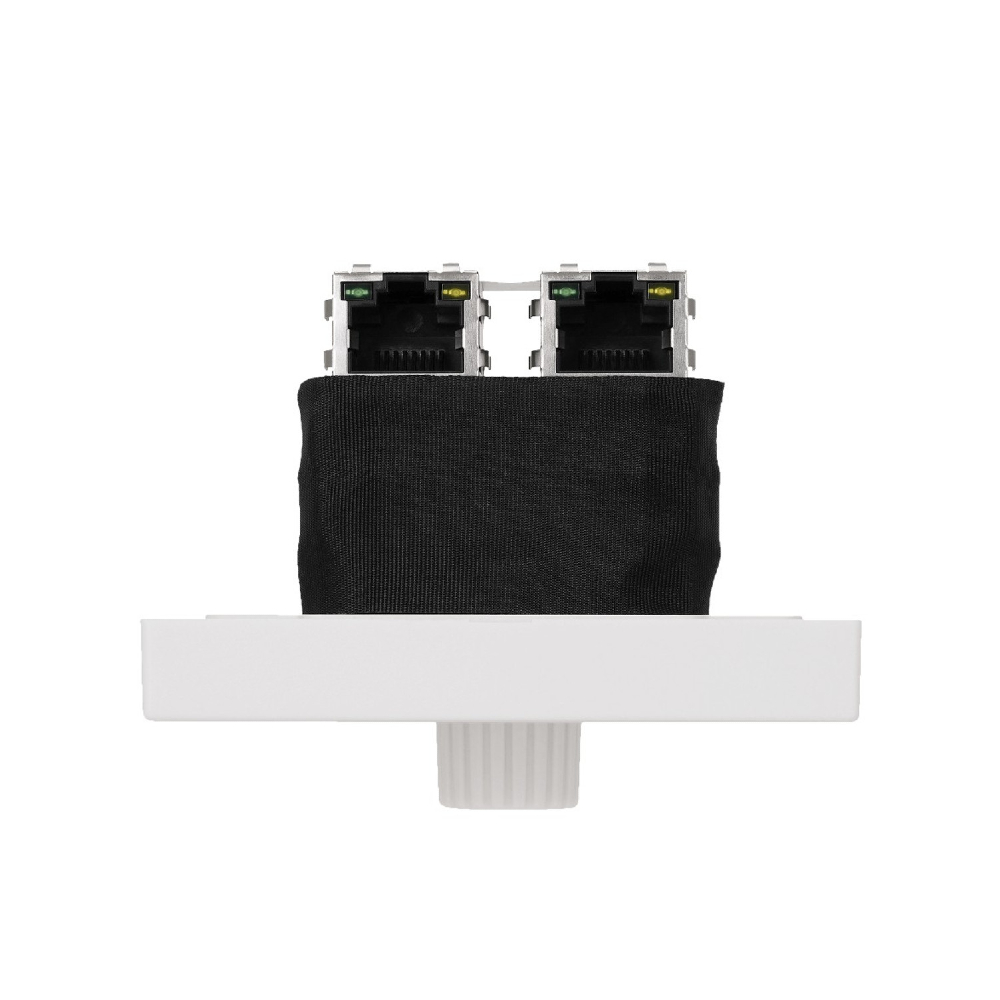

• Equipped with two RJ45 Audio-Technica LINK ports for connecting to mixer via Cat5e or higher Ethernet cable
• Drive up to four control panels from a single mixer*
• *Four control panels can be daisy-chained from the ATDM-1012/1012DAN; an ATLK-EXT25 link extender is required to power multiple control panels from the ATDM-0604a.
Technical Specifications
• Power Supply: DC+8 to +48V (Audio-Technica LINK)
• Power Consumption: 1.2 W
• Operating Temperature Range: 0 to 40℃ (32 to 104°F)
• Operating Humidity Range: 25 to 85% (no condensation)
• Dimensions: 70 mm (2.8") x 60.7 mm (2.4") x 120 mm (4.7")
• Weight: 112 g (4.0 oz)
• Indicator: Volume LED: Volume LED: 13 points (green), Buttons: 2 pcs (green/orange)
• Link I/O: RJ-45 x 2 pcs (Audio-Technica LINK)
