Fender Tone Master Pro 230V EU (2274906000)

SKU: E-2-770

Brand:
Fender

Category:
Effects & Pedals

Sub-Category:
Guitar Effects & Pedals

With world-class tonal replication, the Fender Tone Master Pro multi-effects pedal is the groundbreaking guitar workstation from the leader in guitar amplification.

PHP 139,500.00

PHP 125,550.00

Unprecedented Power


The Tone Master Pro multi-effects pedal is powered by a massive 8-core processor, enabling you to load up large multi-amp and effects signal chains with ease. Tone Master Pro’s powerful architecture allows for seamless, latency-free preset changes, allowing your delay and reverb trails to spill over naturally.


Authentic Amp Tones


Featuring over 100 of the world’s most popular amps and effects, we’ve included all of the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other can’t-live-without classics that have all been perfectly replicated using our proprietary Tone Master amp modeling process. Additionally, Tone Master Pro is loaded with a huge collection of presets covering multiple genres that sound amazing right out of the box.

Intuitive Effects Interface

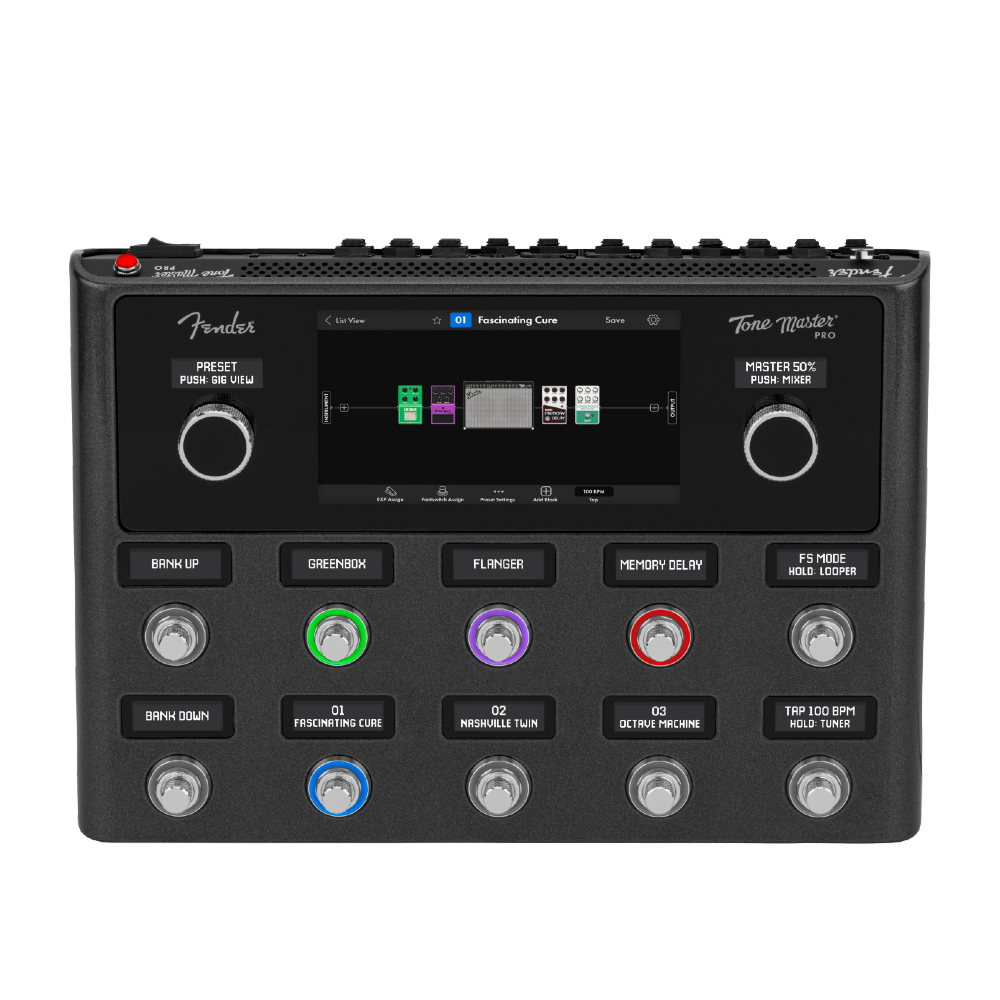

With a large 7" full-color touchscreen, dual-function footswitch/encoders with LCD scribble strips and its instantly familiar graphics, Tone Master Pro makes tone creation easy so you can spend more time playing than programming.


Total Control


Built to integrate intuitively into your existing setup and inspire sonic exploration right out of the box. Tone Master Pro can be paired with your favorite external effects pedals and amps, or function as the centerpiece of your recording studio. Expand its power and flexibility with the Tone Master Pro Control App on Mac and PC, to edit, store, and share your favorite creations with Fender’s community of players and artists.

Features


Over 100 Tone Master quality Amp & Effect Models
Over 6000 Fender-captured Impulse Responses with a variety of cabinet and microphone options
3rd Party IR support
7 inch Color Touch-screen
Innovative Song & Setlist modes
60 second Stereo Looper
4 Effects Loops for integrating your favorite pedals
Instrument and XLR mic inputs
10 proprietary footswitch/encoders with LCD “scribble strips”
True preset spillover of delay and reverb tails for seamless preset changes
Firmware updates over USB
Compatible with Tone Master Pro Control desktop app for editing, sharing and downloading presets
Over 500 User Presets with access to thousands more from the Cloud using the Tone Master Pro Control App
Bluetooth wireless connection for streaming audio from a mobile device
Stereo 1/4″ Headphone output jack for silent practice
Compatible with the Mission Engineering SP1-TMP Expression Pedal for realtime control of parameters
Lightweight, under 9 lbs.
Patent Pending
Specifications

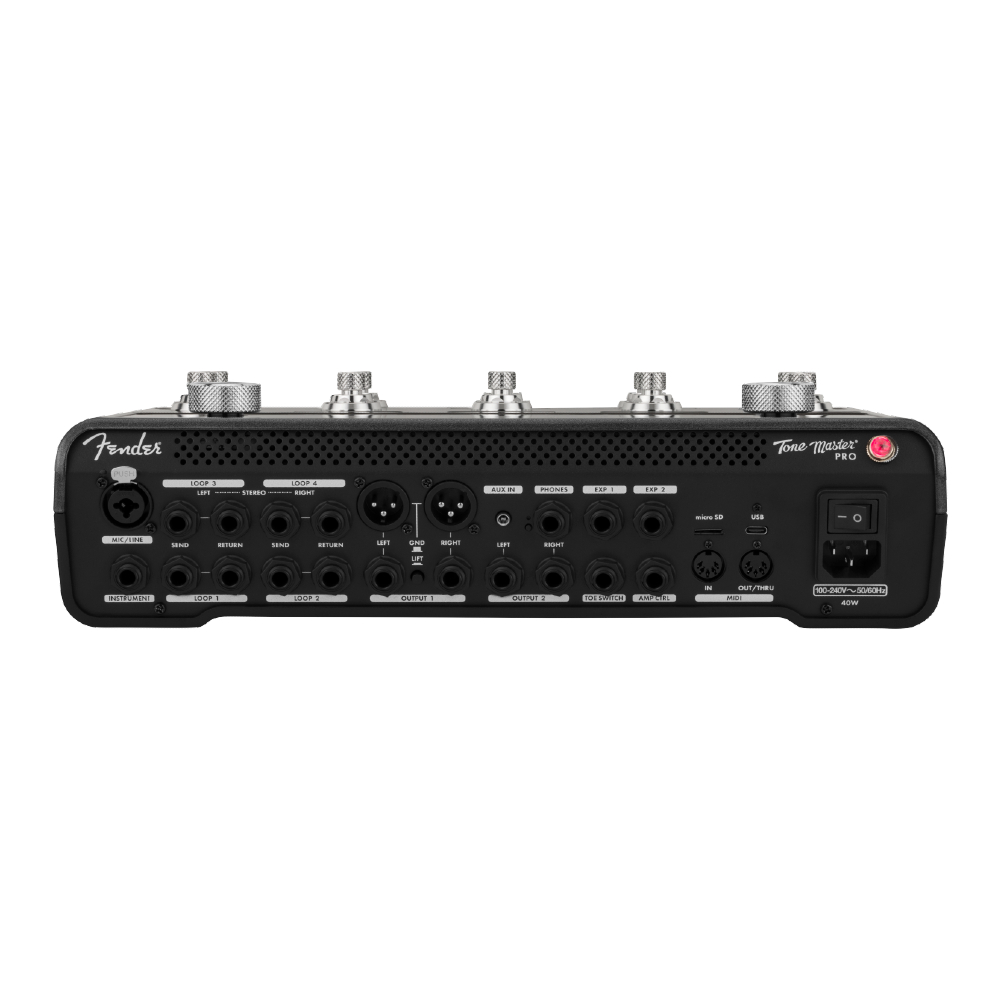

Inputs

Auxiliary Input Connection Type: 3.5 mm Stereo
Auxiliary Input Impedance: 10 kΩ
Instrument Input Connection Type: 1/4″
Instrument Inputs Maximum Level: 5.6V (2.8V with Input Pad Off)
Line Input Connection Type: 1/4” TRS Female (Combo), Balanced
Line Inputs Impedance: 1MΩ
Line Inputs Maximum Level: 7.8V Balanced, 4.5V Unbalanced
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Input Impedance: 1.8 kΩ Balanced
Microphone Preamp Maximum Input Level: 4.7V
Auxiliary Input Max Input Level: 2.4V
Effects Loop Impedance: 10 kΩ


Hardware

MIDI IO: Dual 5-Pin DIN (In/Out-Through-Merge)
Effects Loop Connection Type: Mono Loops (1 & 2) 1/4″ Unbalanced, Mono Loops (3 & 4) 1/4″ TRS Balanced (Can Be Combined into Stereo Pair)


Electronics


Control Panel: Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD “Scribble Strips”
Effects: Over 100 Quality Amp and Effect Models
Effects Loop: 4 Total
Looper: 60-Second Stereo Looper
Connectivity: USB-C®
Connection Type: 1/4″
Other Connections: 1/4″ Expression Pedal 1 and 2, Amp Control
Voltage: 230V EUR
Power Requirements: 40W
Phantom Power: +48 VDC (XLR Only)
Digital Audio Frequency Response: 20 Hz – 20 kHz (+0.1/-0.7 dB)
