Audio
Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
Dynamic Range: > 109 dB (A-weighted)
Signal-to-Noise Ratio: > 92 dB (A-weighted)
Channel Separation: < -88 dB (1 kHz, unity)
Headroom:
Aux: > 15 dB
Mic Input: > 20 dB
Outputs: > 15 dB
T.H.D.
Aux: < 0.01% (1 kHz, unity)
Microphone: < 0.02% (1 kHz, unity)
Analog Input
Aux:
+15 dBV (maximum)
0 dBV (unity)
Microphone:
-40 dBV (unity)
-54 dBV (minimum)
Analog Output
Master, Balanced:
+18 dBu (maximum)
+4 dBu (unity)
Master, Unbalanced:
+15 dBu (maximum)
0 dBu (unity)
Booth:
+18 dBu (maximum)
+4 dBu (unity)
Headphone Output:
< 40 mW

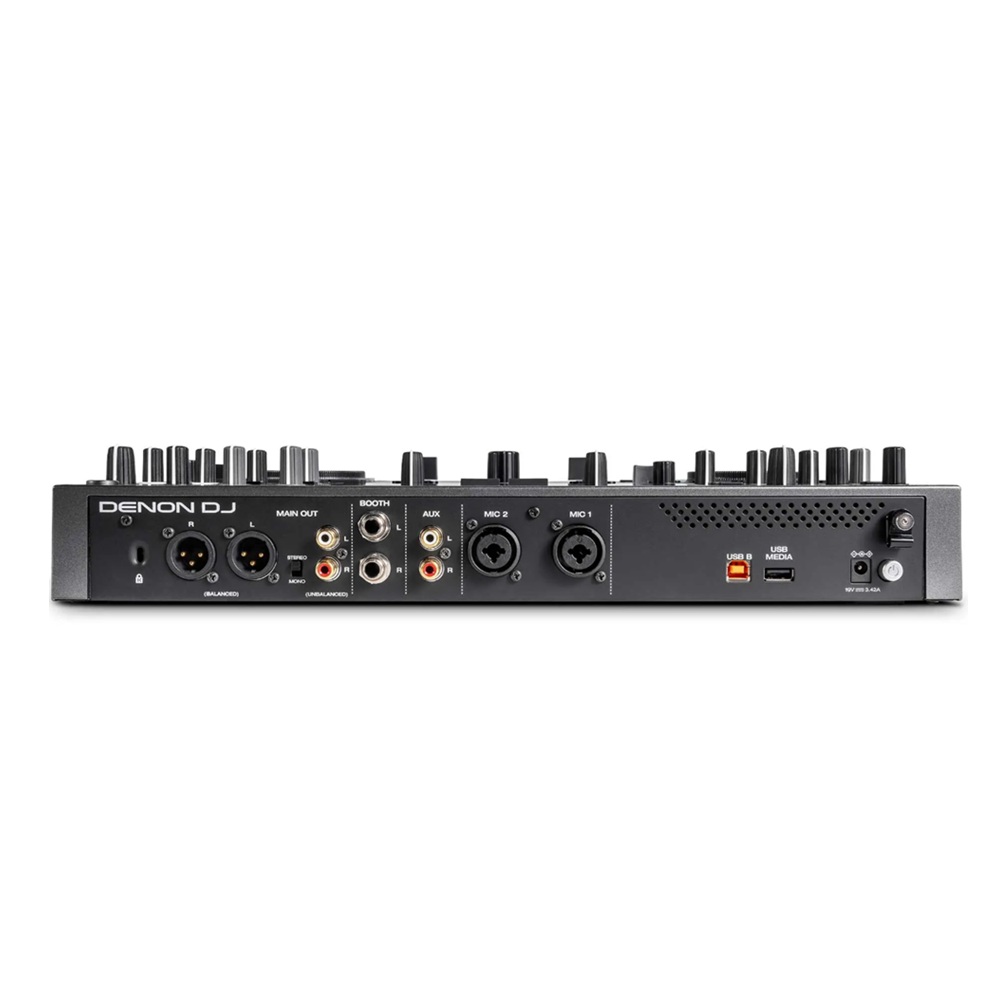

Connections
(2) XLR outputs (master left/right, balanced)
(1) RCA output pair (master left/right, unbalanced)
(2) 1/4-inch (6.35mm) outputs (booth left/right, balanced)
(2) 1/4-inch (6.35mm) outputs (booth left/right, balanced)
(1) 1/4-inch (6.35mm) stereo output (headphones)
(1) 1/8-inch (3.5mm) stereo output (headphones)
(1) RCA input pair (line-level, unbalanced)
(2) XLR + 1/4-inch (6.35mm) inputs
(1) USB ports (for USB drives)
(1) USB port (to computer)
(1) SD card slot
(1) Power adapter input
Power
Connection: DC, Center Positive
Voltage: 19V 3.42A
Consumption: 30W maximum
Built-In Rechargeable Battery
Dimensions and Weights
Product Only:
Imperial (in): 16.2 inches W, 10.8 inches D, 2.1 inches H
Metric (mm): 411 W, 274 D, 53 H
Weight (lbs): 8.11
Weight (Kg): 3.68
Product in Box:
Imperial (in): 21.06 inches W, 15.35 inches D, 6.65 inches H
Metric (mm): 535 W, 390 D, 169 H
Weight (lbs): 11.27
Weight (Kg): 5.11
