Powersoft T304A 3000W/4-channel High-performance Amplifier with DSP

SKU: E-1-1326

Brand:
Powersoft

Category:
Pro-Audio

Sub-Category:
Amplifiers

The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.

PHP 201,900.00

All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.

MyPowersoft services are available for this product

Features

The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
Full control with a PC running Armonía.

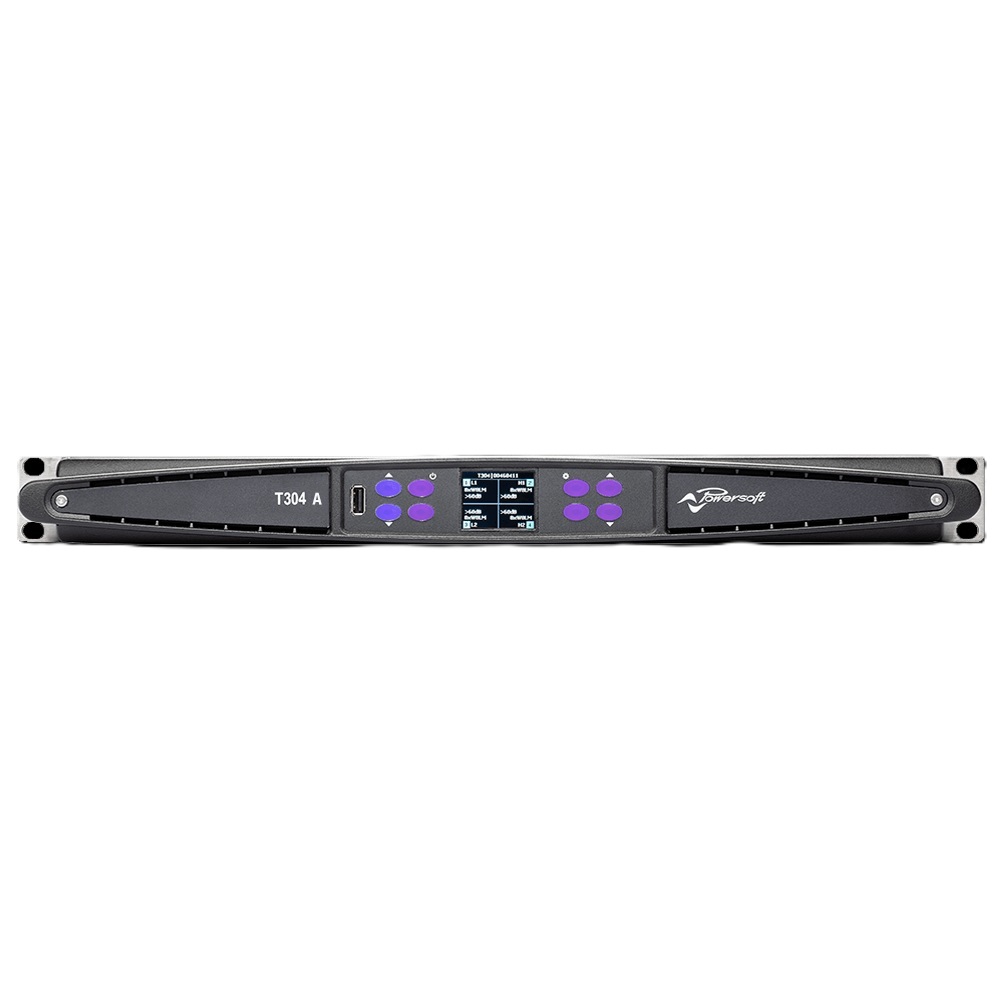

Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
Group controllable advanced EQ with raised cosine filters
Large preset library
Preset compatibility with X Series
Very long FIR filters (42.6 ms)

Output power per channel: 750W @ 2 Ω 750 W @ 4 Ω 750 W @ 8 Ω
Bridge mode: 1500 W @ 4 Ω 1500 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage @8 Ω 145 Vpeak
Current 50 Apeak
AC main power
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption/ Current draw
1/8 of max output power @ 4 Ω 120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A
THERMAL
Operating temperature range 0° – 35° C – 32° – 95° F
Thermal dissipation
1/8 of max output power @ 4 Ω 120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h
