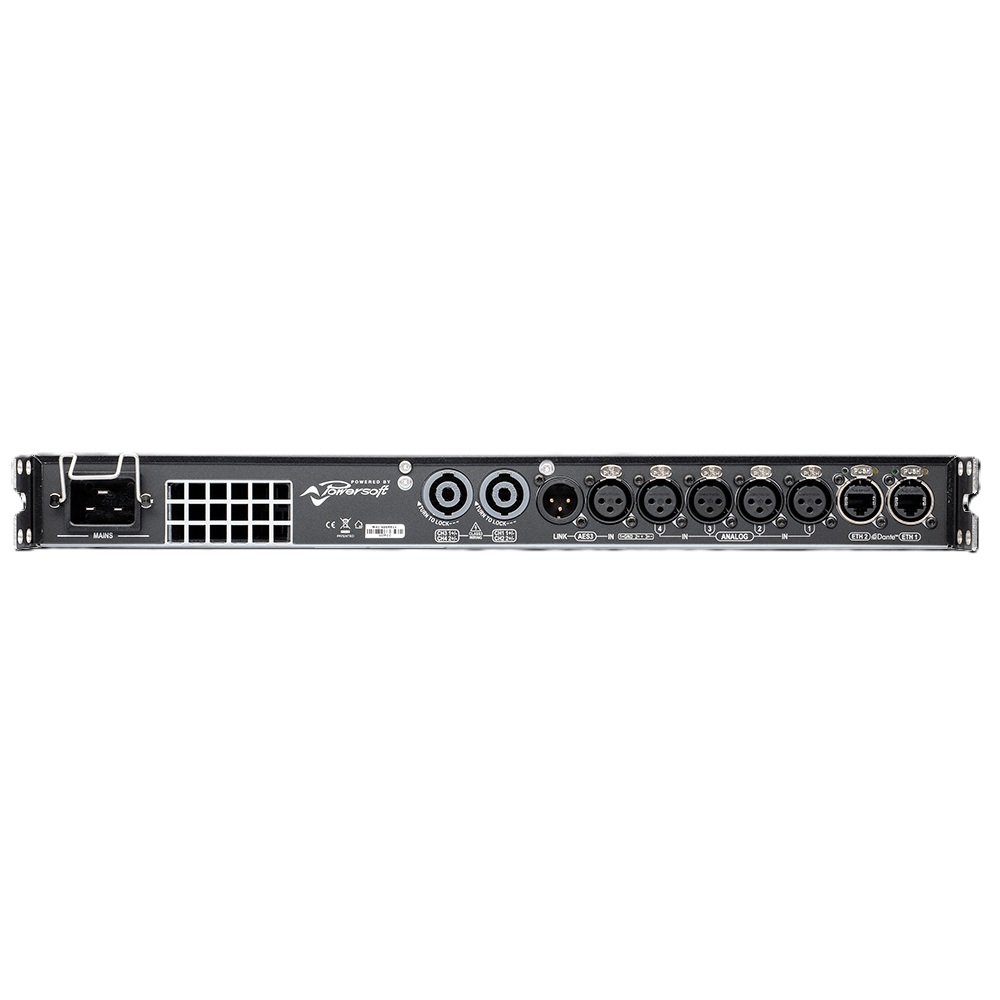

Powersoft T904 8000W/4-channel High-performance Amplifier with DSP and Dante

SKU: E-1-1325

Brand:
Powersoft

Category:
Pro-Audio

Sub-Category:
Amplifiers

The T904 is designed to power bi-amped systems like stage monitors, 2-way point source speakers, and 2-way line sources, as well as smaller subwoofers.

PHP 355,100.00

This product is currently out of stock.

The amplifiers feature input via Dante, AES3, and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end, and the amplifiers in-between.

MyPowersoft services are available for this product

The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
Full control with a PC running Armonía.

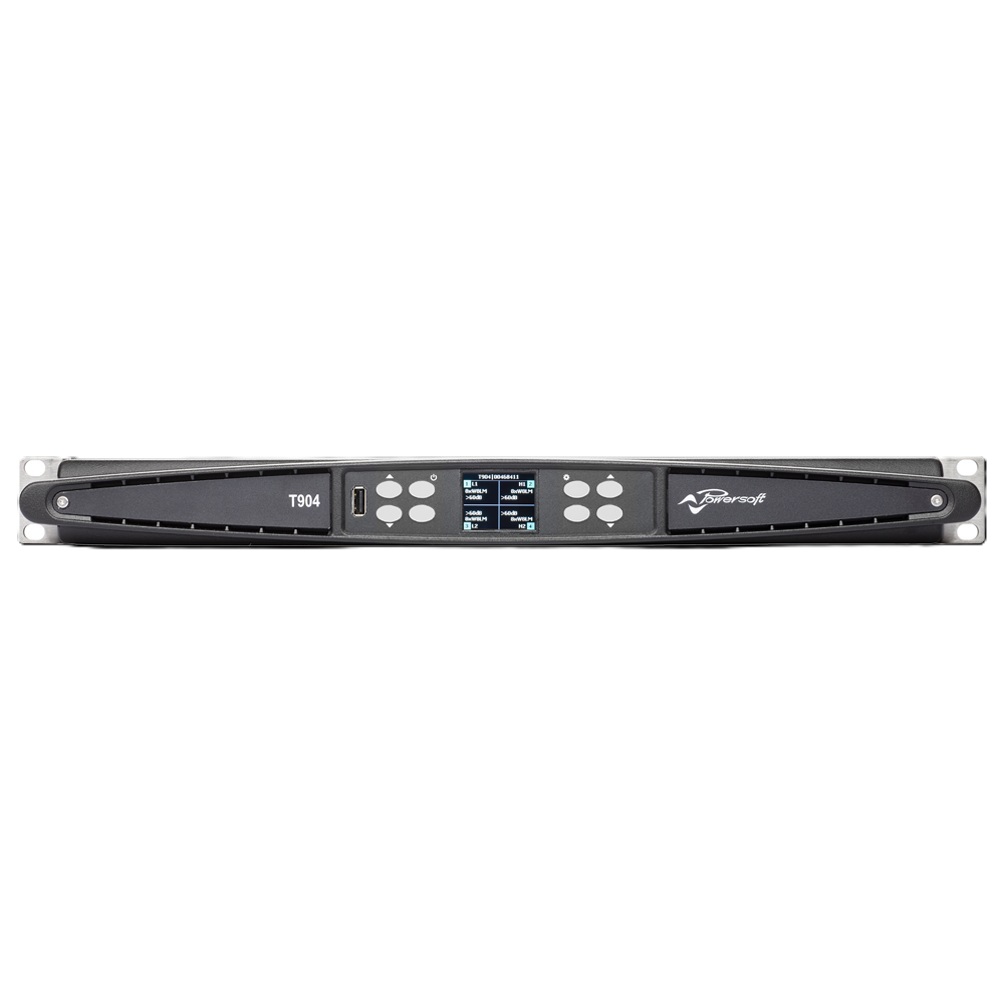

Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
Group controllable advanced EQ with raised cosine filters
Large preset library
Preset compatibility with X Series
Very long FIR filters (42.6 ms)

Output power per channel: 1800W @ 2 Ω 2000 W @ 4 Ω 1600 W @ 8 Ω
Bridge mode: 3600 W @ 4 Ω 4000 W @ 8 Ω
Max output voltage / current
Max unclipped output voltage @8 Ω 175 Vpeak
Current 55 Apeak
AC main power
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption / Current draw
1/8 of max output power @ 4 Ω 120 V: 1702 W – 15 A 230 V: 1676 W – 8.2 A
THERMAL
Operating temperature range 0° – 35° C – 32° – 95° F
Thermal dissipation
1/8 of max output power @ 4 Ω 120 V: 1713 BTU/h 230 V: 1624 BTU/h
