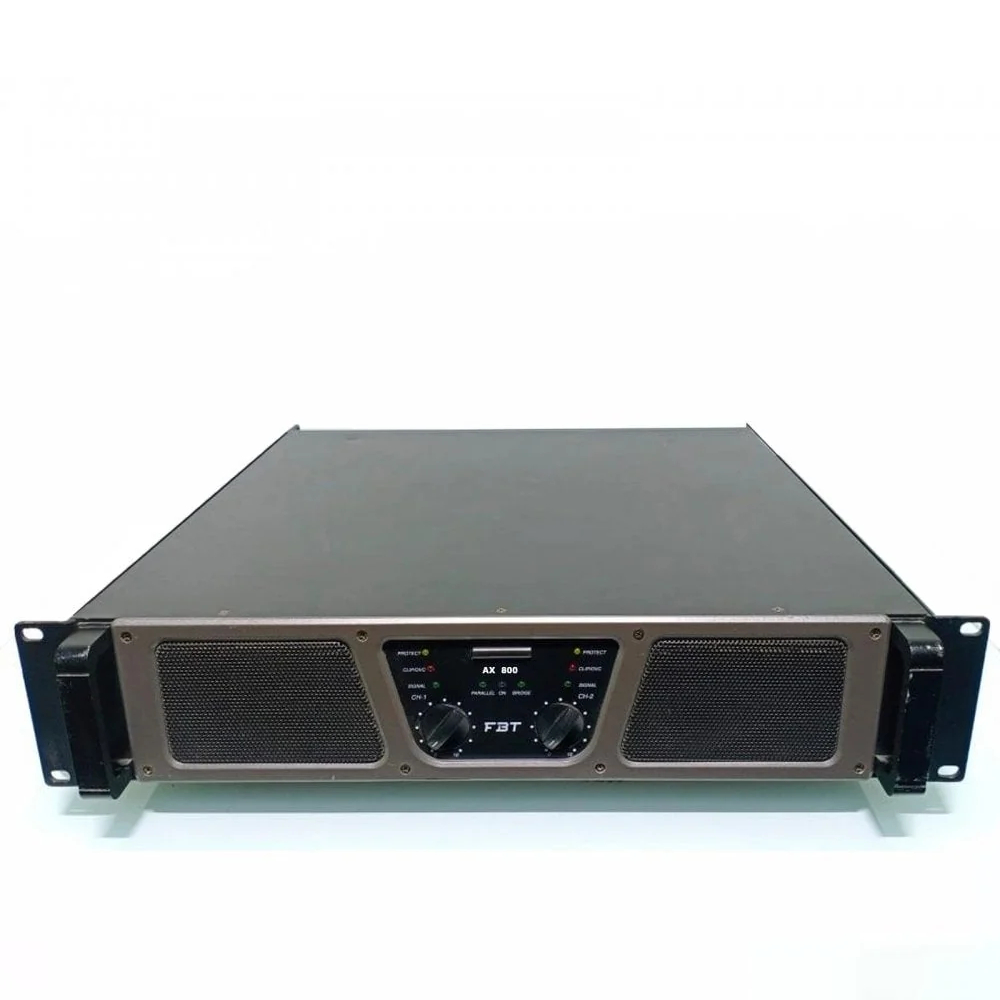

FBT AX 800 2CH 250WATTS Per Channel 8OHMS, 400WATTS Power Amplifier

SKU: E-1-1216

Brand:
FBT

Category:
Pro-Audio

Sub-Category:
Amplifiers

The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs. APPLICATIONS: Amplification for live sound reinforcement speaker systems in clubs, discos, piano bar, conference halls, houses of worship, sports arenas, schools, theatres, mobile D.J. use, recording studio monitors, foreground music reproduction, etc.

PHP 30,800.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

  • BOTH CHANNEL DRIVEN 8 OHM 1% THD CONTINOUS/IMPULSIVE: 230/250
  • BOTH CHANNEL DRIVEN 4 OHM 1% THD CONTINOUS/IMPULSIVE: 350/400
  • BRIDGE 8OHM 1% THD: 700/800
  • INPUT IMPEDANCE: 20Kbalanced
  • SIGNAL TO NOISE RATIO S/N: >100dB
  • TOTAL HARMONIC DIST. (1KHZ-4OHM): < 0.03%
  • FREQUENCY RESPONSE: 20Hz-40kHz -6dB
  • DAMPING FACTOR: > 400
  • CLASS: AB
  • MAXIMUM POWER CONSUMPTION: 1000VA
  • POWER SUPPLY VOLTAGE: 120 or 230 Vac 50/60Hz
  • PROTECTIONS: Short circuit / thermal

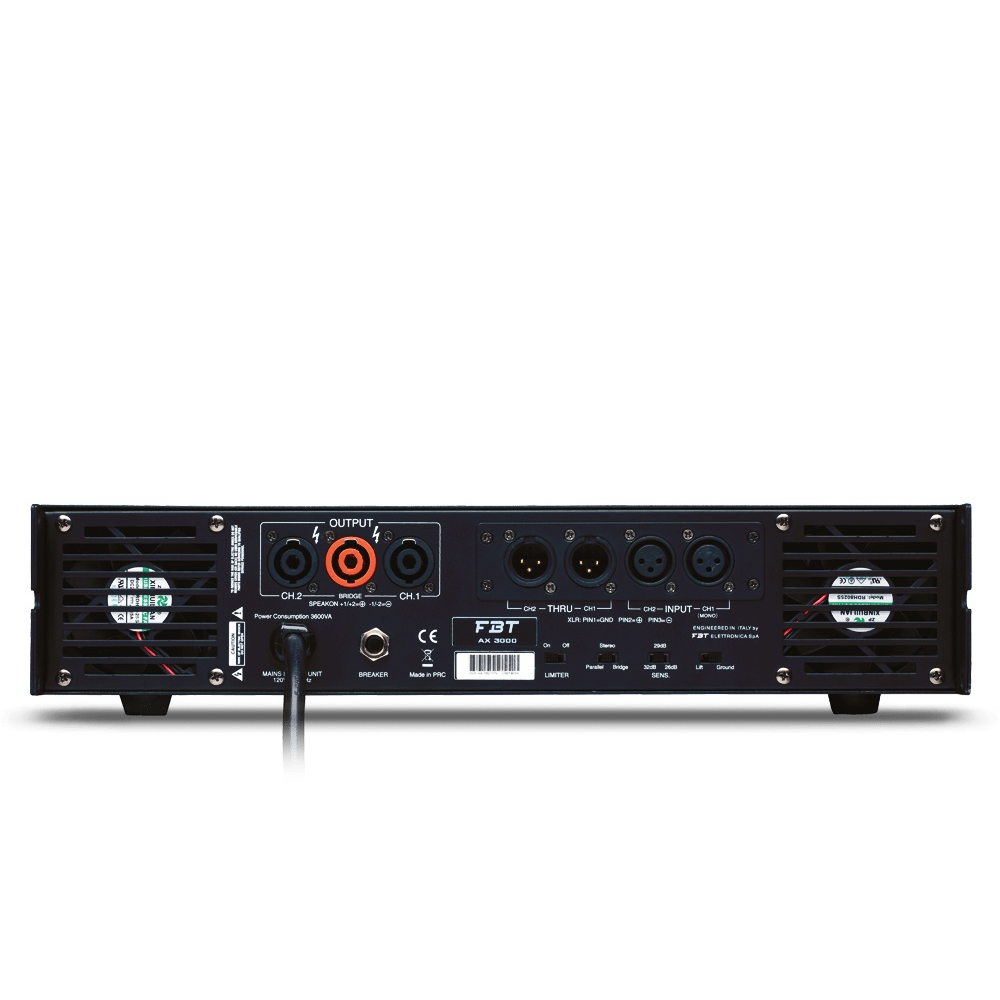

  • CONNECTORS: IN: XLR/Jack - Out: Speakon/Binding post
  • NET DIMENSIONS (WXHXD): 482x88x290 mm / 19x3.5x11.4 in
  • NET WEIGHT: 11/24.25
