Audio-Technica ATUC-IRDU ATUC Infrared Delegate (Gooseneck mic not included)

SKU: E-1-1177

Category:
Pro-Audio

Sub-Category:
Microphones

The ATUC-IRDU has a 3-pin XLRF-type input for use with ATUC-M43H, ATUC-M58H and ATUC-M32L microphones.

PHP 55,000.00

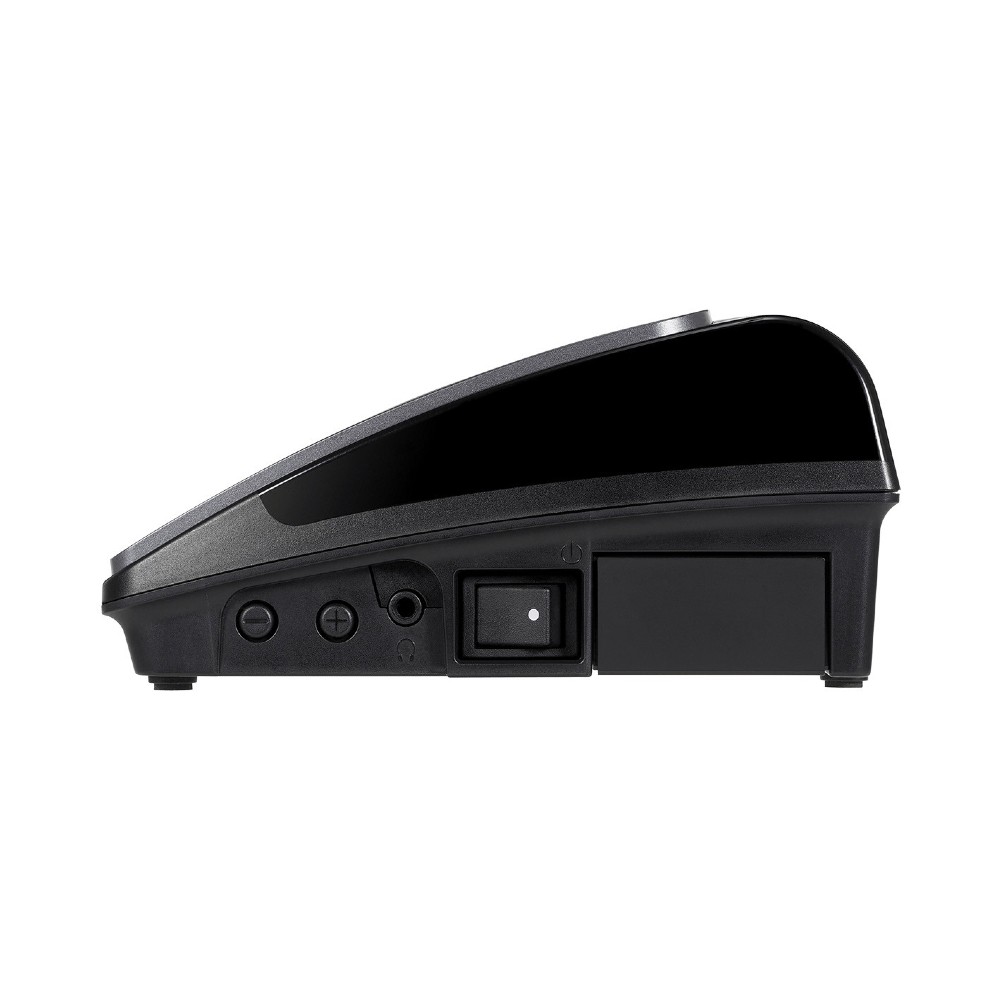

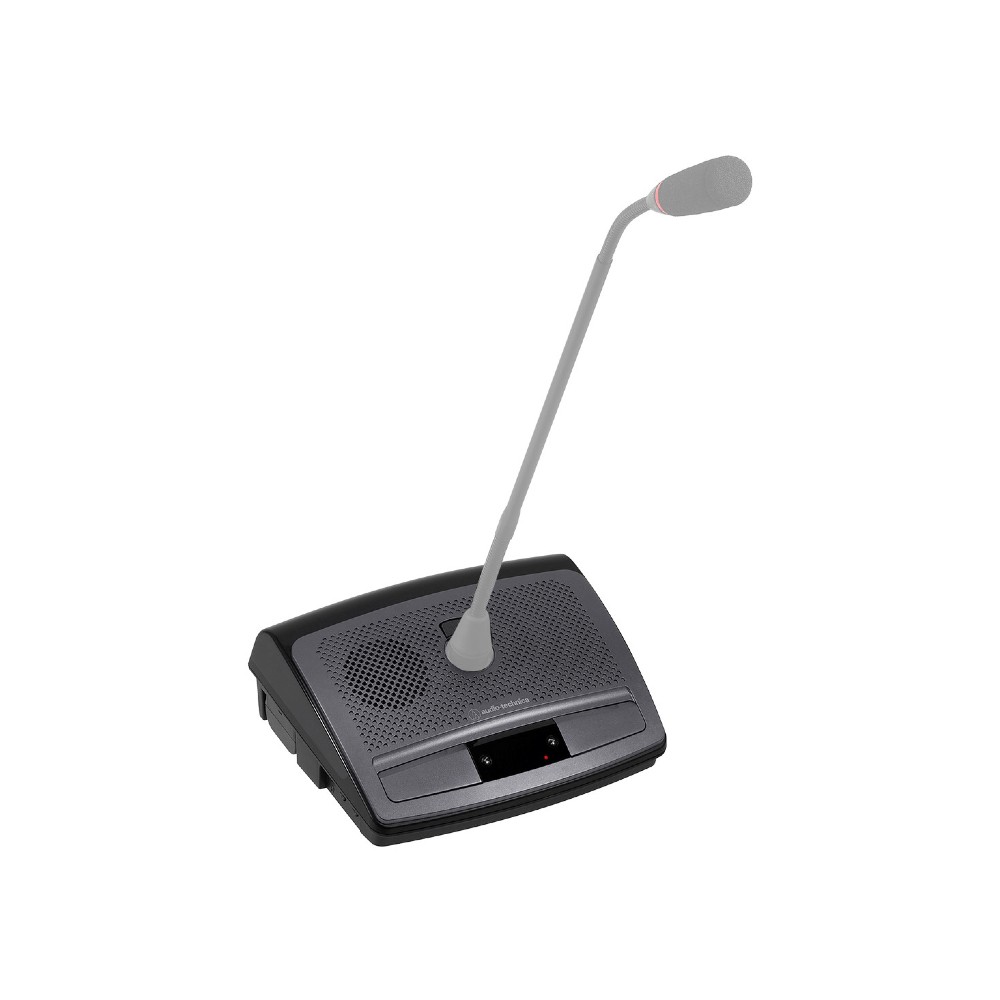

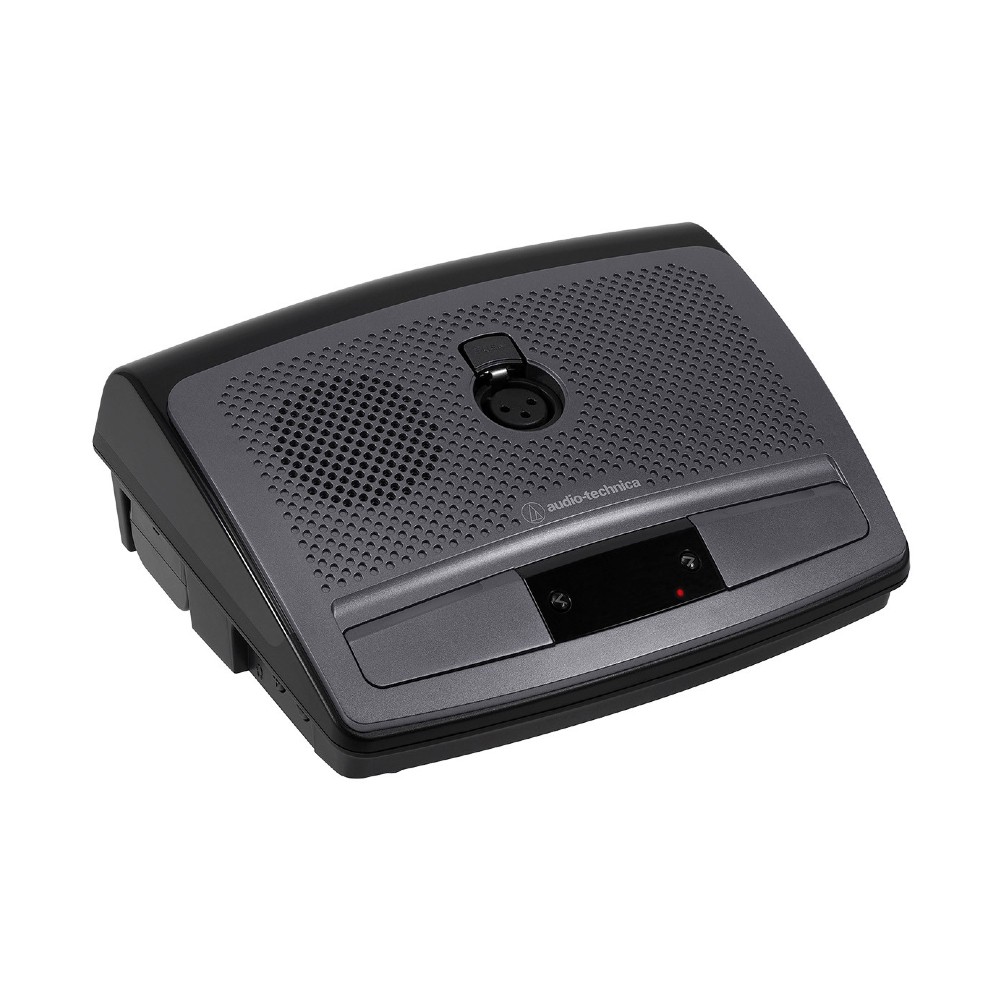

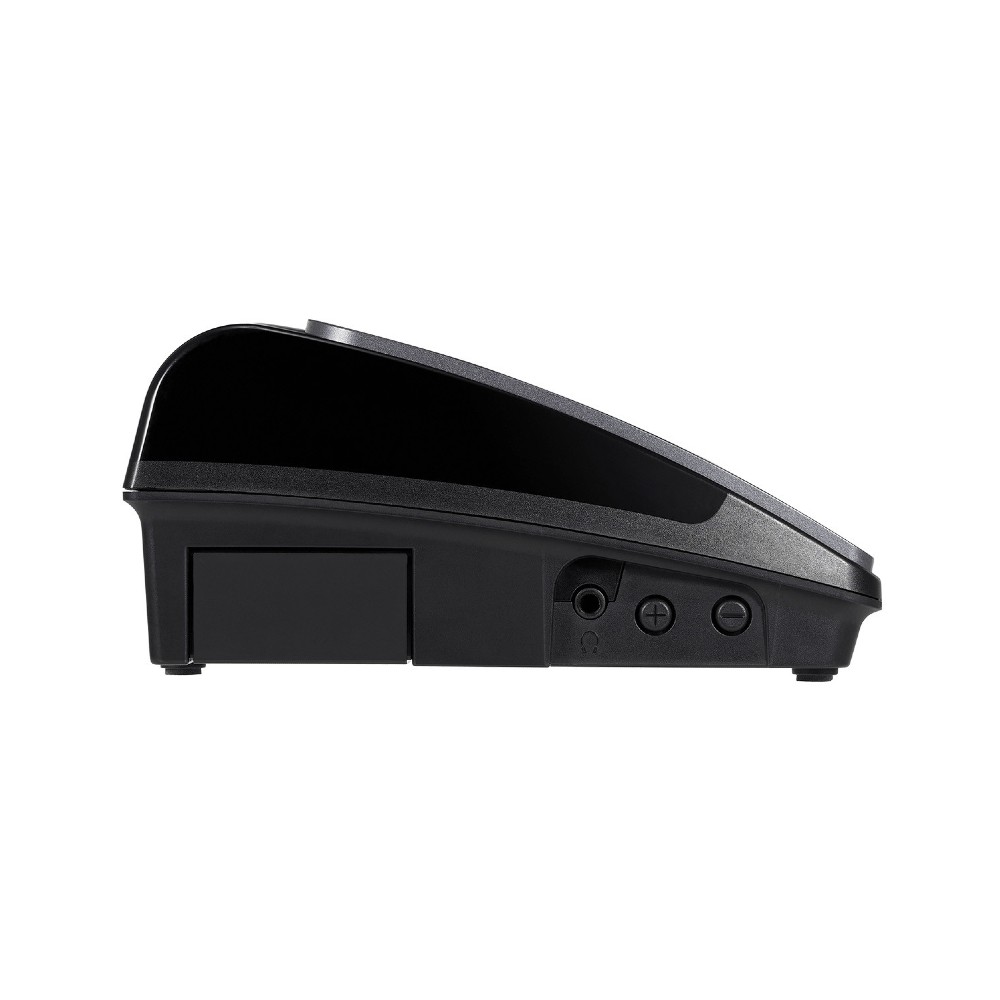

The ATUC-IRDU has a 3-pin XLRF-type input for use with ATUC-M43H, ATUC-M58H and ATUC-M32L microphones. Configured for up to two users, the unit includes dual request-to-talk/mute buttons, indicator LEDs, and 3.5 mm (1/8 inch) headphone jacks with volume controls, giving both users equal access to the microphone. The IRDU is also equipped with a channel/volume display, channel selection buttons, and built-in speaker. It is designed for tabletop or recessed mounting, and is powered by one or two LI-240 lithium batteries (available separately) for approximately 6.5 or 13 hours of use, or by an AC adapter (available separately).

Features

Connect up to 200 discussion units to one hybrid control unit
Equipped with two multifunction buttons which can be shared with 2 people, or used for the chairman
Use of one or two batteries for over 13 hours of operation
High quality speaker for enhanced intelligibility
Clear LED display for channel selection
Individual Automated Gain Control (AGC), Mic gain and Mic EQ
Multicolour LED bar on the DU (rear side)
Multicolour LED on each speak button
Compatibility with standard XLR3 pin gooseneck
Supports ATUC-MIC and their LED rings

Overall System

Operating Frequencies: Infrared
Number Of Channels: Voice: 10 channels, Monitor: 4 channels
Frequency Response: +1.0, -2.0dB, 200Hz - 5kHz (+4dBu output at 1kHz)
Operating Range: Max. 6m
Headroom: 7dB
Total Harmonic Distortion: Less than 1%, 1kHz unity
Operating Temperature Range: 0 - 40°C
Operating Humidity: 25 - 85%
Phantom Power: DC+24V
Dynamic Range: 65dB, A-Weighted
Signal-to-Noise Ratio: 58dB, A-Weighted
Equivalent Input Noise: Less than –80dBu, Rs = 150ohm
Connections: Inputs: Microphone XLR x1, Output: Headphone 3.5mm x2
Power Supply: DC + 12V, 1A
Power Consumption: 4.0W
Bandwidth: 1 MHz – 10MHz
Modulation Method: FM
