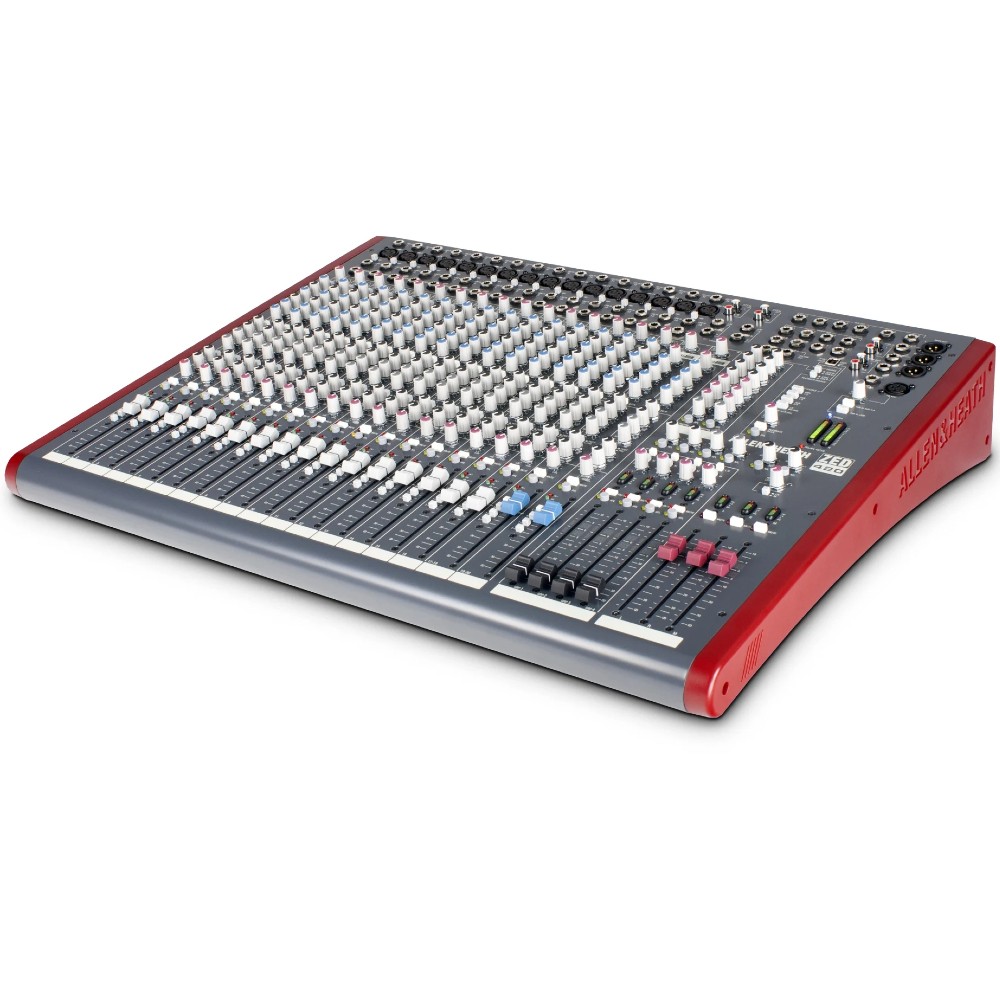

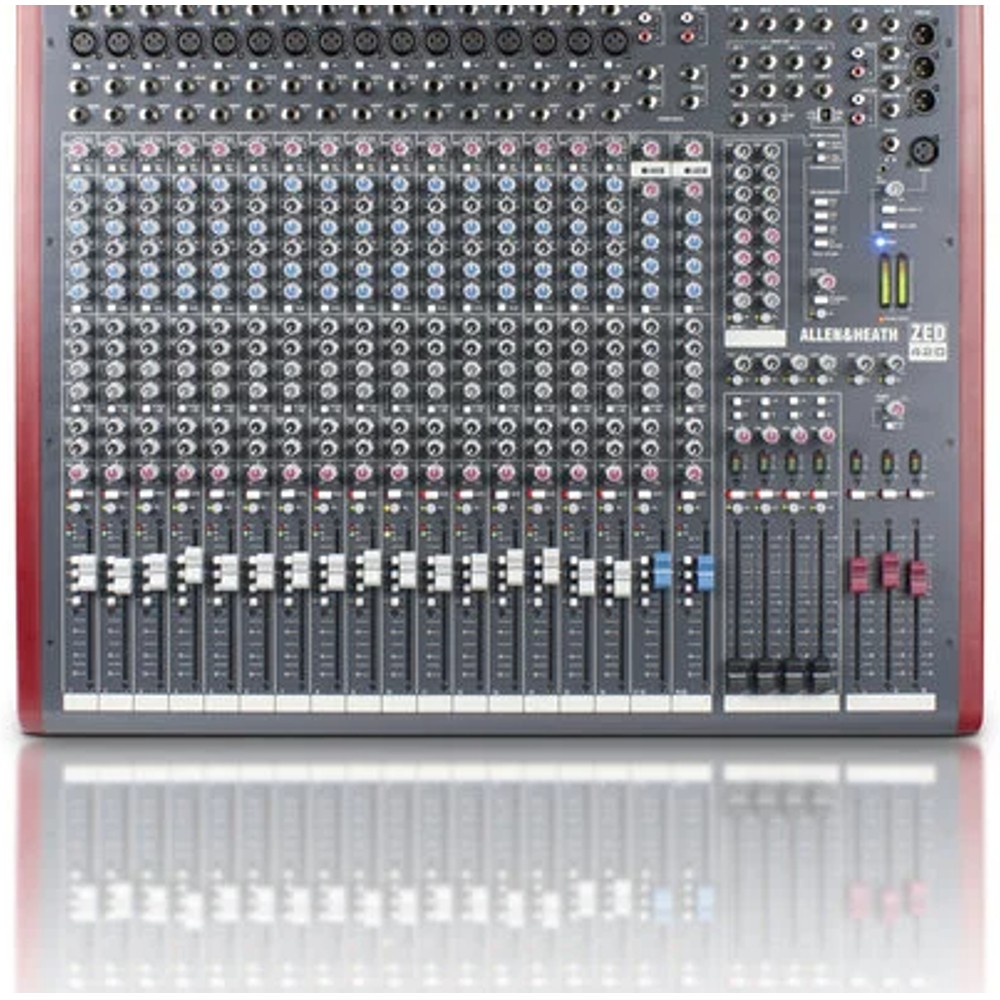

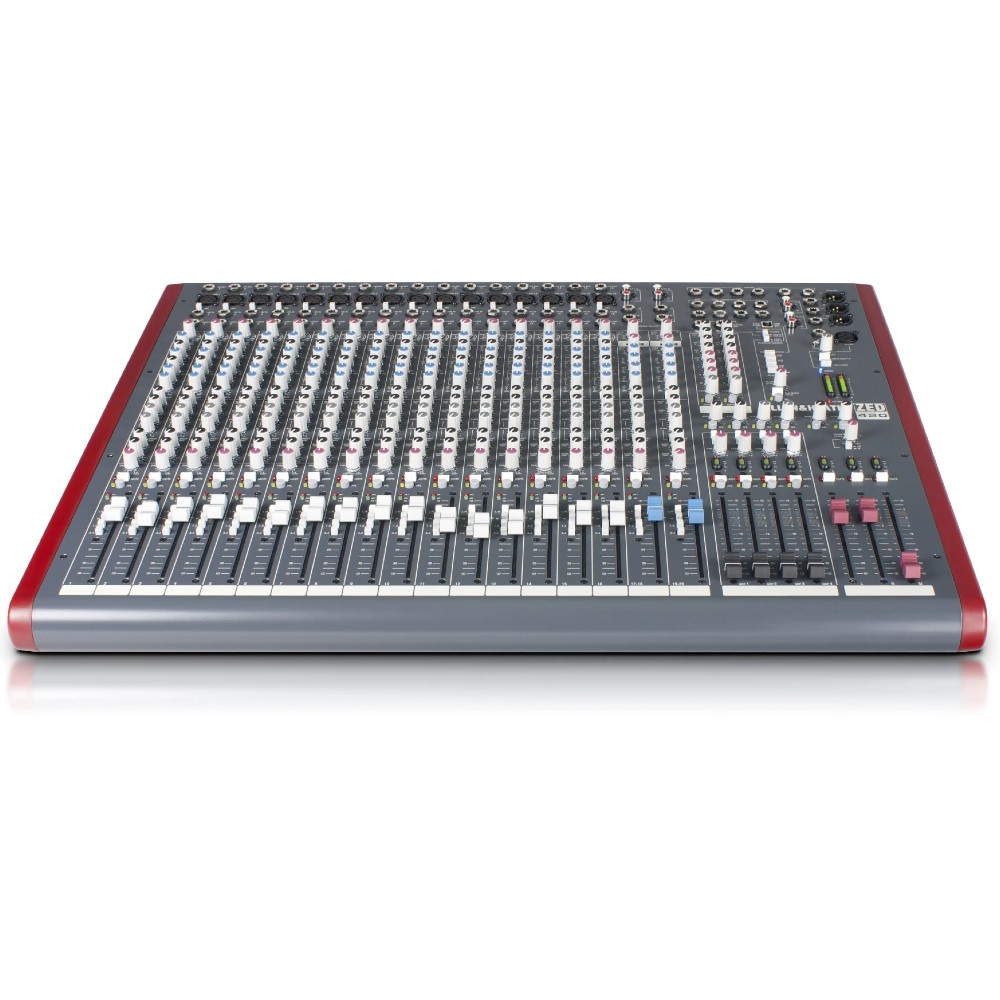

Allen & Heath ZED2042 16-Channel Mixer with USB

SKU: E-1-1074

Brand:
Allen & Heath

Category:
Pro-Audio

Sub-Category:
Mixers

ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

PHP 75,800.00

This product is currently out of stock.

ZED-420 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-420 has Configurable USB audio in/out makes it easy to capture stereo recordings, 16 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

USB AUDIO FLEXIBILITY
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac.

Switches and connection through jack socket terminals provide different send/return configurations:

SEND OPTIONS
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 5-6
5) Matrix 1-2.

RETURN OPTIONS
1) To Playback input
2) To Stereo 3 channel

MUSIQ
ZED-420 has a tuned 4-band EQ taken from the acclaimed GL2200 mixer, utilising MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

DUOPRE
Based on the proven pre-amps from the hugely successful PA series, ZED-420 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

16 Mono and 2 Stereo Channels

16 x XLR Mic Inputs with Phantom Power

16 x 1/4" Line Inputs

4-Band EQ per Channel

Inserts & Direct Outputs

Long-Throw 100mm Faders

Stereo USB I/O

Main, Group, Matrix & Headphone Outputs

Aux Sends & Returns, 2-Track RCA I/O

Multi-Segment Main & Group Output Meters

Dimension : 72 x 56.5 x 13
