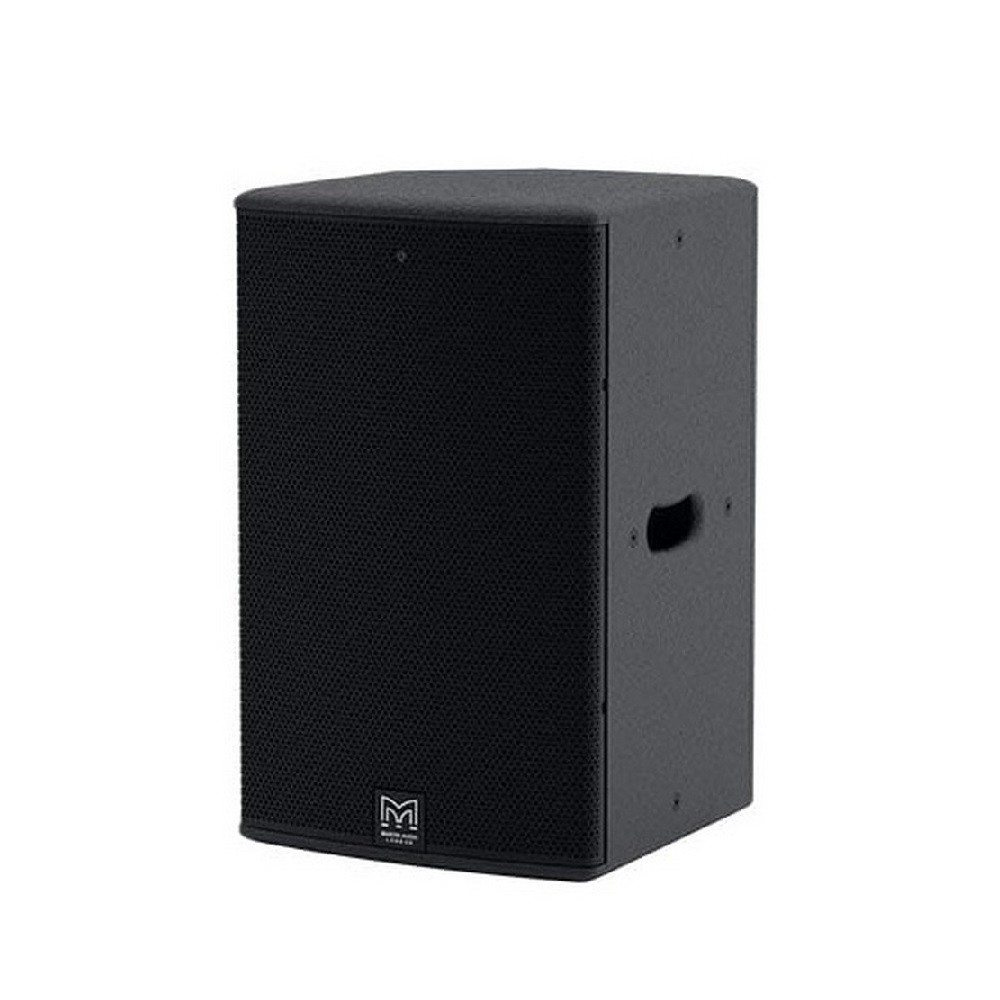

Martin Audio CDD-LIVE 12 12-inch 2500W Powered Loudspeaker

SKU: E-5-791

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Speakers

Featuring a high-specification 12 inch (300mm) LF/1 inch (25mm) exit HF Coaxial Differential Dispersion driver, it delivers more consistent audience coverage than a conventional system with a fixed X° x Y° coverage pattern and has wide 110° horizontal coverage close-up. The innovative CDD technology also achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. A self-powered system, the CDD-LIVE 12 incorporates a two-channel Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W LF + 500W HF peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz.

PHP 225,900.00

The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure. With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements — from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.

Compact, self-powered two-way system
Coaxial Differential Dispersion™ technology
Onboard Class D amplification and DSP
Dante™ Digital Audio networking
Global mains operation with Power Factor Correction
User-rotatable CDD™ driver
Vertical and horizontal mounting options
Tour-grade, multi-angle plywood enclosure
IP24 rating option with rain cowl
Comprehensive mounting accessories

ACOUSTICS
TYPE : Compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY
RESPONSE (1): 62Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 12 inch (300mm)/2.5 inch (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1 inch (25mm) exit/1.7 inch (44mm) voice coil, polyimide dome compression driver
INPUT SENSITIVITY: -30dBu for 100dB SPL
MAXIMUM SPL (2): 122dB continuous / 128dB peak
DISPERSION: 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER: 1.5kHz Active LR8 with low latency HF FIR equalisation
Balance presets for pole mount/ pole mount with sub/ stage monitor

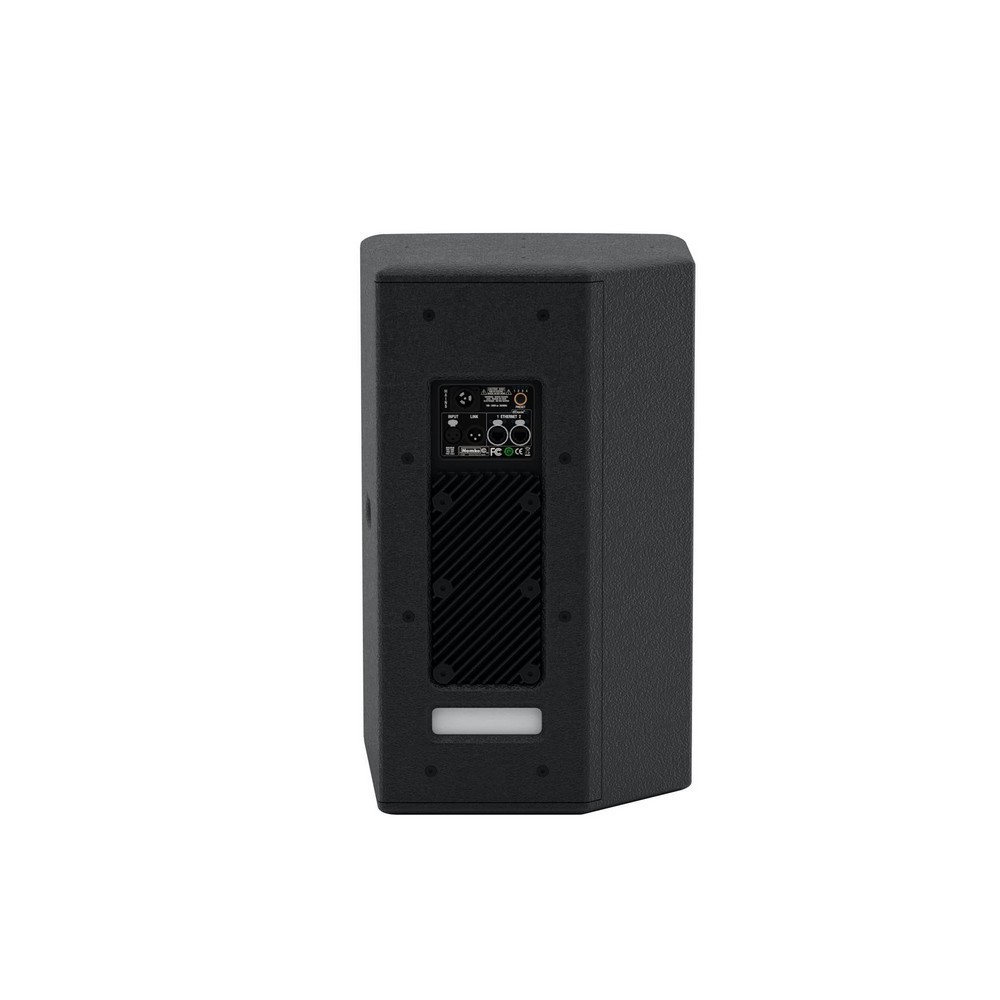

MODULE
AUDIO INPUT
CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground
MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
INTERNAL PROCESSING: Multi-channel DSP, programmable via TCP/IP using VU-Net software
PEQ/shelving filters
Up to 48dB/Oct HPF
Low latency HF FIR filters
Up to 200ms input delay
Pre-set selection via rear panel switch
NETWORK
CONNECTORS: 2xNeutrik® Ethercon
PROTOCOL: TCP/IP and UDP/IP
AMPLIFIER
TYPE: 2 channel switch-mode, class D,
Bridged Tied Load + 1 channel switch-mode, class D
PEAK OUTPUT POWER: 2500W total
2000W LF, 500W HF
AVERAGE EFFICIENCY: 89%
COOLING: External convection cooled, with internal fan
MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output
POWER SUPPLY
TYPE: Switch mode, fixed frequency with PFC
AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz
POWER FACTOR: > 0.98
NOMINAL POWER CONSUMPTION: 160W
MAINS CONNECTOR: Neutrik® Powercon True1
MECHANICAL
ENCLOSURE: Extensively braced multi-laminate plywood.
FINISH: Textured black PU coating.
PROTECTIVE GRILLE: HEX perforated mild steel with protective zinc plating and black powder
coat finish. Backed with black grille cloth.
FITTINGS: Top hat for pole mounting
15 x M8 mounting points
Two side pocket handles
Optional weather protection cowl
IP RATING: IP24 factory option available
DIMENSIONS: (W) 359mm x (H) 580mm x (D) 373mm
(W) 14.13in x (H) 22.83in x (D) 14.69in
WEIGHT: 28kg (61.6lbs) excluding Transit cover
ACCESSORIES: Transit Cover Optional wall, yoke and universal brackets
