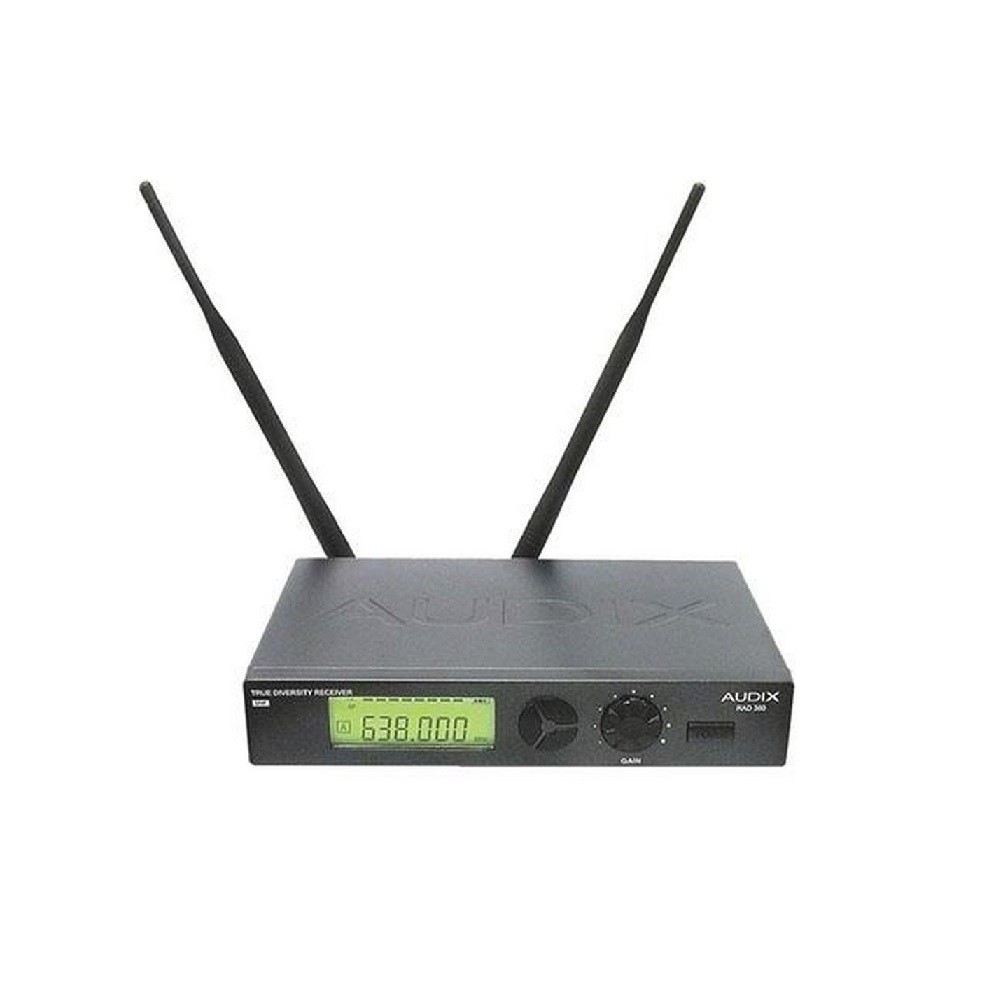

Audix RAD360-R UHF Diversity Receiver for Audix RAD360 Wireless Microphone System with Antenna Booster Kit

SKU: E-6-360

Brand:
Audix

Category:
Pro-Audio

Sub-Category:

The Audix RAD360-R is a UHF diversity receiver for the Audix RAD360 wireless microphone system. The UHF receiver features diversity reception and over 193 user selectable frequencies. The diversity reception incorporates twin receiver circuits for optimum results with minimal drop out and radio frequency (RF) interference. The rear of the unit reveals balanced and unbalanced outputs for complete compatibility. A comprehensive LCD display provides channel and frequency information and more.

PHP 21,400.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The Audix RAD360-R is a UHF diversity receiver for the Audix RAD360 wireless microphone system. The UHF receiver features diversity reception and over 193 user selectable frequencies. The diversity reception incorporates twin receiver circuits for optimum results with minimal drop out and radio frequency (RF) interference. The rear of the unit reveals balanced and unbalanced outputs for complete compatibility. A comprehensive LCD display provides channel and frequency information and more.

Frequency Agile

  • The RAD360-R receiver features up to 193 selectable UHF frequencies.
  • Diversity Reception
  • Diversity reception utilizes twin receiver circuits for maximum reliability and minimal drop out.
  • Easy Set Up and Control
  • Soft-key controls and menu driven display enables quick set up and control over parameters.

Audix R360-R Specifications:

  • Type of Receiver: RAD360-R Diversity
  • RF Carrier Frequency Range: (Channel R) 638MHz - 804MHz
  • Approx. Working Range: 200' Minimum
  • Overall Frequency Response: 20Hz to 20kHz
  • Signal-to-Noise Ratio: 95dB @ 10kHz Deviation (IEC-weighted)
  • # Of Channels: 193
  • Type of Output(s): Balanced 3-pin XLR

Unbalanced 1/4" Phone

  • Headphone Monitoring: No
  • Power Requirements: 120V AC 60Hz; 12-18V DC, 350 mA, with external power supply
  • Battery Type/Approx. Life: None
  • Display: LCD
  • Mounting Options: Optional RM1 and RM2 single and dual rackmount kits
  • Antenna Type: x2 3/4 Wave whip antenna
  • Dimensions: 8.35 x 1.1 x 6.5" (212 x 38 x 165mm) (WxHxD)
  • Weight: 7.5 oz (212 g)
