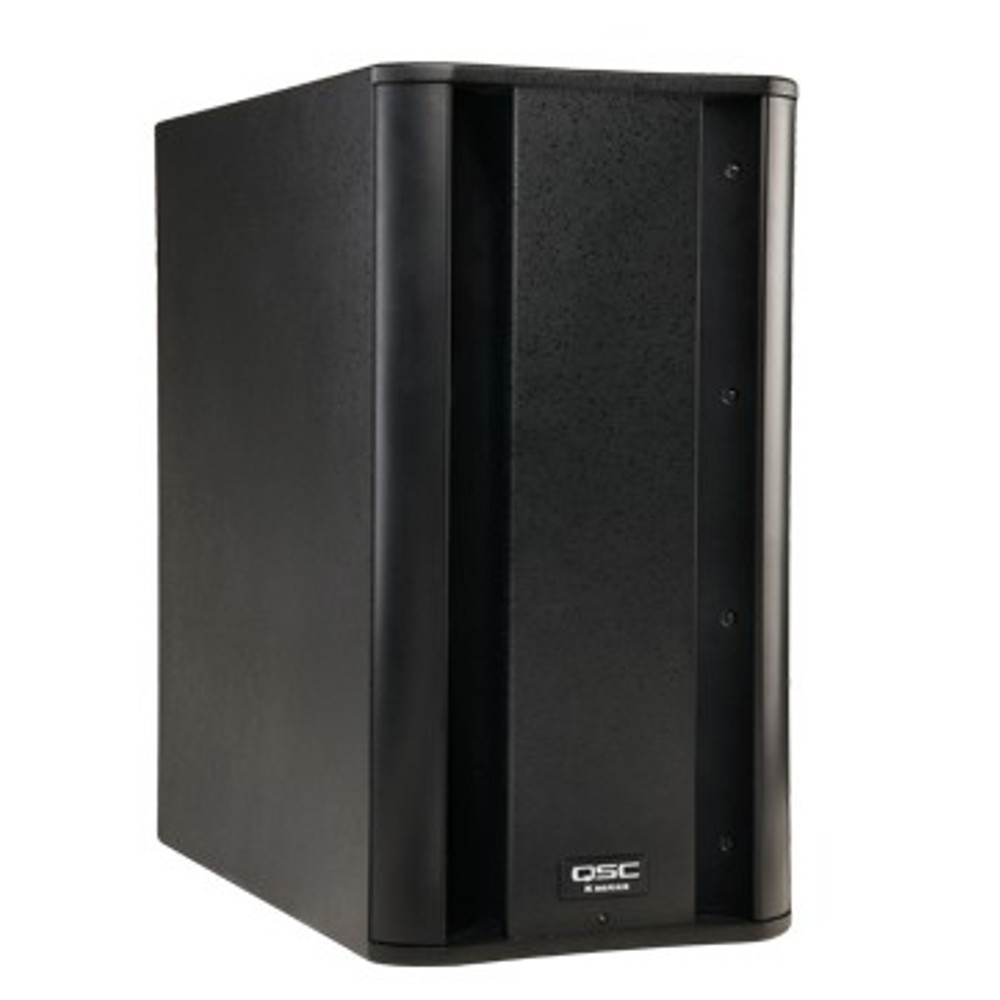

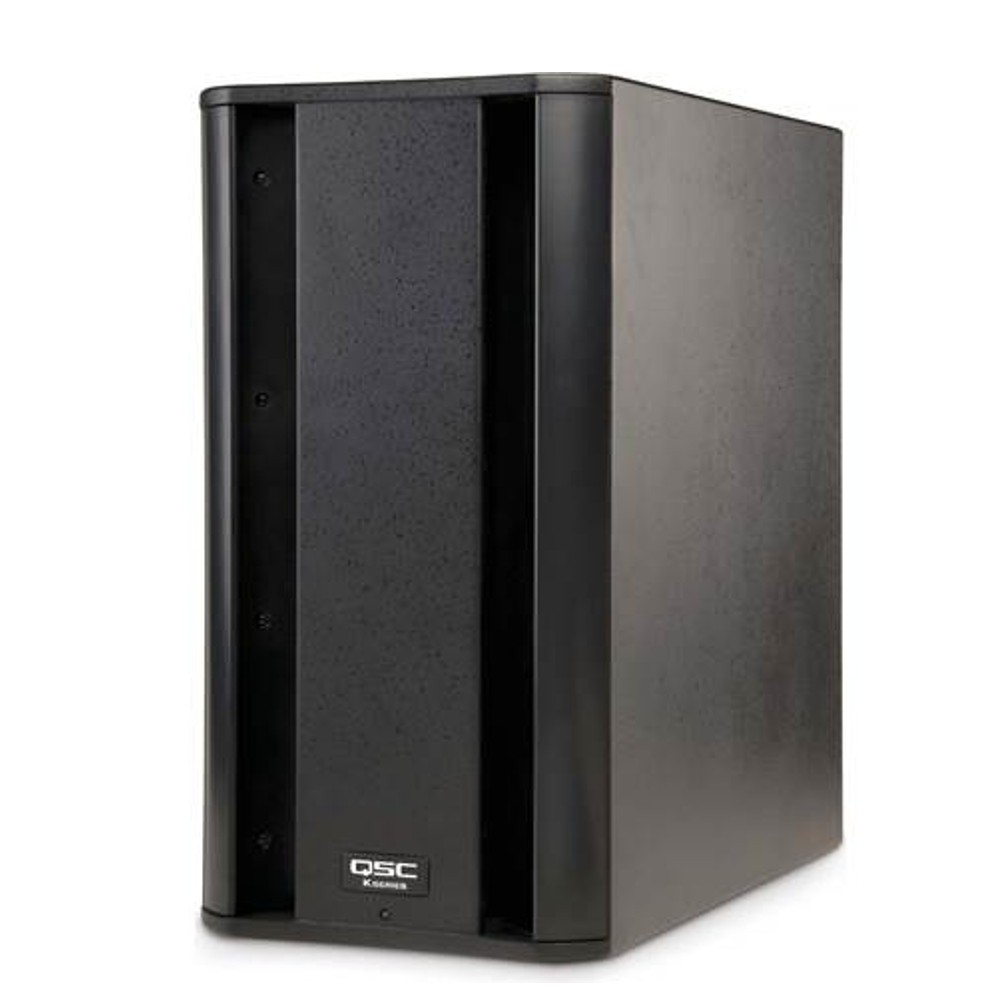

QSC KSub 1000W Dual 12 inch Powered Subwoofer

SKU: E-5-685

Brand:
QSC

Category:
Pro-Audio

Sub-Category:
Subwoofers

The QSC K Series is quite simply The New Standard in lightweight powered loudspeaker systems. For starters, each of the four models features an all new, Pat Quilter designed 1000 watt continuous QSC Class D power module. Next, breaking from the traditional loudspeaker paradigm, every model is fitted with the identical 1.75" HF device (full-range models) and woofers of the same high quality for unparalleled performance, regardless of speaker size

PHP 84,450.00

This product is currently out of stock.

Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system's size and weight. Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications. Combo XLR and 1/4"" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for daisychaining of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility. On-board switches provide preset EQ settings.

The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEP for additional bass extension, or EXT SUB (full-range models) for use with an external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation. Full-range models are housed in rugged ABS enclosures with a professional appearance that is at home in any application.

ABS is a far more robust material than conventional speaker plastics and offers an additional measure of sonic clarity due to its internal rigidity. Ergonomic aluminum handles and a highly protective steel grille complete the package for ease of transport and long term durability. The K Series full-range models feature a unique Tilt-Direct pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. Integrated M10 suspension points allow for suspended applications with a K SERIES M10 KIT (sold separately) or Yoke bracket (sold separately).

The KSub is a dual-12" bandpass design, constructed of premium birch and includes high-quality, low-noise casters. The subwoofer features a threaded pole receptacle for a positive, wobble free connection to a threaded speaker pole (included). Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Euroblock connector. In an installed application, multiple K Series speakers can be daisy-chained for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.

Extensive DSP
DMT (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural dead or hot frequency zones.
Intrinsic Correction, first featured in our high-end line-array products maps 65-75 spacially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target. The result is a speaker that behaves equally well across the entire sound field.
DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
GuardRail protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.

Specifications: KSub
Configuration 4th-order bandpass
Transducers
Low-frequency
2 × 12"" cone transducers
Frequency Response (-6 dB) 48 Hz - 134 Hz
Frequency Range (-10 dB) 44 Hz - 148 Hz
Maximum SPL1 130 dB peak
Amplifiers
Power Output2 1000 W continuous Class D (2 × 500 W)
2000 W peak
Input Impedance XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced
Controls Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit
Connectors Dual balanced female XLR/¼"" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz
AC Power Consumption
(1/8 of full power) 100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material Painted birch plywood
Finish Black textured paint
Dimensions (HWD) inches 26 × 14 × 28.1
(including casters)
Dimensions (HWD) mm 665 x 356 x 714
(including casters)
Weight (Net) 74 lb / 33.6 kg
Available accessories KSub cover
