Allen & Heath IPS10 Back Up Power Supply For iLive

SKU: E-3-374

Brand:
Allen & Heath

Category:
Pro-Audio

Sub-Category:

2U 19 rack-mount redundant switch-mode power supply. Compatible with all iLive modular surfaces (iLive80, iLive112, iLive114 and iLive176), the iDR0 MixRack, the XDR-16 expander and all fixed format MixRacks (iDR-16, iDR-32, iDR-48 and iDR-64).

PHP 94,500.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

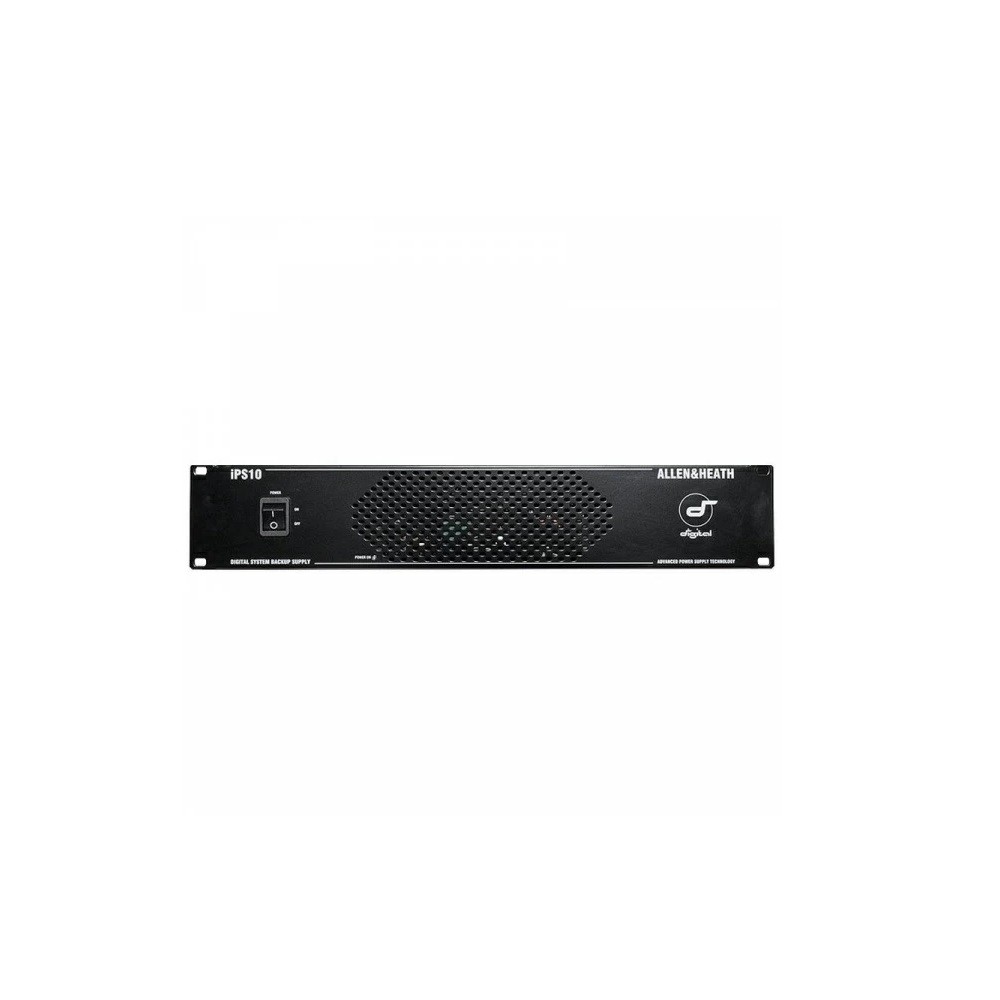

The slimline, 2U rack mountable iPS10 power supply unit is a high performance, low noise, universal mains voltage, switched mode power supply producing the DC voltages required to run the iLive Surface or IDR0MiniRack. It is available as an option to provide redundant backup of the internal mains power supplies fitted in these iLive components. The iLive will operate with either or both supplies switched on.

Two connecting cables are required between the iPS10 and iLive. The power unit produces 5 different DC voltages and has three independent ground connections. These connect to the iLive via a 2.8 meter long multicoreDC cable fitted with 10-pin circular locking connectors. Voltage rail protection, thermal sensing and fan cooling ensure the power supply unit will operate consistently. The power unit temperature information connects to the iLive via 2.8 meter long CAT5 cable. Current status may be viewed by the operator on the iLive Surface TouchScreen.

Technology Switched mode with power factor correction
Mains input IEC connector
Mains voltage 85 to 250V AC, 47 to 63 Hz ~
Power consumption 320W max
Mains fuse T5AL 250V 20mm.
DC voltage rails +8, +18, -18, +24, +57 V DC
DC output 10-pin female circular chassis mounted socket
Temperature sense RJ45 connector
DC cable 2.8m multicore male to female. A&H part number 003-576
Temperature cable 2.8m CAT5 RJ45. A&H part number AH6831
Protection Under voltage detection and thermal sensing
Cooling Fan assisted. Thermal shutdown at 85 degrees C
Installation 2U rack mount (integral ears) or free standing (plastic feet fitted)
Dimensions Rack mounted 482 x 310 x 88mm (2U) 19" x 12.2" x 3.46"
Free standing 482 x 310 x 92mm (including feet) 19" x 12.2" x 3.6"
Minimum clearance at rear for connectors 64mm (2.5") min
Packed 580 x 510 x 210mm 22.9" x 20-" x 8.3"
Weight Unpacked 7 kg (15.4 lbs) Packed 8.5 kg (18.7 lbs)
