Allen & Heath DT20-M Dante Input Interface (No Power Supply)

SKU: E-3-920

Brand:
Allen & Heath

Category:
Recording

Sub-Category:
Recording Interfaces

Key Features 48 kHz / 96 kHz Two Combo XLR-1/4" Mic/Line Inputs PoE Powered or 12 VDC Power Supply Not Included Local Gain Control 8V Phantom Power with LED Indicator EtherCon Connector Rugged Aluminum Enclosure AES67 Compatible Dante Domain Manager Ready

PHP 22,250.00

This product is currently out of stock.

Allen & Heath DT20 Overview

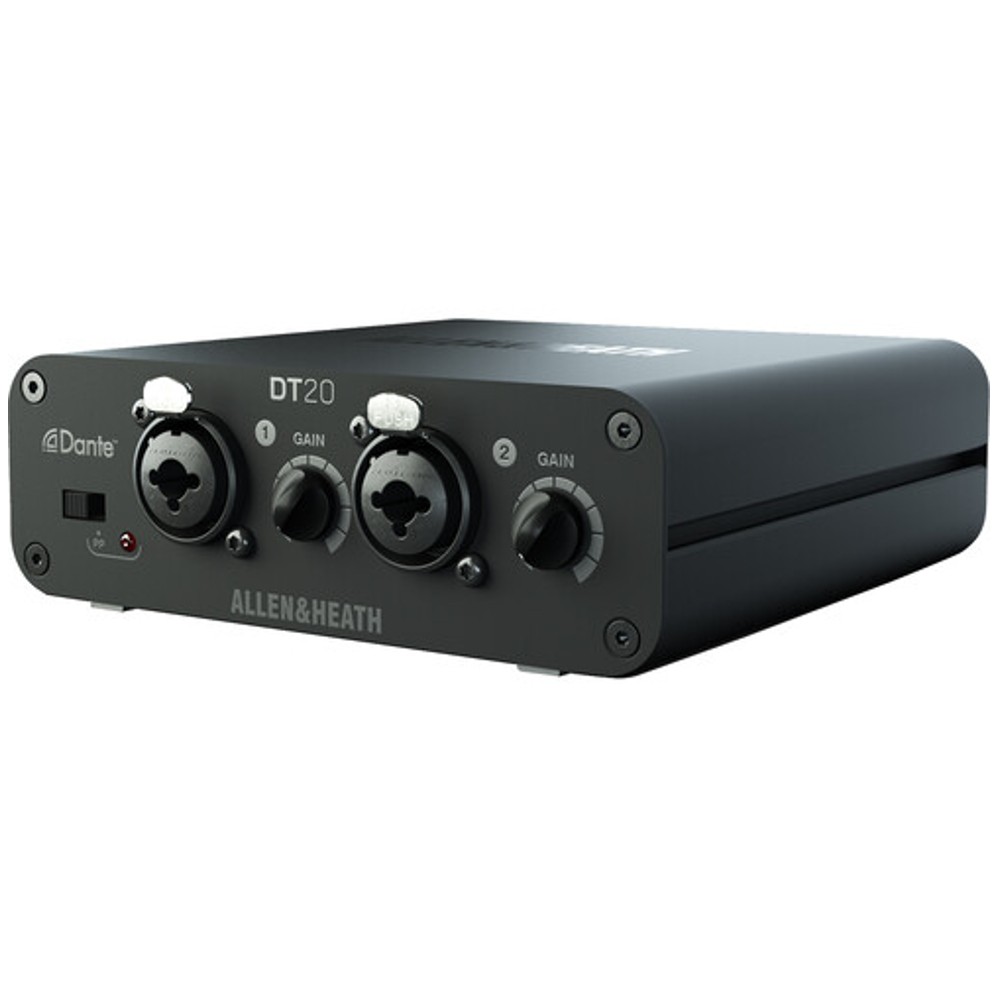

Audio professionals in need of a portable and rugged Dante input interface will appreciate the Allen & Heath DT20-M, a cost-effective, compact 48/96 kHz Dante interface enabling two combo XLR-1/4" mic/line inputs with 48V phantom power, ideal for a variety of fixed installation and AV / hire / portable applications. The unit is designed to be used with any Dante-equipped Allen & Heath mixer or AHM system as well as with third-party Dante systems. The DT-20-M can be powered with a 12 VDC power supply (not included) or via PoE.

The DT20-M is housed in a compact, rugged aluminum enclosure and can be easily mounted under a table, podium, etc. for local mic connections. Should you wish to rackmount the DT20-M, separately sold rack ears and a rackmount kit are available.

  • Dante output interface, 48/96 kHz

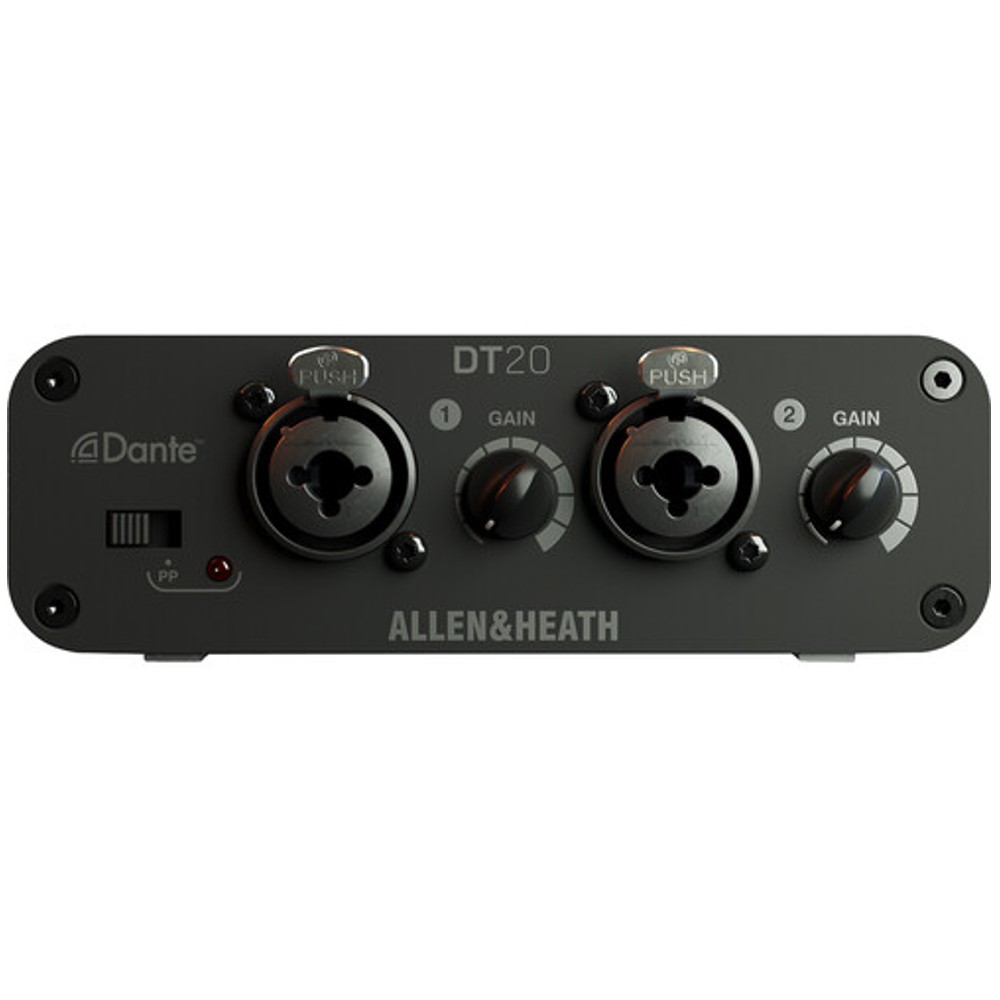

  • Two combo mic/line inputs
  • Local gain control
  • 48V phantom power with LED indicator
  • PoE powered or 12 VDC power supply (not included)

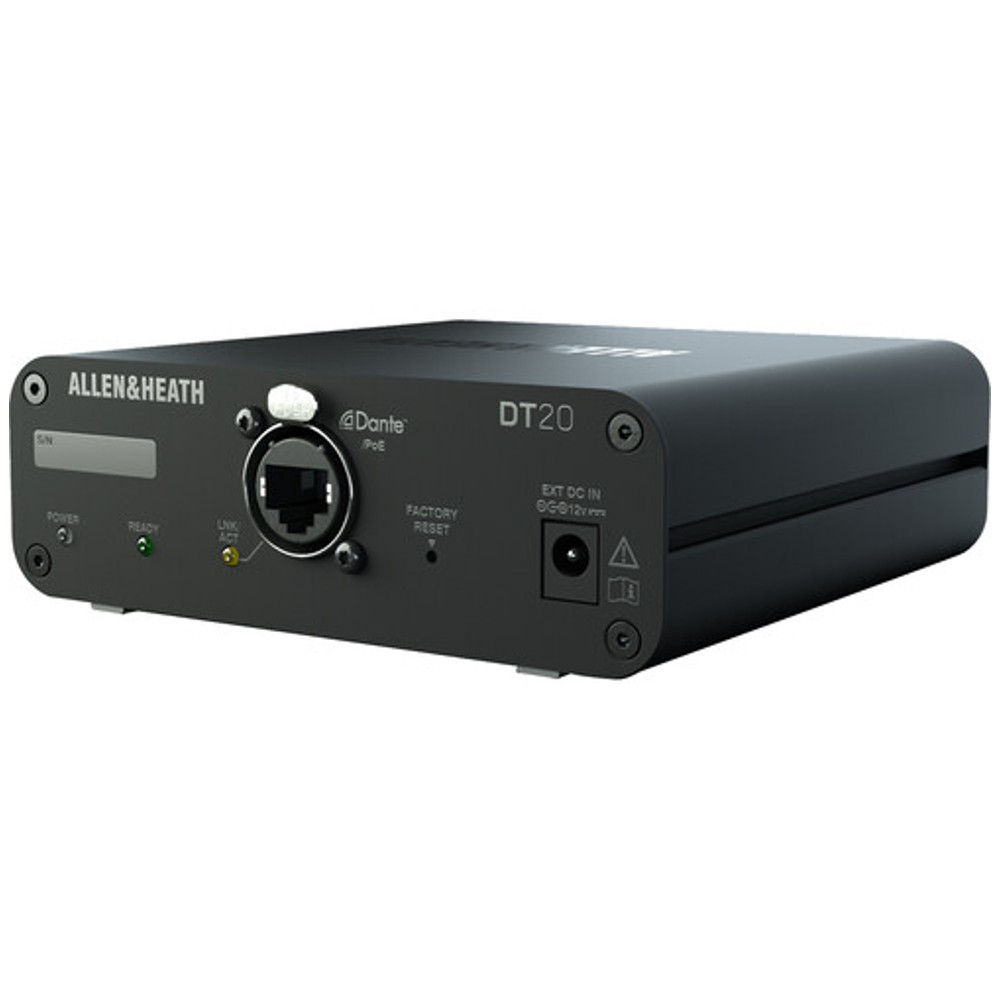

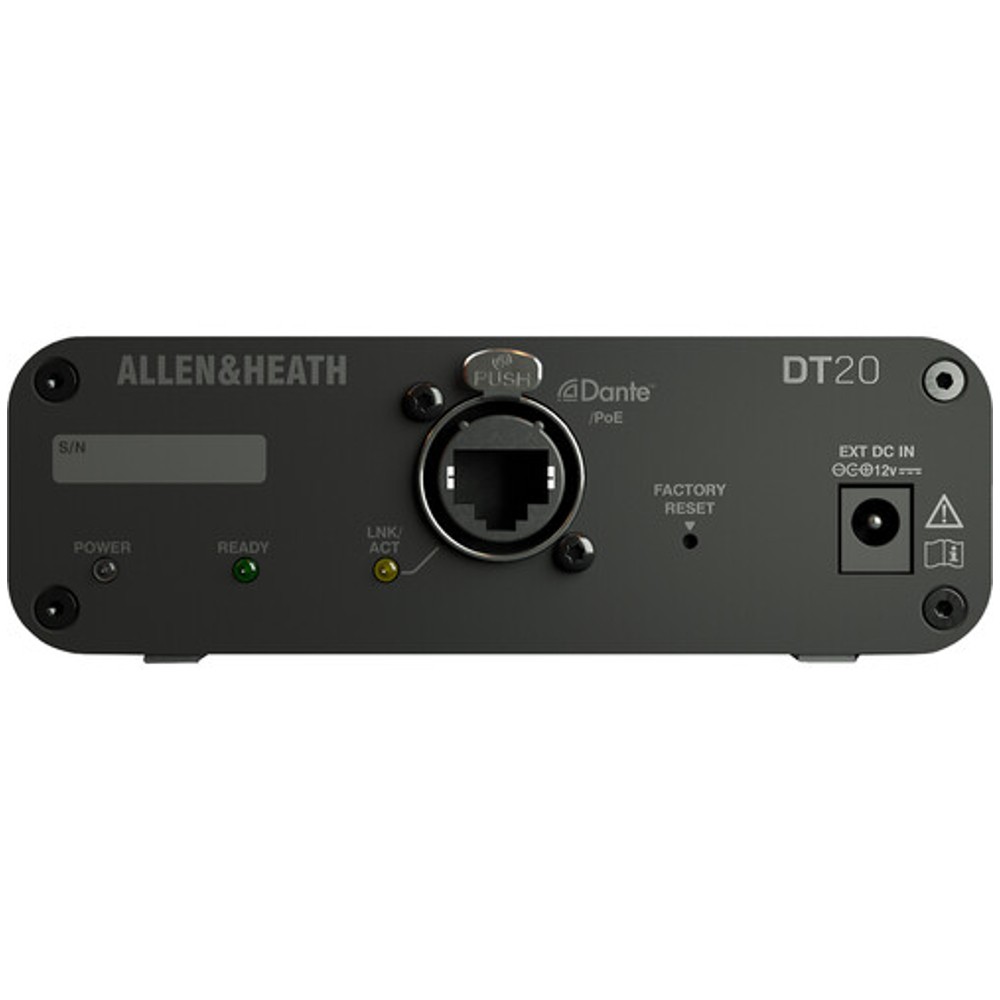

  • EtherCon connector
  • Rugged aluminum box
  • Optional ears for surface mounting DT-SMK
  • Optional rack-mounting kit DT-RK19
  • AES67 compatible
  • Dante Domain Manager ready

Mic/Line Inputs:

  • Mic Inputs : Balanced XLR, +48 Phontom
  • Analog Gain: 0 to +55 dB
  • Line Inputs: Balanced TRS, -20dB Pad
  • Maximum Input Level: +30 dBu (TRS In)
  • Input Impedance: >4 Kilohms (XLR), >10 Kilohms (TRS)

Dante:

  • 48/96 kHz

Operating Temperature:

  • 32 to 104°F / 0 to 40°C

Power:

  • PoE: Power over Ethernet
  • PoE Requirements: 802.3af 15 W
  • DC Input: +12VDC, 1.25 A
  • Power Consumption: 10 W Maximum
  • Note: Power Supply Not Included

Dimension:

  • 13 x 13.7 x 4.3
